Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

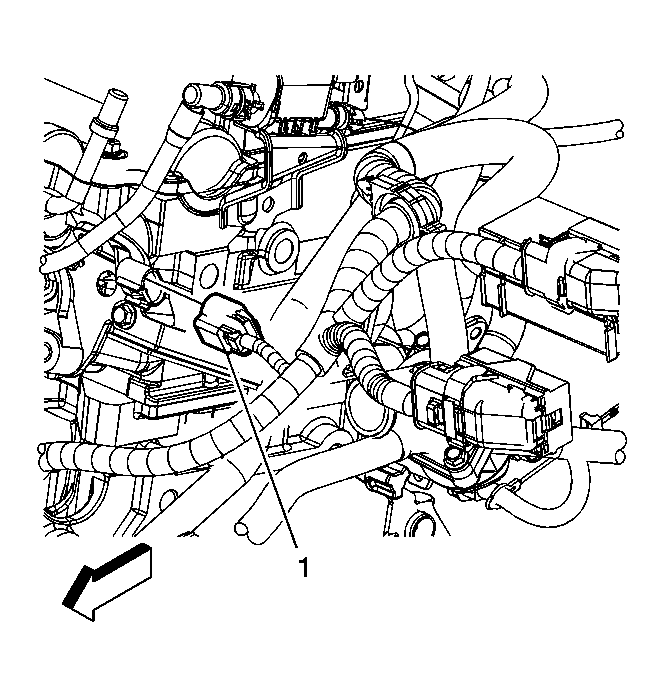

    Fig 1: View of intake manifold cover
    GM1751025Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Disconnect the engine wiring harness electrical connector (1) from the intake camshaft position (CMP) sensor.
    3. Fig 2: Identifying CMP Sensor
    GM1578483Courtesy of GENERAL MOTORS CORP.
  3. Remove the CMP sensor bolt.
  4. Remove the CMP sensor.
