Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the outlet duct clamp at the air cleaner assembly.

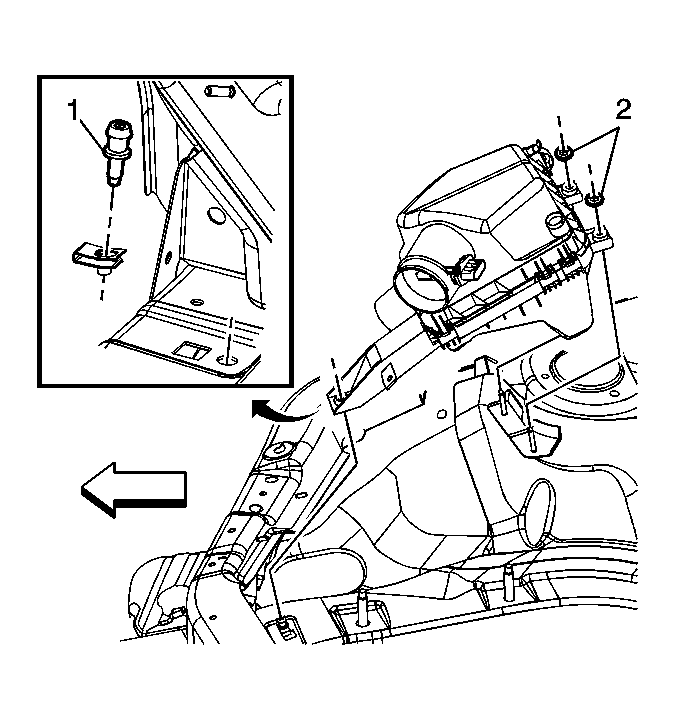

    2. Fig 1: View Of Push Pin
    GM1601304Courtesy of GENERAL MOTORS CORP.
  2. Remove the push pin (1).
  3. Remove the air cleaner mounting nuts (2).
  4. Remove the air cleaner.
