Vacuum Brake Booster Check Valve and/or Hose Replacement (2.4L)
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Vacuum Brake Booster Check Valve and/or Hose Replacement (2.4L)

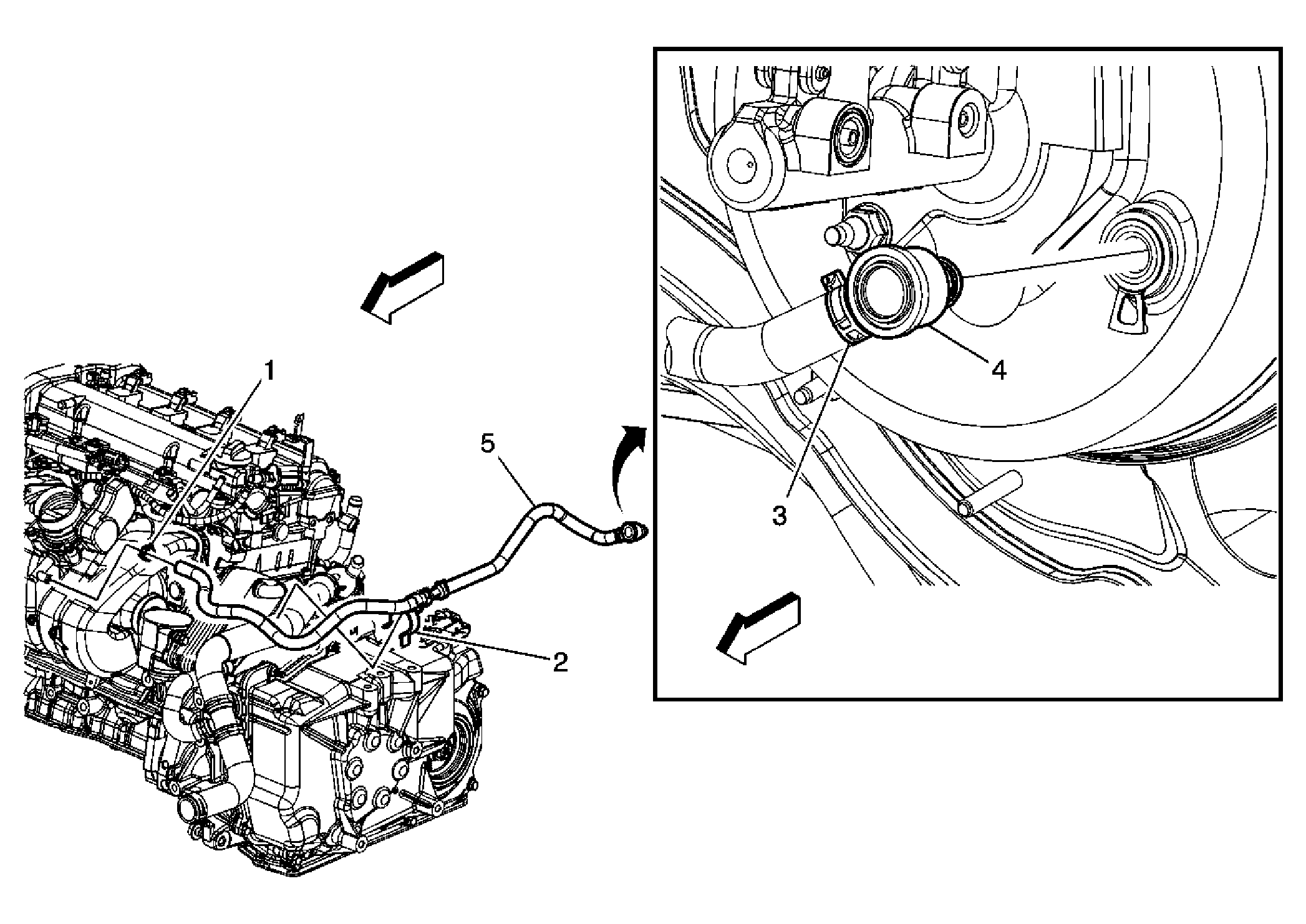

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Clamp, Brake Booster Vacuum Hose |
| 2 | Bracket, Brake Booster Vacuum Hose Retaining Tip: Ensure that the retaining bracket is properly positioned when routing the brake booster vacuum hose. |
| 3 | Clamp, Brake Booster Vacuum Hose |
| 4 | Valve, Brake Booster Check |
| 5 | Hose, Brake Booster Vacuum Tip: Ensure that the vacuum hose is routed correctly so as not to interferer with the coolant hoses or the coolant reservoir tank. |
