Brake Pressure Modulator Valve Bracket Replacement

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

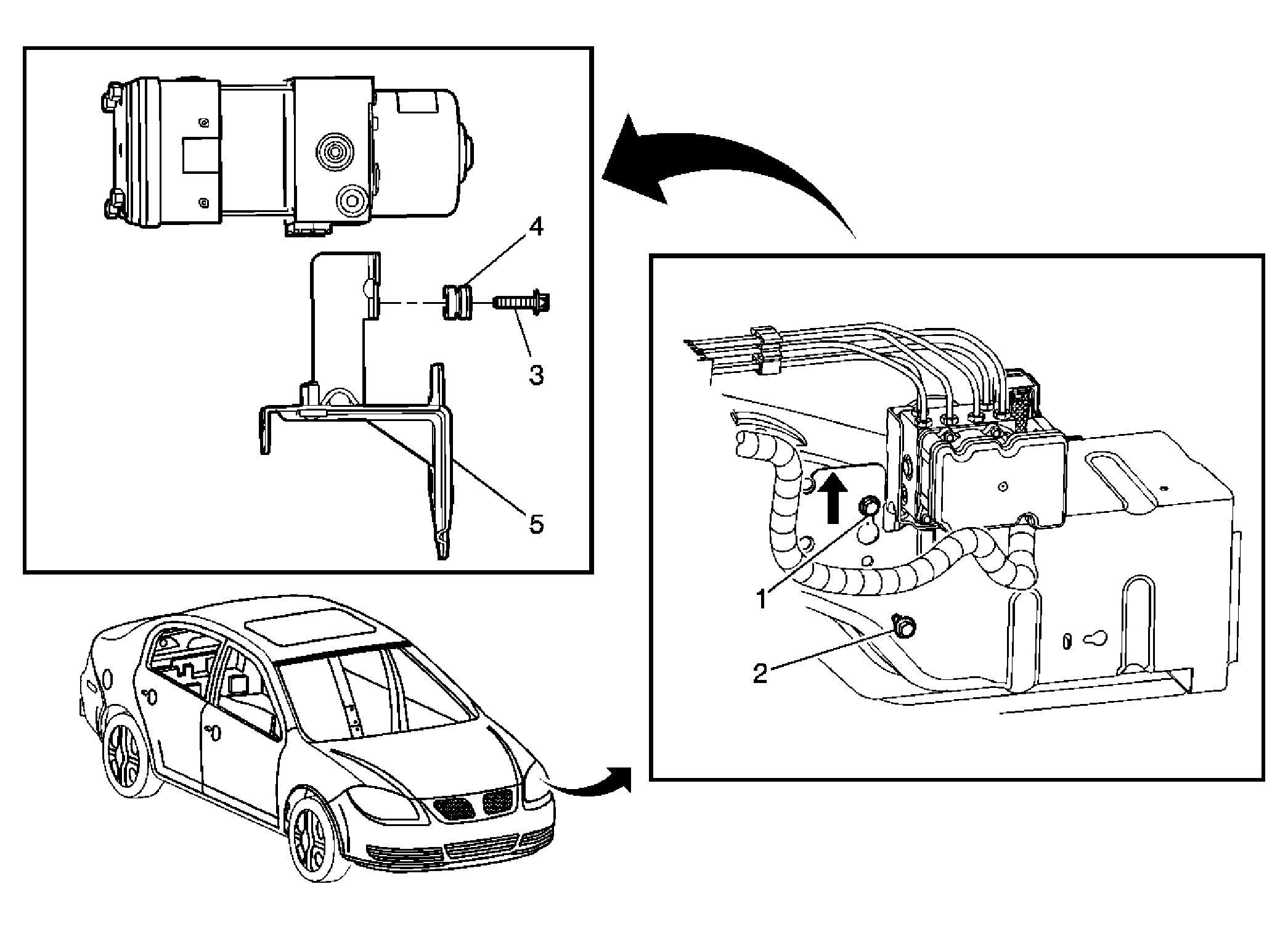

Fig 1: Brake Pressure Modulator Valve Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . IMPORTANT: Provide support for the brake pressure modulator valve (BPMV) assembly while removing the BPMV bracket. Preliminary Procedure: If equipped with RPO LSJ, remove the throttle body air snorkel.
1	Bolt, Brake Pressure Modulator Valve Bracket Tip: Loosen upper bolt but do not remove. Tighten: 25 N.m (18 lb ft)
2	Bolt, Engine Control Module Bracket (Qty: 2) Tighten: 12 N.m (106 lb in)
3	Bolt, Brake Pressure Modulator Valve-to-Bracket Tighten: 5.6 N.m (50 lb in)
4	Insulator, Brake Pressure Modulator Valve Tip: Inspect both the upper and lower insulators for excessive wear and/or damage. Replace the insulators if necessary.
5	Bracket, Brake Pressure Modulator Valve Tip: The bracket upper mounting hole is a key hole slot design. Lift the bracket slightly to release it from the remaining bolt.
