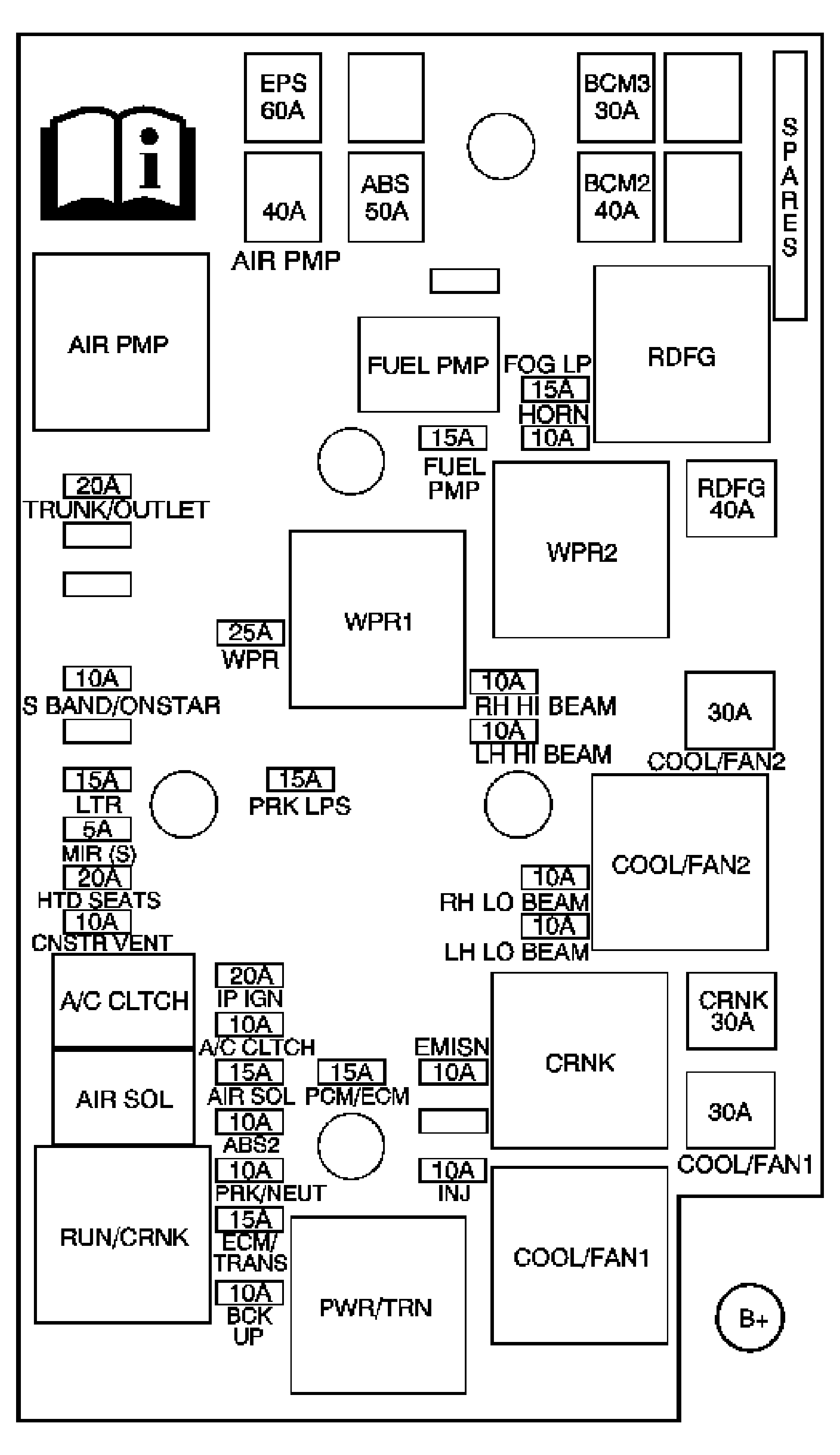

Fuse Block - Underhood Label (L61 2.2L/LE5 2.4L)
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Fuse Block - Underhood Label (L61 2.2L/LE5 2.4L) Connector & Terminal Parts Information
| Device | Rating | Description |
|---|---|---|
| A/C CLTCH Fuse | 10A | A/C Compressor Clutch (C60) |
| A/C CLTCH Relay | - | A/C CLTCH Fuse |
| AIR SOL Fuse | 15A | Secondary Air Injection (AIR) Solenoid (w/NU6) |
| AIR SOL Relay | - | AIR SOL(w/NU6) |
| ABS Fuse | 50A | Electronic Brake Control Module (EBCM) |
| ABS 2 Fuse | 10A | Electronic Brake Control Module (EBCM) |
| AIR PMP | 40A | AIR PMP |
| AIR PMP Relay | - | AIR PMP Relay |
| BCK UP Fuse | 10A | Back Up Lamp Switch (M/T), Park Neutral Position (PNP) Switch (A/T) |
| BCM 2 Fuse | 40A | Body Control Module (BCM) |
| BCM 3 Fuse | 30A | Body Control Module (BCM) |
| CNSTR VENT Fuse | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid |
| COOL/FAN1 Fuse | 30A | Cooling Fan 1 |
| COOL/FAN2 Fuse | 30A | Cooling Fan 2 |
| COOL/FAN 1 Relay | - | Cooling Fan |
| COOLING FAN 2 Relay | - | Cooling Fan |
| CRNK Fuse | 30A | Crank Relay |
| CRNK Relay | - | Starter |
| ECM/TRANS Fuse | 15A | Transmission Control Module (TCM), Engine Control Module (ECM) (L61) |
| EMISN Fuse | 10A | Heated Oxygen Sensor (HO2S) Sensor 1, Heated Oxygen Sensor (HO2S) Sensor 2, Evaporative Emission (EVAP) Canister Purge Solenoid, Clutch Pedal Position (CPP) Switch, Mass Air Flow (MAF).Inlet Air Temperature (IAT) Sensor |
| EPS Fuse | 60A | Electric Power Steering Control Module |
| FOG LP Fuse | 15A | LF Fog Lamp, RF Fog Lamp |
| FUEL PMP Fuse | 15A | Fuel Pump and Sender Assembly |
| FUEL PMP Relay | - | FUEL PUMP Fuse, Fuel Pump and Sender Assembly |
| HORN | 10A | Horn |
| HTD SEATS Fuse | 20A | Heated Seat Module - Driver, Heated Seat Module - Passenger |
| INJ Fuse | 10A | Fuel Injector 1, Fuel Injector 2, Fuel Injector 3, Fuel Injector 4, Ignition Control Module (ICM) |
| IP IGN Fuse | 20A | Body Control Module |
| LH HI BEAM Fuse | 10A | Left Headlamp |
| LH LO BEAM Fuse | 10A | Left Headlamp |
| LTR Fuse | 15A | Cigar Lighter (DT4), Data Link Connector (DLC) |
| MIR (S) Fuse | 5A | Outside Rearview Mirror Switch (DG7) |
| PCM/ECM Fuse | 15A | Engine Control Module (ECM) |
| PRK LPS Fuse | 15A | Lamp Assembly - LF, Lamp Assembly - RF, Stop/Tail and Turn Signal Lamp - Left,Body Control Module (BCM), Side Marker Lamp - Left, Side Marker Lamp - Right, License Lamp, Stop/Tail and Turn Signal Lamp - Right |
| PRK/NEUT Fuse | 10A | Park Neutral Position (PNP) Switch (MN5) |
| PWR/TRN Relay | - | Power Train Relay |
| RH LO BEAM Fuse | 10A | Right Headlamp |
| RH HI BEAM Fuse | 10A | Right Headlamp |
| S BAND/ONSTAR Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1), Digital Radio Receiver (U2K) |
| RDFG Fuse | 40A | RDFG Relay |
| RDFG Relay | - | Rear Window Defogger Grid |
| RUN/CRNK Relay | - | ECM/TRANS Fuse, IP IGN Fuse, BCK UP Fuse, ABS Fuse, |
| TRUNK/OUTLET Fuse | 20A | TRUNK RELEASE PCB Relay, Auxiliary Power Outlet - Console |
| WPR Fuse | 25A | WPRr Relay |
| WPR 1 Relay | - | WPR 2 Relay |
| WPR 2 Relay | - | Windshield Wiper Motor |
| Printed Circuit Board (PCB) Relays - Not Serviceable | ||
| FOG LP PCB Relay | - | FOG LP Fuse |
| HI BEAM PCB Relay | - | LH HI BEAM Fuse, RH HI BEAM Fuse |
| HORN PCB Relay | - | HORN Fuse |
| LO BEAM PCB Relay | - | LH LO BEAM Fuse, RH LO BEAM Fuse |
| PRK LPS PCB Relay | - | PRK LPS Fuse |
| TRUNK RELEASE PCB Relay | - | Rear Compartment Lid Release Actuator |
