Body Control Module (BCM) Label
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

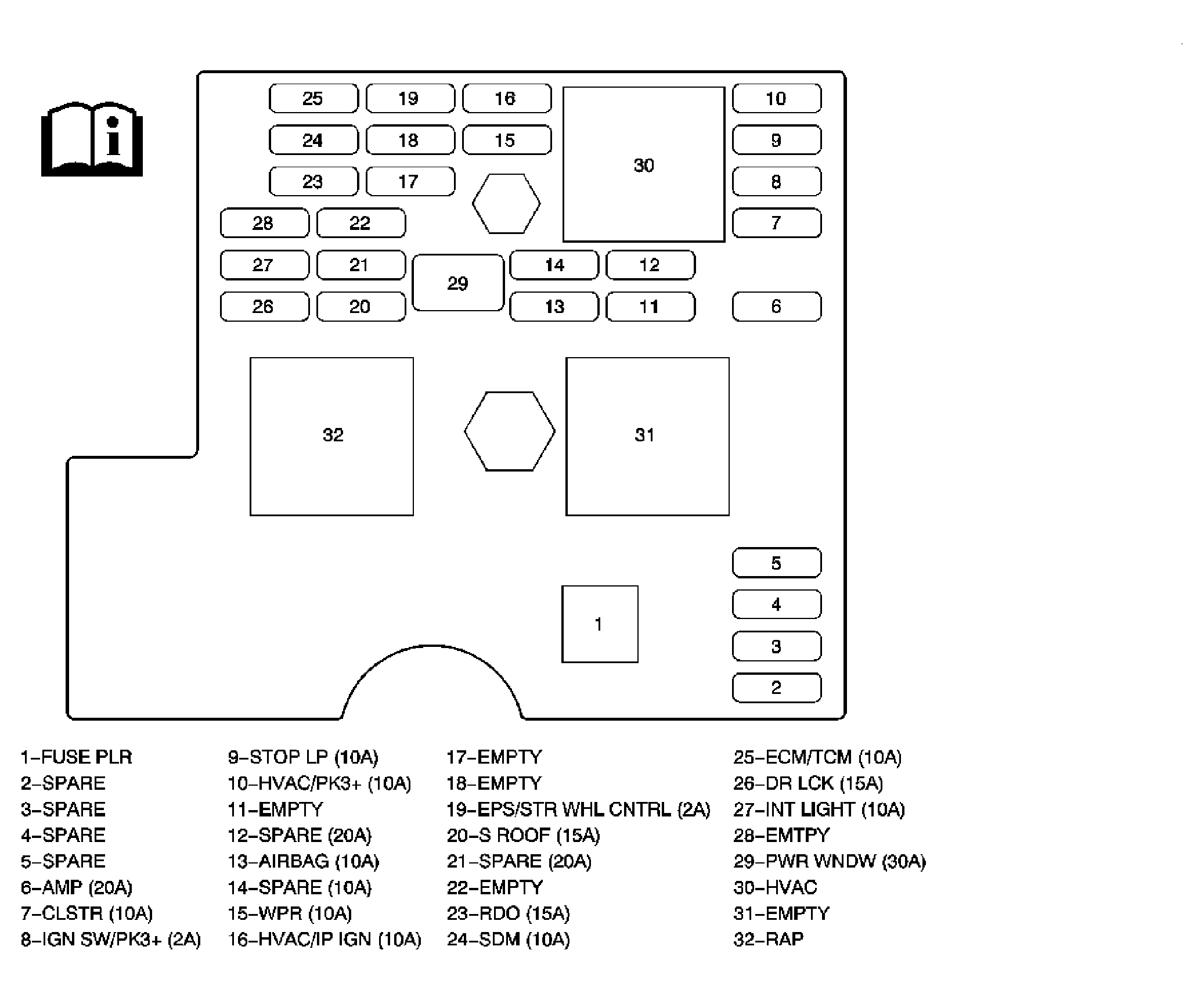

Body Control Module (BCM) Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | FUSE PULLER | - | - |
| 2 | SPARE | - | Not Used |
| 3 | SPARE | - | Not Used |
| 4 | SPARE | - | Not Used |
| 5 | SPARE | - | Not Used |
| 6 | AMP Fuse | 20A | Audio Amplifier (UQ3) |
| 7 | CLSTR Fuse | 10A | Instrument Panel Cluster (IPC) |
| 8 | IGN SW/PK3+ Fuse | 2A | Ignition Switch |
| 9 | STOP LP Fuse | 10A | Stop Lamp Switch |
| 10 | HVAC/PK3+ Fuse | 10A | HVAC Control Module, Theft Deterrent Control Module |
| 11 | EMPTY | - | - |
| 12 | SPARE | 20A | Not Used |
| 13 | AIRBAG Fuse | 10A | Inflatable Restraint Front Passenger Presence System (PPS) Module, Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 14 | SPARE | 10A | Not Used |
| 15 | WPR Fuse | 10A | Windshield Wiper/Washer Switch, Supercharger Boost Gage |
| 16 | HVAC/IP IGN Fuse | 10A | Clutch Pedal Start Switch (M/T), Instrument Panel Cluster (IPC), Heated Seat Switches (KA1), HVAC Control Module, Inflatable Restraint Passener Air Bag On/Off Indicator, Stop Lamp/TCC Cruise Release Switch |
| 17 | EMPTY | - | - |
| 18 | EMPTY | - | - |
| 19 | EPS/STR WHL CNTRL Fuse | 2A | Power Steering Control Module (PSCM), Steering Wheel Controls - Left (K34,UK3) |
| 20 | S ROOF Fuse | 15A | Inside Rearview Mirror (UE1), Sunroof Switch, |
| 21 | SPARE | 20A | Not Used |
| 22 | EMPTY | - | - |
| 23 | RDO Fuse | 15A | Radio, Remote Control Door Lock Receiver (RCDLR) (AU0) |
| 24 | SDM Fuse | 10A | Body Control Module (BCM), Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 25 | ECM/TCM Fuse | 10A | Engine Control Module (ECM)(L61), Powertrain Control Module (PCM) (LSJ), Transmission Control Module (TCM)(L61) |
| 26 | DR LCK Fuse | 15A | DOOR LOCK PCB Relay, DOOR UNLOCK PCB Relay, DR DOOR UNLOCK PCB Relay, INT LIGHT PCB Relay |
| 27 | INT LIGHT Fuse | 10A | INT LIGHT PCB Relay |
| 28 | EMPTY | - | - |
| 29 | PWR WNDW Fuse | 30A | Driver Window Switch, Front Passenger Window Switch |
| 30 | HVAC Relay | - | Blower Motor |
| 31 | EMPTY | - | - |
| 32 | RAP Relay | - | PWR WNDW Fuse 29, S ROOF Fuse 20 |
| Printed Circuit Board (PCB) Relays - Not Serviceable | |||
| - | INT LIGHT PCB Relay | - | Domp Lamp, Inside Rearview Mirror |
| - | DOOR LOCK PCB Relay | - | BCM Logic, Door Latches |
| - | DOOR UNLOCK PCB Relay | - | BCM Logic, Door Latches |
| - | DR DOOR UNLOCK PCB Relay | - | BCM Logic, Driver Door Latch |
| - | IGN 3 PCB Relay | - | Blower Motor |
