Body Control Module (BCM) - Bottom View

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

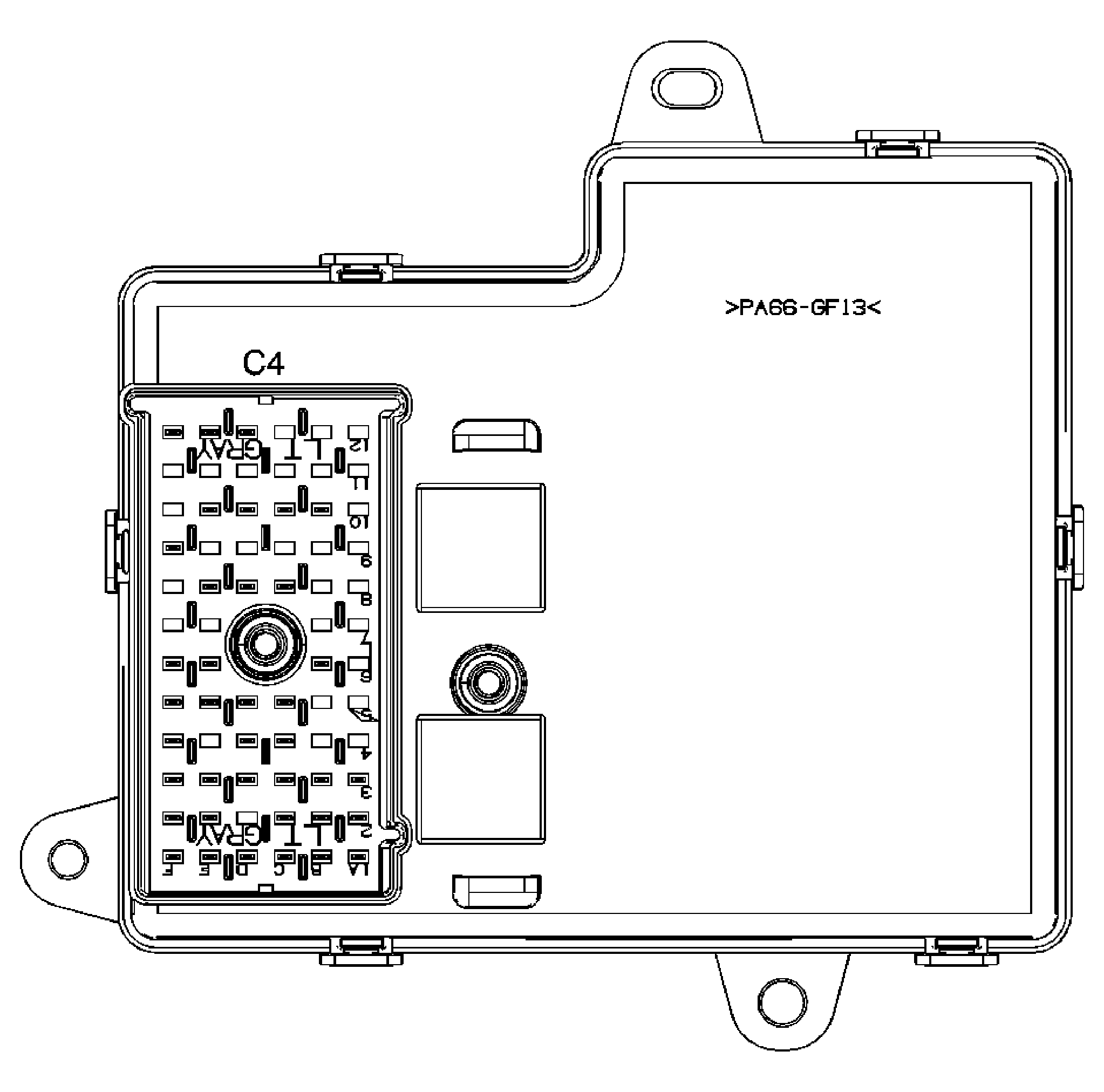

Fig 1: Body Control Module (Bottom View)
GM1580211Courtesy of GENERAL MOTORS CORP.
