Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
    3. Fig 1: View Of Washer Hose & Washer Pump
    GM1655548Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the washer hose (1) from the washer container hose (3) at the fender flange.

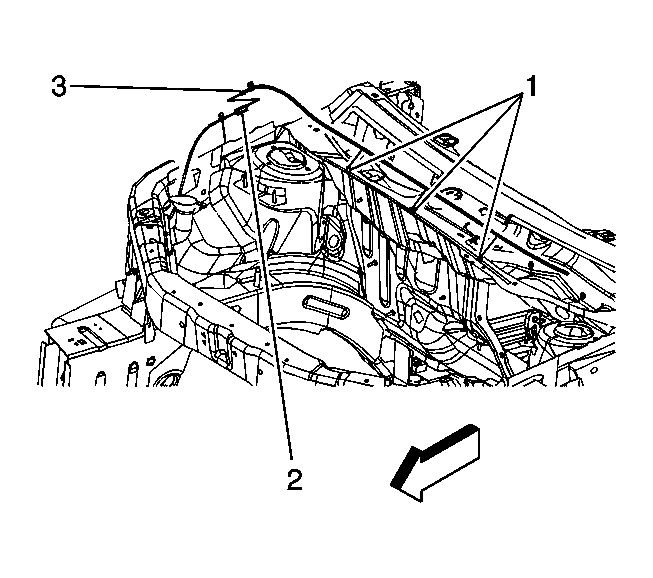

    4. Fig 2: Identifying Washer Hose And Fender Flange Clip
    GM1655549Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the washer hose (1) from the air inlet grille panel plenum flange.
  5. Disconnect the fender flange clip (3) from the fender flange.
  6. Pull the washer hose pump end out alongside the right front inner fender and into the engine compartment.
  7. Remove the washer hose from the vehicle.
