Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

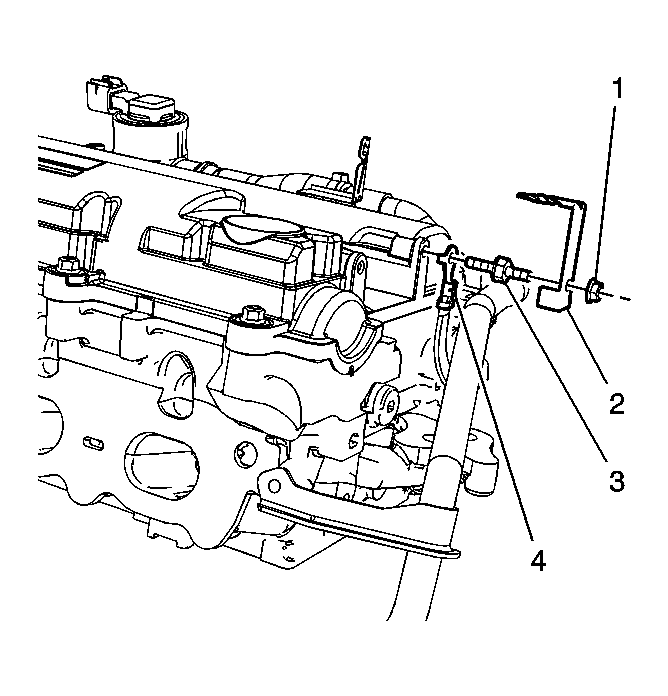

    Fig 1: View of intake manifold cover
    GM1752914Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  2. Remove the air cleaner outlet resonator. Refer to Air Cleaner Outlet Resonator Replacement .
  3. Remove the ignition coils. Refer to Ignition Coil Replacement .
  4. Remove the fuel pipe bracket nut (1).
  5. Remove the fuel pipe bracket (2) from the ground strap stud.
  6. Remove the ground strap stud (3) from the camshaft cover.
  7. Remove the ground strap (4) from the camshaft cover.

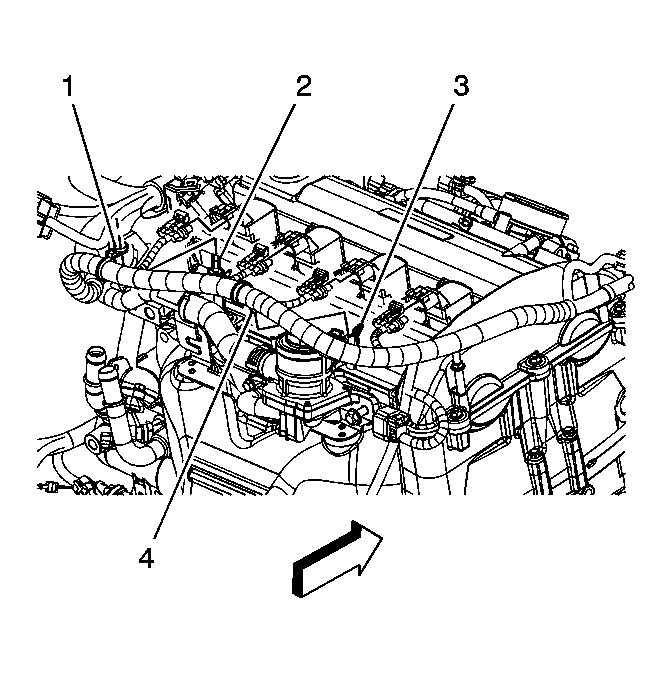

    8. Fig 2: View of engine wiring harness clips
    GM1751022Courtesy of GENERAL MOTORS CORP.
  8. Remove the engine wiring harness clips (1 and 4) from the stud (2) and camshaft cover (3).

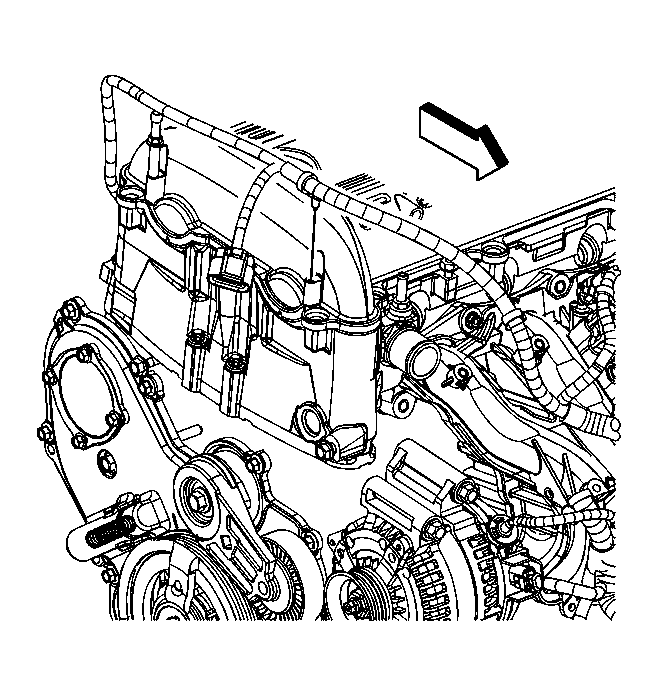

    9. Fig 3: View of engine wiring harness clips
    GM1752846Courtesy of GENERAL MOTORS CORP.
  9. Remove the engine wiring harness clip from the camshaft cover.

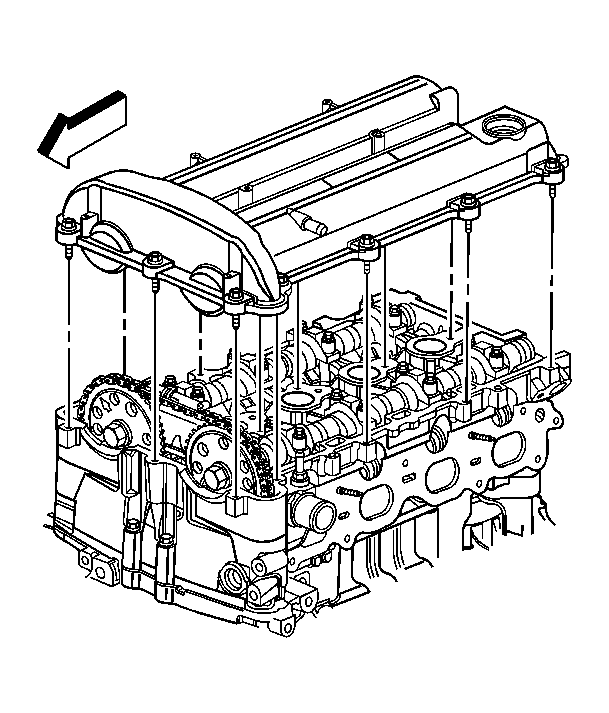

    10. Fig 4: Identifying camshaft cover bolts
    GM1751021Courtesy of GENERAL MOTORS CORP.
  10. Remove the camshaft cover bolts.
  11. Remove the camshaft cover.
