Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

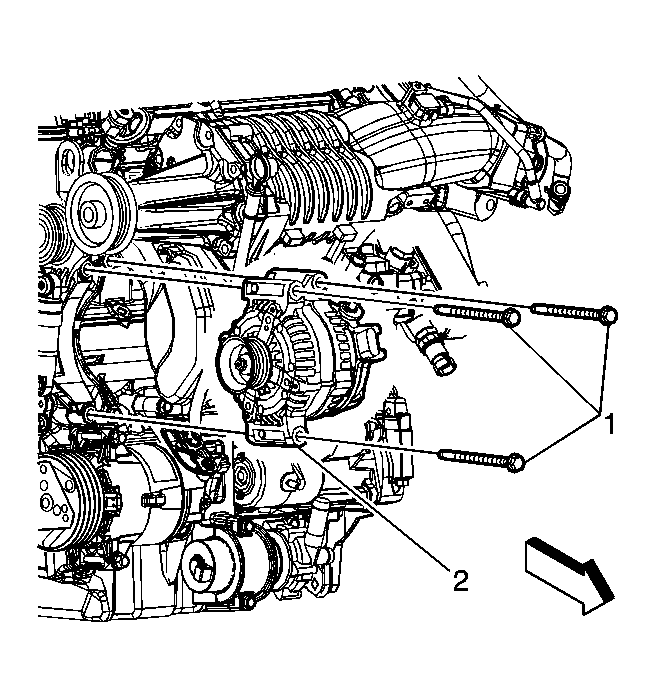

    Fig 1: View Of Generator
    GM1381708Courtesy of GENERAL MOTORS CORP.
  1. Position the generator to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the generator bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

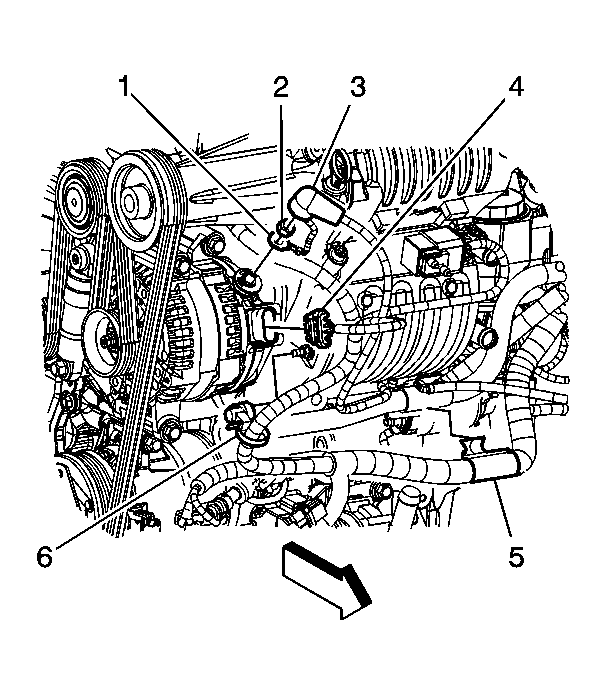

    3. Fig 2: View Of Engine Harness Electrical Connector To Generator
    GM1650527Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine harness electrical connector (4) to the generator.
  4. Install the starter solenoid wire terminal (1) to the generator.
  5. Install the generator harness nut (2).

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

  6. Position the starter solenoid wire boot (3).
  7. Install the supercharger. Refer to Supercharger Replacement .
  8. Connect negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
