Fog Lights Schematics

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

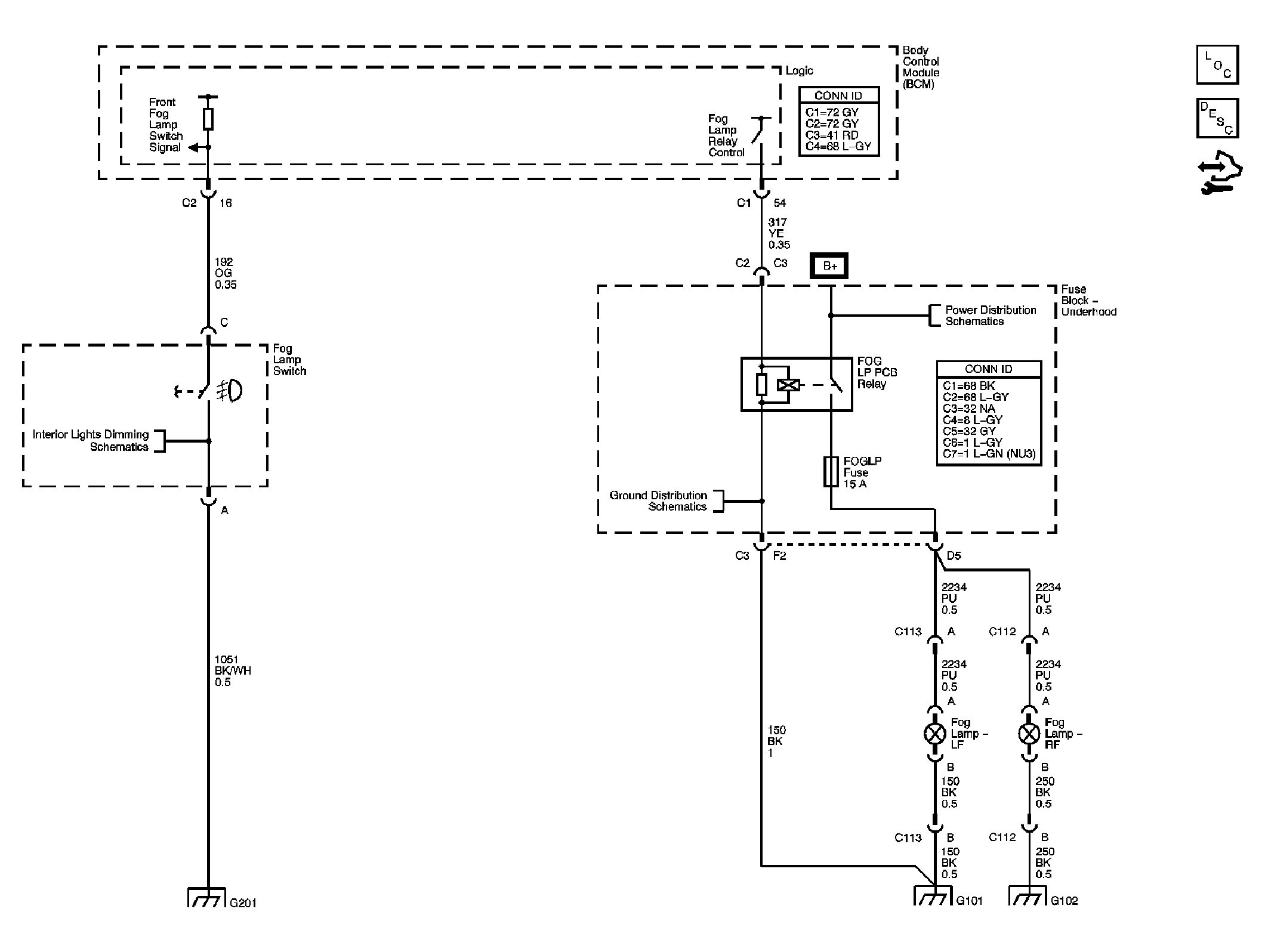

Fig 1: Fog Lights Schematics
GM1784604Courtesy of GENERAL MOTORS CORP.
