Steering Wheel Shroud Replacement
WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
Steering Wheel Shroud Replacement

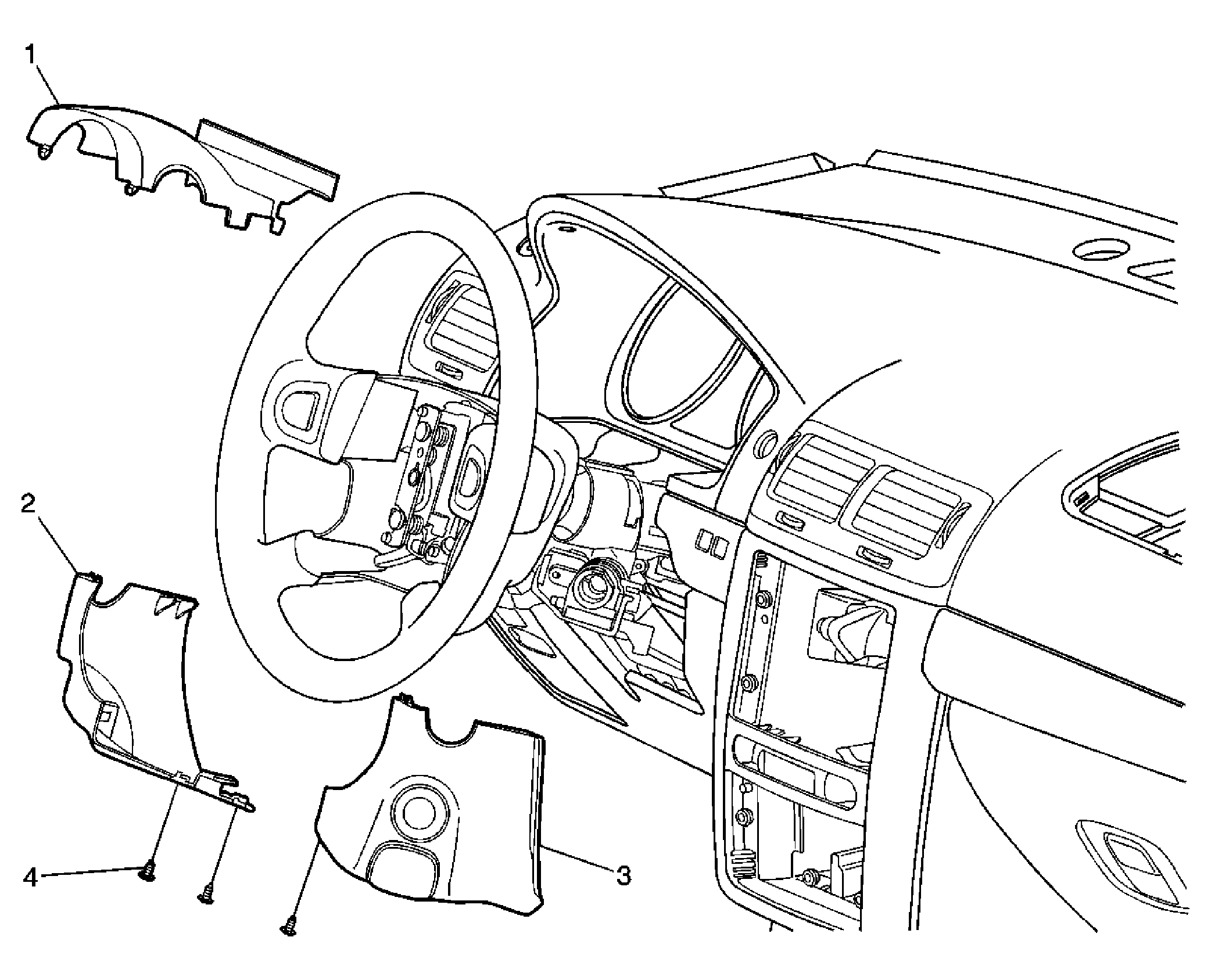

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
. Preliminary Procedures: Remove the instrument panel (I/P) cluster bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement . |
|
| 1 | Steering Column Upper Cover Assembly |
| 2 | Steering Column Left Cover Assembly |
| 3 | Steering Column Right Cover Assembly |
| 4 | Steering Column Cover Screws (Qty: 3) |
