Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the right front fender liner. Refer to Front Fender Liner Replacement .
  4. Remove the drive belt. Refer to Drive Belt Replacement .

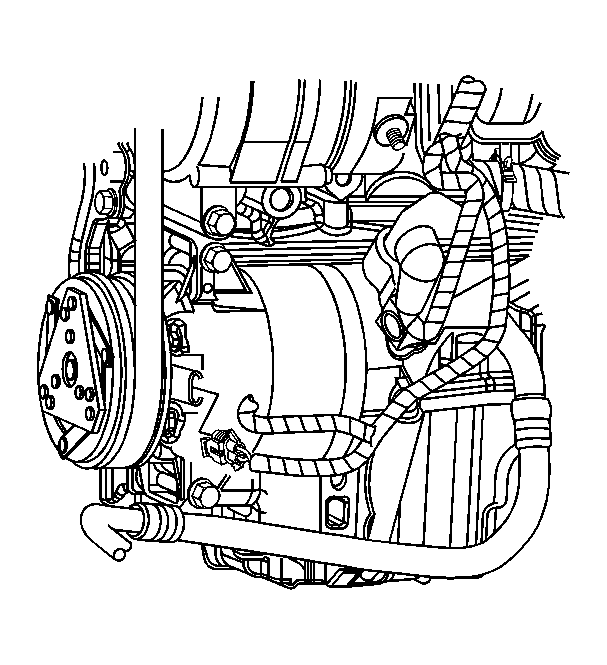

    5. Fig 1: View Of Compressor Electrical Connector
    GM872569Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the compressor.
    6. Fig 2: View Of Compressor & Condenser Hose Assembly
    GM865182Courtesy of GENERAL MOTORS CORP.
  6. Remove the compressor and condenser hose assembly bolt from the compressor.
  7. Remove the compressor and condenser hose assembly from the compressor.
  8. Remove and discard the sealing washers.
    9. Fig 3: View Of Auxiliary Intercooler Pump
    GM1403204Courtesy of GENERAL MOTORS CORP.
  9. Remove the auxiliary intercooler pump bolts and position the pump toward the driver side of the vehicle.
    10. Fig 4: View of Compressor Bolts
    GM1609034Courtesy of GENERAL MOTORS CORP.
  10. Remove the compressor mounting bolts.
  11. Remove the compressor.
