Seat Back Replacement - Rear Split Folding

WARNING: This page is about a different car, the 2007 Pontiac G5 Pursuit, 2007 Pontiac G5, and 2007 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

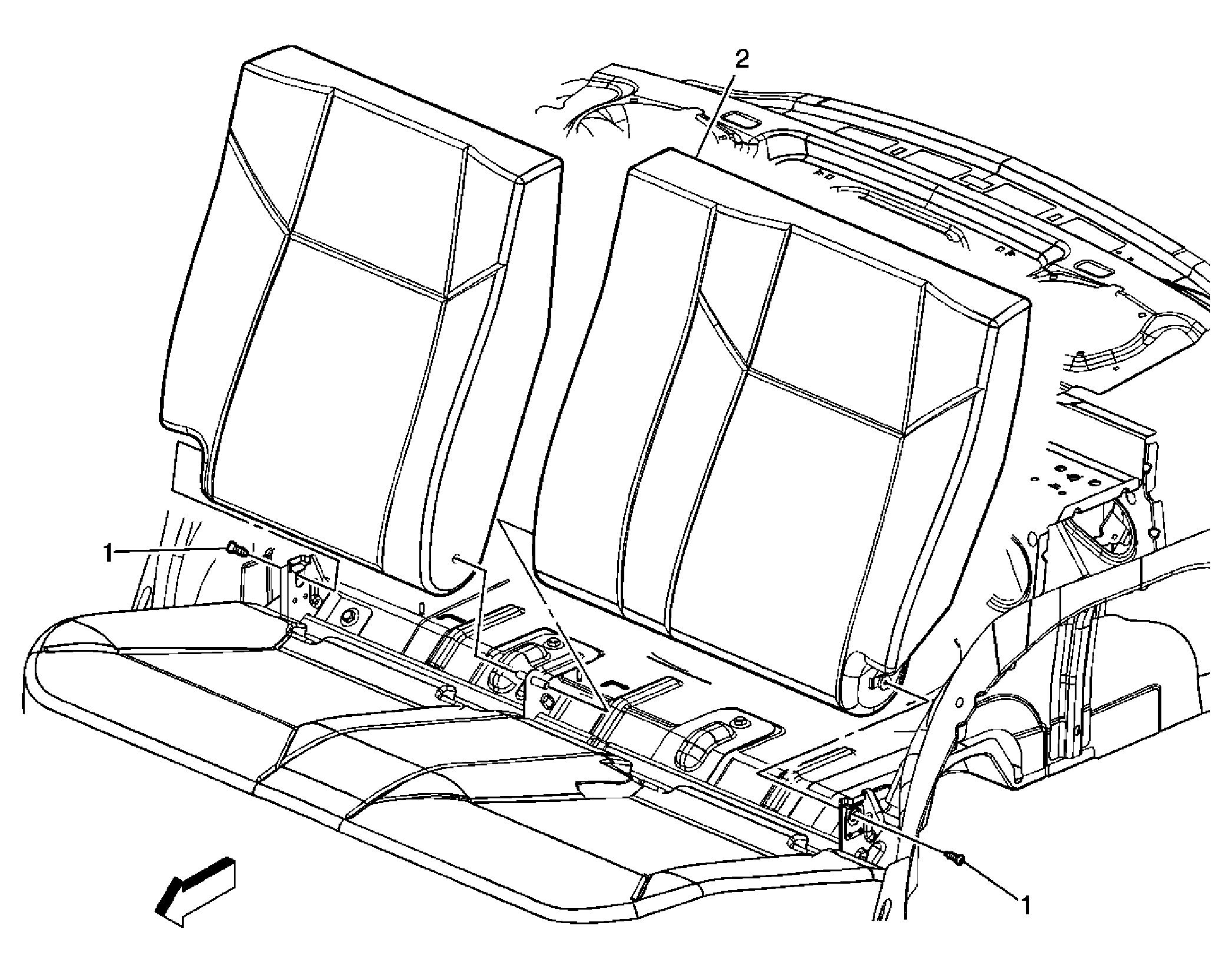

Fig 1: Identifying Seat Back -- Rear Split Folding
GM1545706Courtesy of GENERAL MOTORS CORP.
Seat Back Replacement - Rear Split Folding

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Bolt, Rear Seat Back

Tighten:  9 N.m (80 lb ft)
2 Cushion Assembly, Rear Seat Back
Tip:
  1. Slide inboard side of the seat back into the pivot.
  2. Align outboard side and push down to engage the hinge assembly.
