Power Distribution Schematics

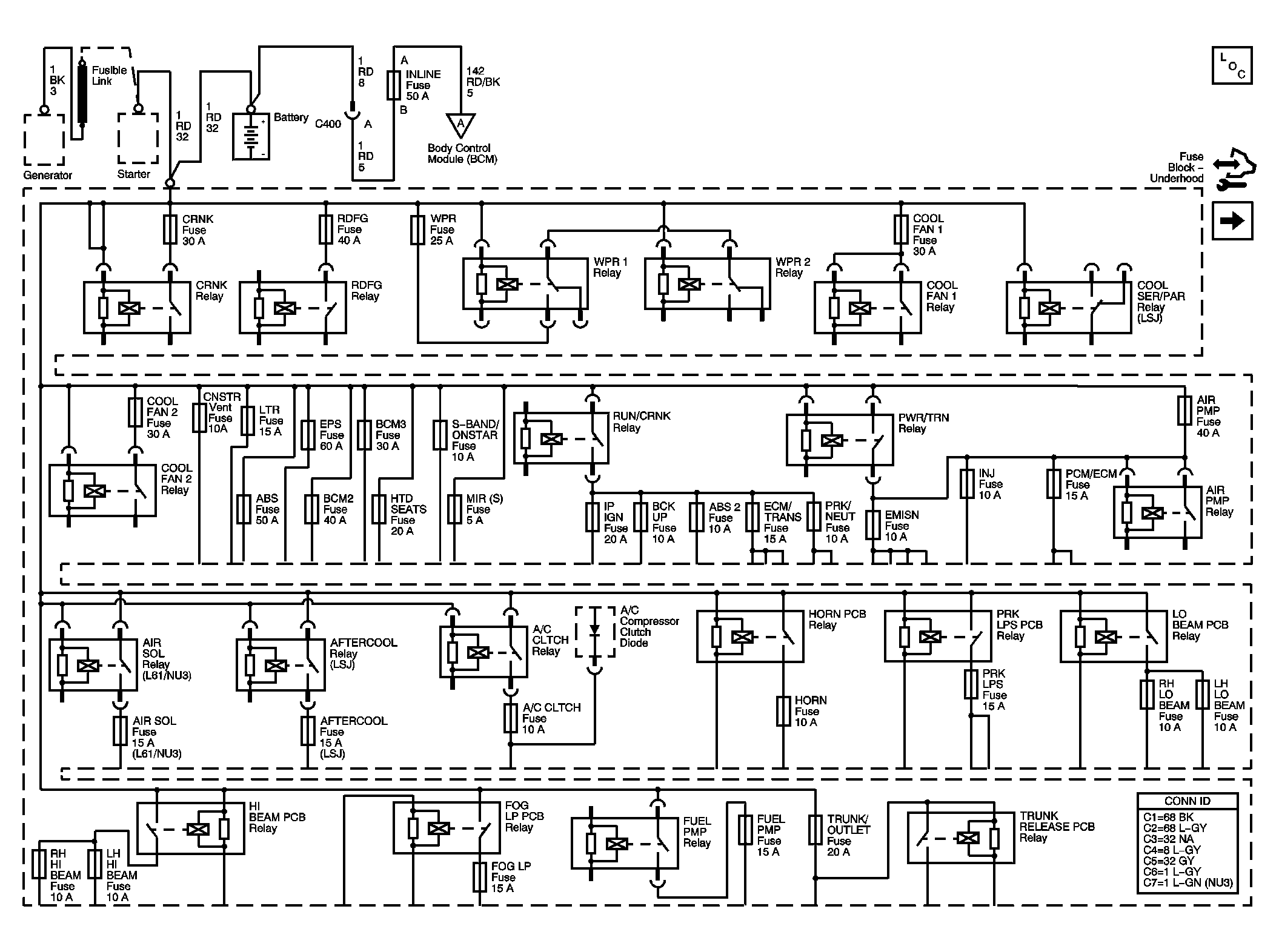

Fig 1: Underhood Fuse Block, B+ Bus - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

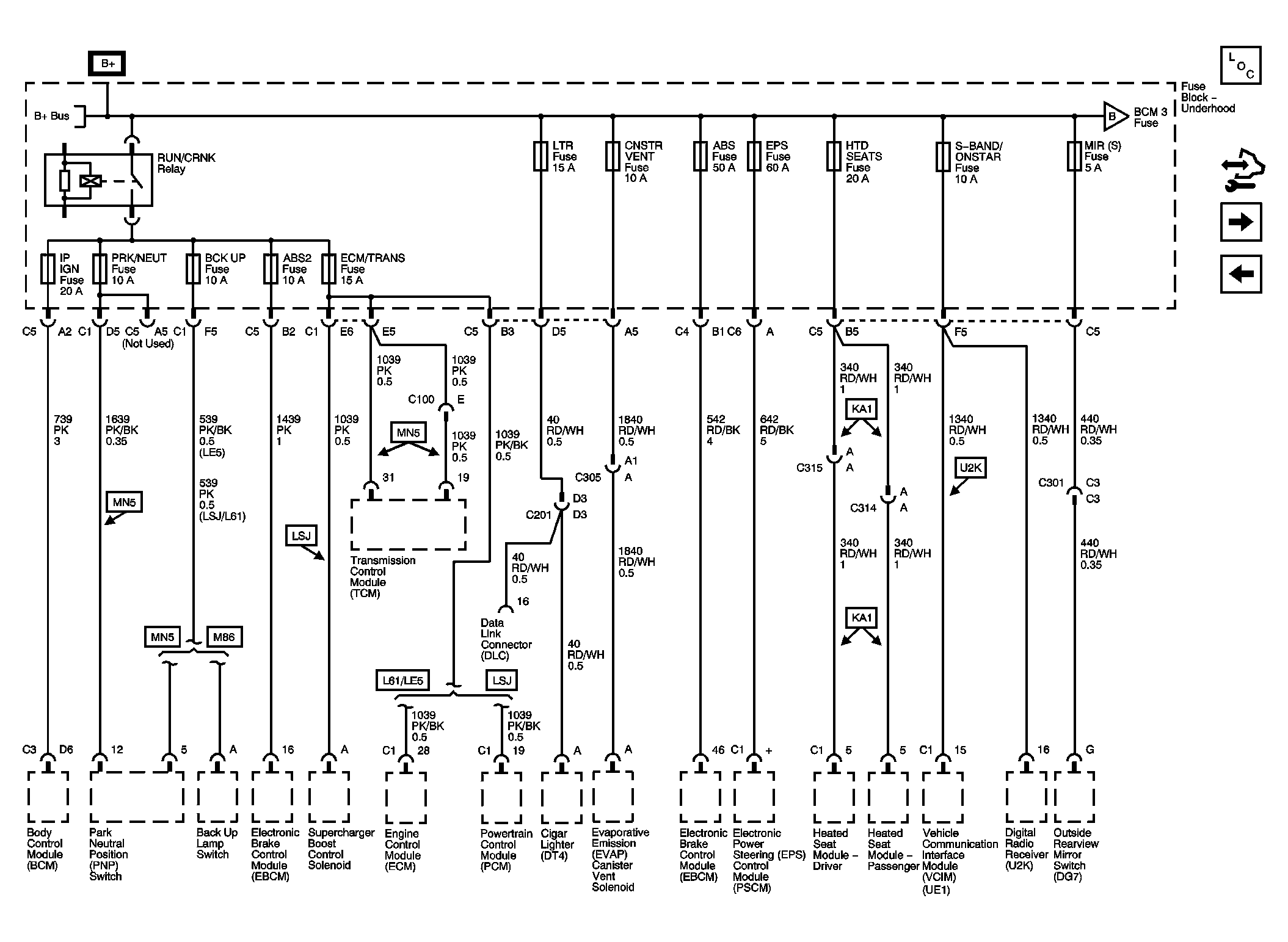

Fig 2: RUN/CRANK Relay, I/P IGN, BACKUP, ABS ECM, TRANS, LIGHTING, S-BAND, MIRROR, ABS EPS, BCM2, BCM3, HEATED SEATS Fuses - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

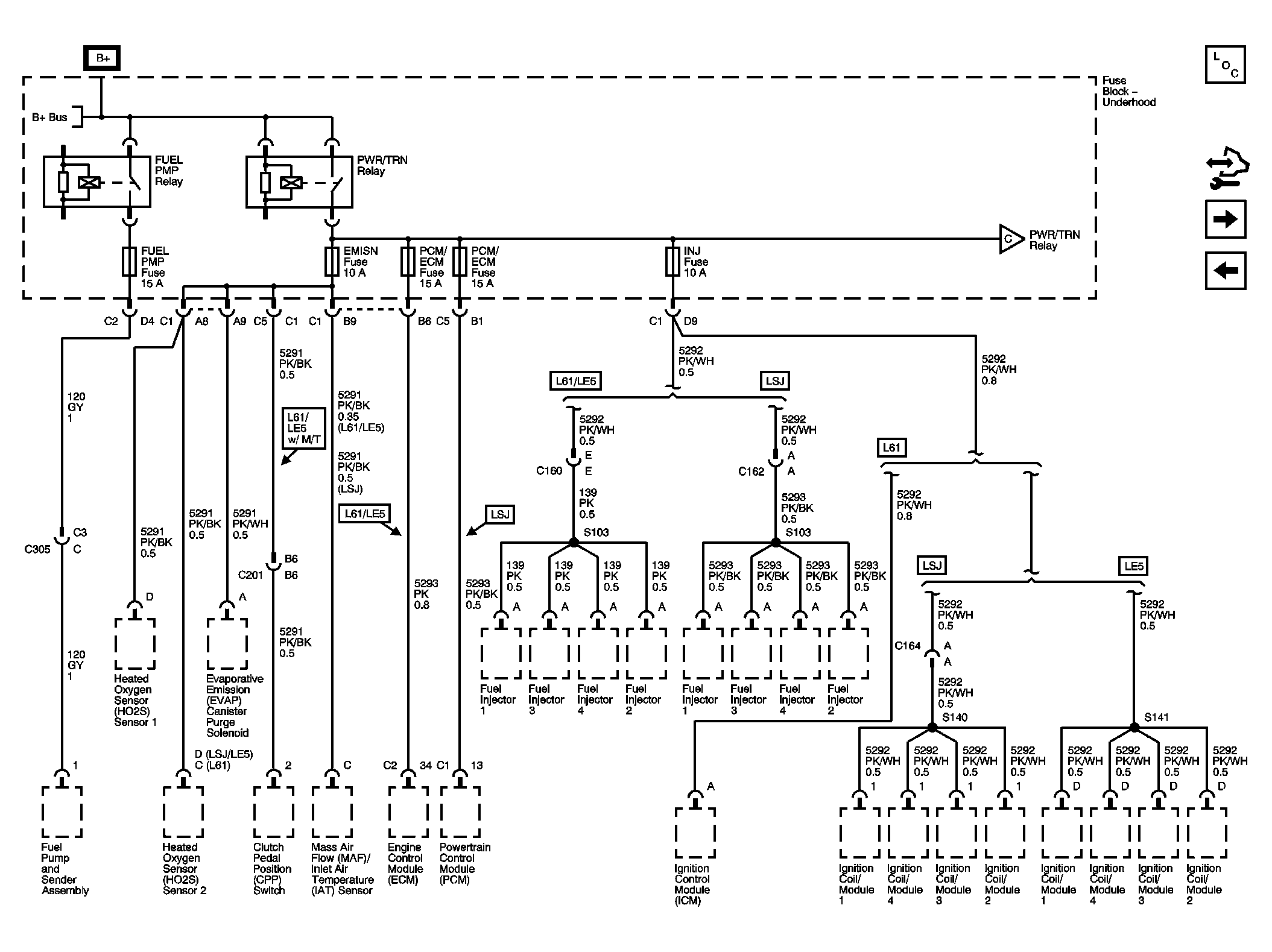

Fig 3: FUEL PUMP, POWERTRAIN Relay, FUEL PUMP, EMISSION, INDICATOR Fuses - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

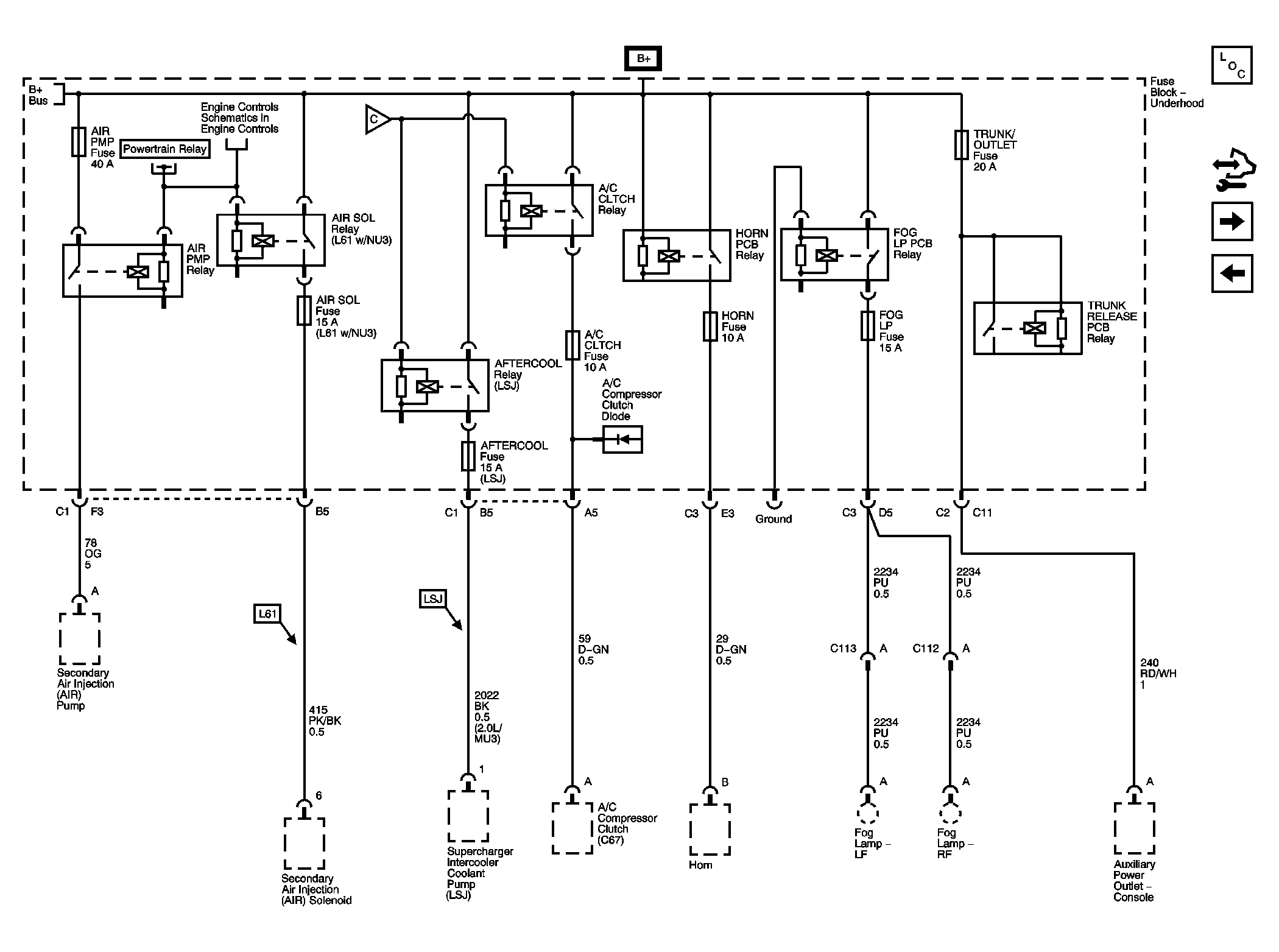

Fig 4: AIR SOLENOID, A/C CLUTCH, HORN, FOG LAMP Relays, AIR SOLENOID, A/C, HORN, FOG LAMP Fuses - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

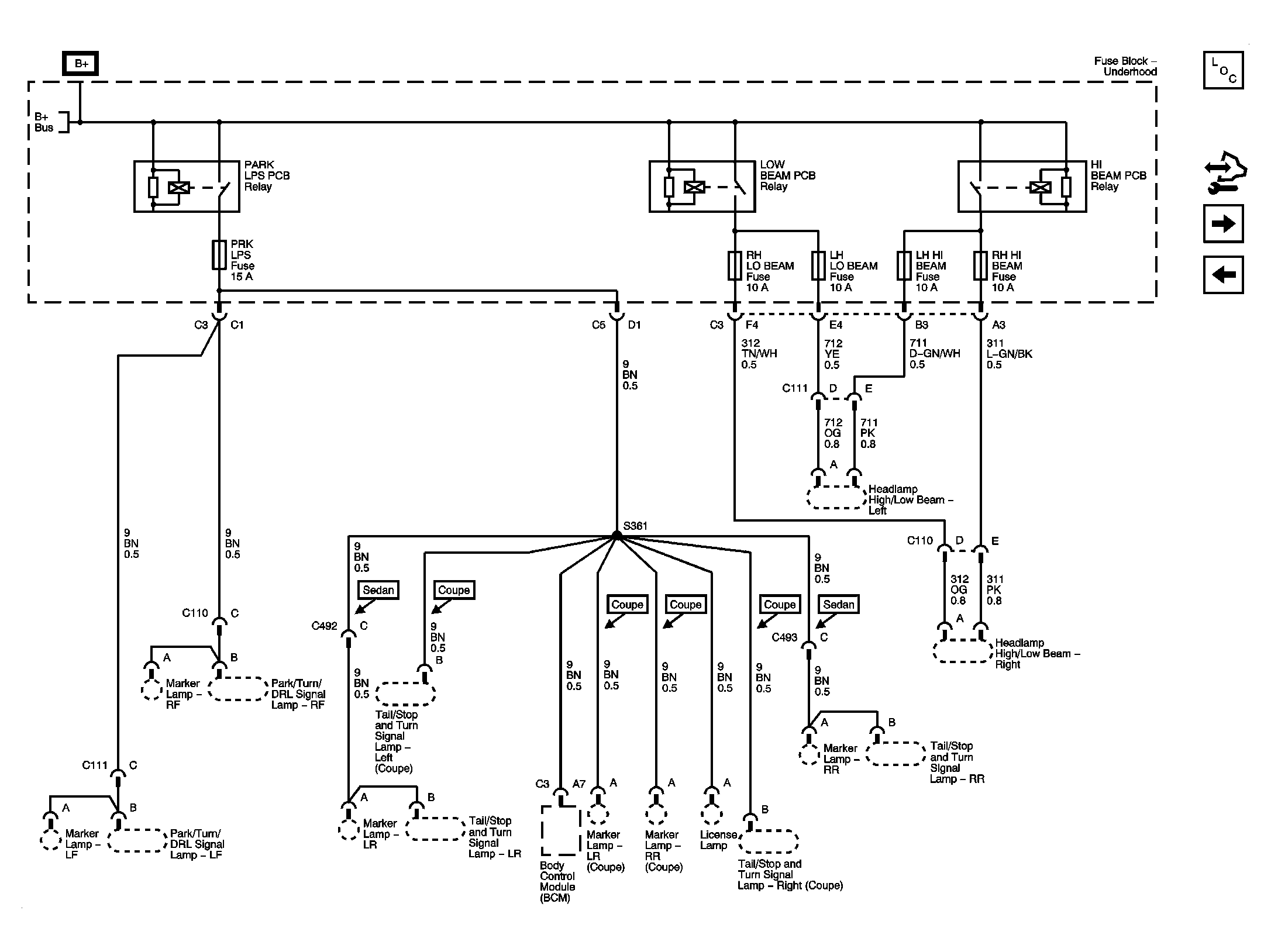

Fig 5: PARK LPS, LOW BEAM, HIGH BEAM Relays, PARK LPS, RF LOW BEAM, LF LOW BEAM, RF HIGH BEAM, LF HIGH BEAM Fuses - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

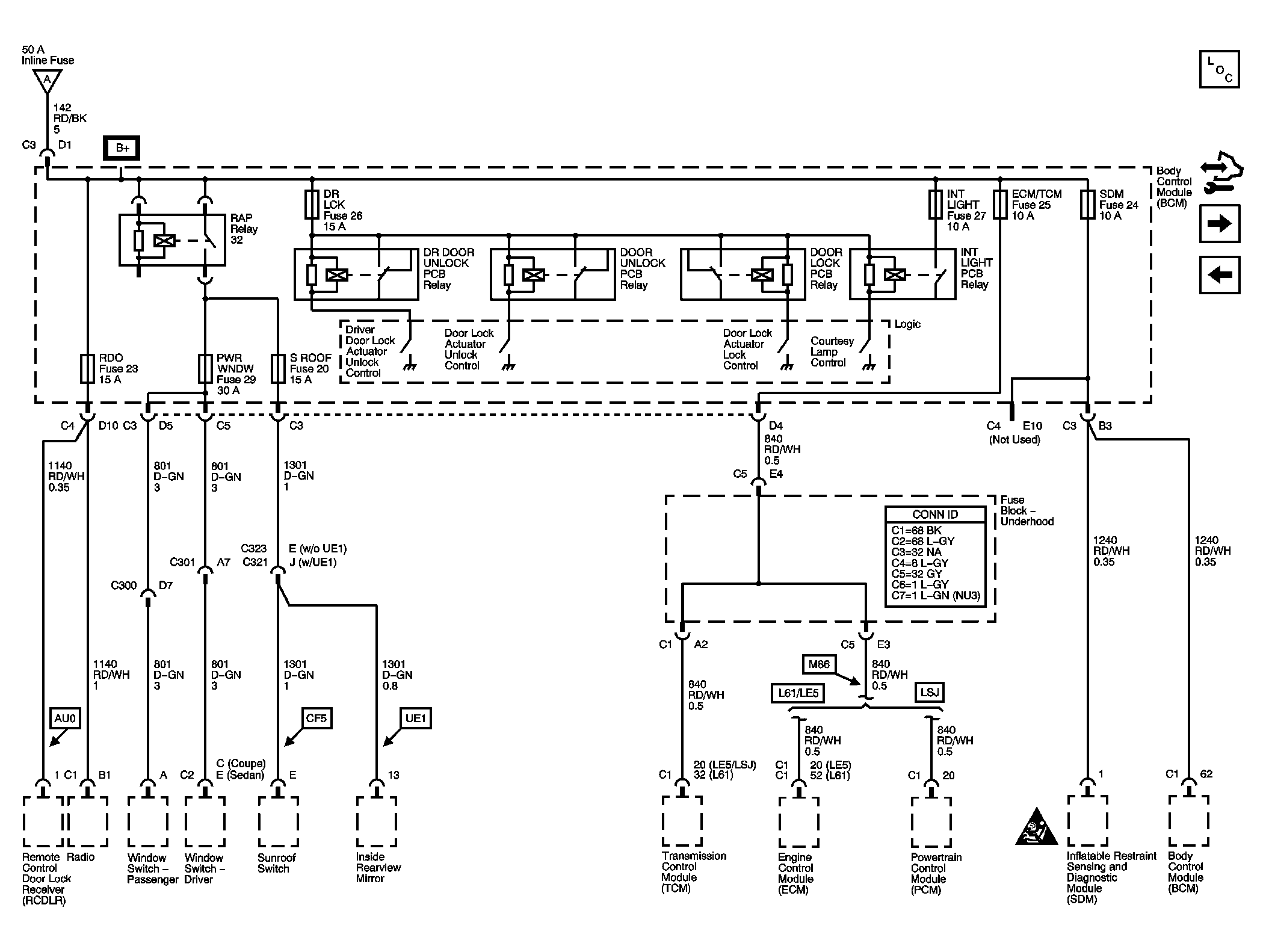

Fig 6: RAP, DOOR LOCK, DOOR UNLOCK, INTERIOR LAMPS Relays, DOOR LOCK, RADIO, PWR WINDOW, SUNROOF INT LPS, ECM/TCM, SDM, CURRENT SENSOR Fuses - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

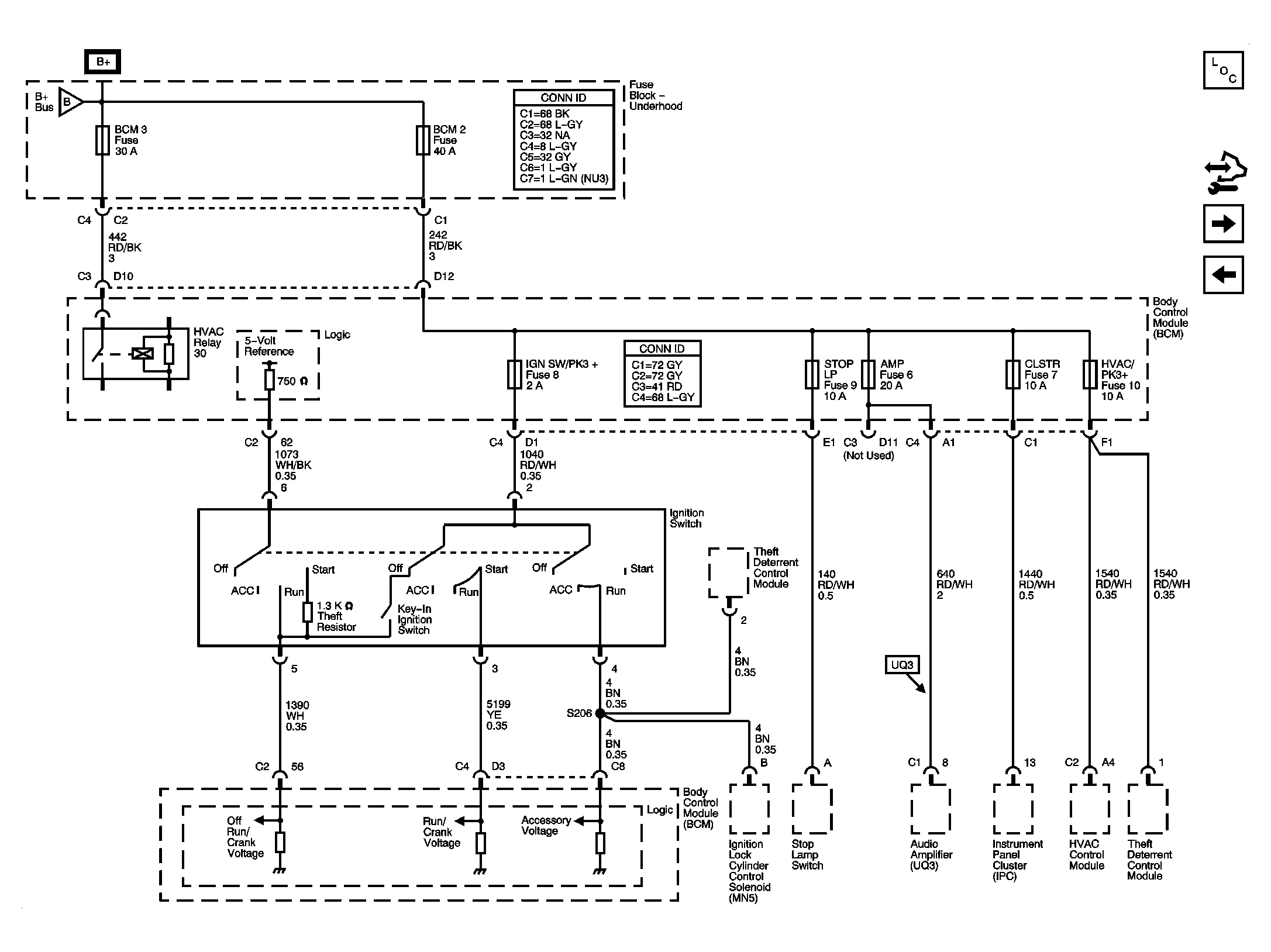

Fig 7: BCM2, CLUSTER, IGN SW, STOP LPS, AUDIO AMPLIFIER Fuses - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

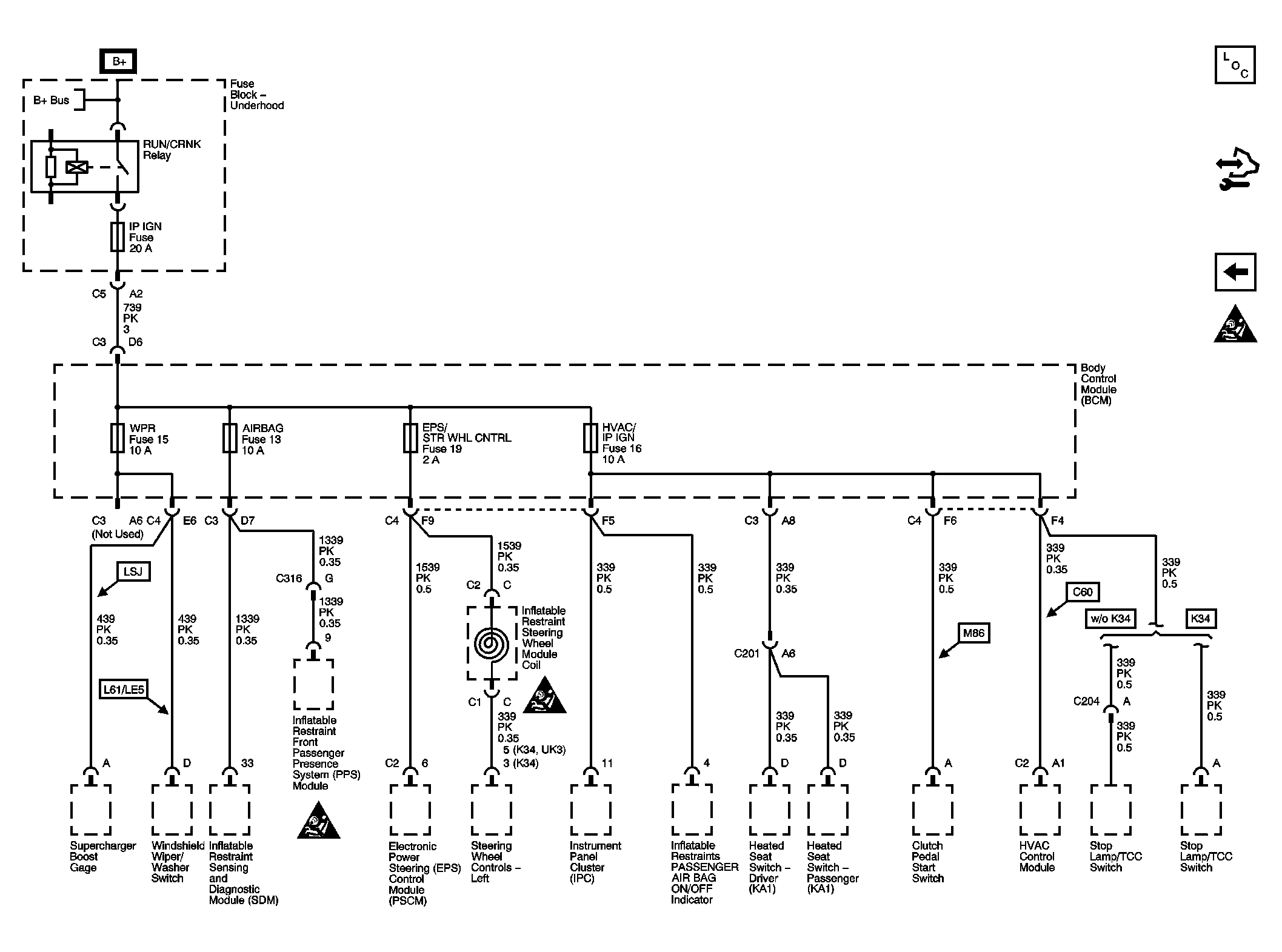

Fig 8: RUN/CRANK, HVAC Relays, I/P, IGN, BCM3, WIPER, I/P IGN Fuses - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
