Harness Routing Views

Fig 1: Forward Lamp Harness
GM1524052Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C121
2 G102
3 Fuse Block - Underhood C3
4 Inflatable Restraint Front End Sensor Connector
5 Front Fascia
6 Fog Lamp - Right
7 Fog Lamp - Left
8 G101
Fig 2: Forward Lamp Harness Routing
GM1857054Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp Assembly - RH
2 C110
3 Fog Lamp - Right (T37)
4 C121
5 Fuse Block - Underhood C3
6 G101
7 G102
8 C111
9 Headlamp Assembly - LH
Fig 3: Engine Harness Routing - L61
GM1857056Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Power Steering (EPS) Harness
2 G109
3 Fuse Block - Underhood
4 G103
5 Battery Cable Harness
6 C100
7 G105
8 C111
9 C160
Fig 4: Engine Harness Routing 1 Of 1 (LE5)
GM1739121Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 S100
2 C101
3 S101
4 Automatic Transmission (MN5)
5 C100
6 G105
7 G109
8 C160
9 Fuel Injector Harness
10 Engine Harness
Fig 5: Engine Harness Routing 2 Of 2 (LE5)
GM1739127Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine LE5
2 Park Neutral Position (PNP) Switch
3 Automatic Transmission (LE5)
4 G107

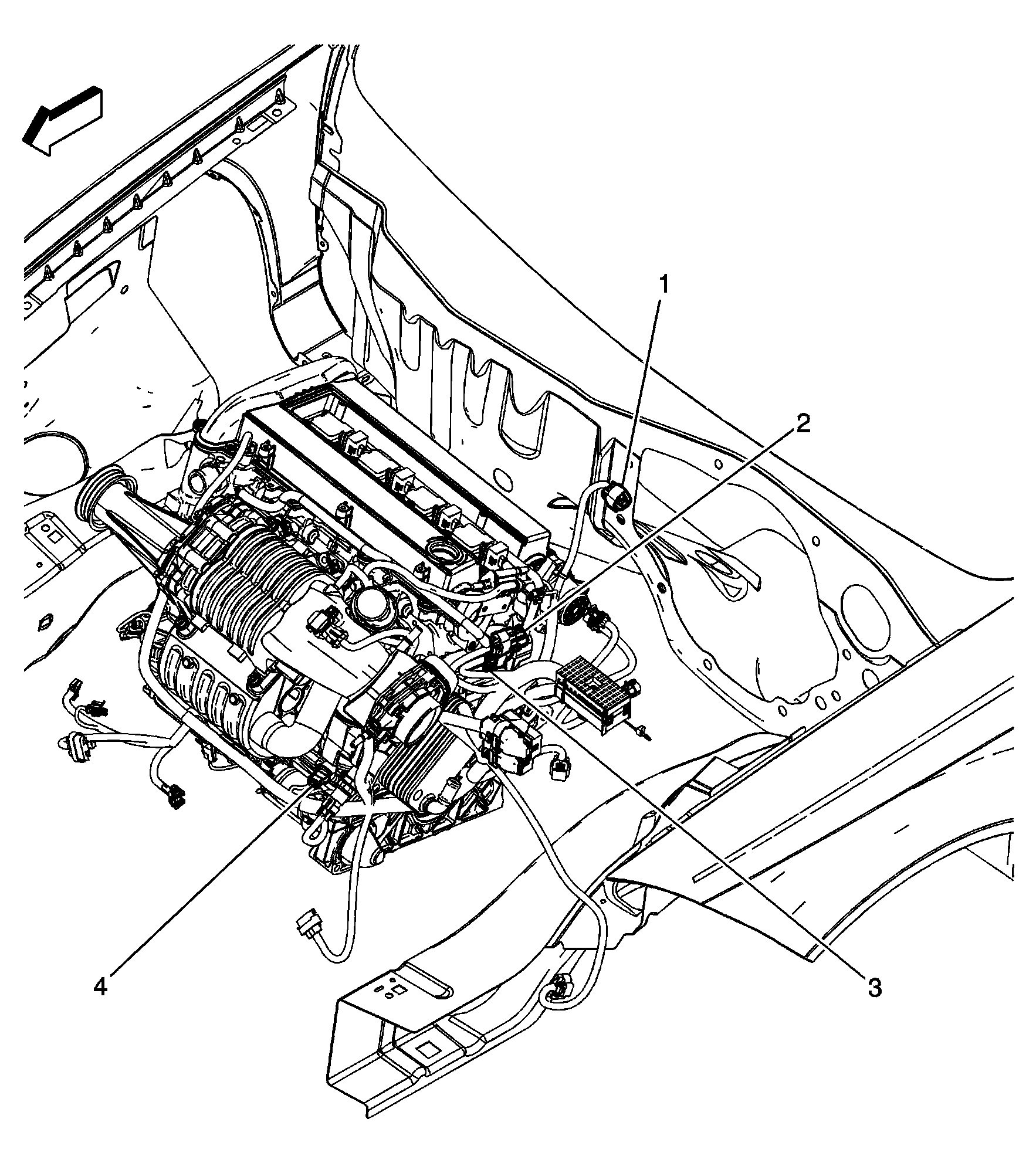

Fig 6: Engine Harness Routing - LSJ
GM1850441Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C161
2 C164
3 C162
4 C102
Fig 7: Fuel Injector Harness (L61)
GM1549154Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cylinder Head
2 S103
3 Ignition Control Module (ICM)
4 Intake Manifold
5 C160
Fig 8: Near The Front Strut Towers
GM1749972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C170 Body Harness to Front Wheel Speed Harness
2 RF Wheel Speed Harness
3 C171 Body Harness to Front Wheel Speed Harness
4 Left Front Strut
Fig 9: I/P Harness Routing
GM1524011Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Carrier
2 G203
3 G201
4 S233
5 C275
6 SP200
7 Data Link Connector (DLC)
8 C201
9 C204
10 Body Control Module (BCM) C4
11 Body Control Module (BCM) C2
12 I/P Carrier Trim
13 Radio Antenna Coax
14 C200
15 C210
Fig 10: Identifying Instrument Panel
GM1850435Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 C200
3 C202
4 C300
Fig 11: HVAC Assembly Harness
GM1549144Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 HVAC Box
2 C210
3 Blower Motor
4 S261
Fig 12: Identifying C316
GM1850416Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C316 (AOS)
2 C314 (KA1)
3 Inflatable Restraint Roof Rail Module - Right (ASF)
4 C320 (ASF)
5 Rear Decklid
6 C319 (ASF)
7 Inflatable Restraint Roof Rail Module - Left (ASF)
Fig 13: LF Door - Sedan
GM1524041Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 S200
3 C500
4 Speaker Connector
5 Door Latch Connector
6 Left Door Latch
Fig 14: LF Door - Coupe
GM1524037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 S200
3 C500
4 Speaker Connector
5 Window Motor Connector
6 Inflatable Restraint Side Impact Sensor (SIS) Connector
Fig 15: Identifying Passenger Door
GM1739274Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Door
2 C600 (Base)
Fig 16: RF Door - Sedan
GM1524045Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Connector
3 Speaker Connector
4 C600
Fig 17: RF Door - Coupe
GM1524042Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Inflatable Restraint Side Impact Sensor (SIS) Connector
3 Window Motor Connector
4 Speaker Connector
5 C600
Fig 18: LR Door - Sedan
GM1524047Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Latch Connector
3 Window Motor Connector
4 C700
Fig 19: RR Door - Sedan
GM1524048Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 C800
3 Window Motor Connector
4 Door Latch Connector
Fig 20: Driver Seat
GM1524033Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
2 Heated Seat Element - Driver Back (KA1)
3 Heated Seat Element - Driver Cushion (KA1)
4 Seat Belt Switch Connector - Driver
5 C315 (KA1)
6 Heated Seat Module - Driver (KA1)
Fig 21: Passenger Seat
GM1524032Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Passenger Back (KA1)
2 Seat Belt Buckle
3 Heated Seat Module - Passenger (KA1)
4 C314 (KA1)
5 Heated Seat Element - Passenger Cushion (KA1)
Fig 22: Passenger Seat
GM1856806Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Belt Switch
2 Inflatable Restraint Front Passenger Presence System (PPS) Sensor
3 C316 (AOS)
Fig 23: Headliner Harness (CF5)
GM1524013Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 C304 (Coax)
3 C321 (UE1) or C323 (w/o UE1)
4 C302
5 Cellular Microphone Connector (UE1)
6 Inside Rearview Mirror (ISRVM) Connector
7 Sunroof Switch Connector (CF5)
Fig 24: Headliner Harness (w/o CF5)
GM1524018Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headliner
2 Dome Lamp
3 C323
4 S300
5 Inside Rearview Mirror (ISRVM) Connector
Fig 25: Body Harness - Engine Compartment
GM1524019Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C101
2 Windshield Wiper Module Connector
3 Fuse Block - Underhood C4
4 Fuse Block - Underhood C2
5 G101
6 C121
7 Engine Control Module (ECM) C1
8 Electronic Brake Control Module (EBCM) Connector
9 Fuse Block - Underhood C5
Fig 26: Body Harness - Passenger Compartment
GM1524023Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C200
2 Body Control Module (BCM) C3
3 C314
4 C800 (Sedan)
5 Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
6 G306
7 S360
8 C700 (Sedan)
9 C315
10 S361
11 G301
12 S335
13 C275
14 C201
15 C301
16 Body Control Module (BCM) C1
17 C600
18 C204
Fig 27: Body Harness - Rear Compartment
GM1524028Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C493
2 G402
3 Fuse Holder 50A
4 C401
5 G401
6 Center High Mounted Stop Lamp (CHMSL) Connector
7 Rear Compartment Lid Ajar Switch
8 C492
9 C321 (UE1)
10 C323 (w/o UE1)
11 C319
12 S401
13 S351
14 S352
15 Floor Panel
16 C305
17 Wheel Well
18 C320
19 C304
Fig 28: Rear Floor Pan Components And G403
GM1549037Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery
2 Fuse Holder 50A
3 Battery Current Sensor
4 G403
5 C400
6 Spare Tire Well
Fig 29: Rear ABS Harness
GM1524054Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor (WSS) - LR
2 C305
3 Wheel Speed Sensor (WSS) - RR
Fig 30: Rear Fascia
GM1850375Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C496
2 C492
3 S401
4 C494
5 S402
6 C495
7 C493
