Ground Distribution Schematics

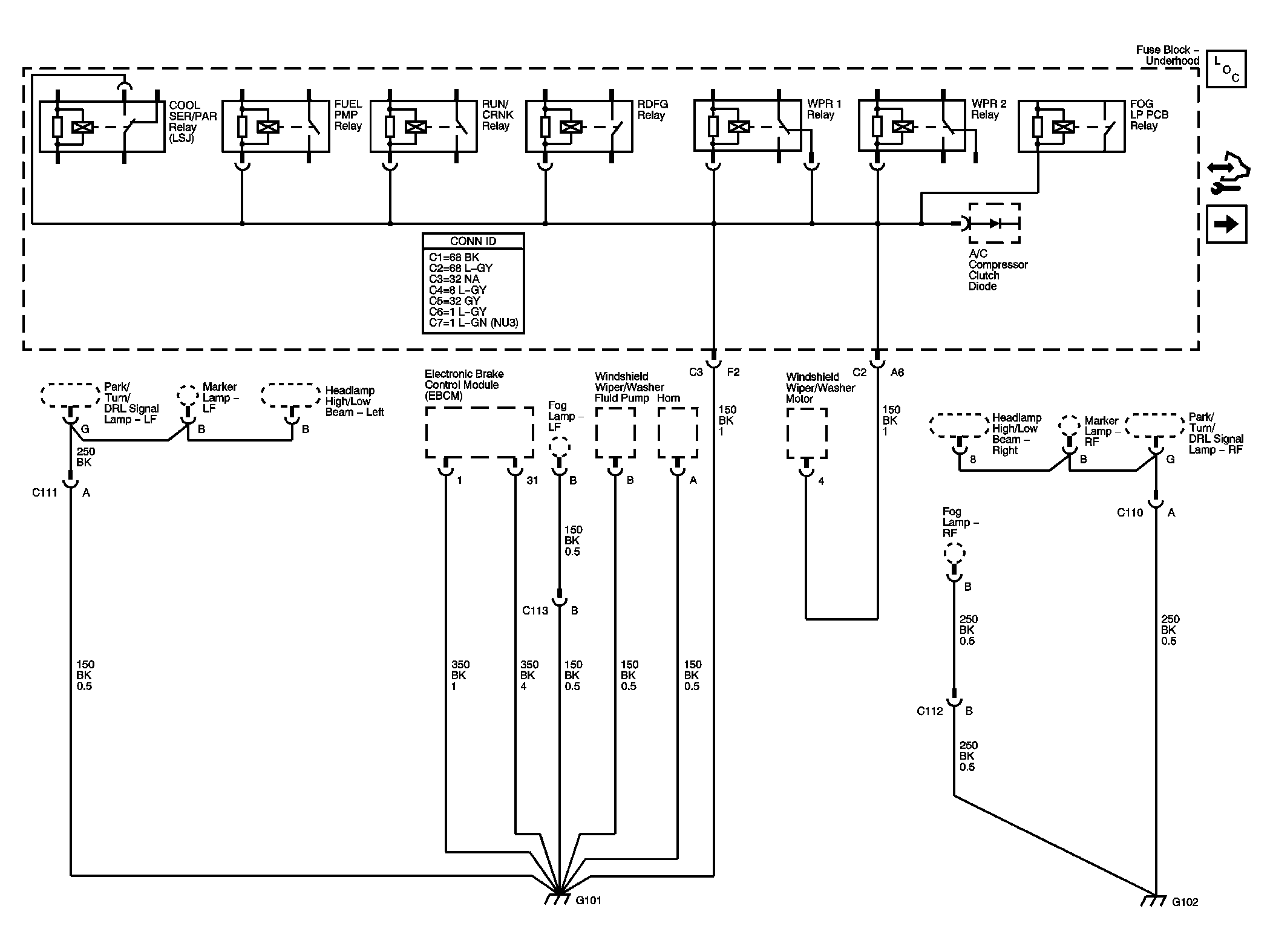

Fig 1: G101, G102 - Wiring Diagram

GM1582419

Courtesy of GENERAL MOTORS CORP.

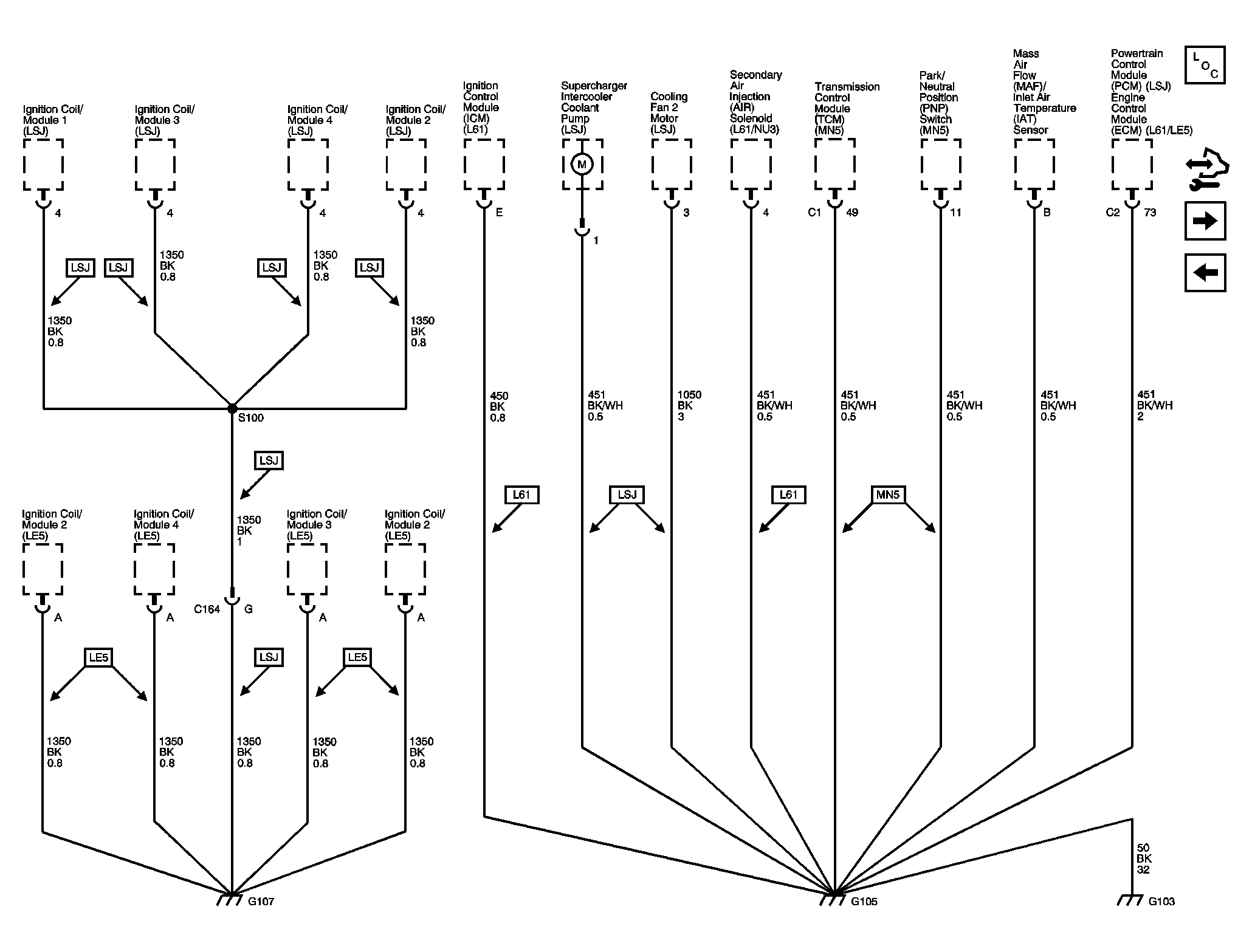

Fig 2: G105 - Wiring Diagram

GM1582420

Courtesy of GENERAL MOTORS CORP.

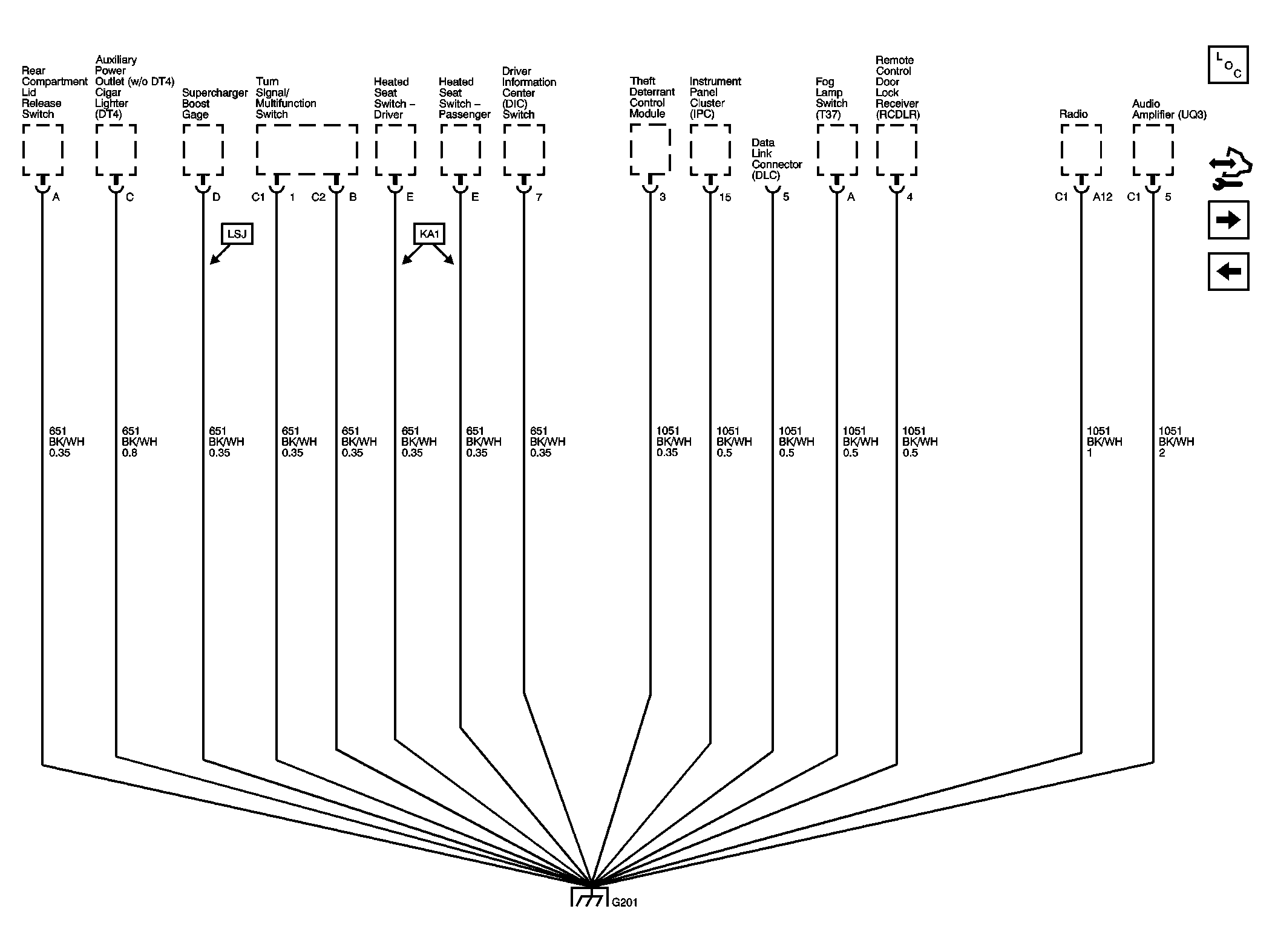

Fig 3: G201 (1 of 2) - Wiring Diagram

GM1582421

Courtesy of GENERAL MOTORS CORP.

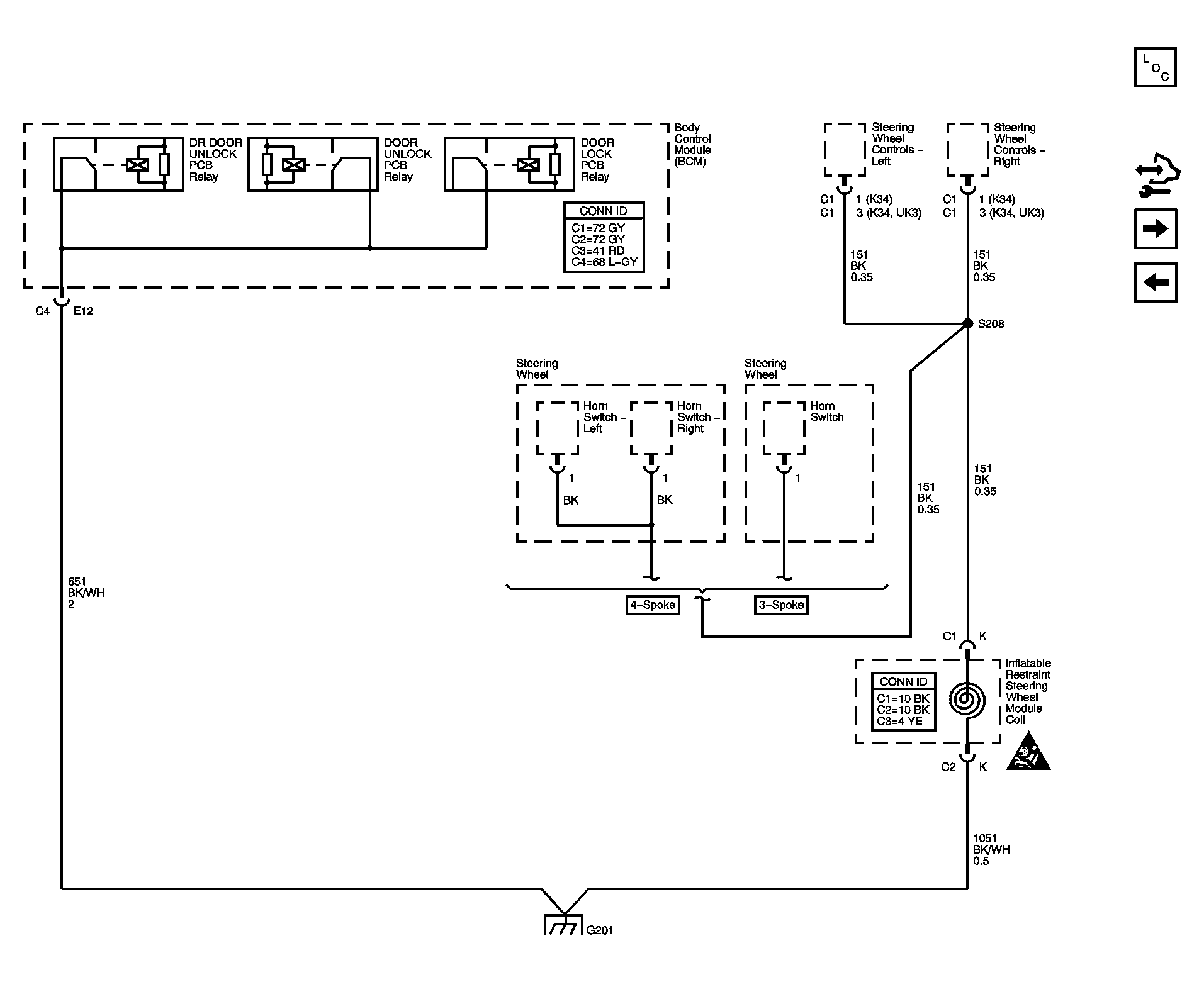

Fig 4: G201 (2 of 2) - Wiring Diagram

GM1709074

Courtesy of GENERAL MOTORS CORP.

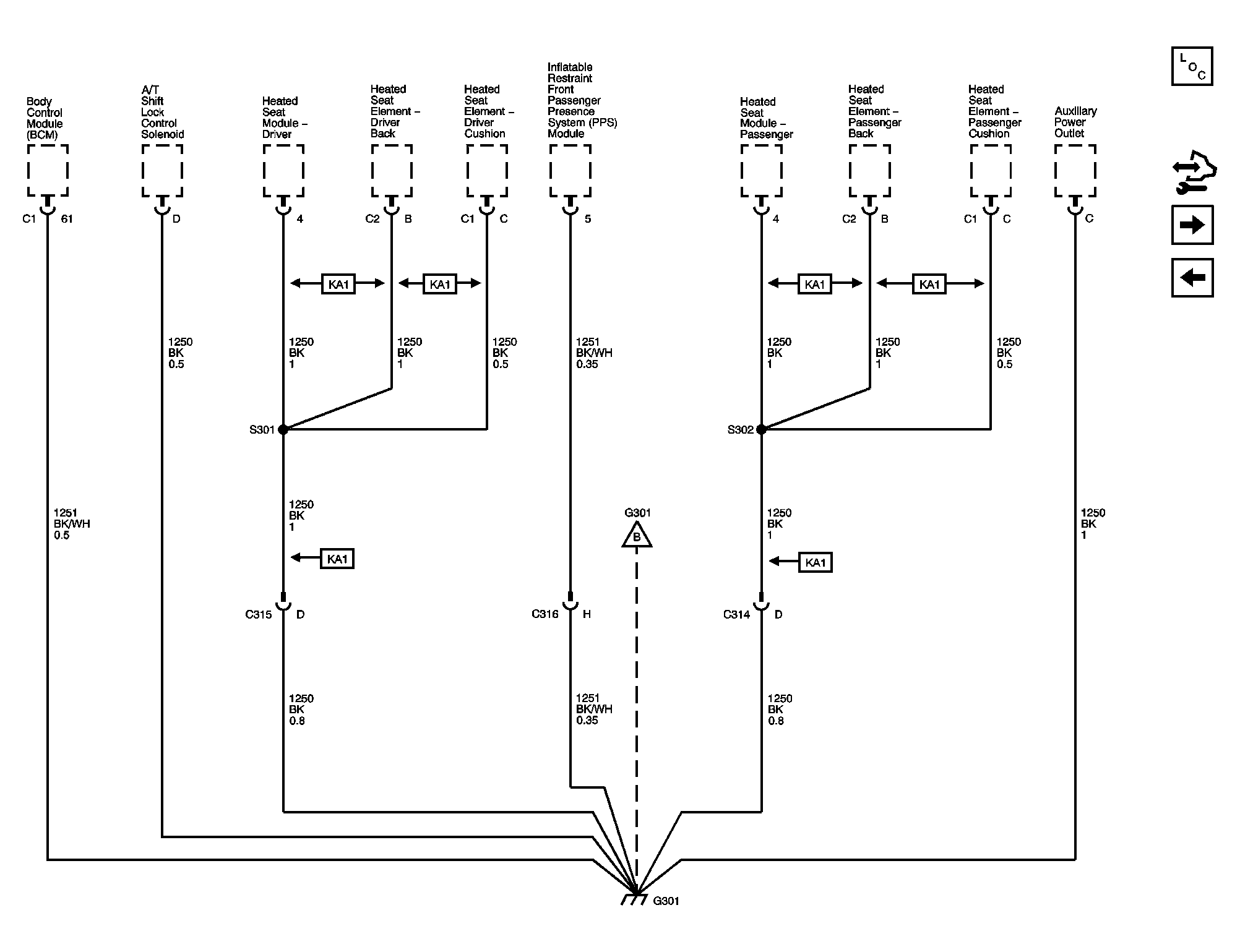

Fig 5: G301 (1 of 2) - Wiring Diagram

GM1582423

Courtesy of GENERAL MOTORS CORP.

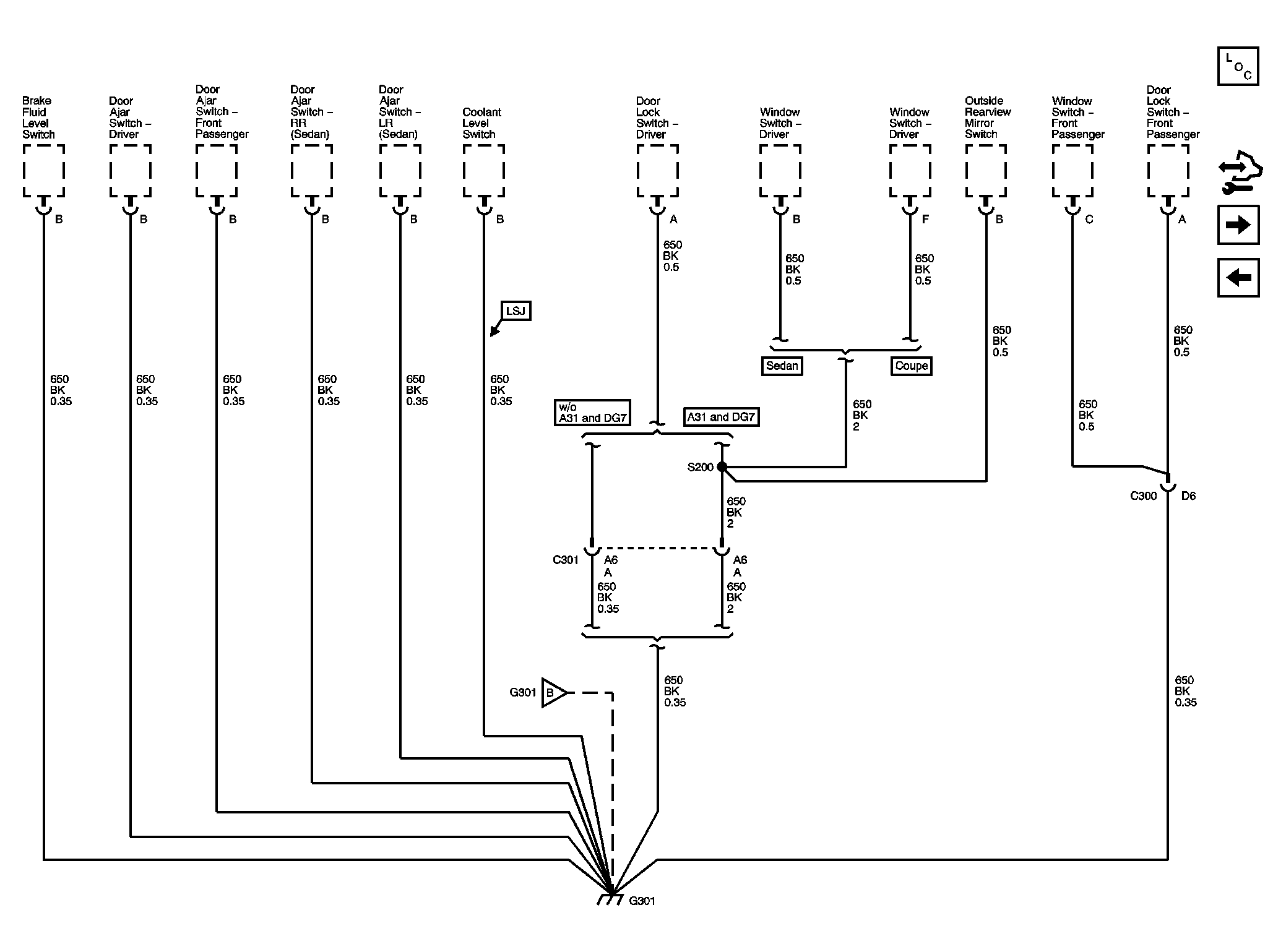

Fig 6: G301 (2 of 2) - Wiring Diagram

GM1582424

Courtesy of GENERAL MOTORS CORP.

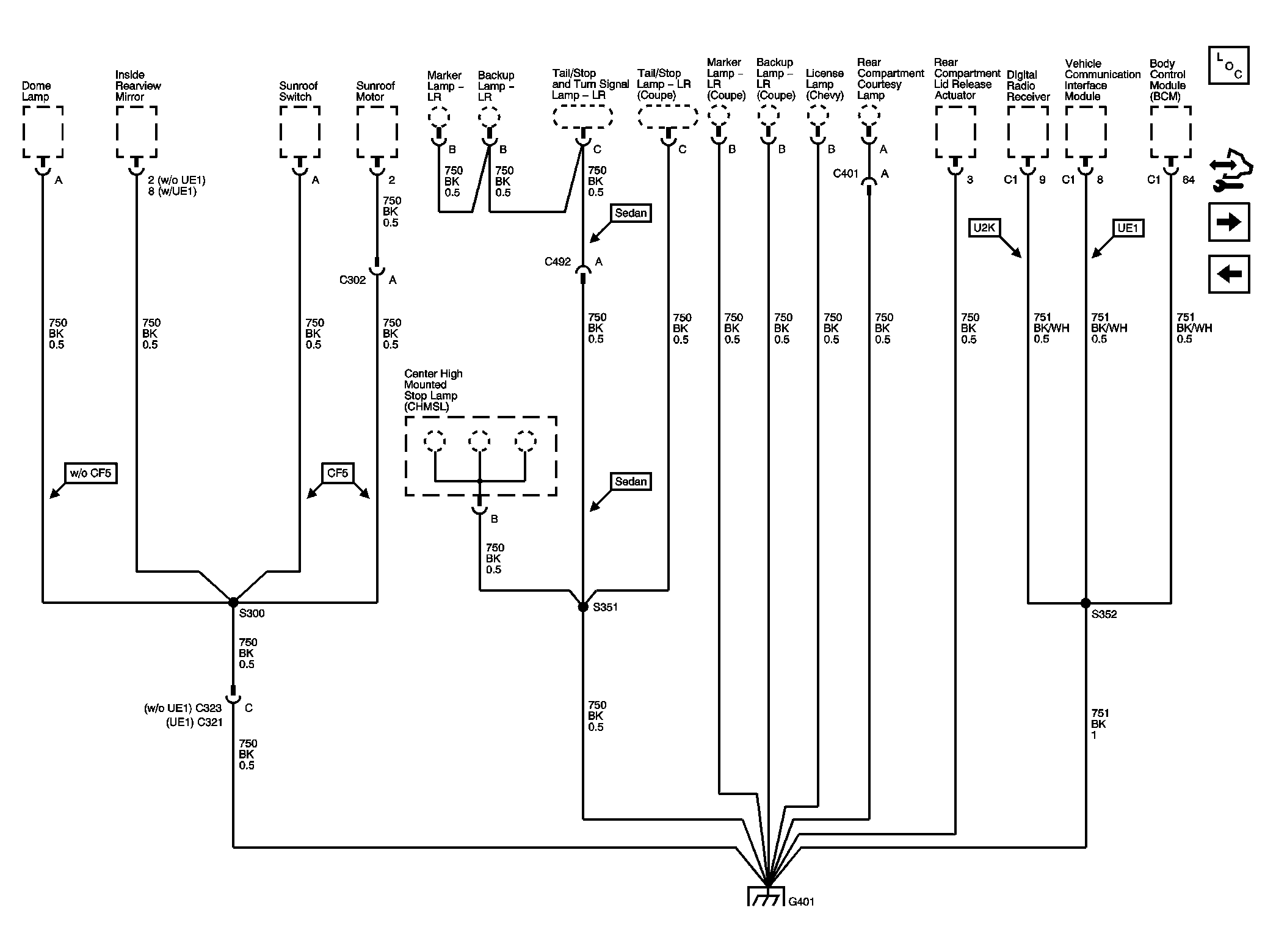

Fig 7: G401 (2 of 2) - Wiring Diagram

GM1582426

Courtesy of GENERAL MOTORS CORP.

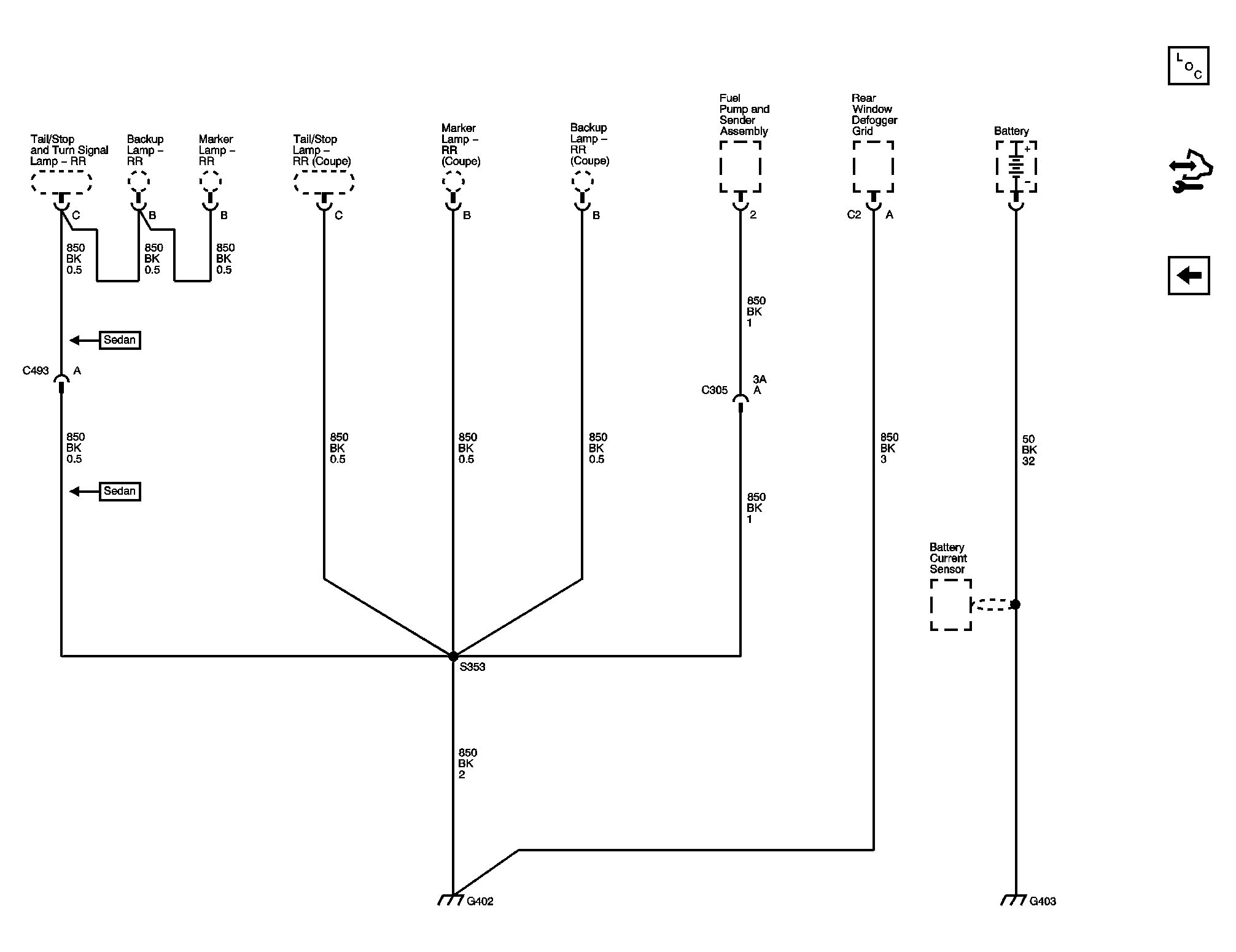

Fig 8: G402, G403 - Wiring Diagram

GM1582427

Courtesy of GENERAL MOTORS CORP.
