Instrument Cluster Schematics

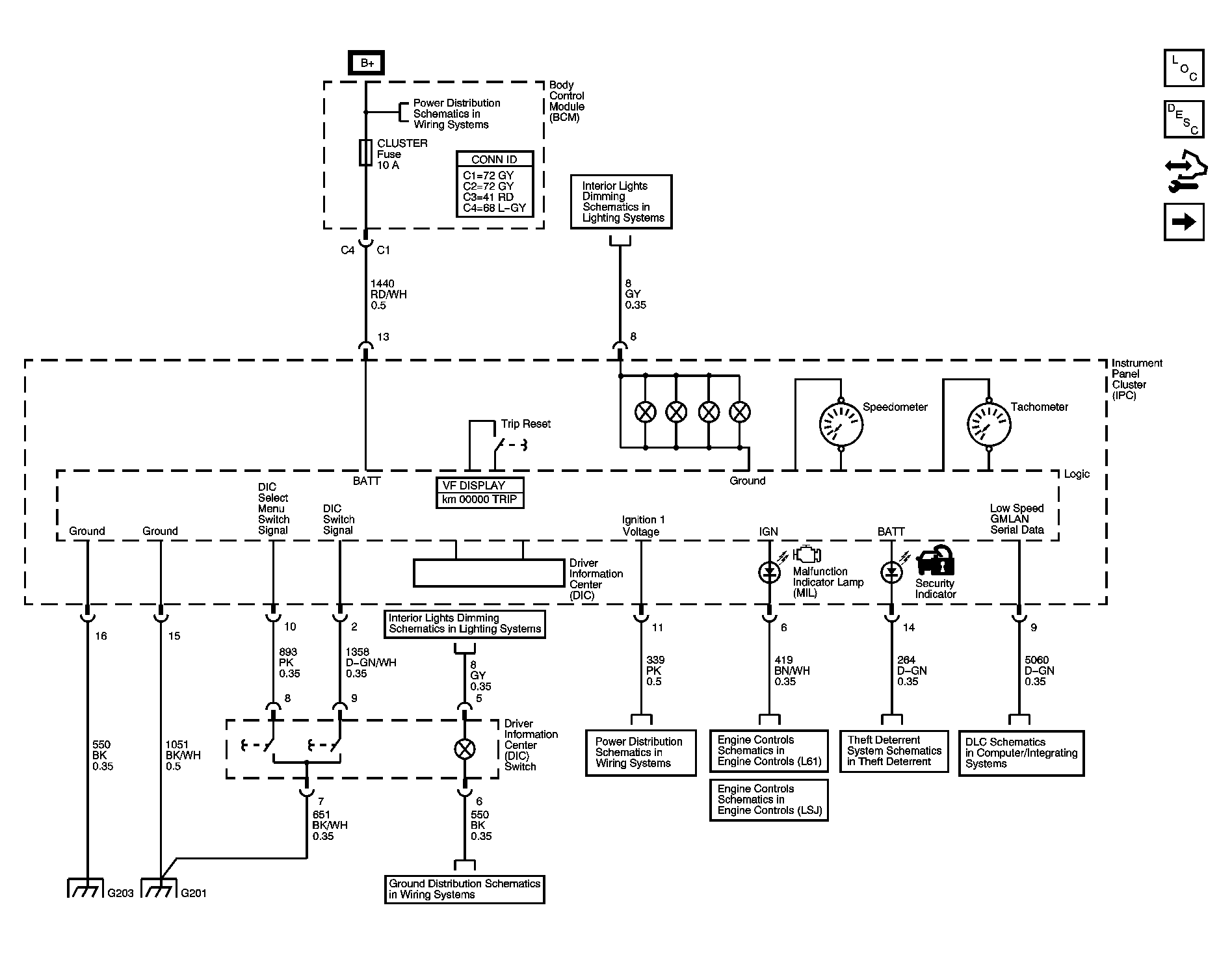

Fig 1: Power, Ground, and Illumination MIL Schematic
GM1582709Courtesy of GENERAL MOTORS CORP.

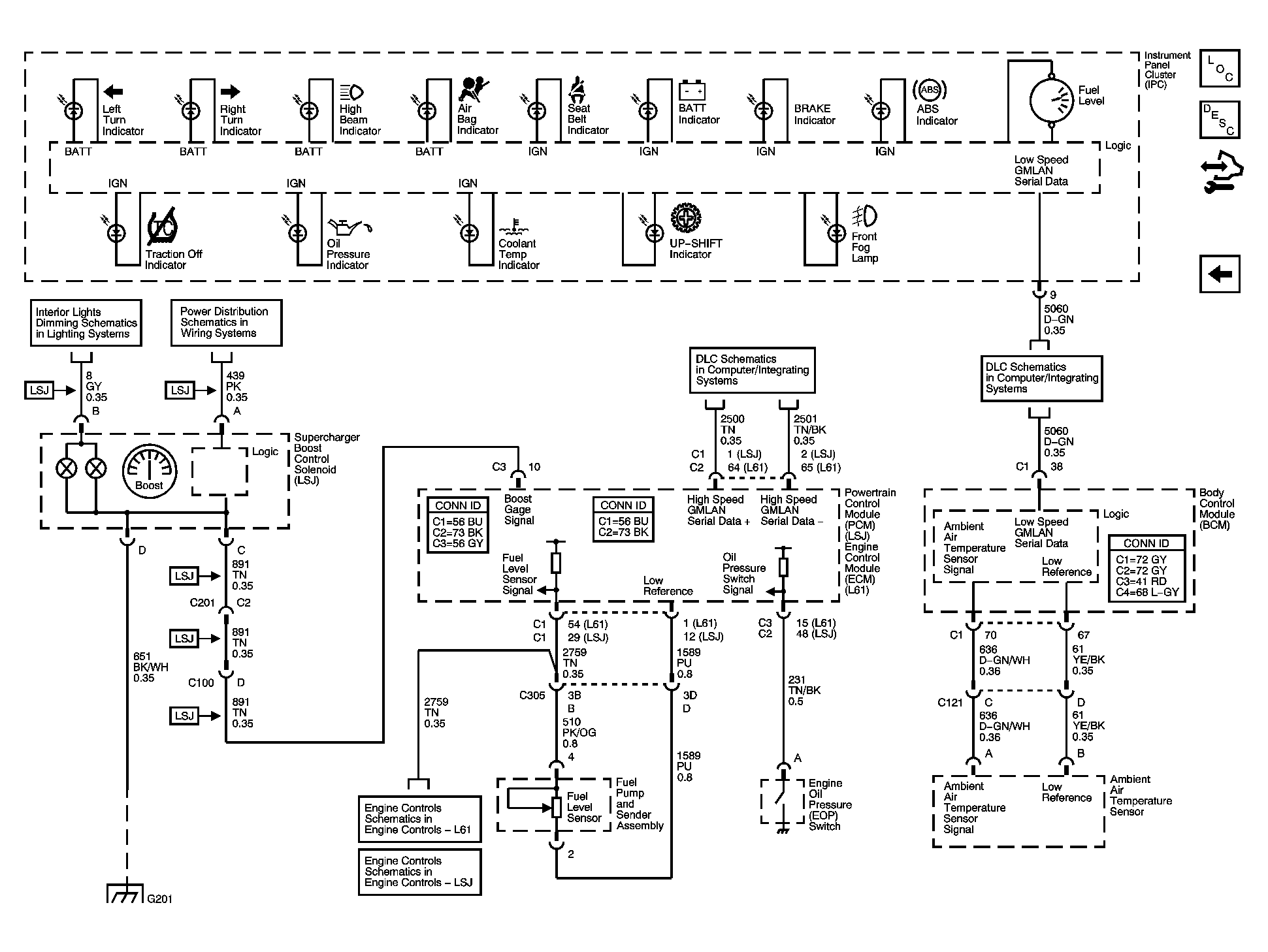

Fig 2: Ambient Air Temperature Sensor, EOP Sensor, Fuel Level Sensor, and Indicator Schematic
GM1582710Courtesy of GENERAL MOTORS CORP.
