ABS Wiring Schematics

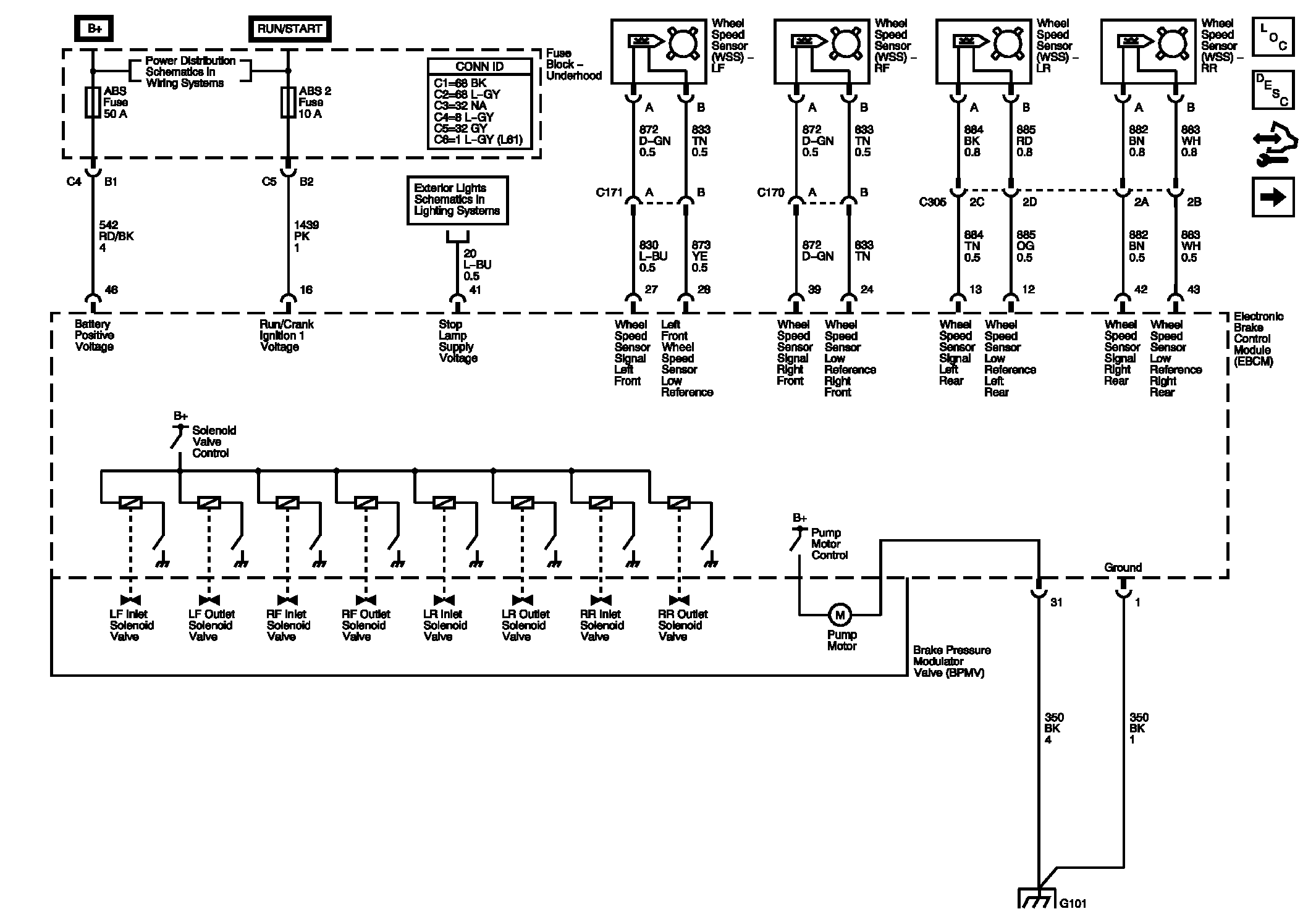

Fig 1: Power, Ground, and Wheel Speed Sensor Wiring Schematic

GM1582712

Courtesy of GENERAL MOTORS CORP.

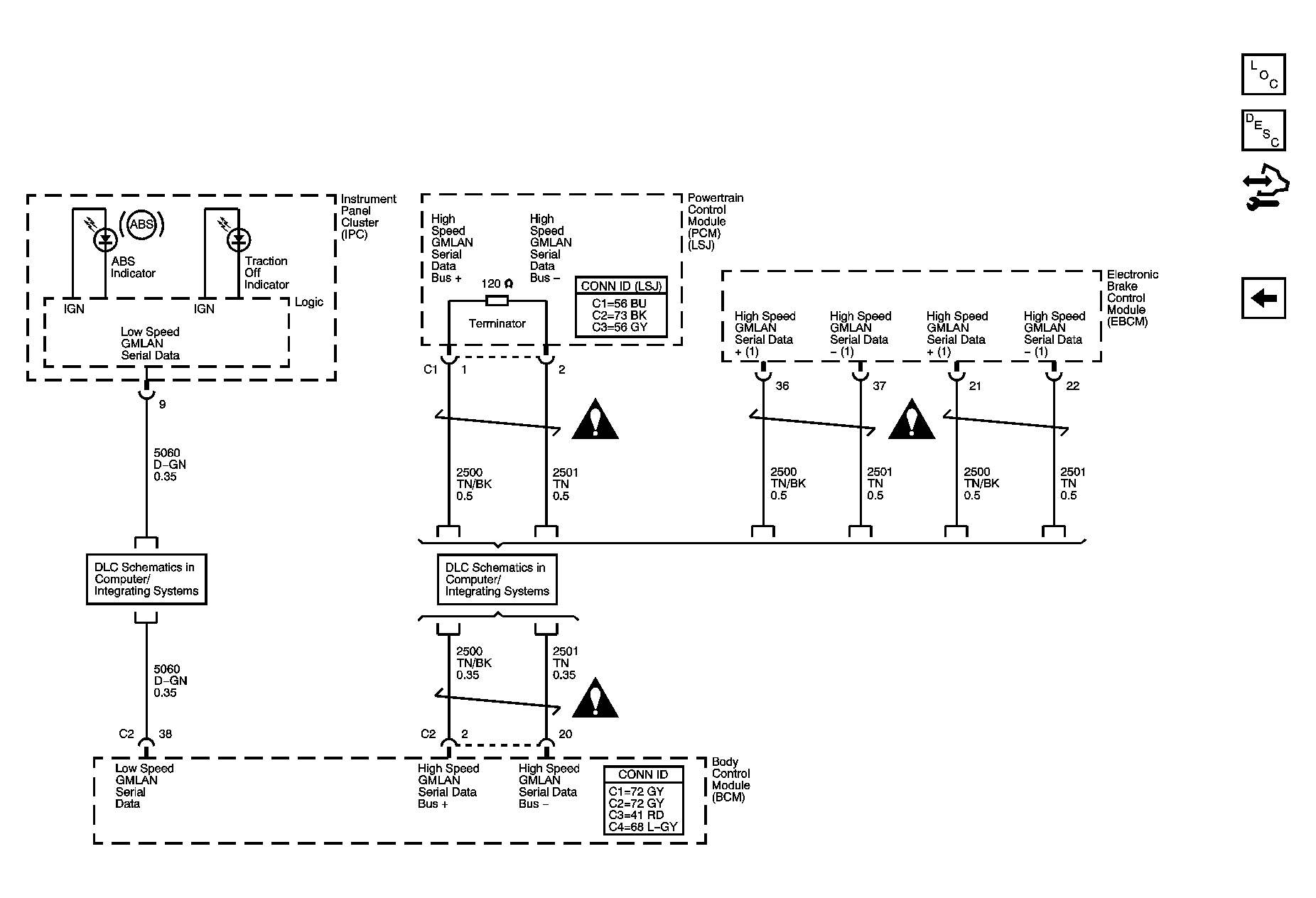

Fig 2: Data Link Communications Wiring Schematic

GM1582713

Courtesy of GENERAL MOTORS CORP.
