Driver Seat Schematics

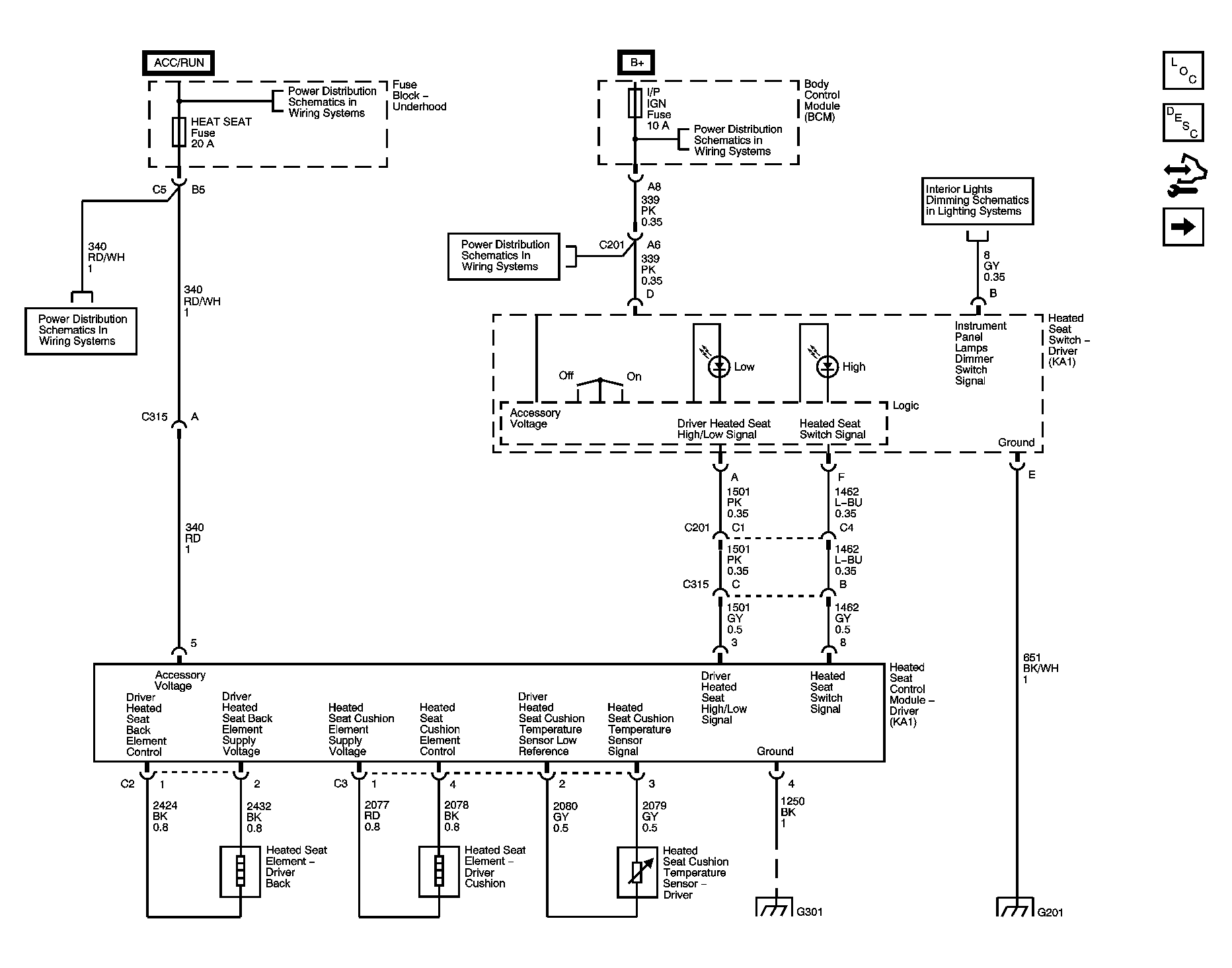

Fig 1: Heated Seat Schematic (Driver Side)

GM1582780

Courtesy of GENERAL MOTORS CORP.
