Interior Lights Schematics

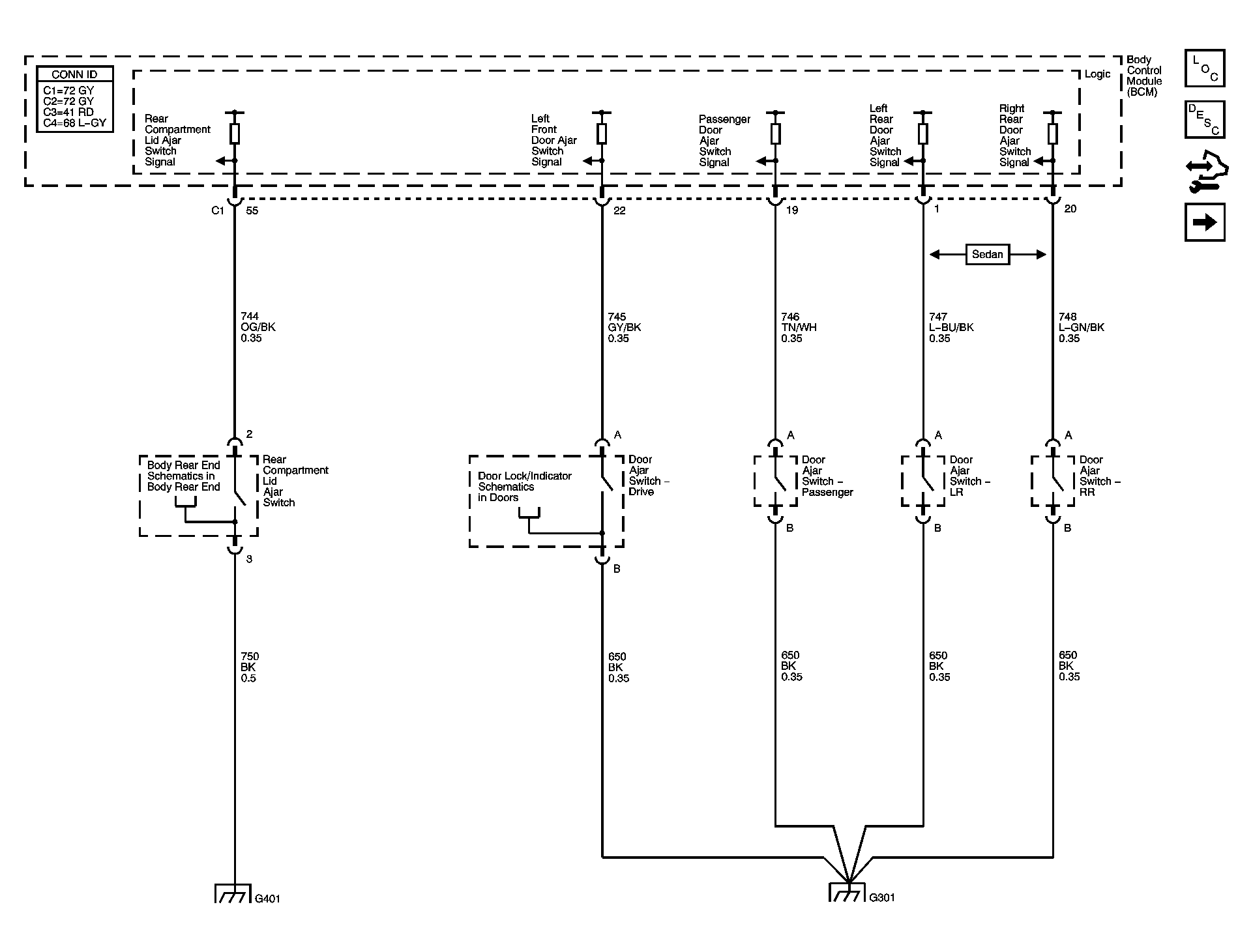

Fig 1: Interior Lights - Inputs Schematic

GM1582736

Courtesy of GENERAL MOTORS CORP.

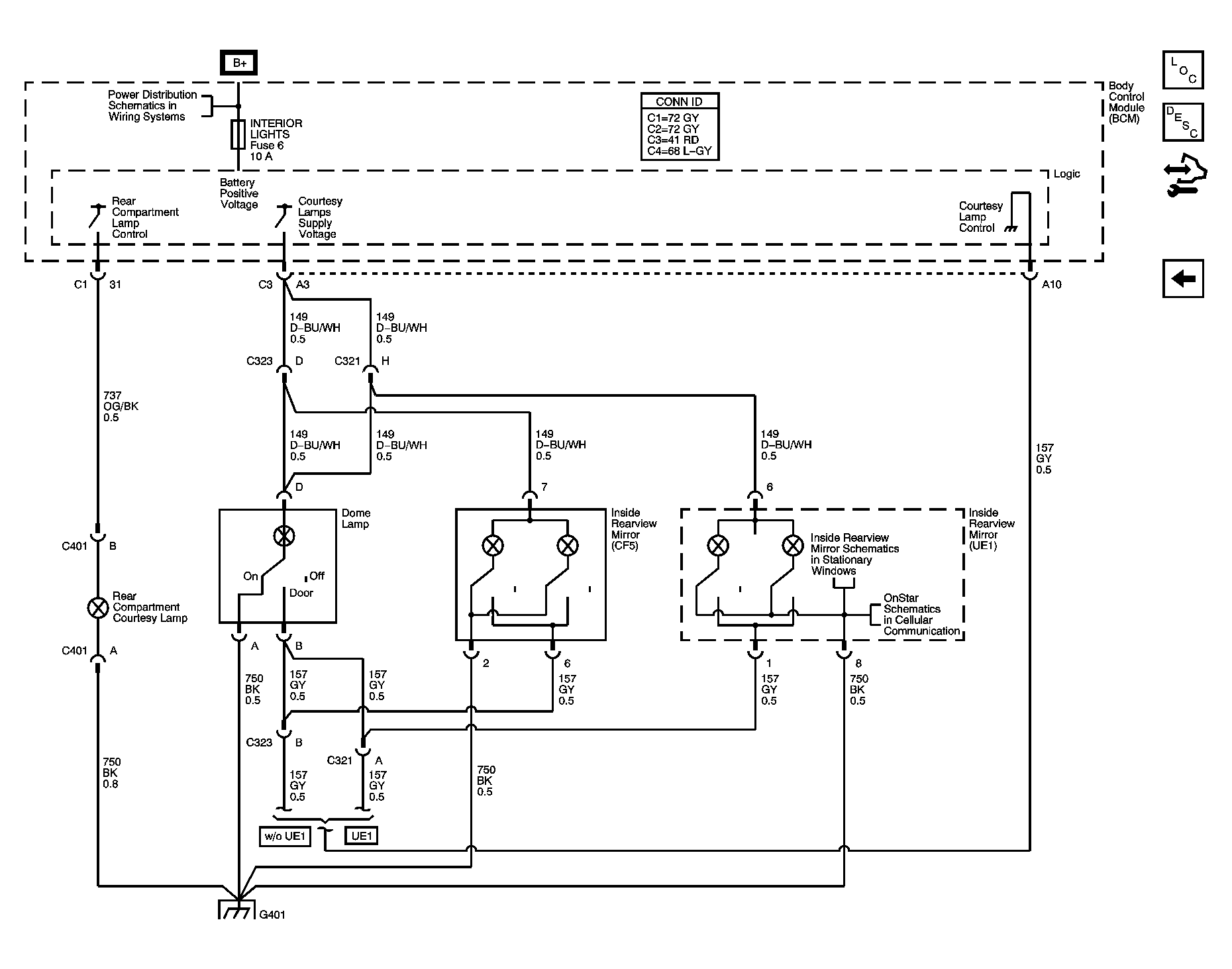

Fig 2: Interior Lights - Outputs Schematic

GM1582739

Courtesy of GENERAL MOTORS CORP.
