Interior Lights Dimming Schematics

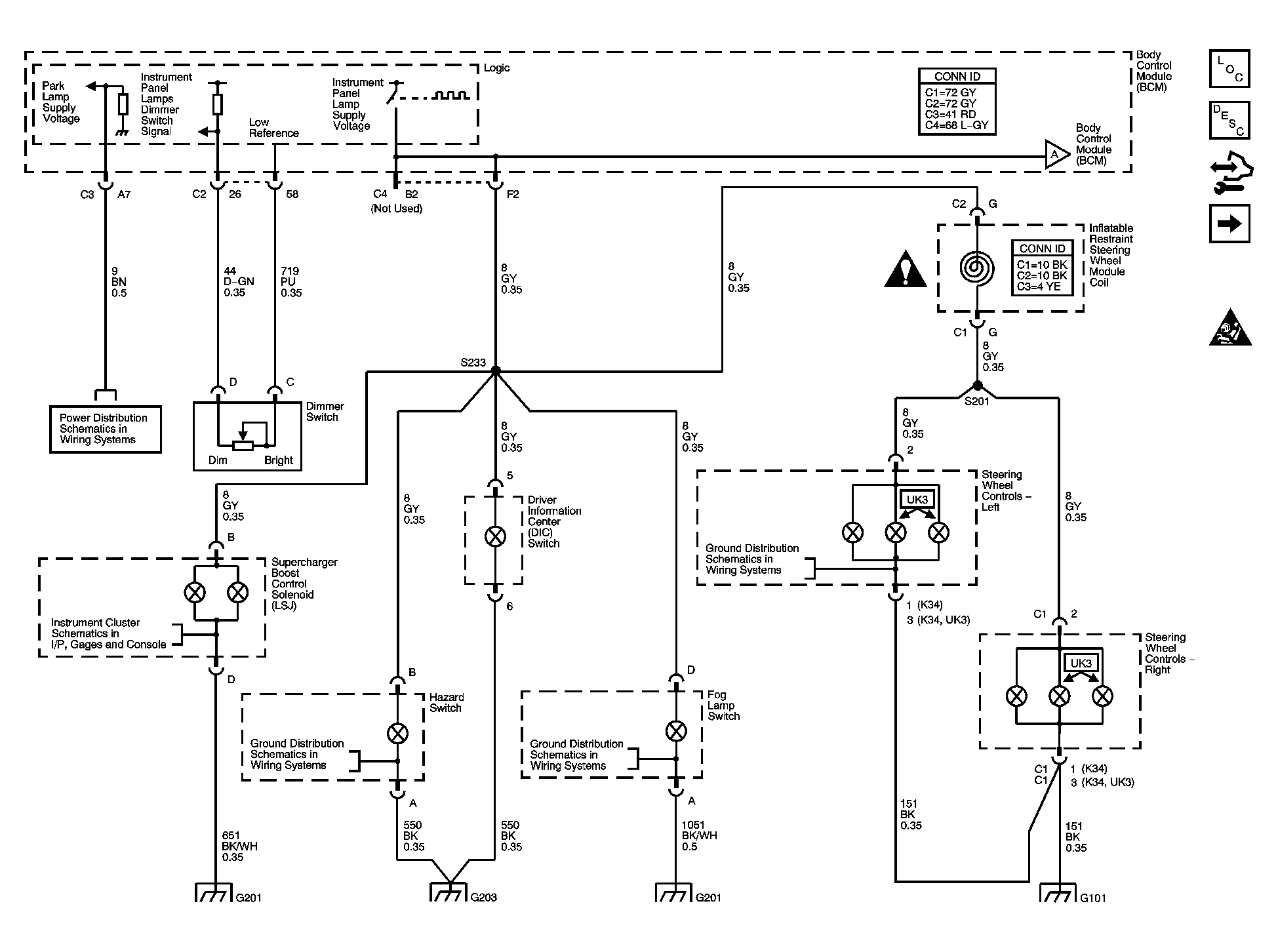

Fig 1: Dimmer Switch Inputs Schematic
GM1582740Courtesy of GENERAL MOTORS CORP.

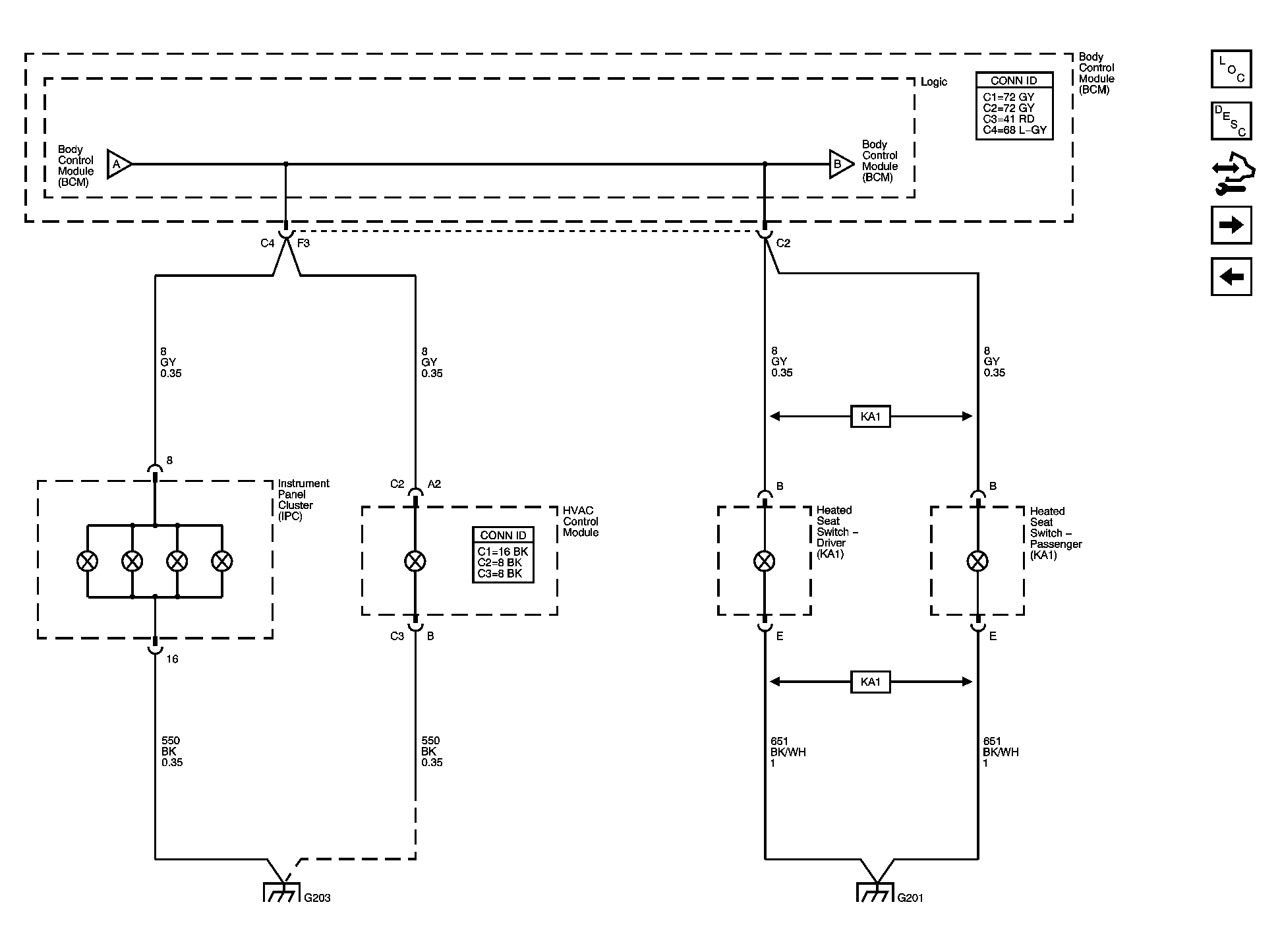

Fig 2: IPC, HVAC Control Module, Heated Seats Schematic
GM1582741Courtesy of GENERAL MOTORS CORP.

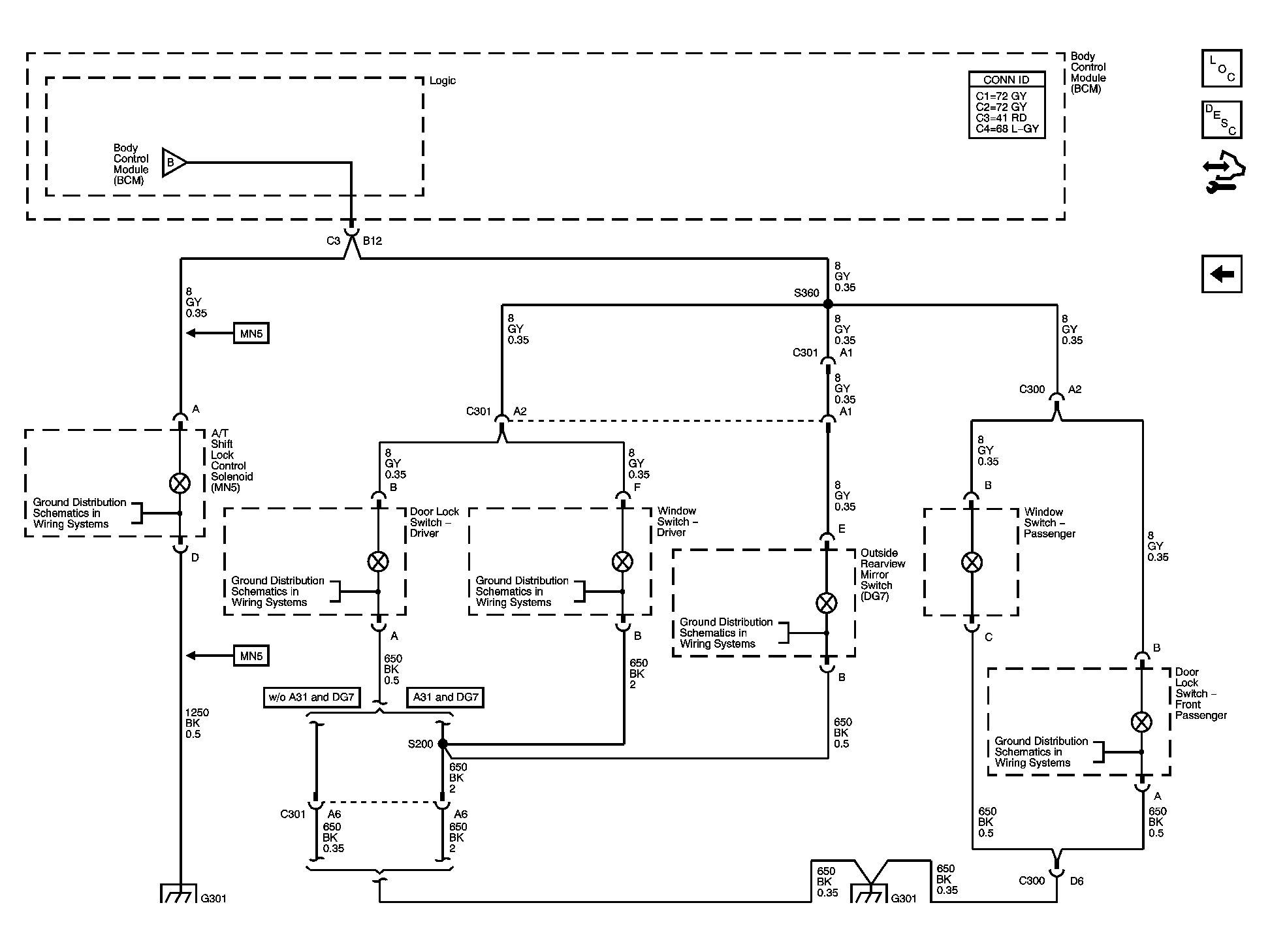

Fig 3: A/T Shift Lock Control Assembly, Mirror and Doors Schematic
GM1582742Courtesy of GENERAL MOTORS CORP.
