Headlights/Daytime Running Lights (DRL) Schematics

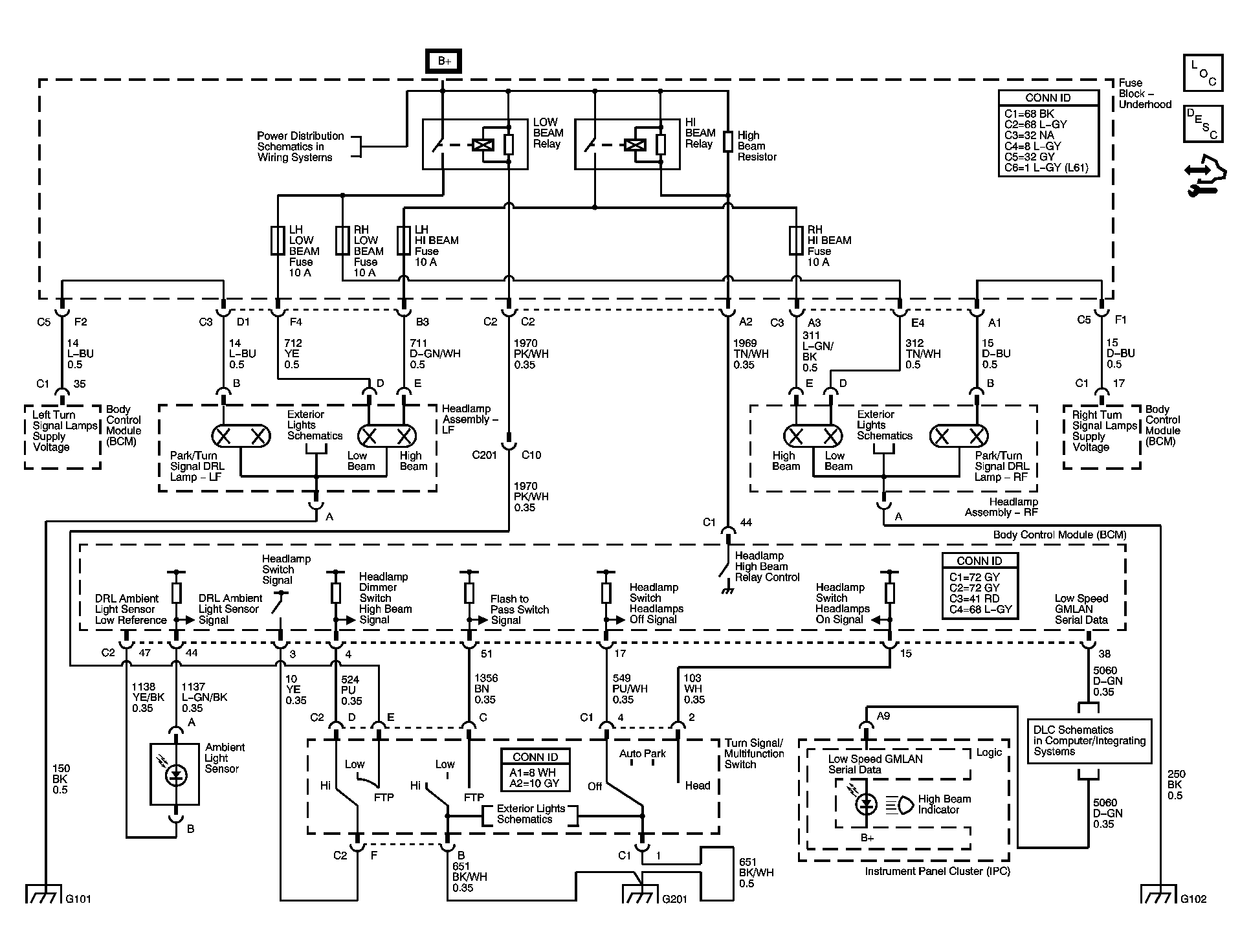

Fig 1: Headlights/Daytime Running Lights (DRL) Schematics

GM1582731

Courtesy of GENERAL MOTORS CORP.
