Exterior Lights Schematics

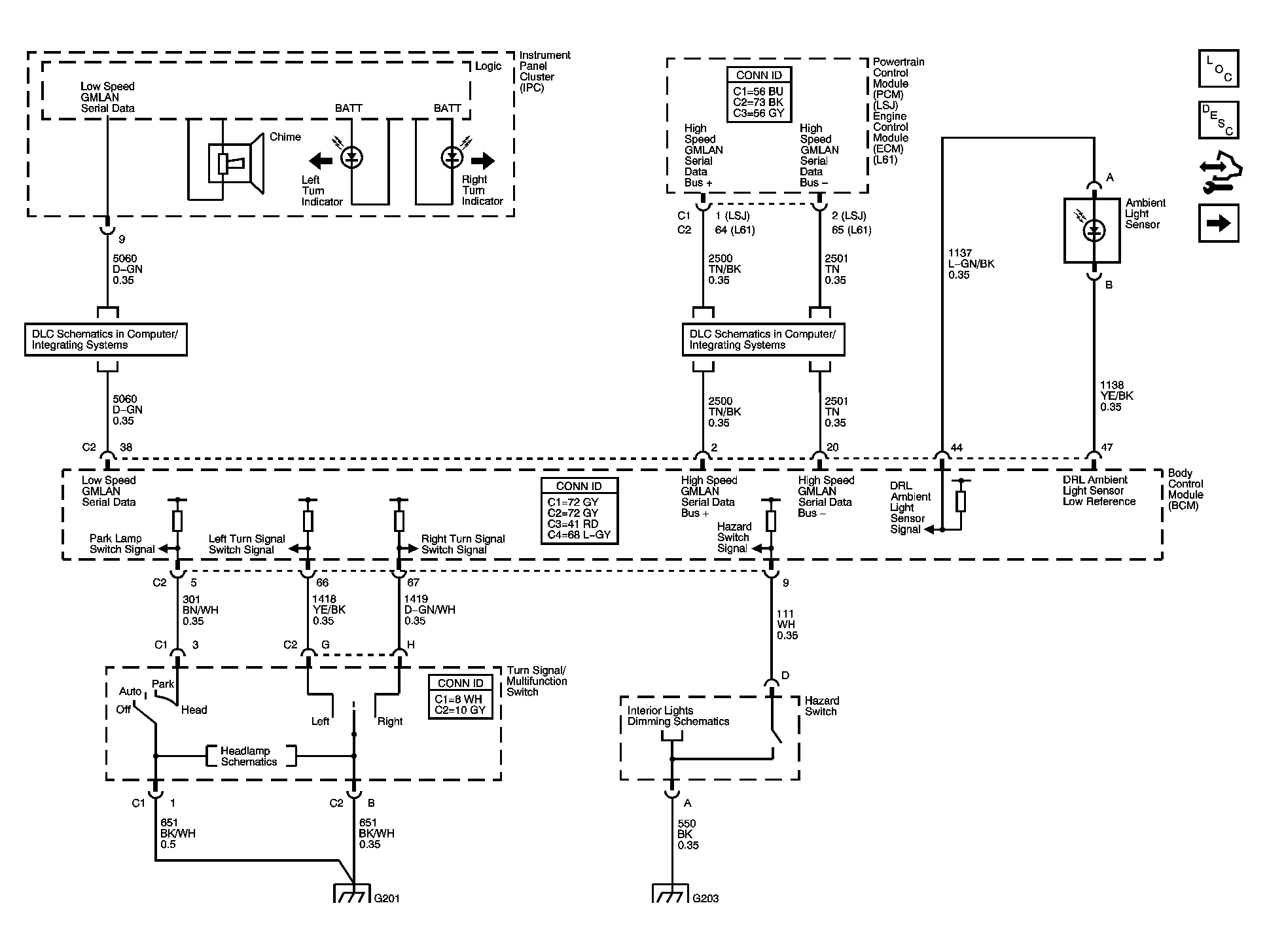

Fig 1: Exterior Lights Schematic
GM1582733Courtesy of GENERAL MOTORS CORP.

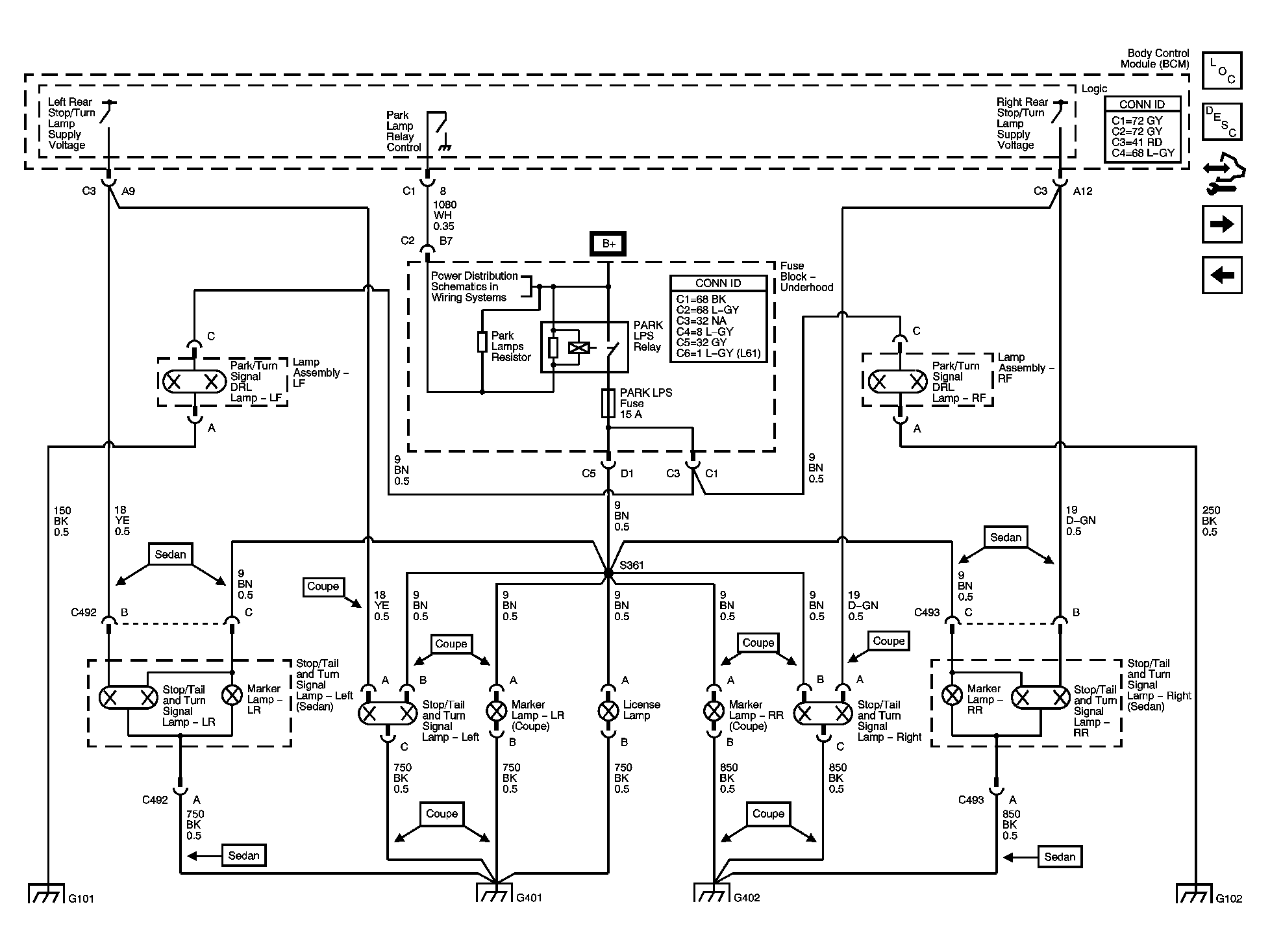

Fig 2: Tail/Stop, Turn Signal and Marker Lamps Schematic
GM1582734Courtesy of GENERAL MOTORS CORP.

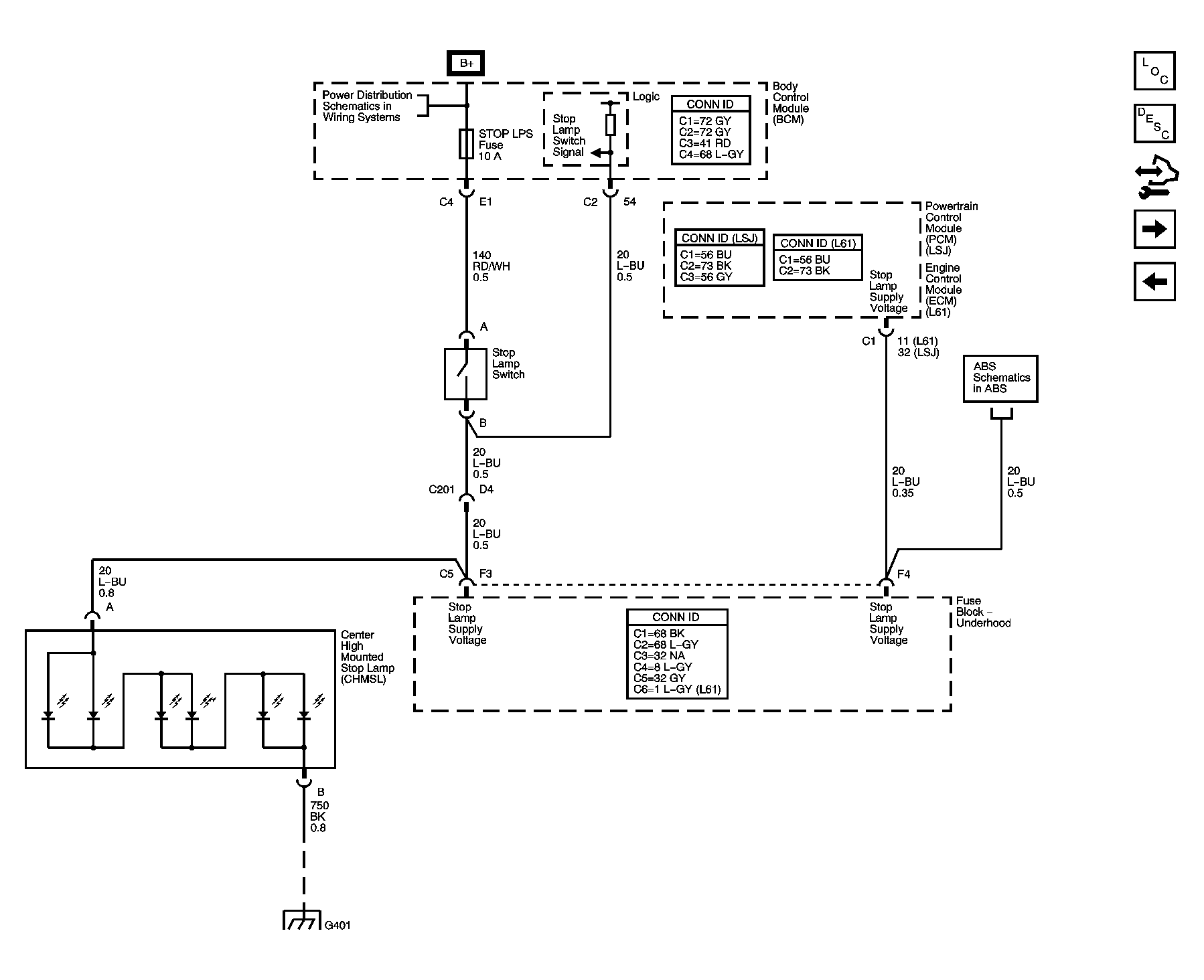

Fig 3: Center High Mounted Stop Lamp, B+ Schematic
GM1582924Courtesy of GENERAL MOTORS CORP.

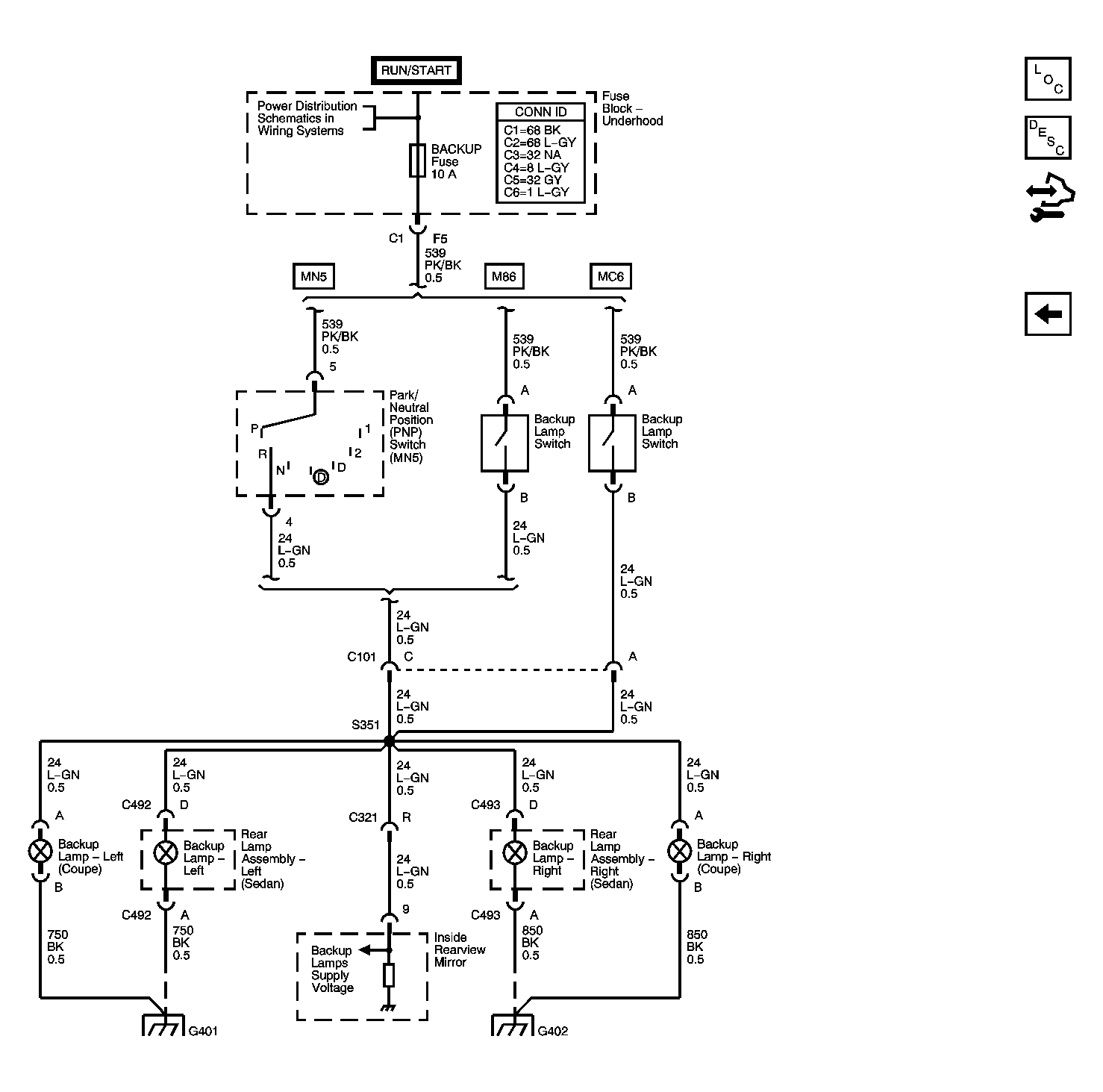

Fig 4: Backup Lamps Schematic
GM1582735Courtesy of GENERAL MOTORS CORP.
