Radio/Audio System Schematics

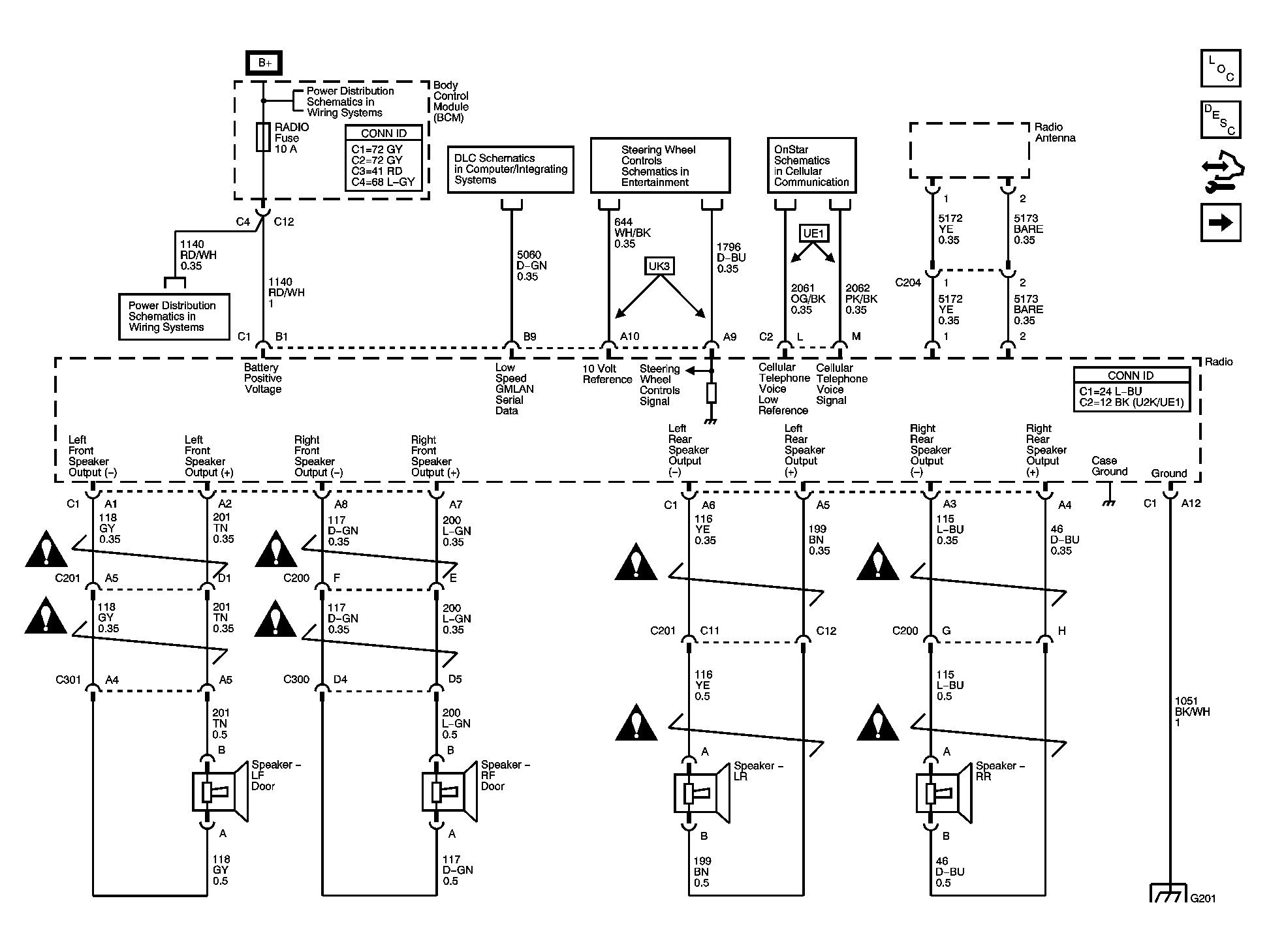

Fig 1: Radio w/U24 Schematic
GM1582784Courtesy of GENERAL MOTORS CORP.

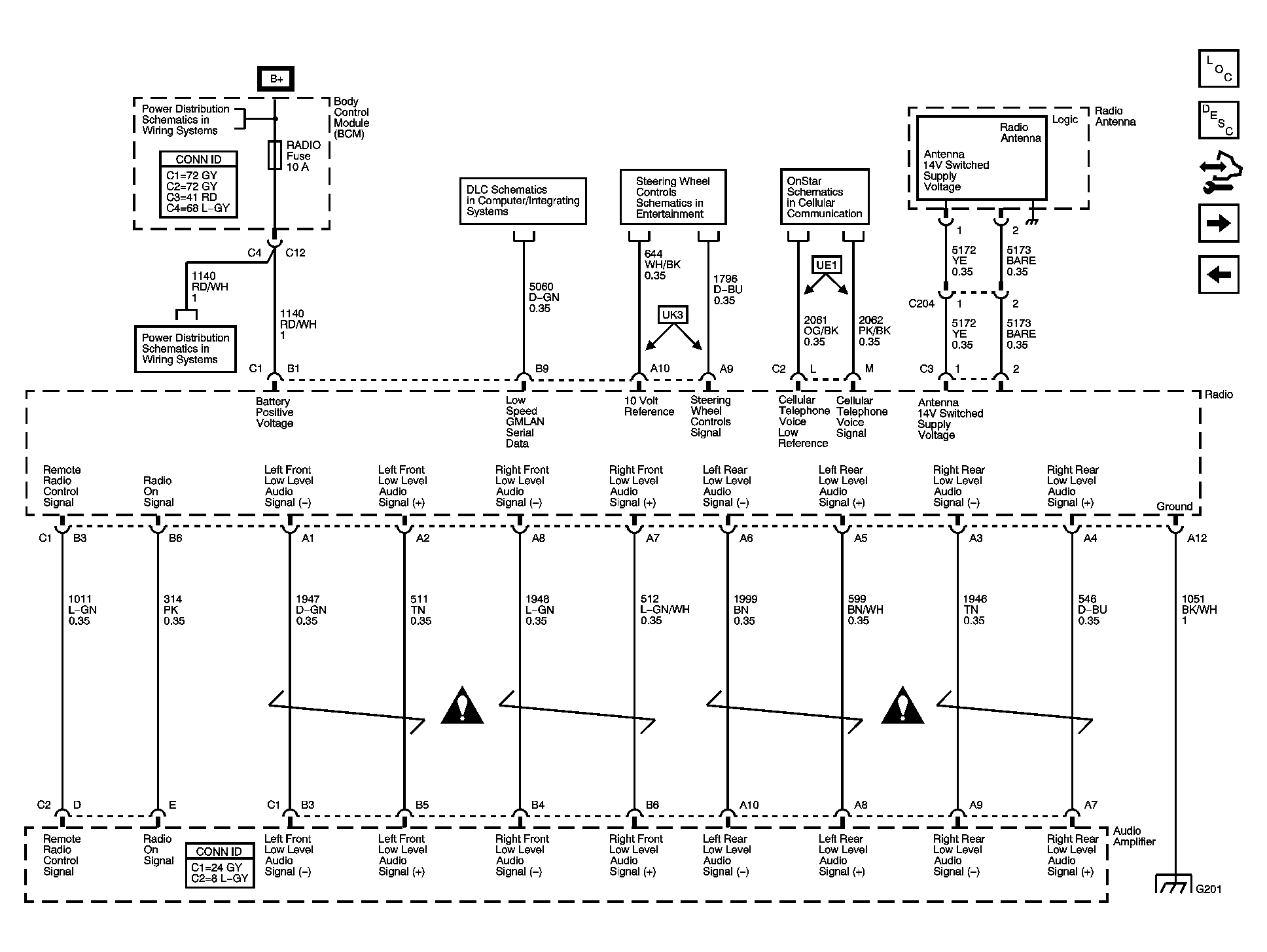

Fig 2: CD and MP3 w/Amplifier Schematic (1 of 2)
GM1582787Courtesy of GENERAL MOTORS CORP.

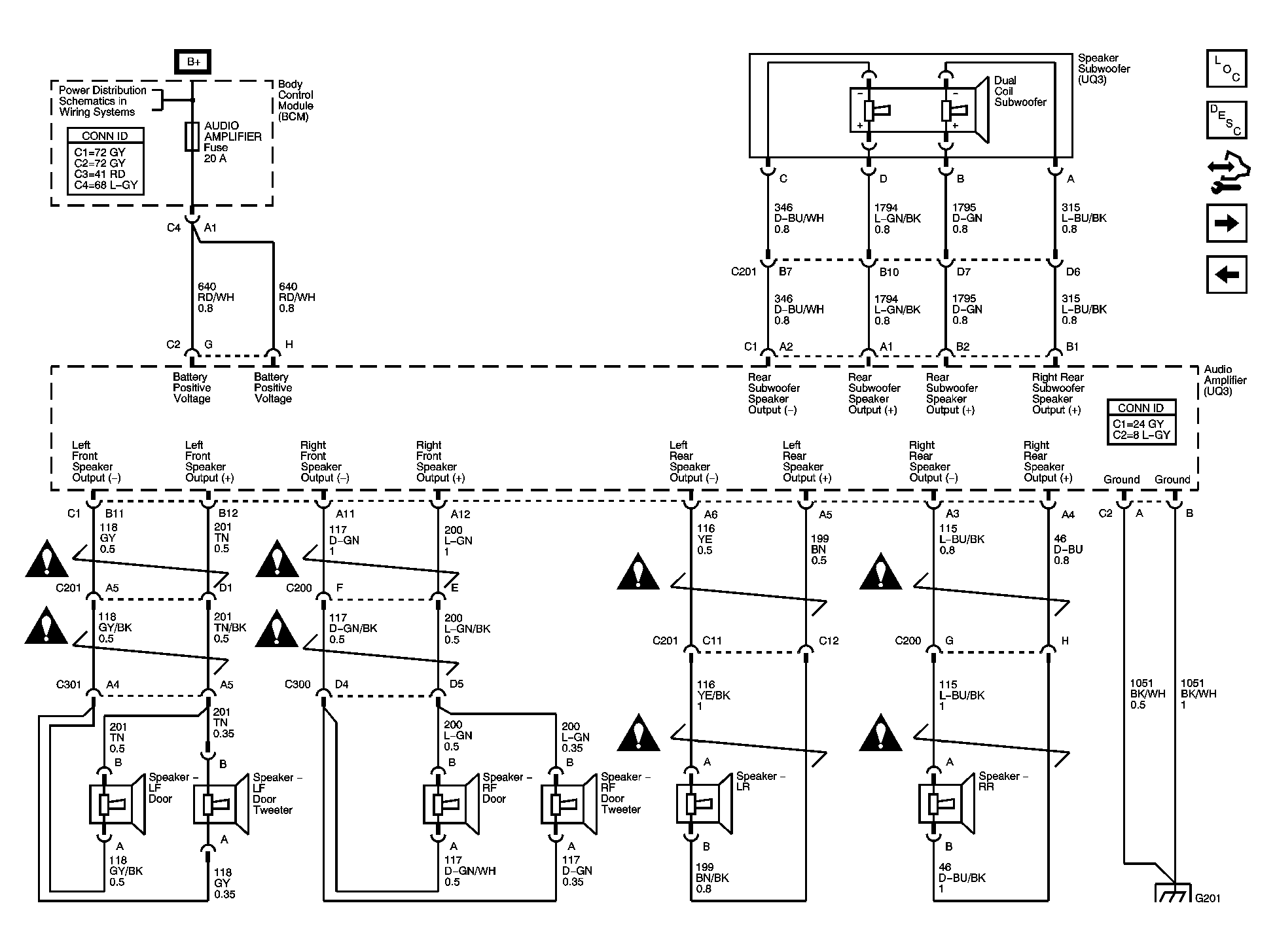

Fig 3: CD and MP3 w/Amplifier Schematic (2 of 2)
GM1582792Courtesy of GENERAL MOTORS CORP.

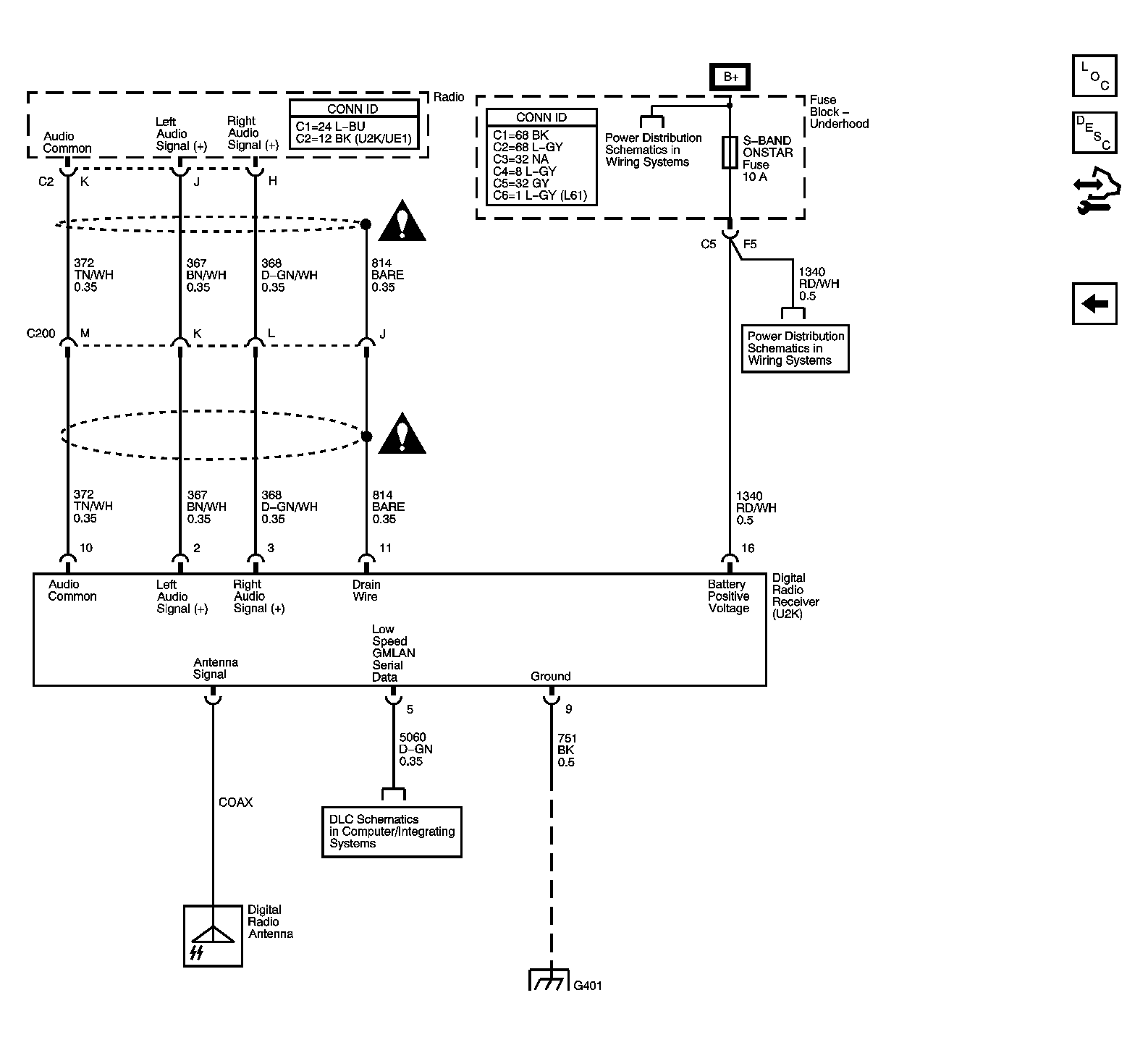

Fig 4: Digital Radio Receiver (U2K) Schematic
GM1582796Courtesy of GENERAL MOTORS CORP.
