Body Control System Wiring Schematics

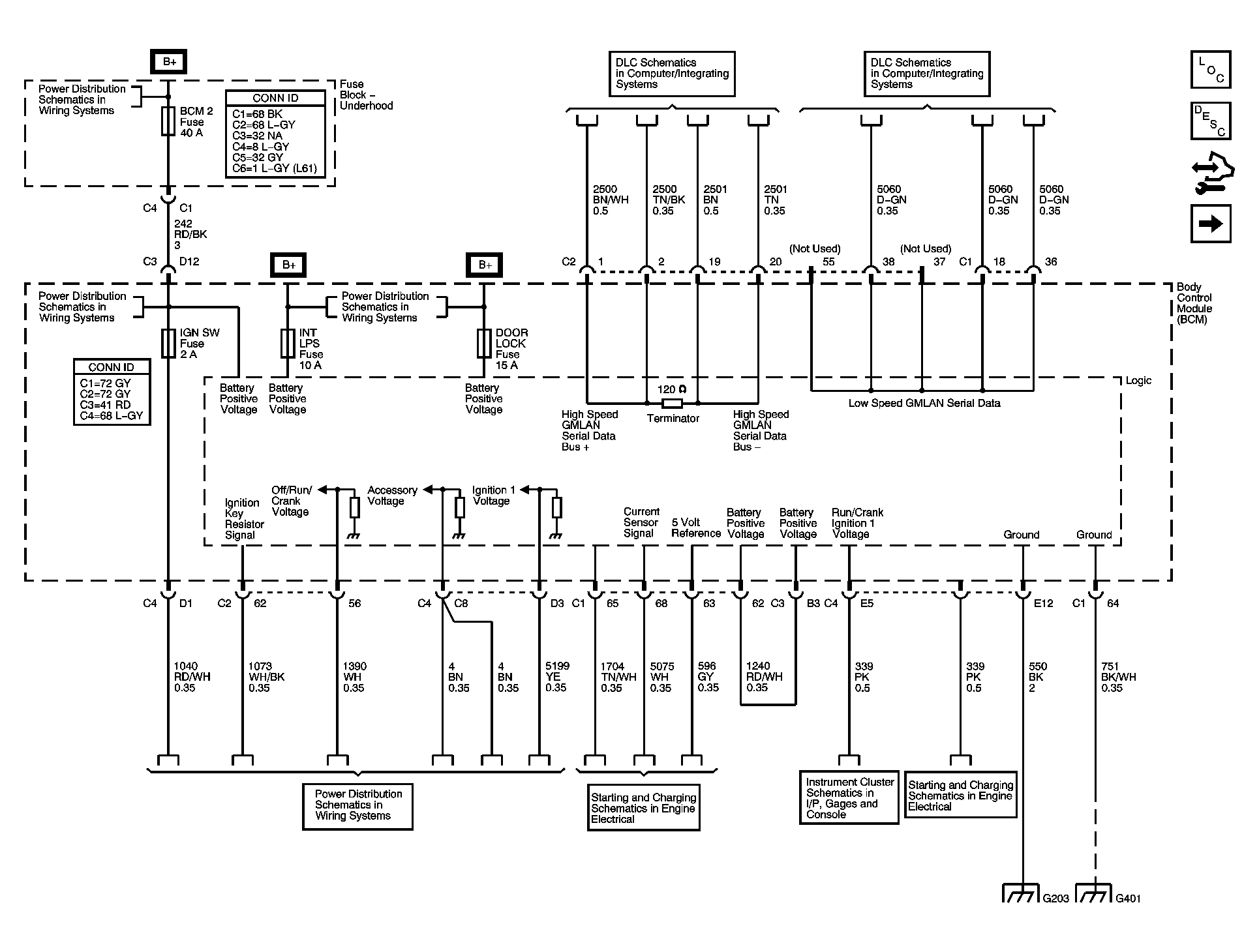

Fig 1: Power, Ground, Data Link, and Engine References Schematic

Courtesy of GENERAL MOTORS CORP.

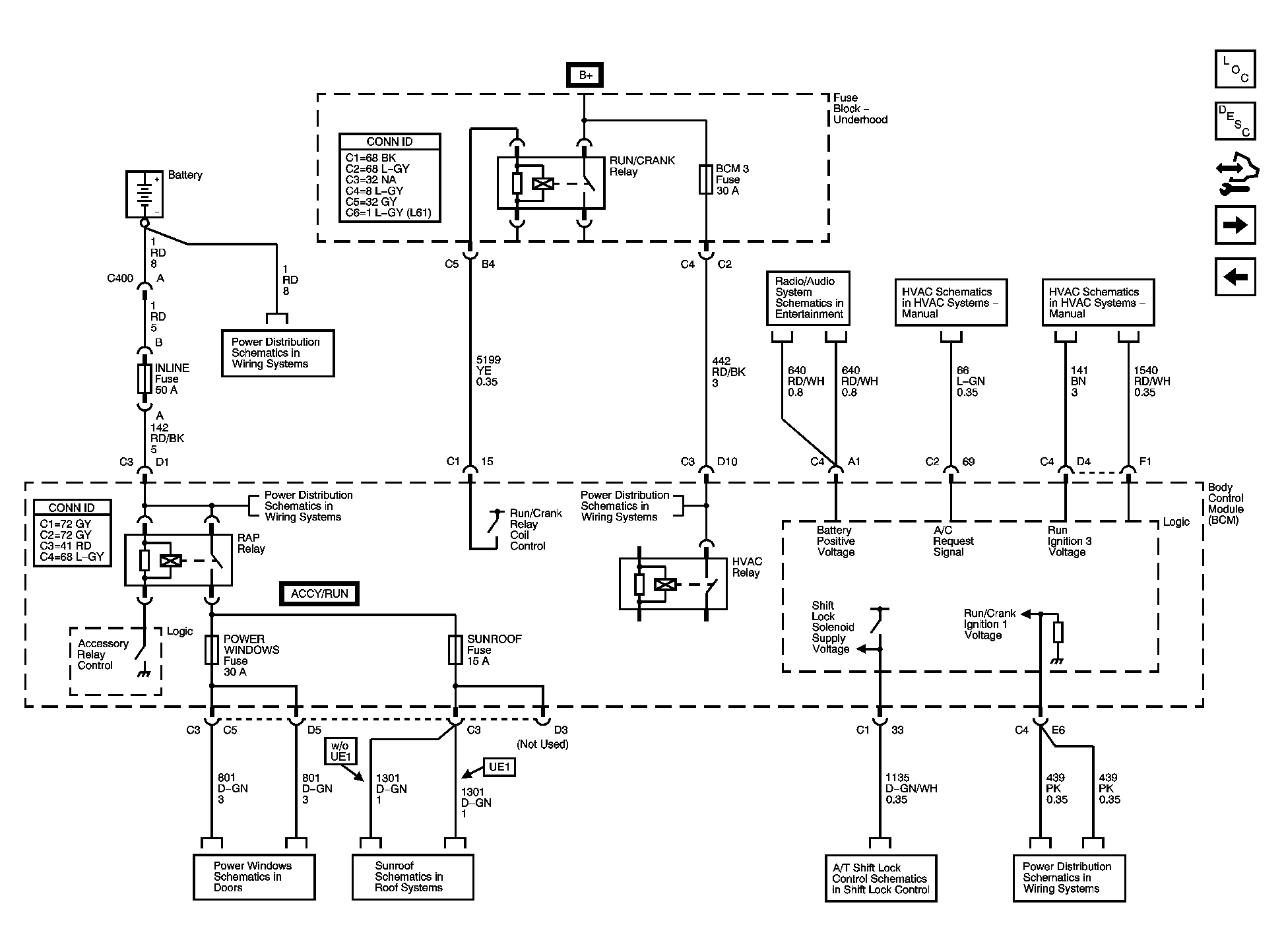

Fig 2: RUN/CRANK, RAP, HVAC Relays, BCM3, PWR WINDOWS, SUNROOF Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

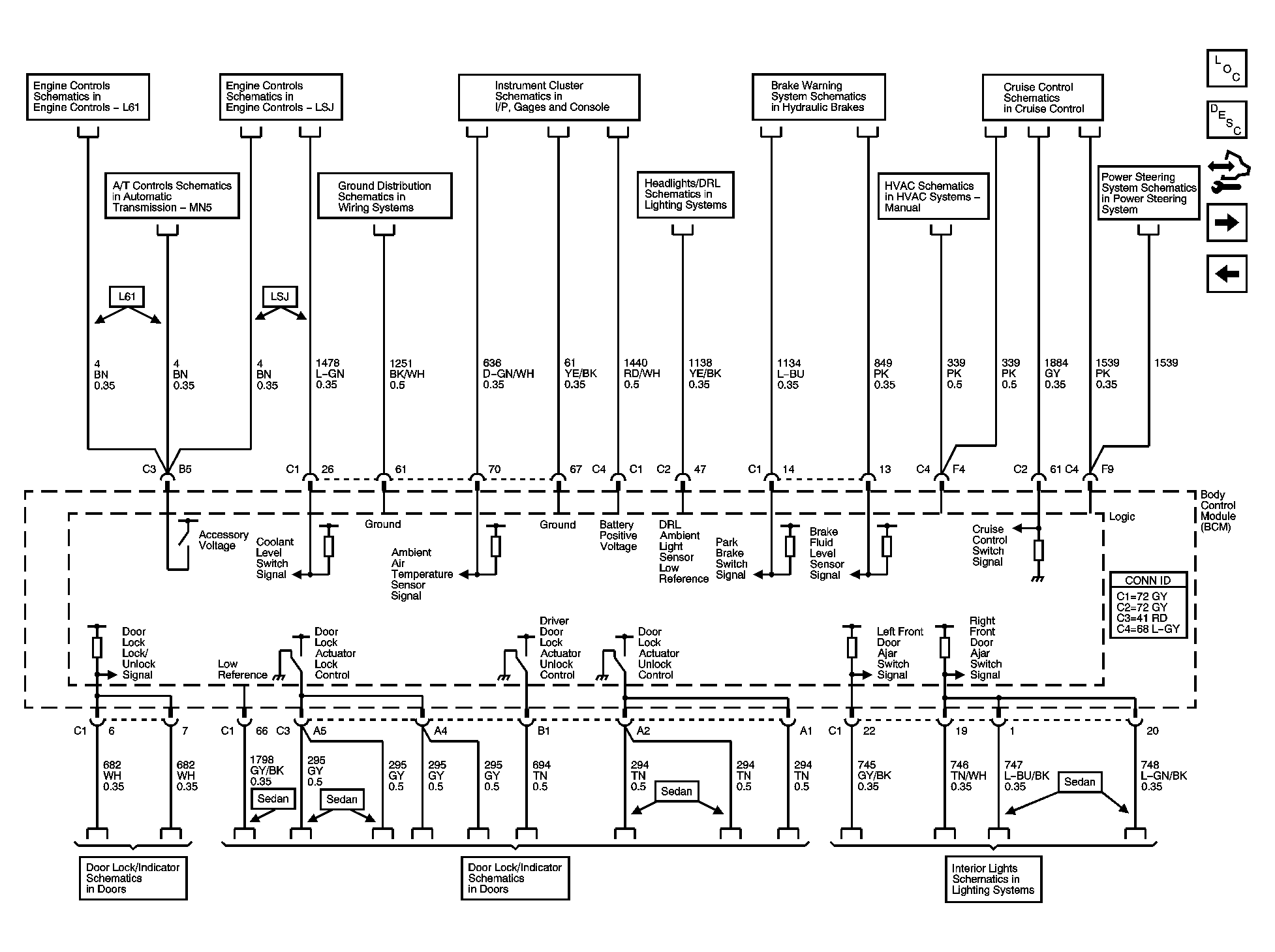

Fig 3: ABS, Brake Warning, Cruise Control, Door Lock Indicator, Engine Controls, and Engine Cooling References Schematic

Courtesy of GENERAL MOTORS CORP.

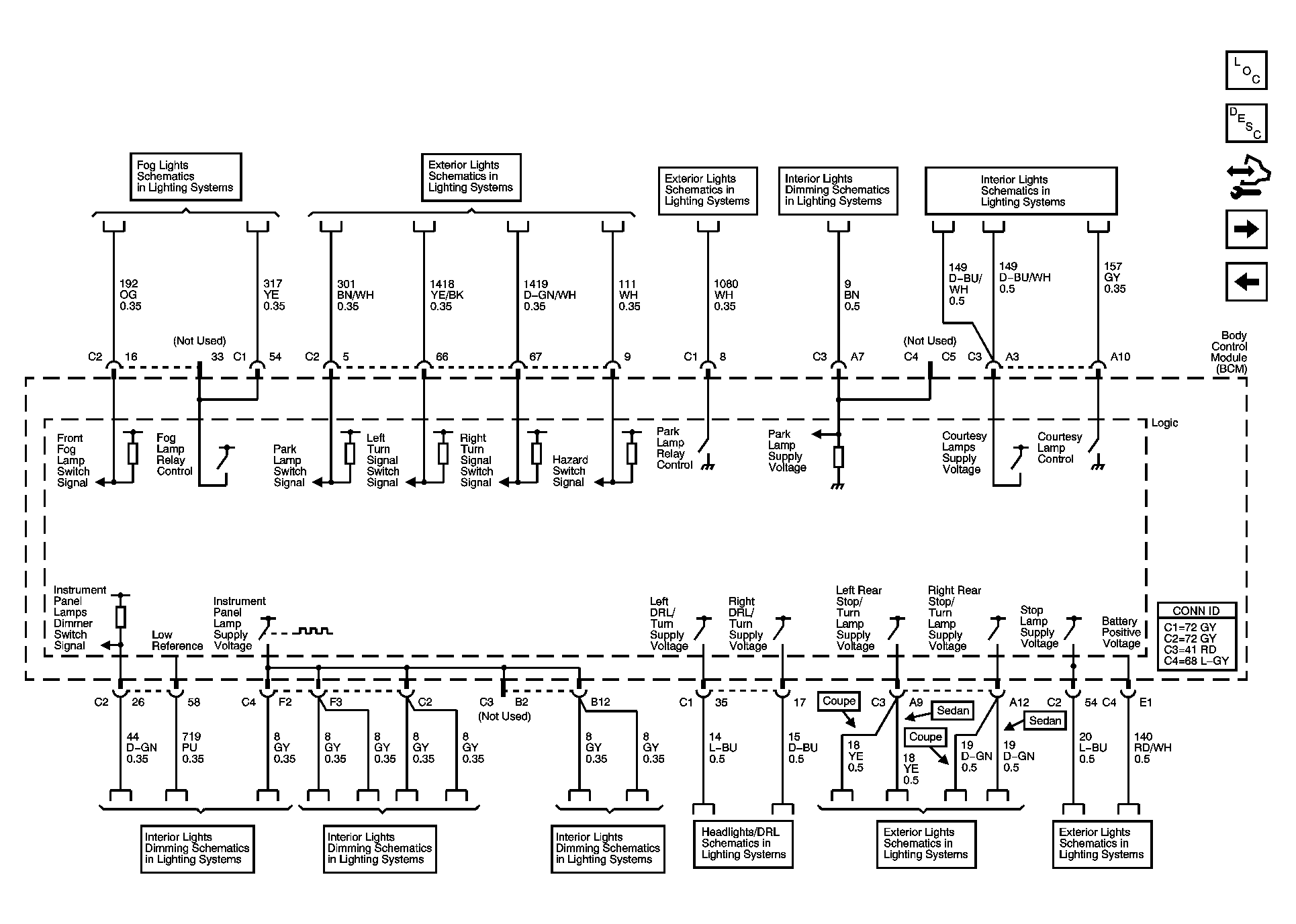

Fig 4: Lighting System References Schematic

Courtesy of GENERAL MOTORS CORP.

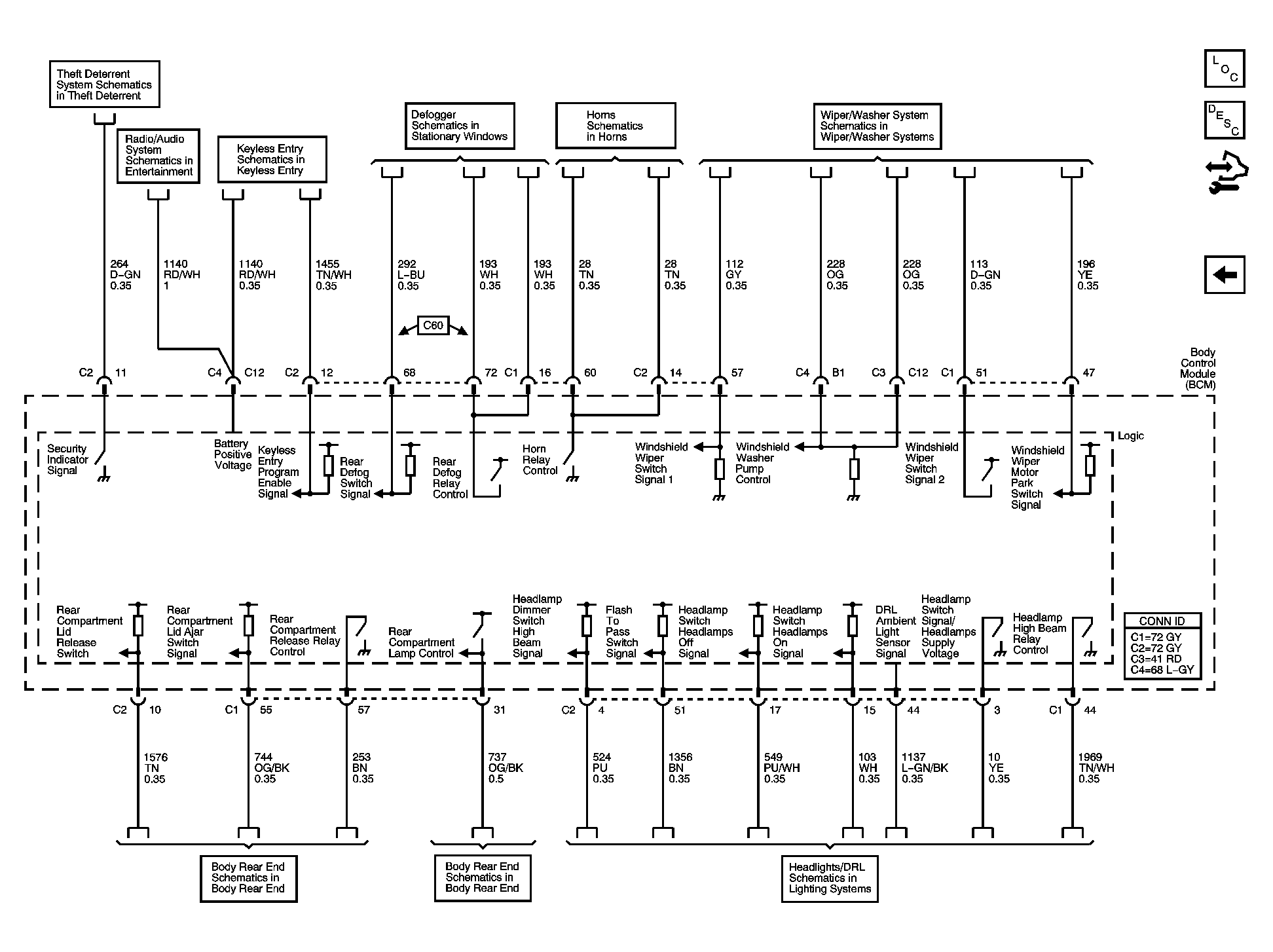

Fig 5: Body Rear End, Defogger, Headlights/DRL, Horns, and Wiper/Washer References Schematic

Courtesy of GENERAL MOTORS CORP.
