HVAC Component Views

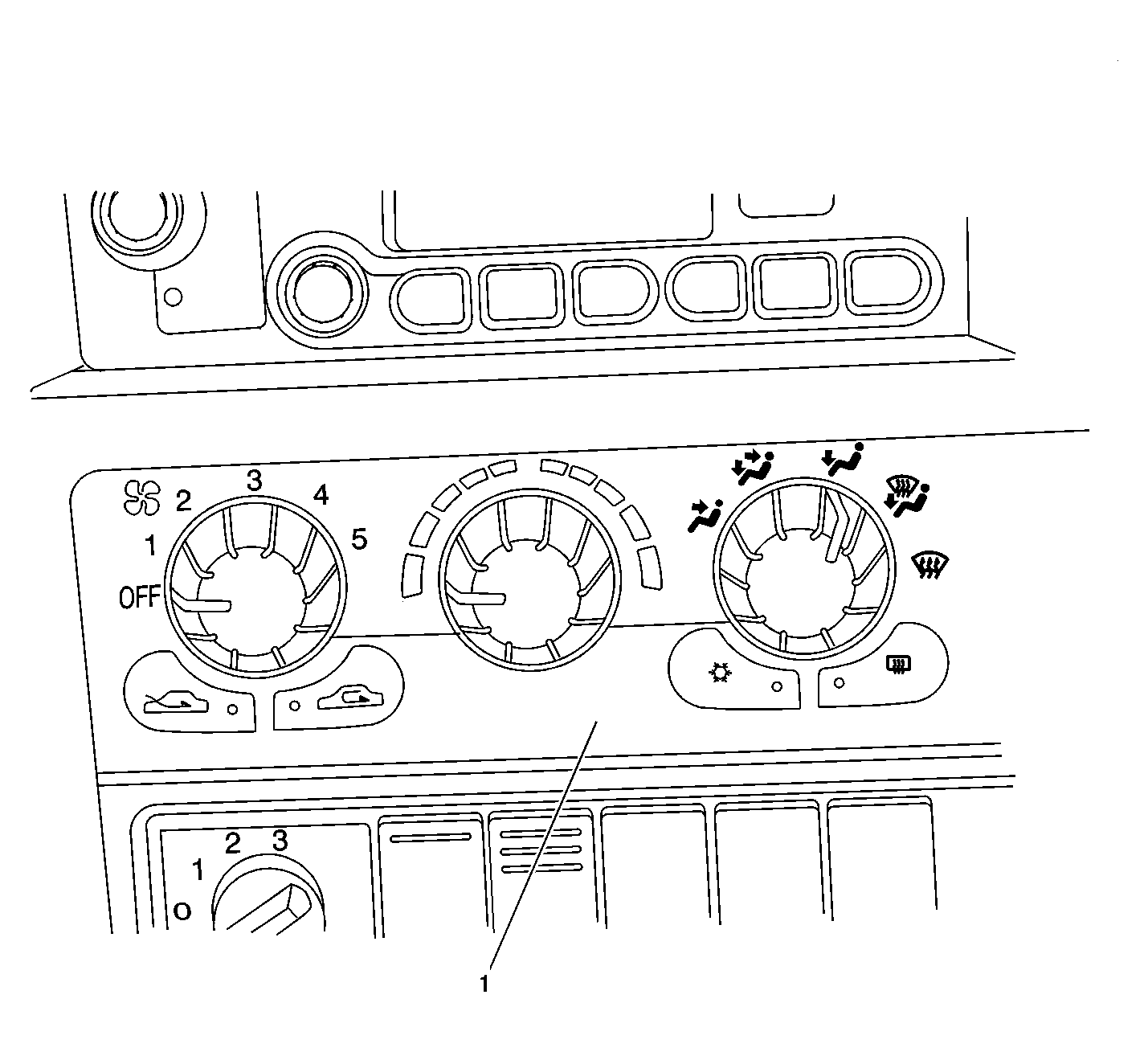

Fig 1: Center of I/P, HVAC Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module

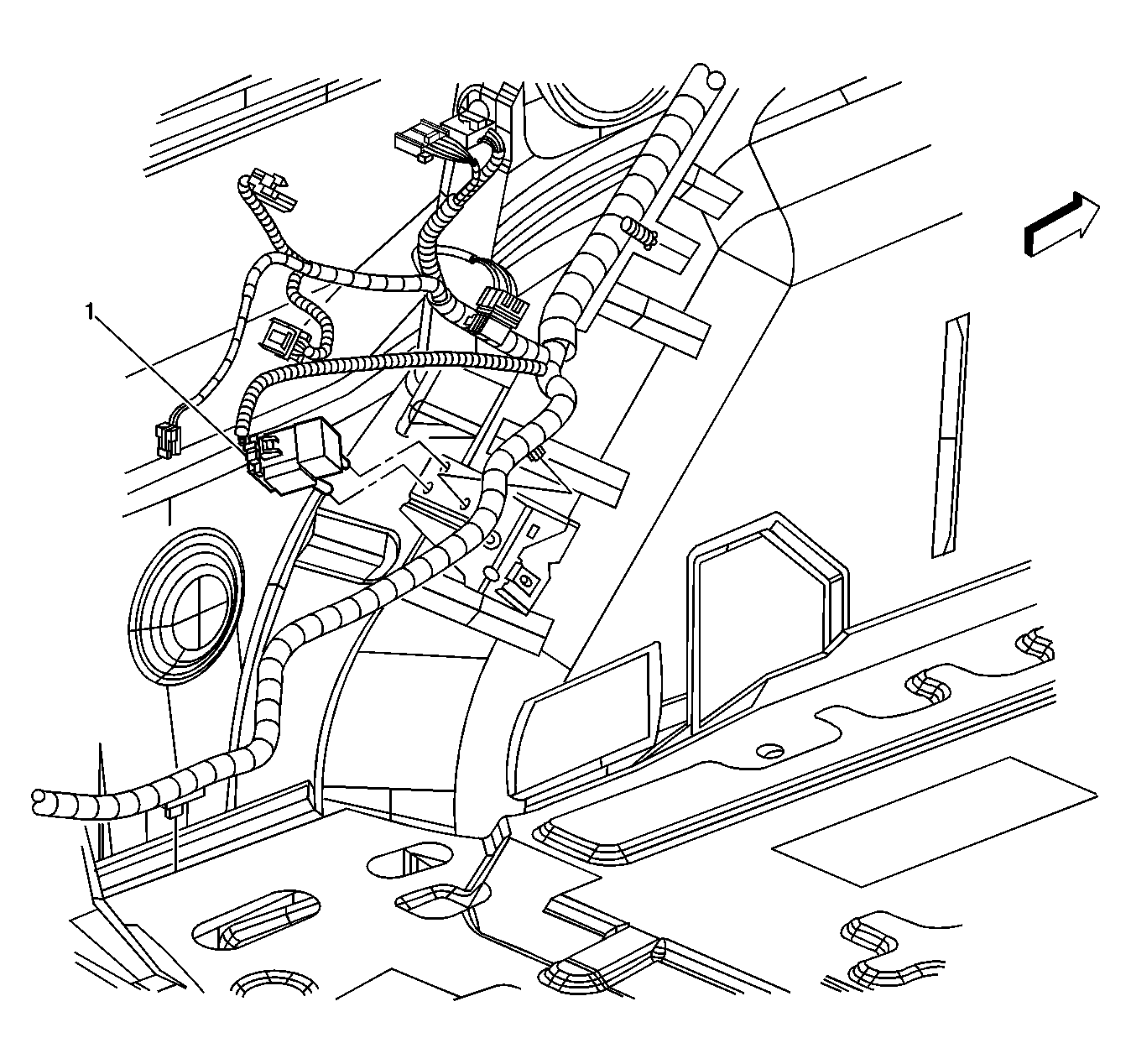

Fig 2: Left Rear of Vehicle on Rear of Wheelhouse

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Relay-Auxiliary

Fig 3: Left Rear of Vehicle on Rear of Wheelhouse

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Auxiliary
2	Blower Motor Resistor Assembly - Auxiliary
3	Blower Motor-Auxiliary
4	Mode Actuator-Auxiliary

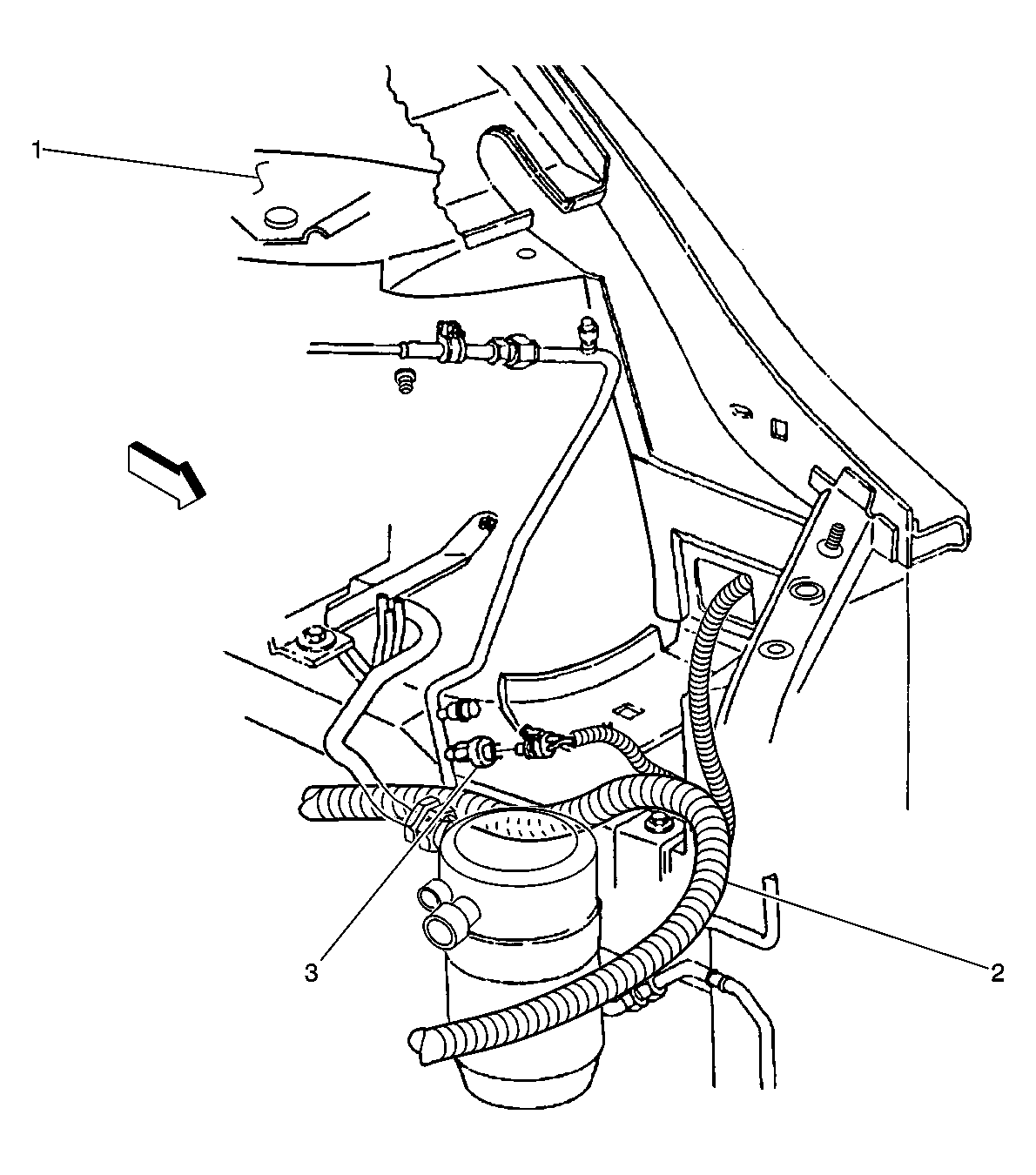

Fig 4: Front, LH Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LH Strut Tower
2	Engine Harness
3	A/C Refrigerant Pressure Sensor

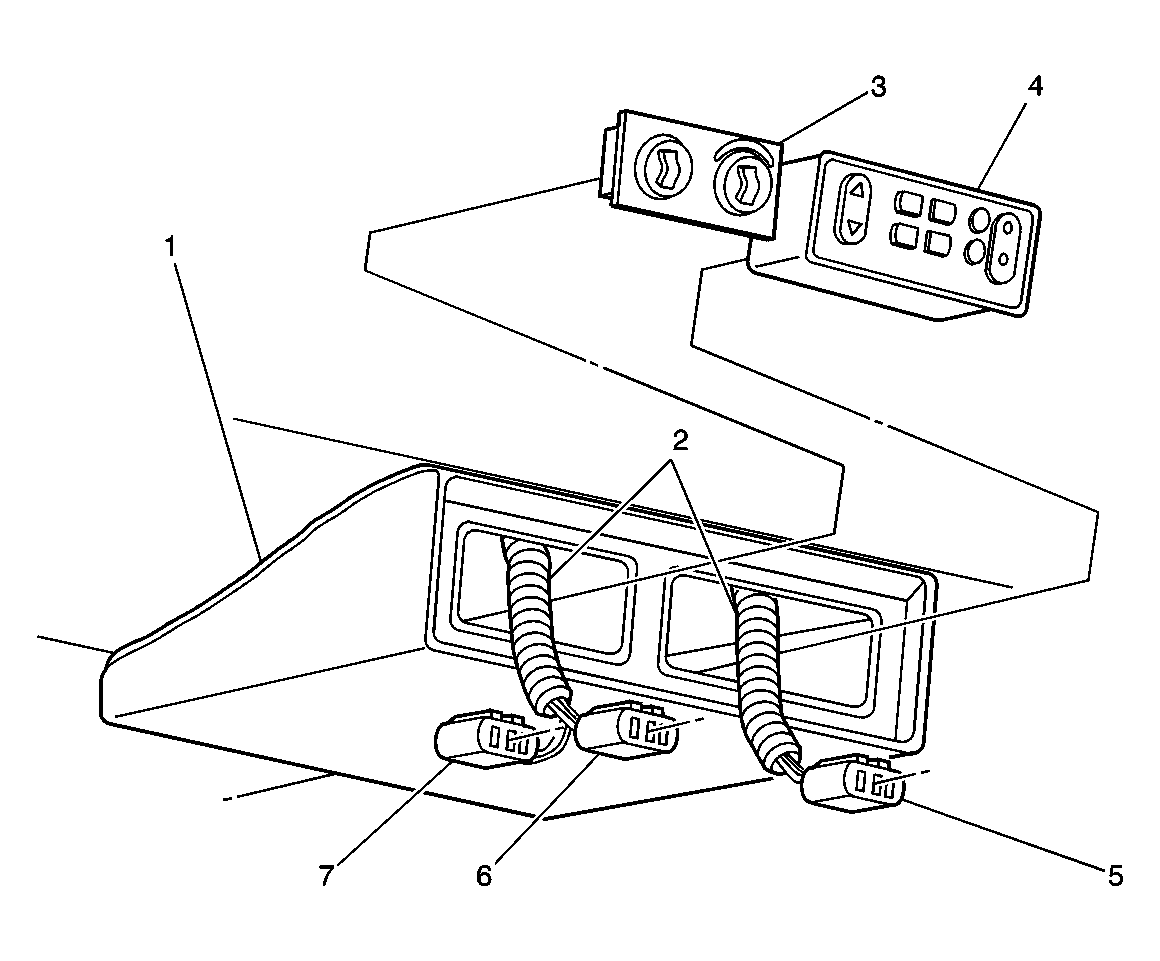

Fig 5: Roof Rear Console, Roof Headliner Behind Driver's Seat (5-Door)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Rear Console
2	Body Harness
3	HVAC Control Assembly-Auxiliary
4	Radio Rear Seat Audio (RSA) Control
5	Connector to Radio Rear Seat Audio Control
6	HVAC Control Assembly-Auxiliary Connector C1
7	HVAC Control Assembly-Auxiliary Connector C2

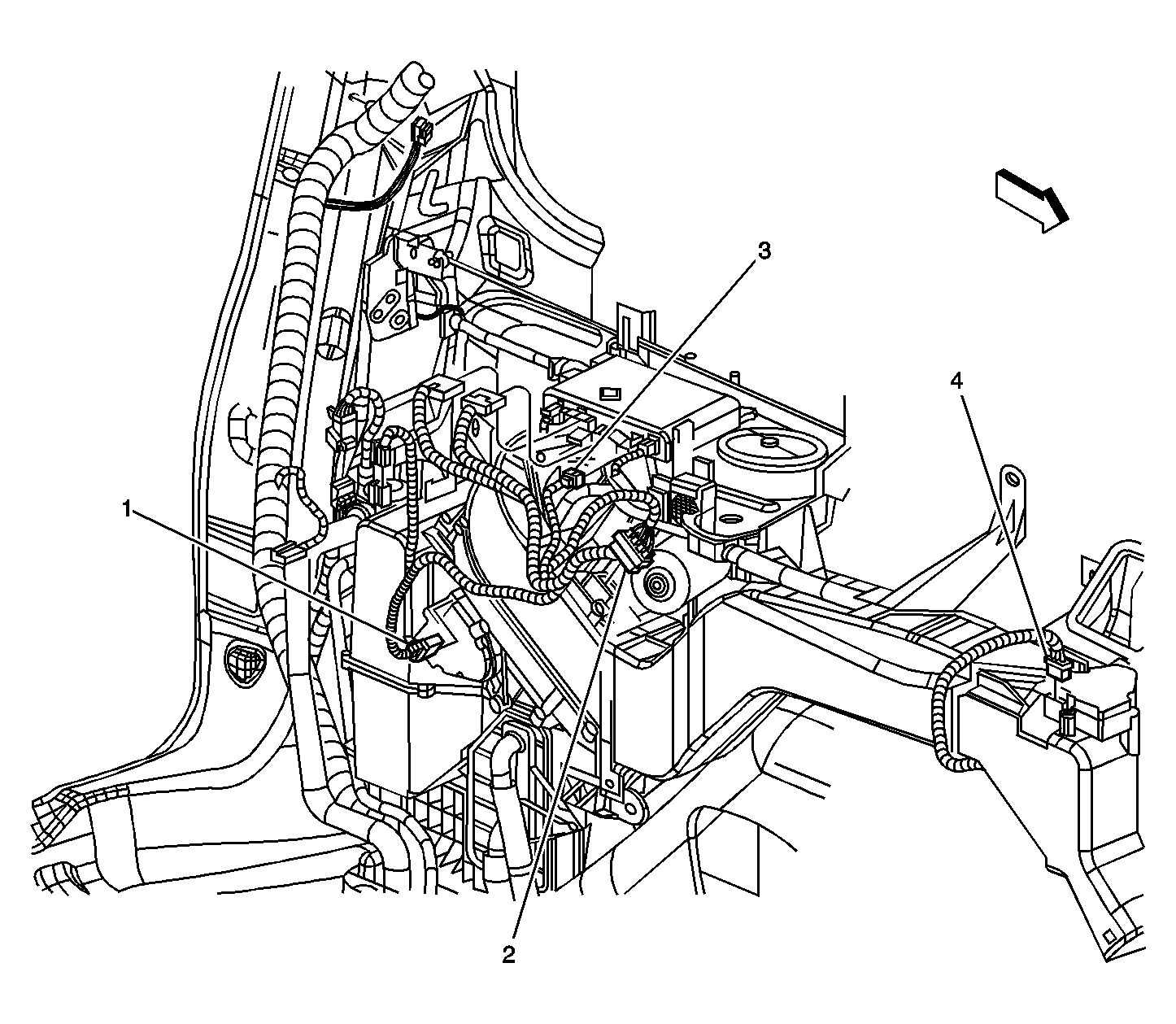

Fig 6: RH Side of I/P Harness Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	I/P Harness
3	Connector to Recirculation Actuator
4	Pass Through P100
5	Blower Motor Resistor Assembly
6	Blower Motor

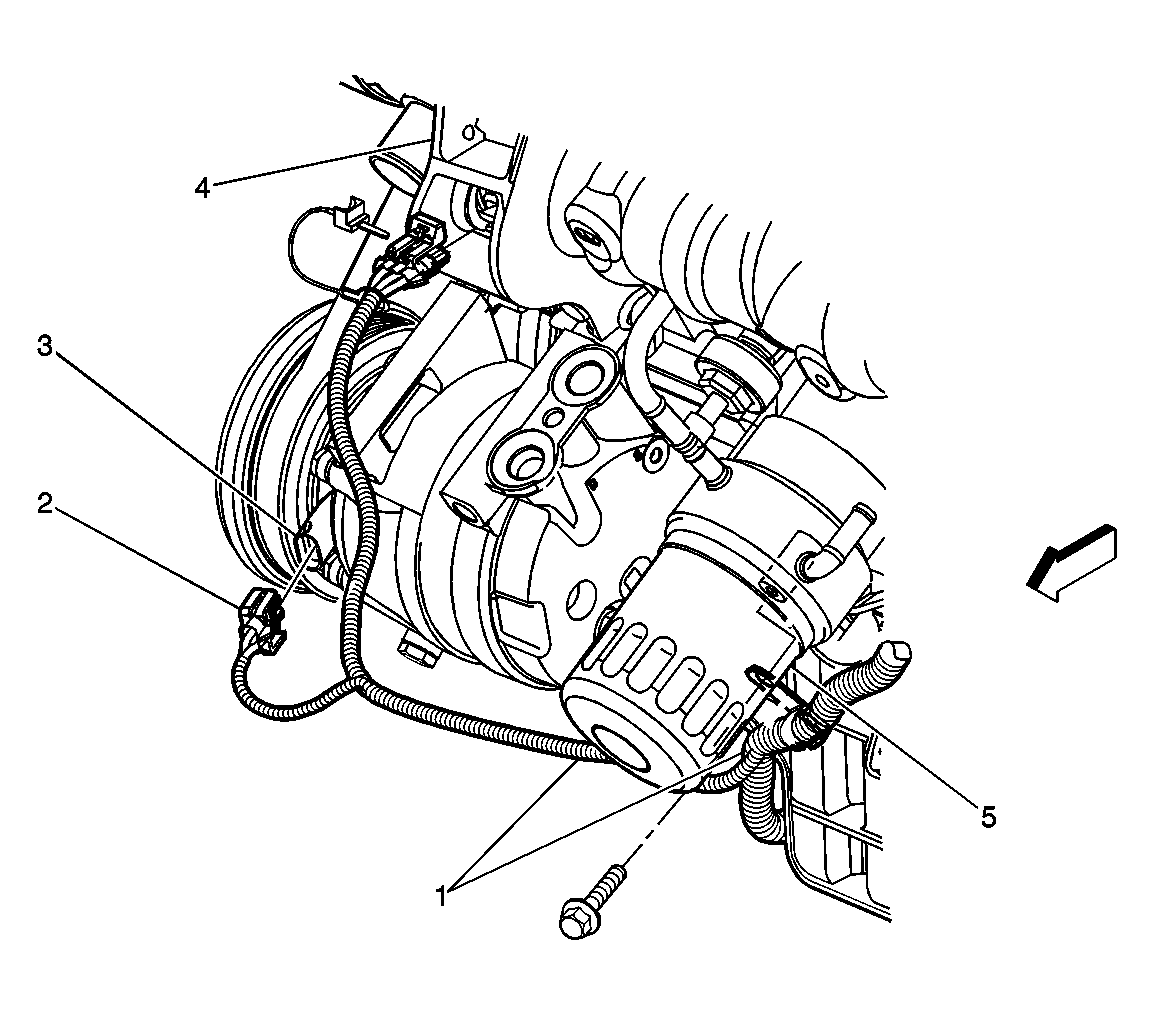

Fig 7: Lower Right Front of the Engine

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Wiring Harness
2	A/C Compressor Clutch Connector
3	A/C Compressor
4	Engine
5	Engine Oil Filter

Fig 8: Video Disc Player and Rear Video/Audio HVAC Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Video/Audio HVAC Control Module
2	Video Display Screen

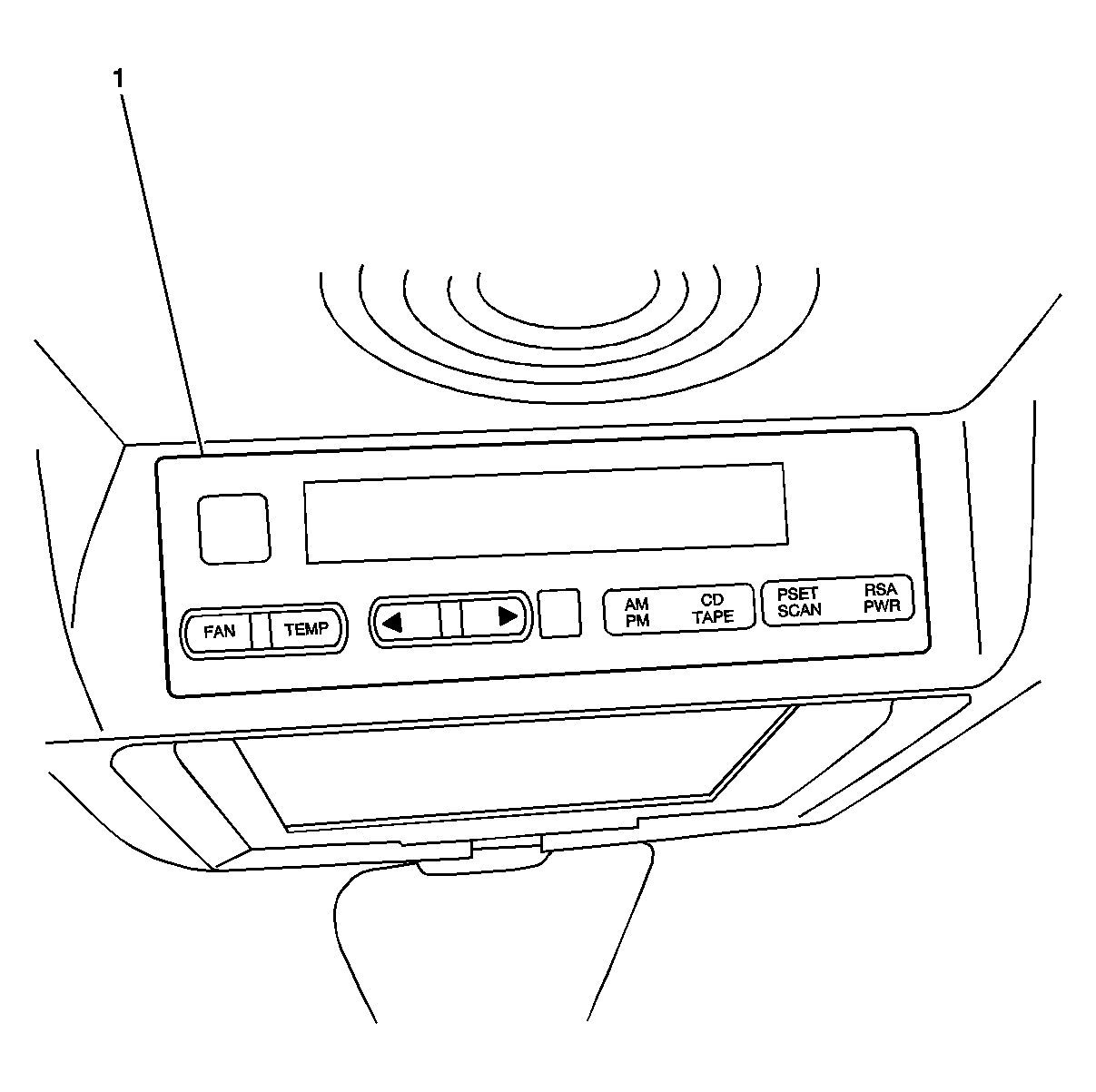

Fig 9: Overhead Console Controls w/ U32

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Video/Audio/HVAC Module
