Inline Harness Connector End Views

C101 I/P Harness to the Engine Harness

GM130736Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160542
  • 20-Way M Micro-Pack 100 W Series (GRY)
 Connector Part Information
  • 12193583
  • 20-Way F Micro-Pack 100 W Series (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 882 Right Rear Wheel Speed Sensor Signal A BRN 882 Right Rear Wheel Speed Sensor Signal
B WHT 883 Right Rear Wheel Speed Sensor Return B WHT 883 Right Rear Wheel Speed Sensor Return
C BLK 884 Left Rear Wheel Speed Sensor Signal C BLK 884 Left Rear Wheel Speed Sensor Signal
D RED 885 Left Rear Wheel Speed Sensor Return D RED 885 Left Rear Wheel Speed Sensor Return
E DK GRN/WHT 762 A/C Request Signal E DK GRN/WHT 762 A/C Request Signal
F DK GRN 890 Fuel Tank Pressure Sensor Signal F DK GRN 890 Fuel Tank Pressure Sensor Signal
G WHT 1310 EVAP Canister Vent Valve Solenoid Output G WHT 1310 EVAP Canister Vent Valve Solenoid Output
H LT BLU 1122 ABS/TCS Class 2 Serial Data H LT BLU 1122 ABS/TCS Class 2 Serial Data
J BLK 2759 Low Reference J BLK 2759 Low Reference
K PPL 1589 Fuel Level Sensor Signal K PPL 1589 Fuel Level Sensor Signal
L BRN/WHT 1571 Traction Control Switch Signal L BRN/WHT 1571 Traction Control Switch Signal
M GRY 2700 5 Volt Reference M GRY 2700 5 Volt Reference
N PPL 806 Crank Voltage N PPL 806 Crank Voltage
P PNK 1020 Off/RUN/Crank Voltage P PNK 1020 Off/RUN/Crank Voltage
R DK GRN 1049 ECM/PCM/VCM Class 2 Serial Data R DK GRN 1049 ECM/PCM/VCM Class 2 Serial Data
S DK GRN 83 Cruise Control Inhibit Signal S DK GRN 83 Cruise Control Inhibit Signal
T WHT 85 Cruise Control Engaged Signal T WHT 85 Cruise Control Engaged Signal
U BRN/WHT 419 MIL Control U BRN/WHT 419 MIL Control
V PPL 420 TCC Brake Switch/Cruise Control Release Signal V PPL 420 TCC Brake Switch/Cruise Control Release Signal
W ORN/BLK 434 Neutral Safety Switch Signal W ORN/BLK 434 Neutral Safety Switch Signal
C102 Engine Harness to the Fuel Injector Harness

GM366120Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326084
  • 16-Way F GT Mixed Series Sealed (BLK)
 Connector Part Information
  • 15326085
  • 16-Way M GT Mixed Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 639 Ignition 1 Voltage A PNK 639 Ignition 1 Voltage
B YEL 410 ECT Sensor Signal B YEL 410 ECT Sensor Signal
C BLK 1744 Fuel Injector 1 Control C BLK 1744 Fuel Injector 1 Control
D LT GRN/BLK 1745 Fuel Injector 2 Control D LT GRN/BLK 1745 Fuel Injector 2 Control
E PNK/BLK 1746 Fuel Injector 3 Control E PNK/BLK 1746 Fuel Injector 3 Control
F LT BLU/BLK 844 Fuel Injector 4 Control F LT BLU/BLK 844 Fuel Injector 4 Control
G BLK/WHT 845 Fuel Injector 5 Control G BLK/WHT 845 Fuel Injector 5 Control
H YEL/BLK 846 Fuel Injector 6 Control H YEL/BLK 846 Fuel Injector 6 Control
J - - Not Used J - - Not Used
K GRY 2704 5 Volt Reference K GRY 2704 5 Volt Reference
L ORN/BLK 469 Low Reference L ORN/BLK 469 Low Reference
M LT GRN 432 MAP Sensor Signal M LT GRN 432 MAP Sensor Signal
N RED/WHT 812 12 Volt Reference N RED/WHT 812 12 Volt Reference
P BLK 407 Low Reference P BLK 407 Low Reference
R BLK 630 Camshaft Position Signal R BRN/WHT 633 Camshaft Position Signal
S - - Not Used S - - Not Used
C103 I/P Harness to Forward Lamp Harness

GM523630Courtesy of GENERAL MOTORS CORP.
GM632349Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326801
  • 2-Way F GT 150 Series (BLK)
 Connector Part Information
  • 15326806
  • 2-Way M 150 Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN 9950 Electronic Frontal Sensor - Left - Signal A LT GRN 9950 Electronic Frontal Sensor - Left - Signal
B LT BLU 9951 Electronic Frontal Sensor - Left - Voltage B LT BLU 9951 Electronic Frontal Sensor - Left - Voltage
C105 Engine Harness to the Engine Coolant Fan Harness

GM246476Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129565
  • 4-Way F Metri-Pack 280 Series Sealed (GRY)
 Connector Part Information
  • 12129600
  • 4-Way M Metri-Pack 280 Series Sealed (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 1050 Ground A BLK 1050 Ground
B LT BLU 409 Cooling Fan Motor Supply Voltage B LT BLU 409 Cooling Fan Motor Supply Voltage
C GRY 532 Cooling Fan Motor Supply Voltage C GRY 532 Cooling Fan Motor Supply Voltage
D WHT 504 Cooling Fan Low Reference D WHT 504 Cooling Fan Low Reference
C111 Engine Harness to the Automatic Transaxle Harness

GM529775Courtesy of GENERAL MOTORS CORP.

-
GM535478Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160493
  • 20-Way F Micro-Pack 100 Series (GRY)
 Connector Part Information
  • 12176566
  • 20-Way M Micro-Pack 100 W Lock Assist/Seal (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN 1222 1-2 Shift Solenoid Valve Control A LT GRN 1222 1-2 Shift Solenoid Valve Control
B YEL/BLK 1223 2-3 Shift Solenoid Valve Control B YEL 1223 2-3 Shift Solenoid Valve Control
C RED/BLK 1228 PC Solenoid Valve High Control (Sol. A) C PPL 1228 PC Solenoid Valve High Control (Sol. A)
D LT BLU/WHT 1229 PC Solenoid Valve Low Control (Sol. A) D LT BLU 1229 PC Solenoid Valve Low Control (Sol. A)
E PNK 1339 Ignition 1 Voltage E RED 839 Ignition 1 Voltage
F BLK/WHT 771 Transmission Range Signal A F BLK/WHT 771 Transmission Range Signal A
G YEL 772 Transmission Range Signal B G YEL 772 Transmission Range Signal B
H GRY 773 Transmission Range Signal C H GRY 773 Transmission Range Signal C
J WHT 776 Transmission Range Signal P J WHT 776 Transmission Range Signal P
K BLK/WHT 451 Ground K BLK/WHT 451 Ground
L YEL/BLK 1227 TFT Sensor Signal L BRN 1227 TFT Sensor Signal
M BLK 2762 Low Reference M GRY 452 Low Reference
N PNK 1224 Transmission Fluid Pressure Switch Signal A N PNK 1224 Transmission Fluid Pressure Switch Signal A
P RED 1226 Transmission Fluid Pressure Switch Signal C P ORN 1226 Transmission Fluid Pressure Switch Signal C
R DK BLU 1225 Transmission Fluid Pressure Switch Signal B R DK BLU 1225 Transmission Fluid Pressure Switch Signal B
S RED/BLK 1230 AT ISS High Signal S BLK 1230 AT ISS High Signal
T BRN 418 TCC PWM Solenoid Valve Control T TAN 418 TCC PWM Solenoid Valve Control
U YEL 657 TCC Release Switch Signal U WHT 1804 TCC Release Switch Signal
V DK BLU/WHT 1231 AT ISS Low Signal V DK GRN 1231 AT ISS Low Signal
W - - Not Used W - - Not Used
C120 I/P Harness to the Forward Lamp Harness

GM646430Courtesy of GENERAL MOTORS CORP.
GM806431Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326815
  • 4-Way F GT 150 Sealed 4.0 (BLK)
 Connector Part Information
  • 15326820
  • 4-Way M GT 150 Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN/BLK 735 Ambient Air Temperature Sensor Signal A LT GRN/BLK 735 Ambient Air Temperature Sensor Signal
B BLK 1550 Ground B BLK 1550 Ground
C TAN 2646 Electronic Frontal Sensor - Right - Signal C TAN 2646 Electronic Frontal Sensor - Right - Signal
D ORN 2647 Electronic Frontal Sensor - Right - Voltage D ORN 2647 Electronic Frontal Sensor - Right - Voltage
C171 I/P Harness to the Left Wheel Speed Sensor Harness

GM302000Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12162000
  • 2-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 873 Left Front Wheel Speed Sensor Low Reference A YEL 873 Left Front Wheel Speed Sensor Low Reference
B LT BLU 830 Left Front Wheel Speed Sensor Signal B LT BLU 830 Left Front Wheel Speed Sensor Signal
C172 I/P Harness to the Right Wheel Speed Sensor Harness

GM302000Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12162000
  • 2-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TAN 833 Right Front Wheel Speed Sensor Low Reference A TAN 833 Right Front Wheel Speed Sensor Low Reference
B DK GRN 872 Right Front Wheel Speed Sensor Signal B DK GRN 872 Right Front Wheel Speed Sensor Signal
C200 I/P Harness to the Body Harness

GM39794Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034257
  • 56-Way F Metri-Pack Mixed Series (MD GRY)
 Connector Part Information
  • 12186339
  • 56-Way M Metri-Pack Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 ORN 340 Battery Positive Voltage A1 ORN 340 Battery Positive Voltage
A2 LT BLU 1894 Sliding Door Switch Signal A2 LT BLU 1894 Sliding Door Switch Signal
A3 ORN 1440 Battery Positive Voltage A3 ORN 1440 Battery Positive Voltage
A4-A6 - - Not Used A4-A6 - - Not Used
A7 GRY 120 Fuel Pump Supply Voltage A7 GRY 120 Fuel Pump Supply Voltage
A8 YEL 143 Accessory Voltage A8 YEL 143 Accessory Voltage
A9 PPL 709 Left Park Lamp Supply Voltage (Export) A9 PPL 709 Left Park Lamp Supply Voltage (Export)
B1 BRN/WHT 309 Right Park Lamp Supply Voltage (Export) B1 BRN/WHT 309 Right Park Lamp Supply Voltage (Export)
B2 LT GRN 275 Park Neutral Position Switch Park Signal B2 LT GRN 275 Park Neutral Position Switch Park Signal
B3 GRY/BLK 690 Courtesy Lamp Low Control B3 GRY/BLK 690 Courtesy Lamp Low Control
B4 ORN 1240 Battery Positive Voltage B4 ORN 1240 Battery Positive Voltage
B6-B7 - - Not Used B6-B7 - - Not Used
B8 DK BLU 1393 Courtesy Lamps Supply Voltage B8 DK BLU 1393 Courtesy Lamps Supply Voltage
B9 - - Not Used B9 - - Not Used
C1 PPL 328 Interior Lamp Switch Signal C1 PPL 328 Interior Lamp Switch Signal
C2 YEL 1139 Ignition 1 Voltage C2 YEL 1139 Ignition 1 Voltage
C3 DK GRN/WHT 2514 Keypad Signal C3 DK GRN/WHT 2514 Keypad Signal
C4 ORN 267 Heated Mirror/Rear Defog Coil Supply Voltage C4 ORN 267 Heated Mirror/Rear Defog Coil Supply Voltage
C6 LT GRN/BLK 735 Ambient Air Temperature Sensor Signal C6 LT GRN/BLK 735 Ambient Air Temperature Sensor Signal
C7 DK GRN 389 Vehicle Speed Signal C7 DK GRN 389 Vehicle Speed Signal
C8 LT GRN/BLK 2515 Keypad Supply Voltage C8 LT GRN/BLK 2515 Keypad Supply Voltage
C9 PNK 1039 Ignition 1 Voltage C9 PNK 1039 Ignition 1 Voltage
D1 BARE 1705 Drain Wire D1 BARE 1705 Drain Wire
D2 GRY 655 Cellular Microphone Signal D2 GRY 655 Cellular Microphone Signal
D3 YEL 743 Accessory Voltage D3 YEL 743 Accessory Voltage
D6 ORN 1140 Battery Positive Voltage D6 ORN 1140 Battery Positive Voltage
D7 YEL/BLK 2516 Keypad Green LED Signal D7 YEL/BLK 2516 Keypad Green LED Signal
D8 BRN/WHT 2517 Keypad Red LED Signal D8 BRN/WHT 2517 Keypad Red LED Signal
E1 RED 122 Rear Fog Lamps Supply Voltage (Export) E1 RED 122 Rear Fog Lamps Supply Voltage (Export)
E2 TAN 159 Drivers Door Switch Signal E2 TAN 159 Drivers Door Switch Signal
E3 DK BLU 49 Driver Door Ajar Switch Signal E3 DK BLU 49 Driver Door Ajar Switch Signal
E4 LT GRN 1845/ Chime Control E4 LT GRN 1845 Chime Control
LT GRN 1845 Chime Control LT GRN 1845 Chime Control
E6 ORN/BLK 2518 Keypad Low Reference E6 ORN/BLK 2518 Keypad Low Reference
E7 BLK/WHT 238 Seat Belt Switch - Left E7 BLK/WHT 238 Seat Belt Switch - Left
E8 RED 2615 Auxiliary Mode Door Control E8 RED 2615 Auxiliary Mode Door Control
E9 LT BLU/BLK 2618 Sliding Door Switch Signal E9 LT BLU/BLK 2618 Sliding Door Switch Signal
F1 TAN 294 Door Lock Actuator Unlock Control F1 TAN 294 Door Lock Actuator Unlock Control
F2 GRY 295 Door Lock Actuator Lock Control F2 GRY 295 Door Lock Actuator Lock Control
F3 ORN 54 Passenger Door Jamb Switch Signal F3 ORN 54 Passenger Door Jamb Switch Signal
F4 - - Not Used F4 - - Not Used
F6 ORN 2540 Battery Positive Voltage F6 ORN 2540 Battery Positive Voltage
F7 PPL 293 Rear Defog Element Supply Voltage F7 PPL 293 Rear Defog Element Supply Voltage
F8 LT GRN 9950 Electronic Frontal Sensor - Left - Signal F8 LT GRN 9950 Electronic Frontal Sensor - Left - Signal
F9 LT BLU 9951 Electronic Frontal Sensor - Left - Voltage F9 LT BLU 9951 Electronic Frontal Sensor - Left - Voltage
G1 - - Not Used G1 - - Not Used
G2 LT BLU 195 Door Lock Control G2 LT BLU 195 Door Lock Control
G3 RED/BLK 780 Driver Door Lock Switch Lock Signal G3 RED/BLK 780 Driver Door Lock Switch Lock Signal
G4 ORN/BLK 781 Driver Door Lock Switch Unlock Signal G4 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
G5 - - Not Used G5 - - Not Used
G6 TAN 694 Driver Door Lock Actuator Unlock Control G6 TAN 694 Driver Door Lock Actuator Unlock Control
G7 WHT 194 Door Unlock Control G7 WHT 194 Door Unlock Control
G8 LT BLU 1296 Axle Actuator - Control G8 LT BLU 1296 Axle Actuator - Control
G9 TAN 2646 Electronic Frontal Sensor - Right - Signal G9 TAN 2646 Electronic Frontal Sensor - Right - Signal
G10 ORN 2647 Electronic Frontal Sensor - Right - Voltage G10 ORN 2647 Electronic Frontal Sensor - Right - Voltage
C201A I/P Harness to the Steering Column Harness

GM62438Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047842
  • 17-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12077822
  • 48-Way M Metri-Pack Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 - - Not Used A1 - - Not Used
A2 PNK 539 Ignition 1 Voltage A2 PNK 539 Ignition 1 Voltage
A3 - - Not Used A3 - - Not Used
A4 PPL 16 Turn Signal Flasher Signal A4 PPL 16 Turn Signal Flasher Signal
A5 - - Not Used A5 - - Not Used
A6 DK BLU 15 Right Turn Signal Lamps Supply Voltage A6 DK BLU/WHT 15 Right Turn Signal Lamps Supply Voltage
A7 LT BLU 14 Left Turn Signal Lamps Supply Voltage A7 LT BLU/WHT 14 Left Turn Signal Lamps Supply Voltage
A8-A10 - - Not Used A8-A10 - - Not Used
A11 BLK 28 Horn Relay Control A11 BLK 28 Horn Relay Control
A12 GRY 397 Cruise Control On Switch Signal A12 GRY 397 Cruise Control On Switch Signal
A13 PNK 739 Ignition 1 Voltage A13 PNK 739 Ignition 1 Voltage
A14 DK BLU 84 Cruise Control Set/Coast Switch Signal A14 DK BLU 84 Cruise Control Set/Coast Switch Signal
A15 GRY/BLK 87 Cruise Control Resume/Accel Switch Signal A15 GRY/BLK 87 Cruise Control Resume/Accel Switch Signal
A16 BLK 434 Neutral Safety Switch Signal A16 ORN/BLK 434 Neutral Safety Switch Signal
A17 DK GRN/WHT 1135 A/T Shift Lock Control Solenoid Supply Voltage A17 DK GRN/WHT 1135 A/T Shift Lock Control Solenoid Supply Voltage
C201B-D I/P Harness to the Steering Column Harness

GM523617Courtesy of GENERAL MOTORS CORP.
GM510556Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12084183
  • 18-Way F Metri-Pack Mixed Series (BLK)
 Connector Part Information
  • 12077822
  • 48-Way M Metri-Pack Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
B1 - - Not Used B1 - - Not Used
B2 BLK 150 Ground B2 BLK 150 Ground
B3 LT GRN 80 Key in Ignition Switch Signal B3 LT GRN 80 Key in Ignition Switch Signal
B4 TAN 1550 Ground B4 BLK 1550 Ground
B5-B6 - - Not Used B5-B6 - - Not Used
C1 WHT 1390 Off/Run/Crank Voltage C1 WHT 1390 Off/Run/Crank Voltage
C2 BLK 150 Ground C2 BLK 150 Ground
C3-C4 - - Not Used C3-C4 - - Not Used
C5 PNK 3 Ignition 1 Voltage C5 PNK 3 Ignition 1 Voltage
C6 ORN 300 Ignition 3 Voltage C6 ORN 300 Ignition 3 Voltage
D1 YEL 5 Crank Voltage D1 YEL 5 Crank Voltage
D2 RED 142 Battery Positive Voltage D2 RED 142 Battery Positive Voltage
D3-D4 - - Not Used D3-D4 - - Not Used
D5 RED/WHT 42 Battery Positive Voltage D5 RED 42 Battery Positive Voltage
D6 BRN 4 Accessory Voltage D6 BRN 4 Accessory Voltage
C201E I/P Harness to the Steering Column Harness

GM39770Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047840
  • 13-Way F Metri-Pack 280 Series (MD GRY)
 Connector Part Information
  • 12077822
  • 48-Way M Metri-Pack Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
E1 LT BLU 1508 Turn/Hazard Module Supply Voltage E1 LT BLU 1508 Turn/Hazard Module Supply Voltage
E2 DK GRN 113 Windshield Wiper Switch Signal 2 E2 DK GRN 113 Windshield Wiper Switch Signal 2
E3 GRY 112 Windshield Wiper Switch Signal 1 E3 GRY 112 Windshield Wiper Switch Signal 1
E4 PPL 92 Windshield Wiper Motor High Speed E4 PPL 92 Windshield Wiper Motor High Speed
E5 RED 228 Windshield Washer Pump Control E5 RED 228 Windshield Washer Pump Control
E6 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage E6 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
E7 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage E7 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
E8 ORN 1840 Battery Positive Voltage E8 ORN 1840 Battery Positive Voltage
E9 YEL 243 Accessory Voltage E9 YEL 243 Accessory Voltage
E10 YEL/RED 2340 Battery Positive Voltage E10 ORN 2340 Battery Positive Voltage
E11 LT GRN 11 Headlamp High Beam Supply Voltage E11 LT GRN 11 Headlamp High Beam Supply Voltage
E12 TAN 12 Headlamp Low Beam Supply Voltage E12 TAN 12 Headlamp Low Beam Supply Voltage
E13 YEL 10 Headlamp Switch Signal E13 YEL 10 Headlamp Switch Signal
C203 I/P Harness to the Body Harness

GM39794Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12034257
  • 56-Way F Metri-Pack Mixed Series (MD GRY)
 Connector Part Information
  • 12186339
  • 56-Way M Metri-Pack Mixed Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 ORN 1052 Auxiliary Blower Motor Supply Voltage A1 ORN 1052 Auxiliary Blower Motor Supply Voltage
A2 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage A2 YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
A3 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage A3 DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
A4 LT BLU 1134 Park Brake Switch Signal A4 LT BLU 1134 Park Brake Switch Signal
LT BLU 1134 Park Brake Switch Signal
A6 - - Not Used A6 - - Not Used
A7 ORN 1923 Auxiliary Blower Motor Speed Control A7 GRY 778 Auxiliary Blower Motor Speed Control
ORN 1923 Auxiliary HVAC Switch Suppl Voltage (W/U32)
A8 WHT 17 Stop Lamp Switch Signal A8 WHT 17 Stop Lamp Switch Signal
A9 BRN 241 Ignition 3 Voltage A9 BRN 241 Ignition 3 Voltage
B1 WHT 615 Memory 1 Switch Signal B1 WHT 615 Memory 1 Switch Signal
B2 GRY 391 Rear Window Wiper Switch Signal B2 GRY 391 Rear Window Wiper Switch Signal
B3 BRN 882 Right Rear Wheel Speed Sensor Signal B3 BRN 882 Right Rear Wheel Speed Sensor Signal
B4 WHT 883 Right Rear Wheel Speed Sensor Low Reference B4 WHT 883 Right Rear Wheel Speed Sensor Low Reference
B6 BRN 9 Park Lamp Supply Voltage B6 BRN 9 Park Lamp Supply Voltage
B7 WHT 393 Rear Window Wiper Motor Control B7 WHT 393 Rear Window Wiper Motor Control
B8 DK GRN 392 Rear Window Washer Pump Control B8 DK GRN 392 Rear Window Washer Pump Control
B9 - - Not Used B9 - - Not Used
C1 BLK 884 Left Rear Wheel Speed Sensor Signal C1 BLK 884 Left Rear Wheel Speed Sensor Signal
C2 RED 885 Left Rear Wheel Speed Sensor Low Reference C2 RED 885 Left Rear Wheel Speed Sensor Low Reference
C3 LT BLU 733 Air Temperature Door Position Signal C3 LT BLU 733 Air Temperature Door Position Signal
C4 GRY 2700 5 Volt Reference C4 GRY 2700 5 Volt Reference
C6 YEL 804 Door Ajar Indicator Control C6 YEL 804 Door Ajar Indicator Control
C7 DK BLU 1128 SDM Class 2 Serial Data C7 DK BLU 1128 SDM Class 2 Serial Data
C8 PPL 1589 Fuel Level Sensor Signal C8 PPL 1589 Fuel Level Sensor Signal
C9 YEL 1127 Class 2 Serial Data C9 YEL 1127 Class 2 Serial Data
D1 LT BLU 1072 Auxiliary Blower Motor Medium Speed Control D1 LT BLU 1072 Auxiliary Blower Motor Medium Speed Control
D2 BLK/WHT 351 Ground D2 BLK/WHT 351 Ground
D3 GRY 8 Instrument Panel Lamp Supply Voltage - 1 D3 GRY 8 Instrument Panel Lamp Supply Voltage - 1
D6 PPL 493 Rear Seat Audio Enable Signal D6 PPL 493 Rear Seat Audio Enable Signal
D7 BLK 2759 Low Reference D7 BLK 2759 Low Reference
D8 ORN 640 Battery Positive Voltage D8 ORN 640 Battery Positive Voltage
E1 DK BLU 46 Right Rear Speaker Output (+) E1 DK BLU 46 Right Rear Speaker Output (+)
E2 TAN 201 Left Front Speaker Output (+) E2 TAN 201 Left Front Speaker Output (+)
E3 LT GRN 200 Right Front Speaker Output (+) E3 LT GRN 200 Right Front Speaker Output (+)
E4 YEL 116 Left Rear Speaker Output (-) E4 YEL 116 Left Rear Speaker Output (-)
E6 LT BLU/BLK 1505 Passenger Heated Seat Switch Signal E6 LT BLU/BLK 1505 Passenger Heated Seat Switch Signal
E7 LT BLU 1462 Heated Seat Switch Signal E7 LT BLU 1462 Heated Seat Switch Signal
E8 LT GRN 1011 Remote Radio Control Signal E8 LT GRN 1011 Remote Radio Control Signal
E9 DK GRN 890 Fuel Tank Pressure Sensor Signal E9 DK GRN 890 Fuel Tank Pressure Sensor Signal
F1 GRY/BLK 308 Step Dim Signal F1 GRY/BLK 308 Step Dim Signal
F2 PPL 616 Memory 2 Switch Signal F2 PPL 616 Memory 2 Switch Signal
F3 BRN/WHT 1048 Class 2 Serial Data F3 BRN/WHT 1048 Class 2 Serial Data
F4 - - Not Used F4 - - Not Used
F6 YEL 1176 Auxiliary Blower Motor Low Speed Control F6 YEL 1176 Auxiliary Blower Motor Low Speed Control
F7 LT GRN/BLK 24 Backup Lamp Supply Voltage F7 LT GRN 24 Backup Lamp Supply Voltage
F8 BLK 1550 Ground F8 BLK 1550 Ground
F9 PNK 314 Radio On Signal F9 PNK 314 Radio On Signal
G1 - - Not Used G1 - - Not Used
G2 BRN 641 Ignition 3 Voltage G2 BRN 641 Ignition 3 Voltage
G3 PNK 39 Ignition 1 Voltage G3 PNK 39 Ignition 1 Voltage
G4 WHT 1310 EVAP Canister Vent Solenoid Control G4 WHT 1310 EVAP Canister Vent Solenoid Control
G5 PNK/BLK 1303 Liftgate Ajar Switch Signal G5 PNK/BLK 1303 Liftgate Ajar Switch Signal
G6 - - Not Used G6 - - Not Used
G7 BRN 199 Left Rear Speaker Output (+) G7 BRN 199 Left Rear Speaker Output (+)
G8 LT BLU 115 Right Rear Speaker Output (-) G8 LT BLU 115 Right Rear Speaker Output (-)
G9 DK GRN 117 Right Front Speaker Output (-) G9 DK GRN 117 Right Front Speaker Output (-)
G10 GRY 118 Left Front Speaker Output (-) G10 GRY 118 Left Front Speaker Output (-)
C204 I/P Harness to DVD Player Jumper Harness

GM802513Courtesy of GENERAL MOTORS CORP.
GM802511Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332169
  • 14-Way F GT150 (BLK)
 Connector Part Information
  • 15405312
  • 14-Way M GT150 (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN/WHT 9367 DVD Audio Left Signal (+) A BRN/WHT 9367 DVD Audio Left Signal (+)
B DK GRN/WHT 9368 DVD Audio Right Signal (+) B DK GRN/WHT 9368 DVD Audio Right Signal (+)
C BLK/WHT 9372 DVD Audio Signal (-) C DK BLU/WHT 9372 DVD Audio Signal (-)
D BARE 9514 Drain Wire D BARE 9514 Drain Wire
E RED/WHT 9136 Rear Video/Audio/HVAC Module Supply Voltage E RED/WHT 9136 Rear Video/Audio/HVAC Module Supply Voltage
F BLK 9150 Rear Video/Audio/HVAC Module Ground F PPL 9150 Rear Video/Audio/HVAC Module Ground
G BARE 9514 Drain Wire G BARE 9514 Drain Wire
H TAN 9351 Video Signal (-) H TAN 9351 Video Signal (-)
J PPL 9350 Video Signal (+) J PPL 9350 Video Signal (+)
K BARE 9514 Drain Wire K BARE 9514 Drain Wire
L PPL/WHT 9724 Display Dimming Signal L PPL/WHT 9724 Display Dimming Signal
M RED 9352 DVD Infrared Command Serial Data Signal M RED 9352 DVD Infrared Command Serial Data Signal
N BARE 9514 Drain Wire N BARE 9514 Drain Wire
P YEL 710 Class 2 Serial Data P YEL 710 Class 2 Serial Data
C205 I/P Harness to the Steering Wheel Radio Control Harness

GM40395Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092162
  • 4-Way F Metri-Pack 280 Series Sealed (BLK)
 Connector Part Information
  • 12162477
  • 4-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PPL 314 Radio on Signal A PNK 314 Radio on Signal
B YEL 1244 Instrument Panel Lamp Supply Voltage - 2 B BRN 1244 Instrument Panel Lamp Supply Voltage - 2
C DK BLU 1796 Steering Wheel Controls Signal C DK BLU 1796 Steering Wheel Controls Signal
D BLK 1450 Ground D BLK 1450 Ground
C206 I/P Harness to the Vehicle Communications Unit Harness

GM524227Courtesy of GENERAL MOTORS CORP.


GM524242Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336891
  • 12-Way F GT 150 280 Series (BLK)
 Connector Part Information
  • 15336888
  • 12-Way M GT 150 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT BLU 1235 Audio Low Reference A LT BLU 1235 Audio Low Reference
B BRN/WHT 2506 Audio Return Signal B BRN/WHT 2506 Audio Return Signal
C DK GRN/WHT 2507 Audio Transmit Signal C DK GRN/WHT 2507 Audio Transmit Signal
D BARE 1792 Drain Wire D BARE 1792 Drain Wire
E GRY/BLK 2508 Microphone Signal E GRY/BLK 2508 Microphone Signal
F ORN 2240 Battery Positive Voltage F ORN 2240 Battery Positive Voltage
G TAN/BLK 2510 OnStar(R) Serial Data Return G TAN/BLK 2510 OnStar(R) Serial Data Return
H DK BLU/WHT 2511 OnStar(R) Serial Data (-) H DK BLU/WHT 2511 OnStar(R) Serial Data (-)
J LT BLU/BLK 2512 OnStar(R) Serial Data (+) J LT BLU/BLK 2512 OnStar(R) Serial Data (+)
K GRY 2520 Transceiver Low Reference K GRY 2520 Transceiver Low Reference
L PPL/WHT 2513 Ignition ON Signal L PPL/WHT 2513 Ignition ON Signal
M - - Not Used M - - Not Used

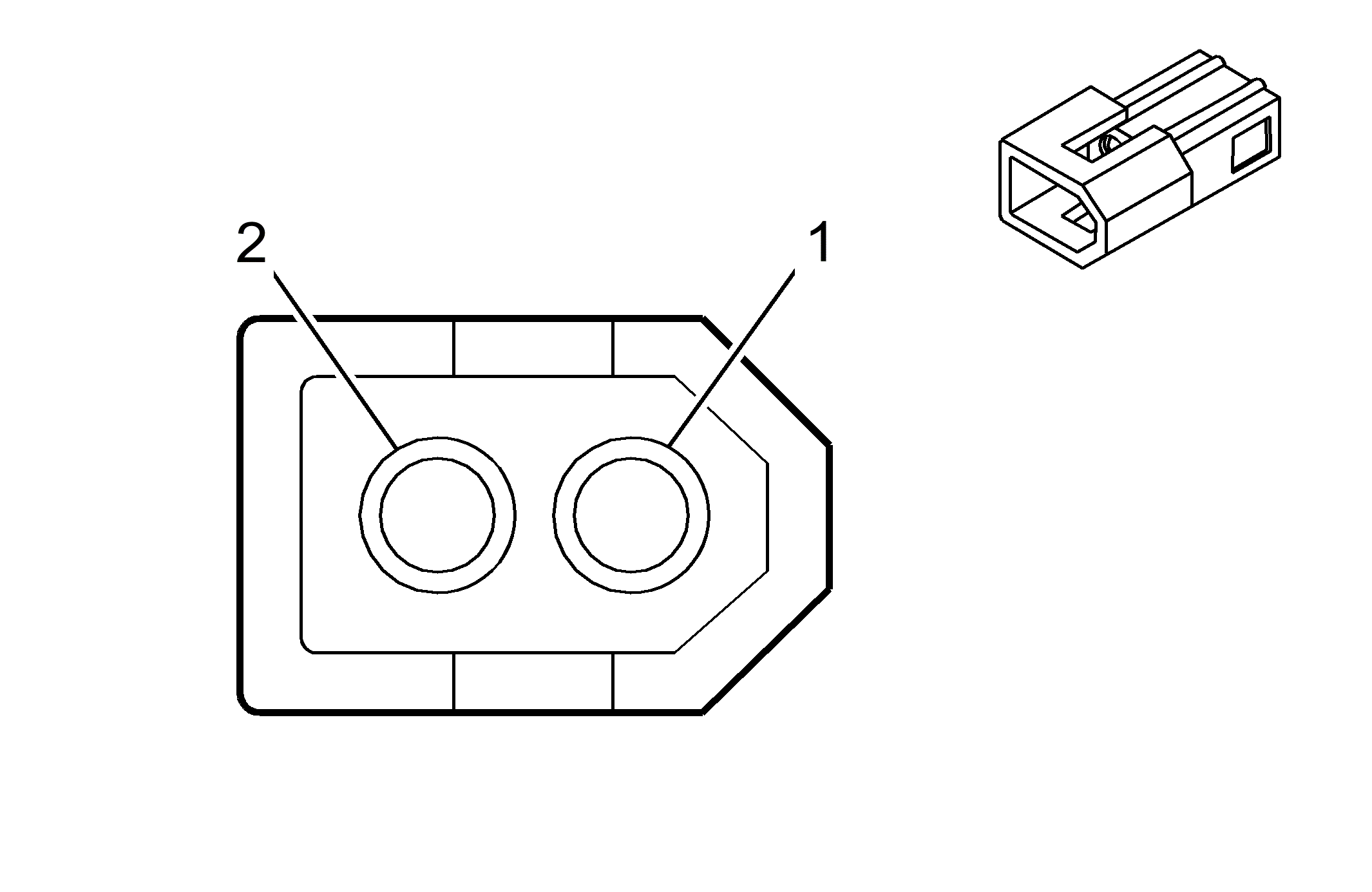

C207 Body Harness to the Outside Rearview Mirror Jumper Harness

GM774788Courtesy of GENERAL MOTORS CORP.
GM774790Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 02-06-1103
  • 2-Way F Molex
 Connector Part Information
  • 03-06-1023
  • 2-Way M Molex
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 RED 18 Left Rear Stop/Turn Lamp Supply Voltage 1 RED 18 Left Rear Stop/Turn Lamp Supply Voltage
2 BLK 1251 Ground 2 BLK 1251 Ground
C208 I/P Harness to the Body Harness

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 03-06-1023
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A DK GRN 19 Left Rear Stop/Turn Lamp Supply Voltage A DK GRN 19 Left Rear Stop/Turn Lamp Supply Voltage
B BLK 1251 Ground B BLK 1251 Ground
C209 Body Harness to the Outside Rearview Mirror Jumper Harness

GM774788Courtesy of GENERAL MOTORS CORP.
GM774790Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 02-06-1103
  • 2-Way F Molex
 Connector Part Information
  • 03-06-1023
  • 2-Way M Molex
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 RED 19 Right Rear Stop/Turn Lamp Supply Voltage 1 RED 19 Right Rear Stop/Turn Lamp Supply Voltage
2 BLK 1251 Ground 2 BLK 1251 Ground
C210 I/P Harness to the Body Harness

GM82383Courtesy of GENERAL MOTORS CORP.
GM35441Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047662
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 03-06-1023
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A DK GRN 18 Left Rear Stop/Turn Lamp Supply Voltage A DK GRN 18 Left Rear Stop/Turn Lamp Supply Voltage
B BLK 1251 Ground B BLK 1251 Ground
C215 Inflatable Restraint Harness to the Inflatable Restraint Steering Wheel Module Harness

GM806434Courtesy of GENERAL MOTORS CORP.
GM594476Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336479
  • 4-Way F Metri-Pack 280 Series (YEL)
 Connector Part Information
  • 15401084
  • 4-Way M Metri-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 TAN 3021 Steering Wheel Module - Stage 1 High Control A1 TAN 3021 Steering Wheel Module - Stage 1 High Control
A2 BRN 3020 Steering Wheel Module - Stage 1 Low Control A2 BRN 3020 Steering Wheel Module - Stage 1 Low Control
B1 WHT 3023 Steering Wheel Module - Stage 2 High Control B1 WHT 3023 Steering Wheel Module - Stage 2 High Control
B2 PNK 3022 Steering Wheel Module - Stage 2 Low Control B2 PNK 3022 Steering Wheel Module - Stage 2 Low Control
C216 Inflatable Restraint Harness to the Inflatable I/P Module Harness

GM806434Courtesy of GENERAL MOTORS CORP.
GM594476Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336479
  • 4-Way F Metri-Pack 280 Series (YEL)
 Connector Part Information
  • 15401086
  • 4-Way M Metri-Pack 280 Series (YEL)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1 YEL 3025 I/P Module - Stage 1 High Control A1 YEL 3025 I/P Module - Stage 1 High Control
A2 ORN 3024 I/P Module - Stage 1 Low Control A2 ORN 3024 I/P Module - Stage 1 Low Control
B1 GRY 3027 I/P Module - Stage 2 High Control B1 GRY 3027 I/P Module - Stage 2 High Control
B2 PPL 3026 I/P Module - Stage 2 Low Control B2 PPL 3026 I/P Module - Stage 2 Low Control
C303 Body Harness to the Left Front Side Door Harness

GM655760Courtesy of GENERAL MOTORS CORP.
GM655855Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304837
  • 40-Way F GT 150 280 Series (BLK)
 Connector Part Information
  • 15359284
  • 40-Way M GT 150 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1-A2 - - Not Used A1-A2 - - Not Used
A3 TAN 694 Driver Door Lock Actuator Unlock Control A3 TAN 694 Driver Door Lock Actuator Unlock Control
A4 GRY 295 Door Lock Actuator Lock Control A4 GRY 295 Door Lock Actuator Lock Control
A5 - - Not Used A5 - - Not Used
A6 YEL 143 Accessory Voltage A6 YEL 143 Accessory Voltage
A7-A8 - - Not Used A7-A8 - - Not Used
B1-B2 - - Not Used B1-B2 - - Not Used
B3 WHT 194 Door Unlock Control B3 WHT 194 Door Unlock Control
B4 LT BLU 195 Door Lock Control B4 LT BLU 195 Door Lock Control
B5 ORN/BLK 781 Driver Door Lock Switch Unlock Signal B5 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
B6 RED/BLK 780 Driver Door Lock Switch Lock Signal B6 RED/BLK 780 Driver Door Lock Switch Lock Signal
B7 ORN 1140 Battery Positive Voltage B7 ORN 1140 Battery Positive Voltage
B8 RED/WHT 881 Passenger Mirror Motor Right Control B8 RED/WHT 881 Passenger Mirror Motor Right Control
B9 LT BLU/WHT 1497 Passenger Mirror Motor Left/Down Control B9 LT BLU/WHT 1497 Passenger Mirror Motor Left/Down Control
B10 BRN/WHT 1498 Passenger Mirror Motor Up Control B10 BRN/WHT 1498 Passenger Mirror Motor Up Control
B11-B12 - - Not Used B11-B12 - - Not Used
C1-C2 - - Not Used C1-C2 - - Not Used
C3 GRY 8 Instrument Panel Lamp Supply Voltage-1 C3 GRY 8 Instrument Panel Lamp Supply Voltage-1
C4 - - Not Used C4 - - Not Used
C5 YEL 804 Door Ajar Indicator Control C5 YEL 804 Door Ajar Indicator Control
C6 TAN 159 Drivers Door Switch Signal C6 TAN 159 Drivers Door Switch Signal
C7 GRY 118 Left Front Speaker Output (-) C7 GRY 118 Left Front Speaker Output (-)
C8 TAN 201 Left Front Speaker Output (+) C8 TAN 201 Left Front Speaker Output (+)
C9 - - Not Used C9 - - Not Used
C10 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage C10 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
C11-C12 - - Not Used C11-C12 - - Not Used
D1-D2 - - Not Used D1-D2 - - Not Used
D3 TAN 167 Power Window Master Switch Right Front Down Signal D3 TAN 167 Power Window Master Switch Right Front Down Signal
D4 LT BLU 166 Power Window Master Switch Right Front Up Signal D4 LT BLU 166 Power Window Master Switch Right Front Up Signal
D5 - - Not Used D5 - - Not Used
D6 BLK 750 Ground D6 BLK 750 Ground
D7-D8 - - Not Used D7-D8 - - Not Used
C304 Body Harness to the Right Front Side Door Harness

GM655760Courtesy of GENERAL MOTORS CORP.
GM655855Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15304837
  • 40-Way F GT 150 280 Series (BLK)
 Connector Part Information
  • 15359284
  • 40-Way M GT 150 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A1-A2 - - Not Used A1-A2 - - Not Used
A3 TAN 294 Door Lock Actuator Unlock Control A3 TAN 294 Door Lock Actuator Unlock Control
A4 GRY 295 Door Lock Actuator Lock Control A4 GRY 295 Door Lock Actuator Lock Control
A5 - - Not Used A5 - - Not Used
A6 YEL 143 Accessory Voltage A6 YEL 143 Accessory Voltage
A7-A8 - - Not Used A7-A8 - - Not Used
B1-B2 - - Not Used B1-B2 - - Not Used
B3 WHT 194 Door Unlock Control B3 WHT 194 Door Unlock Control
B4 LT BLU 195 Door Lock Control B4 LT BLU 195 Door Lock Control
B5 ORN/BLK 781 Driver Door Lock Switch Unlock Signal B5 ORN/BLK 781 Driver Door Lock Switch Unlock Signal
B6 RED/BLK 780 Driver Door Lock Switch Lock Signal B6 RED/BLK 780 Driver Door Lock Switch Lock Signal
B7 - - Not Used B7 - - Not Used
B8 RED/WHT 881 Passenger Mirror Motor Right Control B8 RED/WHT 881 Passenger Mirror Motor Right Control
B9 LT BLU/WHT 1497 Passenger Mirror Motor Left/Down Control B9 LT BLU/WHT 1497 Passenger Mirror Motor Left/Down Control
B10 BRN/WHT 1498 Passenger Mirror Motor Up Control B10 BRN/WHT 1498 Passenger Mirror Motor Up Control
B11-B12 - - Not Used B11-B12 - - Not Used
C1-C2 - - Not Used C1-C2 - - Not Used
C3 GRY 8 Instrument Panel Lamp Supply Voltage-1 C3 GRY 8 Instrument Panel Lamp Supply Voltage-1
C4 - - Not Used C4 - - Not Used
C5 YEL 804 Door Ajar Indicator Control C5 YEL 804 Door Ajar Indicator Control
C6 DK BLU 49 N/A C6 DK BLU 49 N/A
C7 DK GRN 117 Left Front Speaker Output (-) C7 DK GRN 117 Left Front Speaker Output (-)
C8 LT GRN 200 Left Front Speaker Output (+) C8 LT GRN 200 Left Front Speaker Output (+)
C9 - - Not Used C9 - - Not Used
C10 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage C10 ORN 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
C11-C12 - - Not Used C11-C12 - - Not Used
D1-D2 - - Not Used D1-D2 - - Not Used
D3 TAN 167 Power Window Master Switch Right Front Down Signal D3 TAN 167 Power Window Master Switch Right Front Down Signal
D4 LT BLU 166 Power Window Master Switch Right Front Up Signal D4 LT BLU 166 Power Window Master Switch Right Front Up Signal
D5 - - Not Used D5 - - Not Used
D6 BLK 750 Ground D6 BLK 750 Ground
D7-D8 - - Not Used D7-D8 - - Not Used
C305A Body Harness to the Electronic Brake Control Harness and Fuel Sender Harness

GM646171Courtesy of GENERAL MOTORS CORP.
GM646362Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146439
  • 4-Way F Metri-Pack 150 Series Sealed (LT GRY)
 Connector Part Information
  • 15326715
  • 16-Way M Metri-Pack 150, 280 (LT GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 882 Right Rear Wheel Speed Sensor Signal 1A BRN 882 Right Rear Wheel Speed Signal-High
B WHT 883 Right Rear Wheel Speed Signal-Low 1B WHT 883 Right Rear Wheel Speed Signal-Low
C BLK 884 Left Rear Wheel Speed Signal-High 1C BLK 884 Left Rear Wheel Speed Signal-High
D RED 885 Left Rear Wheel Speed Signal-Low 1D RED 885 Left Rear Wheel Speed Signal-Low
C305B Body Harness to the Electronic Brake Control Harness and Fuel Sender Harness

GM684854Courtesy of GENERAL MOTORS CORP.
GM646362Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
 Connector Part Information
  • 15326715
  • 16-Way M Metri-Pack 150, 280 (LT GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT BLU 1296 Axle Actuator - Control 2A LT BLU 1296 Axle Actuator - Control
B PNK 1039 Ignition 1 Voltage 2B PNK 1039 Ignition 1 Voltage
C BLK 550 Ground 2C BLK 550 Ground
D - - Not Used 2D - - Not Used
C305C Body Harness to the Electronic Brake Control Harness and Fuel Sender Harness

GM806436Courtesy of GENERAL MOTORS CORP.
GM646362Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146510
  • 8-Way F Metri-Pack 280 Sealed (LT GRY)
 Connector Part Information
  • 15326715
  • 16-Way M Metri-Pack 150, 280 (LT GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 250 Ground 3A BLK 250 Ground
B BLK/WHT 2759 Low Reference 3B BLK 2759 Low Reference
C GRY 120 Fuel Pump Supply Voltage 3C GRY 120 Fuel Pump Supply Voltage
D PPL 1589 Fuel Level Sensor Signal 3D PPL 1589 Fuel Level Sensor Signal
E DK GRN 890 Fuel Tank Pressure Sensor Signal 3E DK GRN 890 Fuel Tank Pressure Sensor Signal
F WHT 1310 EVAP Canister Vent Solenoid Control 3F WHT 1310 EVAP Canister Vent Solenoid Control
G PNK 1039 Ignition 1 Voltage 3G PNK 1039 Ignition 1 Voltage
H GRY/BLK 2700 5 Volt Reference 3H GRY 2700 5 Volt Reference
C306 Electronic Brake Control Harness to the Right Rear Wheel Speed Sensor Harness

GM302000Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12162000 (SWB)
  • 12186216 (LWB)
  • 2-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 882 Right Rear Wheel Speed Sensor Signal A BRN 882 Right Rear Wheel Speed Sensor Signal
B BLK 883 Right Rear Wheel Speed Sensor Low Reference B WHT 883 Right Rear Wheel Speed Sensor Low Reference
C307 Body Harness to the Roof Harness

GM288384Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12052833
  • 2-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK/WHT 2619 Sliding Door System Switch Signal A BLK/WHT 2619 Sliding Door System Switch Signal
B LT BLU/BLK 2618 Sliding Door Switch Signal B LT BLU/BLK 2618 Sliding Door Switch Signal
C308 Body Harness to the Roof Harness

GM62492Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092249
  • 23-Way F ACT 280 Series (BLK)
 Connector Part Information
  • 12092248
  • 23-Way M ACT 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 1019 Rear Quarter Window Switch-Close A BRN 1019 Rear Quarter Window Switch-Close
B LT GRN/BLK 735 Ambient Air Temperature Sensor Signal B LT GRN/BLK 735 Ambient Air Temperature Sensor Signal
C DK GRN/WHT 2514 Keypad Signal C DK GRN/WHT 2514 Keypad Signal
D LT GRN/BLK 2515 Keypad Supply Voltage D LT GRN/BLK 2515 Keypad Supply Voltage
E BLK/WHT 1896 Sliding Door System Switch Signal E BLK/WHT 1896 Sliding Door System Switch Signal
F YEL 1127 Class 2 Serial Data F YEL 1127 Class 2 Serial Data
G GRY 8 Instrument Panel Lamp Supply Voltage - 1 G GRY 8 Instrument Panel Lamp Supply Voltage - 1
H BRN 241 Ignition 3 Voltage H BRN 241 Ignition 3 Voltage
J BLK 1550 Ground J BLK 1550 Ground
K YEL 743 Accessory Voltage K YEL 743 Accessory Voltage
L YEL/BLK 2516 Keypad Green LED Signal L YEL/BLK 2516 Keypad Green LED Signal
M GRY/BLK 308 Step Dim Signal M GRY/BLK 308 Step Dim Signal
N ORN 640 Battery Positive Voltage N ORN 640 Battery Positive Voltage
P BARE 1705 Drain Wire P BARE 1705 Drain Wire
R GRY 655 Cellular Microphone Signal R GRY 655 Cellular Microphone Signal
S GRY/BLK 690 Courtesy Lamp Control S GRY/BLK 690 Courtesy Lamp Control
T BRN/WHT 2517 Keypad Red LED Signal T BRN/WHT 2517 Keypad Red LED Signal
U LT BLU 1894 Sliding Door Switch Signal U LT BLU 1894 Sliding Door Switch Signal
V ORN/BLK 2518 Keypad Low Reference V ORN/BLK 2518 Keypad Low Reference
W DK BLU 1393 Courtesy Lamps Supply Voltage W DK BLU 1393 Courtesy Lamps Supply Voltage
X PPL 328 Interior Lamp Switch Signal X PPL 328 Interior Lamp Switch Signal
Y GRY 2616 Battery Voltage Y GRY 2616 Battery Voltage
Z BLK 1018 Power Window Motor Rear Vents Open Control Z BLK 1018 Power Window Motor Rear Vents Open Control
C309 Electronic Brake Control Harness to the Left Rear Wheel Speed Sensor Harness

GM302000Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052641
  • 2-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12162000 (SWB)
  • 12186216 (LWB)
  • 2-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 884 Left Rear Wheel Speed Sensor Signal A BLK 884 Left Rear Wheel Speed Sensor Signal
B BLK 885 Left Rear Wheel Speed Sensor Low Reference B RED 885 Left Rear Wheel Speed Sensor Low Reference
C313 Body Harness to the Driver Seat Adjuster Switch Harness

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT280 (BLK)
 Connector Part Information
  • 15326928
  • 8-Way M GT280 (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 550 Ground A BRN 550 Ground
A BLK 750 Ground (Value Van) A BLK 750 Ground (Value Van)
B LT BLU 1462 Heated Seat Switch Signal B LT BLU 1462 Heated Seat Switch Signal
C WHT 615 Memory 1 Switch Signal C RED 615 Memory 1 Switch Signal
D PPL 616 Memory 2 Switch Signal D PPL 616 Memory 2 Switch Signal
E BLK/WHT 238 Driver Seat Belt Switch Signal E BLK/WHT 238 Driver Seat Belt Switch Signal
F ORN 340 Battery Positive Voltage F ORN 340 Battery Positive Voltage
G - - Not Used G - - Not Used
H BRN/WHT 1048 Class 2 Serial Data H TAN/WHT 1048 Class 2 Serial Data
C313 Body Harness to Sit-N-Lift Seat Jumper Harness

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT280 (BLK) TPA (GRY)
 Connector Part Information
  • 15326928
  • 8-Way M GT280 (BLK) TPA (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 550 Ground A BRN 550 Ground
B BLU/BLK 1505 Ground B LT BLU 1462 Heated Seat Switch Signal
C - - Not Used C - - Not Used
D - - Not Used D - - Not Used
E - - Not Used E - - Not Used
F ORN 340 Battery Positive Voltage F ORN 340 Battery Positive Voltage
G - - Not Used G - - Not Used
H - - Not Used H - - Not Used
C314 Body Harness to the Passenger Seat Adjuster Switch Harness

GM556473Courtesy of GENERAL MOTORS CORP.
GM542307Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326924
  • 8-Way F GT280 (BLK)
 Connector Part Information
  • 15326928
  • 8-Way M GT280 (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 550 Ground A BLK 550 Ground
B LT BLU/BLK 1505 Passenger Heated Seat Switch Signal B LT BLU 1505 Passenger Heated Seat Switch Signal
C-E - - Not Used C-E - - Not Used
F ORN 340 Battery Positive Voltage F ORN 340 Battery Positive Voltage
G-H - - Not Used G-H - - Not Used
C315 Body Harness to the Driver Seat Heater Module Harness

GM40392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 1462 Heated Seat Switch Signal A LT BLU 1462 Heated Seat Switch Signal
B ORN 340 Battery Positive Voltage B ORN 340 Battery Positive Voltage
C BLK 550 Ground C BLK 550 Ground
D - - Not Used D - - Not Used
C316 Body Harness to the Passenger Seat Heater Module Harness

GM40392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 1505 Passenger Heated Seat Switch Signal A PNK 1505 Passenger Heated Seat Switch Signal
B RED 340 Battery Positive Voltage B YEL 340 Battery Positive Voltage
C BLK 550 Ground C BLK 550 Ground
D - - Not Used D - - Not Used
C317 Seat Harness to the Seat Recline Jumper Harness (w/Memory Seats)

GM62456Courtesy of GENERAL MOTORS CORP.
GM39689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12064754
  • 6-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 918 Memory Seat Sensor Low Reference A BLK 918 Memory Seat Sensor Low Reference
B WHT 928 Driver Seat Recline Position Sensor Signal B WHT/BLK 928 Driver Seat Recline Position Sensor Signal
C ORN 917 5-Volt Reference C ORN 917 5-Volt Reference
D LT GRN 935 Driver Seat Recline Motor Rearward Control D DK/BLU 933 Driver Seat Recline Motor Rearward Control
E LT BLU 934 Driver Seat Recline Motor Forward Control E DK GRN 932 Driver Seat Recline Motor Forward Control
F - - Not Used F - - Not Used
C318 Seat Harness to the Seat Position Sensor Jumper Harness (w/Memory Seats)

GM62456Courtesy of GENERAL MOTORS CORP.
GM39689Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064752
  • 6-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12064754
  • 6-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 917 5-Volt Reference A ORN 917 5-Volt Reference
B BLK 918 Memory Seat Sensor Low Reference B BLK 918 Memory Seat Sensor Low Reference
C BRN/WHT 919 Front Vertical Seat Position Sensor Signal C BRN/WHT 919 Front Vertical Seat Position Sensor Signal
D TAN 920 Rear Vertical Seat Position Sensor Signal D TAN 920 Rear Vertical Seat Position Sensor Signal
E LT GRN 921 Horizontal Seat Position Sensor Signal E LT GRN 921 Horizontal Seat Position Sensor Signal
F - - Not Used F - - Not Used
C320 Body Harness to the Passenger Seat Harness

GM646421Courtesy of GENERAL MOTORS CORP.
GM258301Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059253
  • 2-Way F 150 Series (LT GRN)
 Connector Part Information
  • 12059254
  • 2-Way M 150 Series (LT GRN)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN - Heating Element Supply Voltage A BLK - Heating Element Supply Voltage
B BRN - Heating Element Supply Voltage B YEL - Heating Element Supply Voltage
C321 Body Harness to the Driver Seat Harness

GM646421Courtesy of GENERAL MOTORS CORP.
GM258301Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059253
  • 2-Way F 150 Series (LT GRN)
 Connector Part Information
  • 12059254
  • 2-Way M 150 Series (LT GRN)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN - Heating Element Supply Voltage A BLK - Heating Element Supply Voltage
B BRN - Heating Element Supply Voltage B YEL - Heating Element Supply Voltage
C330 Body Harness to the I/P Harness (w/Sit-N-Lift Seat)

GM38274Courtesy of GENERAL MOTORS CORP.
GM698665Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015199
  • 2-Way F MetriPack 280 Series (NAT) Delphi
 Connector Part Information
  • 12015271
  • 2-Way M MetriPack 280 Series (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A PNK 39 Ignition Voltage A PNK 39 Ignition Voltage
B GRN/WHT 1135 Starter Relay Coil Supply Voltage B GRN/WHT 1135 Starter Relay Coil Supply Voltage
C331 Sit-N-Lift Seat Harness to Sit-N-Lift Jumper Harness

GM1387920Courtesy of GENERAL MOTORS CORP.
GM1387922Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • RS06MGY
  • 6-Way F (GRY)
 Connector Part Information
  • RS06MGY
  • 6-Way F (GRY)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 PNK 39 Ignition Voltage 1 PNK V01 Ignition Voltage
2 - - Not Used 2 - - Not Used
3 BLK 750 Ground 3 BLK A531 Ground
4 GRN/WHT 1135 Starter Relay Coil Supply Voltage 4 RED/BLK V03 AT Shift Lock Control
5 ORN/BLK 54 Door Open Switch Signal 5 GRY/WHT A528 RR Sliding Door Jamb Switch Signal
6 GRN 275 Park Neutral Position Switch Park Signal 6 BLU/BLK M35 Park Switch Signal
C332 Sit-N-Lift Seat Harness to Sit-N-Lift Jumper Harness

GM1387917Courtesy of GENERAL MOTORS CORP.
GM1387919Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • X02FB
  • 2-Way F (BLK)
 Connector Part Information
  • X02FB
  • 2-Way M (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 ORN 340 Battery Positive Voltage 1 ORN AJ01 Battery Positive Voltage
2 BLK 550 Ground 2 BLK AJEZ Ground
C388 Sit-N-Lift Seat Harness to Sit-N-Lift Jumper Harness

GM95860Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065422
  • 3-Way F (TAN)
 Connector Part Information
  • 12065423
  • 3-Way M (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 804 Door Ajar Indicator Control A YEL 804 Door Ajar Indicator Control
B ORN/BLK 54 Door Open Switch Signal B ORN 54 Door Open Switch Signal
C BLK 750 Ground C BLK 750 Ground
C389 Sit-N-Lift Seat jumper Harness to Body Harness

GM1387916Courtesy of GENERAL MOTORS CORP.
GM535620Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12040903
  • 4-Way M (NAT)
 Connector Part Information
  • 12066189
  • 4-Way F (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
1 GRN 275 Park Neutral Position Switch Park Signal 1 GRN 275 Park Neutral Position Switch Park Signal
2 - - Not Used 2 - - Not Used
3 - - Not Used 3 - - Not Used
4 - - Not Used 4 - - Not Used
C400 Body Harness to the Liftgate Harness

GM73244Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12015199
  • 2-Way F Metri-Pack 280 Series (NAT)
 Connector Part Information
  • 12015271
  • 2-Way M Metri-Pack 280 Series (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 450 Ground A BLK 450 Ground
B PPL 293 Rear Defog Element Supply Voltage B PPL 293 Rear Defog Element Supply Voltage
C401 Body Harness to the Liftgate Harness

GM40392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047786
  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A RED/BLK 780 Driver Door Lock Switch Lock Signal A RED/BLK 780 Driver Door Lock Switch Lock Signal
B ORN/BLK 781 Driver Door Lock Unlock Signal B ORN/BLK 781 Driver Door Lock Unlock Signal
C GRY 391 Rear Window Wiper Switch Signal C GRY 391 Rear Window Wiper Switch Signal
D DK GRN 392 Rear Window Washer Pump Control D DK GRN 392 Rear Window Washer Pump Control
C402 Body Harness to the Liftgate Harness

GM73135Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047886
  • 8-Way F Metri-Pack 150 Flexlock Series Sealed (BLK)
 Connector Part Information
  • 12045688
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 116 Left Rear Speaker Output (-) A YEL 116 Left Rear Speaker Output (-)
B BRN 199 Left Rear Speaker Output (+) B BRN 199 Left Rear Speaker Output (+)
C BRN 9 Park Lamp Supply Voltage C BRN 9 Park Lamp Supply Voltage
D WHT 17 Stop Lamp Switch Signal D WHT 17 Stop Lamp Switch Signal
E PNK/BLK 1303 Liftgate Ajar Switch Signal E PNK/BLK 1303 Liftgate Ajar Switch Signal
F DK BLU 49 Driver Door Ajar Switch Signal F DK BLU 49 Driver Door Ajar Switch Signal
G DK BLU 46 Right Rear Speaker Output (+) G DK BLU 46 Right Rear Speaker Output (+)
H LT BLU 115 Right Rear Speaker Output (-) H LT BLU 115 Right Rear Speaker Output (-)
C403 Body Harness to the Liftgate Harness

GM73245Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12020397
  • 3-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12020398
  • 3-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A TAN 294 Door Lock Actuator Unlock Control A TAN 294 Door Lock Actuator Unlock Control
B GRY 295 Door Lock Actuator Lock Control B GRY 295 Door Lock Actuator Lock Control
C WHT 393 Rear Window Wiper Motor Control C WHT 393 Rear Window Wiper Motor Control
C405 Body Harness to the Auto Level Control Harness

GM258237Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064769
  • 10-Way F Metri-Pack 150 Series (NAT)
 Connector Part Information
  • 12064770
  • 10-Way M Metri-Pack 150 Series (NAT)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 1240 Battery Positive Voltage A ORN 1240 Battery Positive Voltage
B RED 122 Rear Fog Lamps Supply Voltage (Export) B RED 122 Rear Fog Lamps Supply Voltage (Export)
C DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage C DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
D YEL 18 Left Rear Stop/Turn Lamp Supply Voltage D YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
E YEL 743 Accessory Voltage E YEL 743 Accessory Voltage
F WHT 17 Stop Lamp Switch Signal F WHT 17 Stop Lamp Switch Signal
G BRN 9 Park Lamp Supply Voltage (Domestic) G BRN 9 Park Lamp Supply Voltage (Domestic)
G PPL 709 Left Park Lamp Supply Voltage (Export) G PPL 709 Left Park Lamp Supply Voltage (Export)
H BLK 1725 Ground H BLK 1725 Ground
J BRN/WHT 309 Right Park Lamp Supply Voltage (Export) J BRN/WHT 309 Right Park Lamp Supply Voltage (Export)
K - - Not Used K - - Not Used
C406 Body Harness to Rear Parking Assist Module Harness

GM697039Courtesy of GENERAL MOTORS CORP.
GM333040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052848
  • 6-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12124107
  • 6-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A YEL 2375 LR Corner Object Sensor Signal A YEL 2375 LR Corner Object Sensor Signal
B ORN 2376 LR Middle Object Sensor Signal B ORN 2376 LR Middle Object Sensor Signal
C DK GRN 2377 RR Middle Object Sensor Signal C DK GRN 2377 RR Middle Object Sensor Signal
D RED 2378 RR Corner Object Sensor Signal D RED 2378 RR Corner Object Sensor Signal
E DK BLU 2374 Supply Voltage E DK BLU 2374 Supply Voltage
F GRY 2379 Low Reference F GRY 2379 Low Reference
C407 Auto Level Control Harness to the Trailer Harness (Domestic)

GM62447Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052848
  • 6-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12124107
  • 6-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 1240 Battery Positive Voltage A ORN 1240 Battery Positive Voltage
B BRN 9 Park Lamp Supply Voltage B BRN 9 Park Lamp Supply Voltage
C YEL 18 Left Rear Stop/Turn Lamp Supply Voltage C YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
D DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage D DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
E WHT 17 Stop Lamp Switch Signal E WHT 17 Stop Lamp Switch Signal
F BLK 1725 Ground F BLK 1725 Ground
C407 Auto Level Control Harness to the Trailer Harness (Export)

GM524196Courtesy of GENERAL MOTORS CORP.
GM365940Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047937
  • 8-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12047931
  • 8-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 1240 Battery Positive Voltage A ORN 1240 Battery Positive Voltage
B RED 122 Rear Fog Lamps Supply Voltage B RED 122 Rear Fog Lamps Supply Voltage
C YEL 18 Left Rear Stop/Turn Lamp Supply Voltage C YEL 18 Left Rear Stop/Turn Lamp Supply Voltage
D DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage D DK GRN 19 Right Rear Stop/Turn Lamp Supply Voltage
E WHT 17 Stop Lamp Switch Signal E WHT 17 Stop Lamp Switch Signal
F BLK 1725 Ground F BLK 1725 Ground
G PPL 709 Left Park Lamp Supply Voltage G PPL 709 Left Park Lamp Supply Voltage
H BRN/WHT 309 Right Park Lamp Supply Voltage H BRN/WHT 309 Right Park Lamp Supply Voltage
C408 Body Harness to Rear Parking Assist Display Harness

GM40392Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12047785
  • 4-Way F Metri-Pack 150 Series (BLK)
 Connector Part Information
  • 12065182
  • 4-Way M Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A WHT 2370 Telltale Assembly Supply Voltage A WHT 2370 Telltale Assembly Supply Voltage
B ORN 2371 Left Amber Indicator Control B ORN 2371 Left Amber Control
C DK BLU 2372 Center Amber Indicator Control C DK BLU 2372 Center Amber Indicator Control
D GRY 2373 Red Indicator Control D GRY 2373 Red Indicator Control
scientia non olet · About LEMON Manuals
