Instrument Cluster Schematics

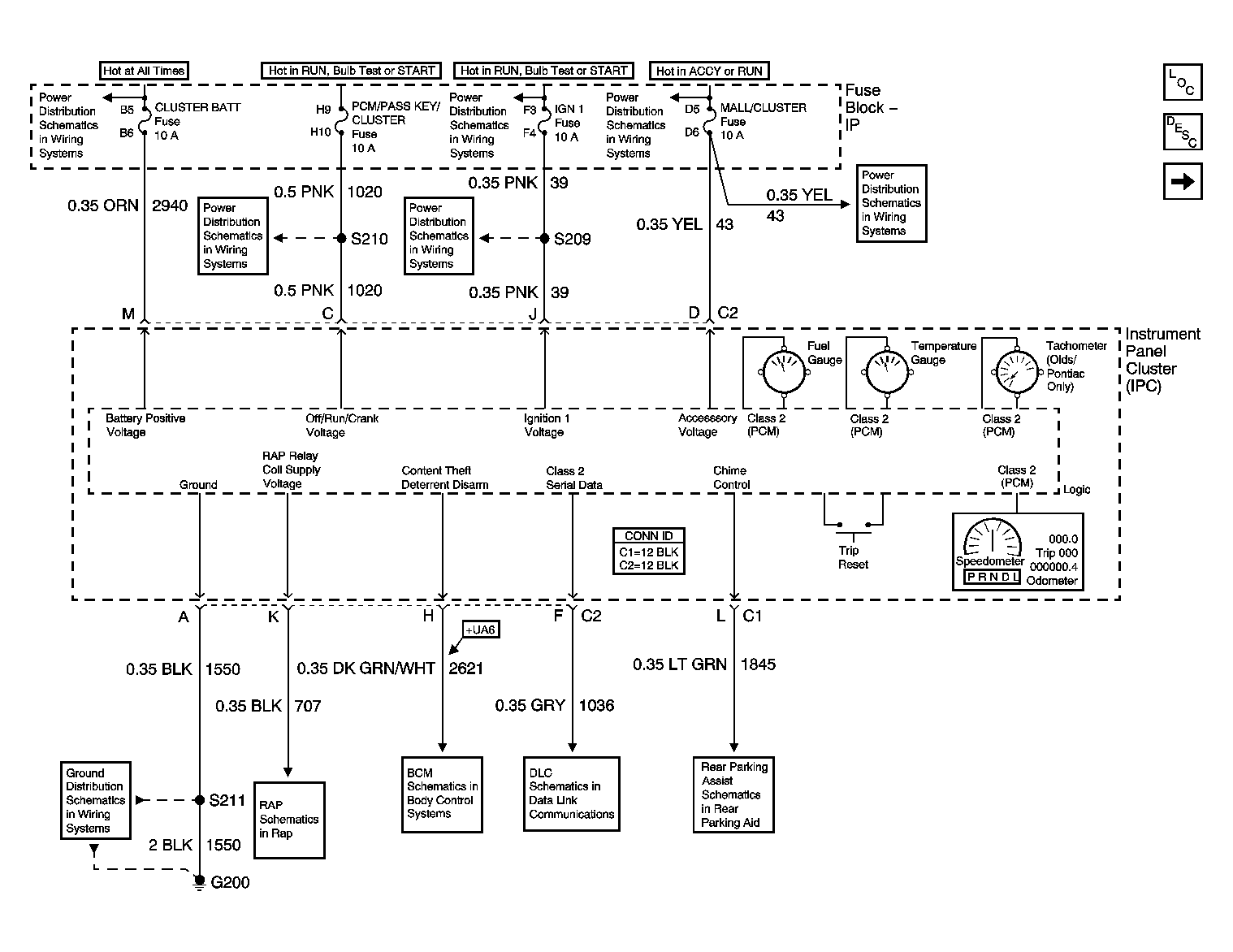

Fig 1: Power, Ground, Class 2 Line and Gages
GM797078Courtesy of GENERAL MOTORS CORP.

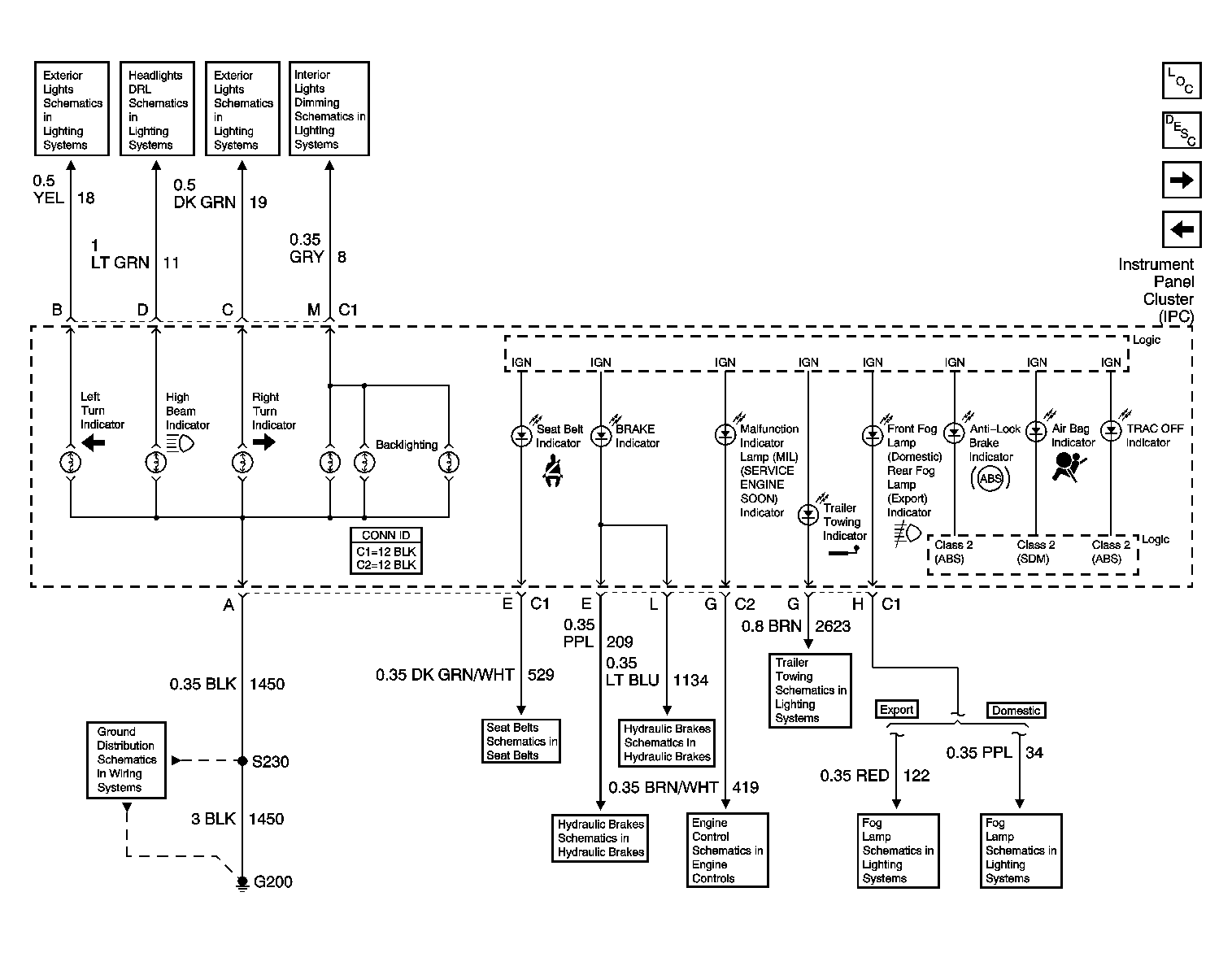

Fig 2: Hardwire Indicators
GM797080Courtesy of GENERAL MOTORS CORP.
Fig 3: Class 2 Telltales
GM797079Courtesy of GENERAL MOTORS CORP.

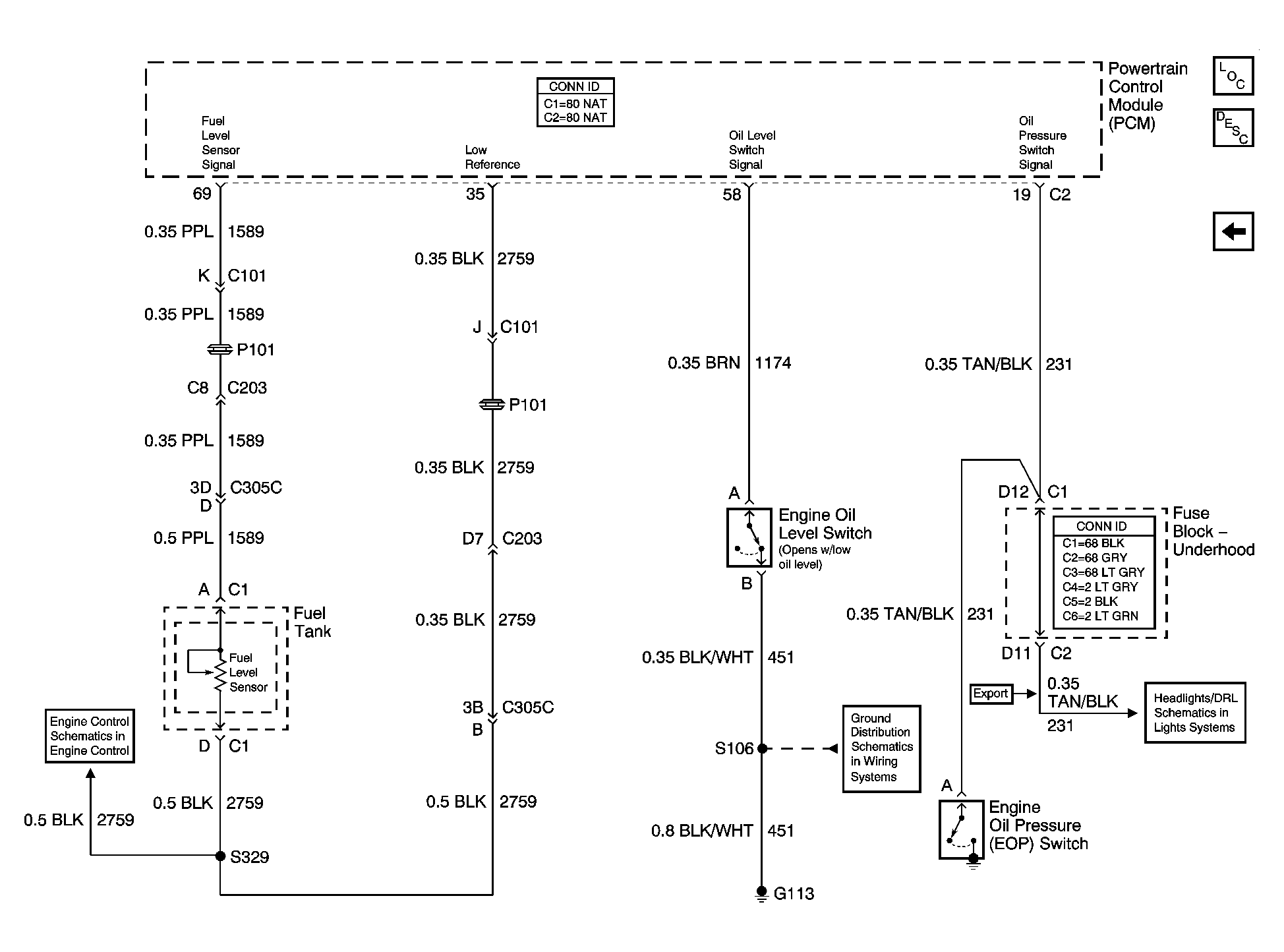

Fig 4: Sensors and Switches
GM797161Courtesy of GENERAL MOTORS CORP.
