Audible Warnings Schematics

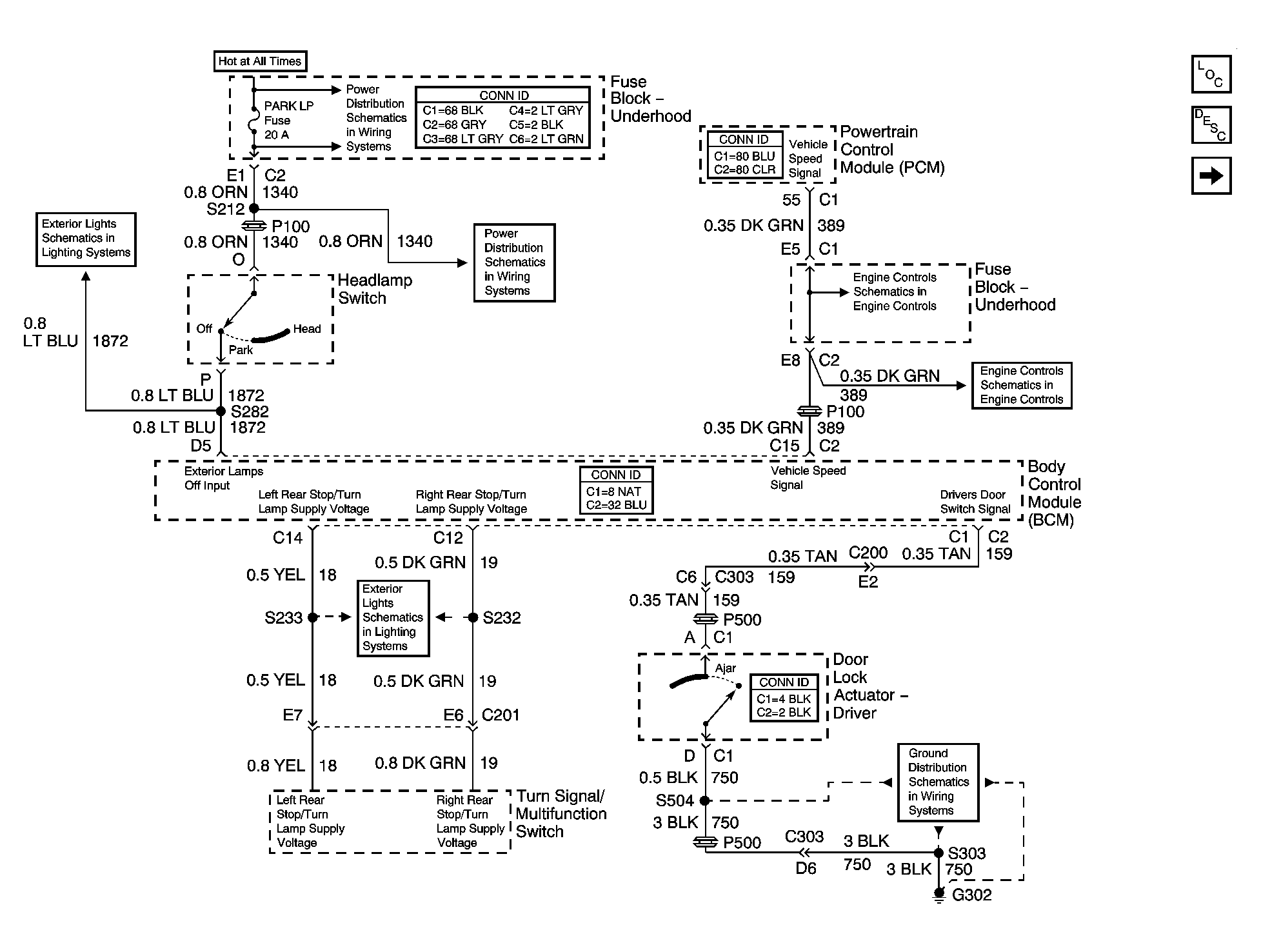

Fig 1: BCM, Power, and Ground

GM696310

Courtesy of GENERAL MOTORS CORP.

Fig 2: BCM, Instrument Panel Cluster (IPC), and Grounds

GM708162

Courtesy of GENERAL MOTORS CORP.
