Body Rear End Component Views
Body Rear End Component Views

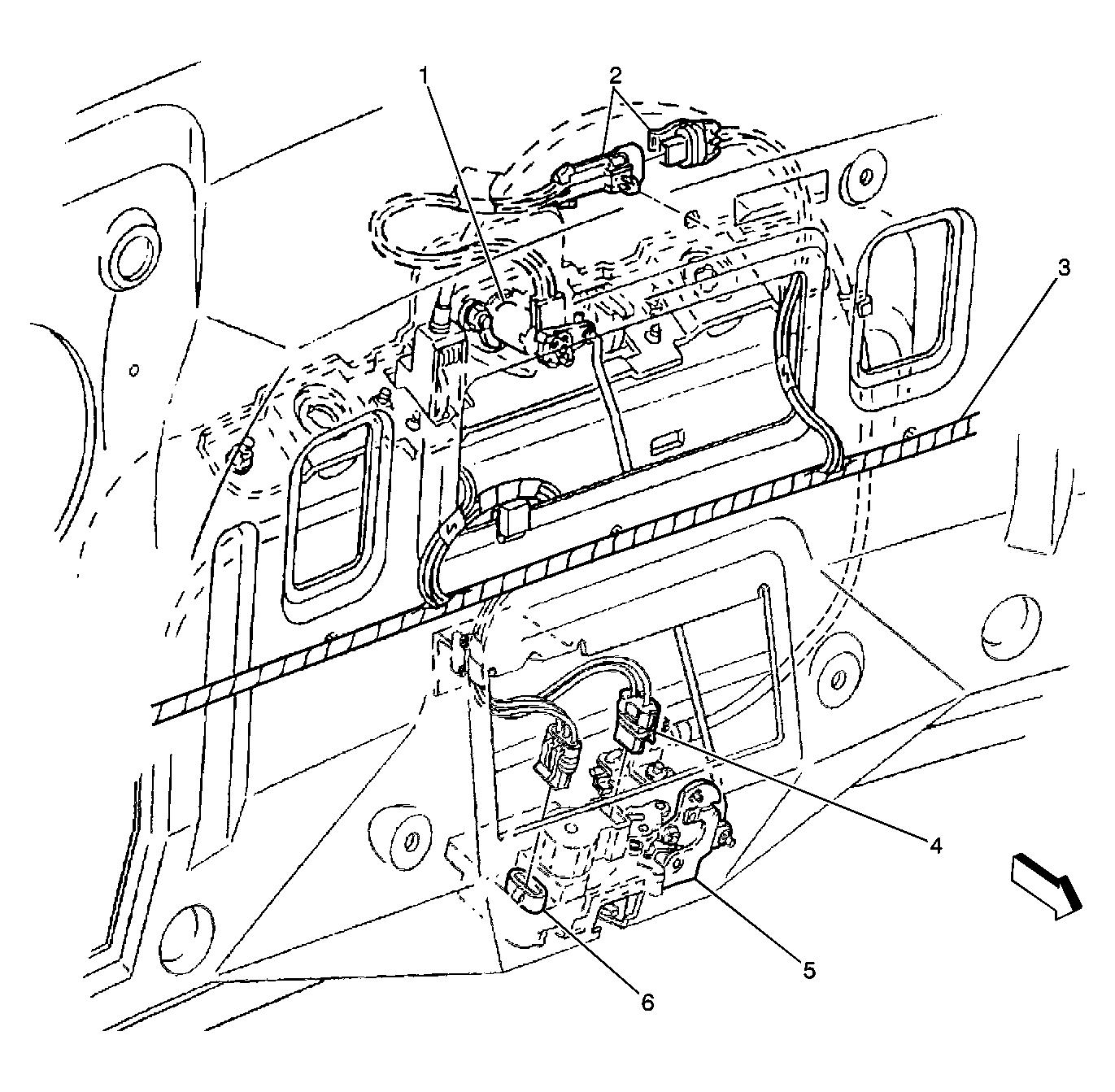

Fig 1: Liftgate
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Door Lock Cylinder Switch - Liftgate
2
Connector to Door Lock Cylinder Switch - Liftgate
3
Liftgate Harness
4
Door Lock Actuator - Liftgate
5
Liftgate Lock
6
Liftgate Door Lock-Ajar Indicator Switch
