Theft Deterrent System Schematics

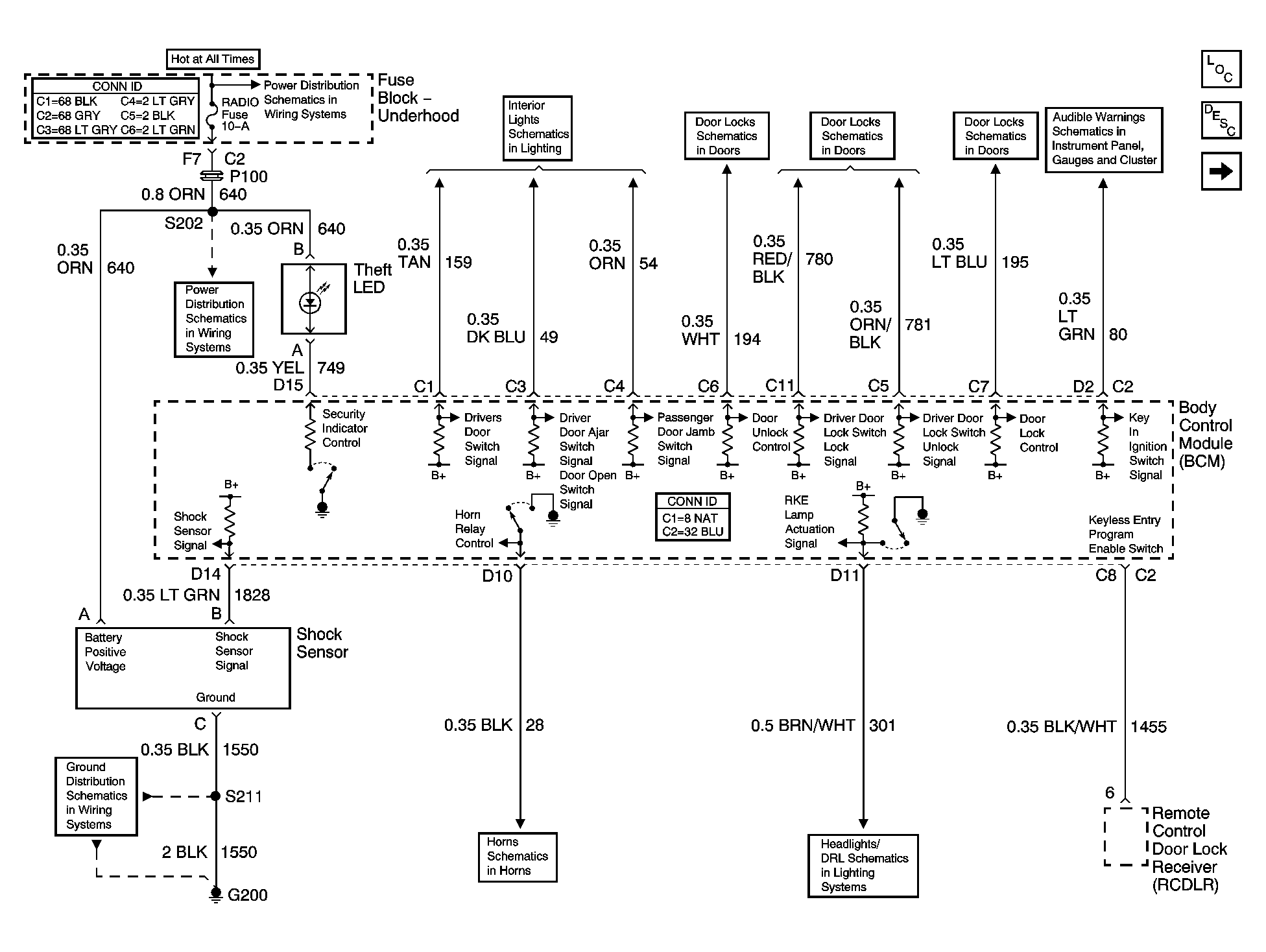

Fig 1: Content Theft Deterrent (CTD) System
GM675207Courtesy of GENERAL MOTORS CORP.

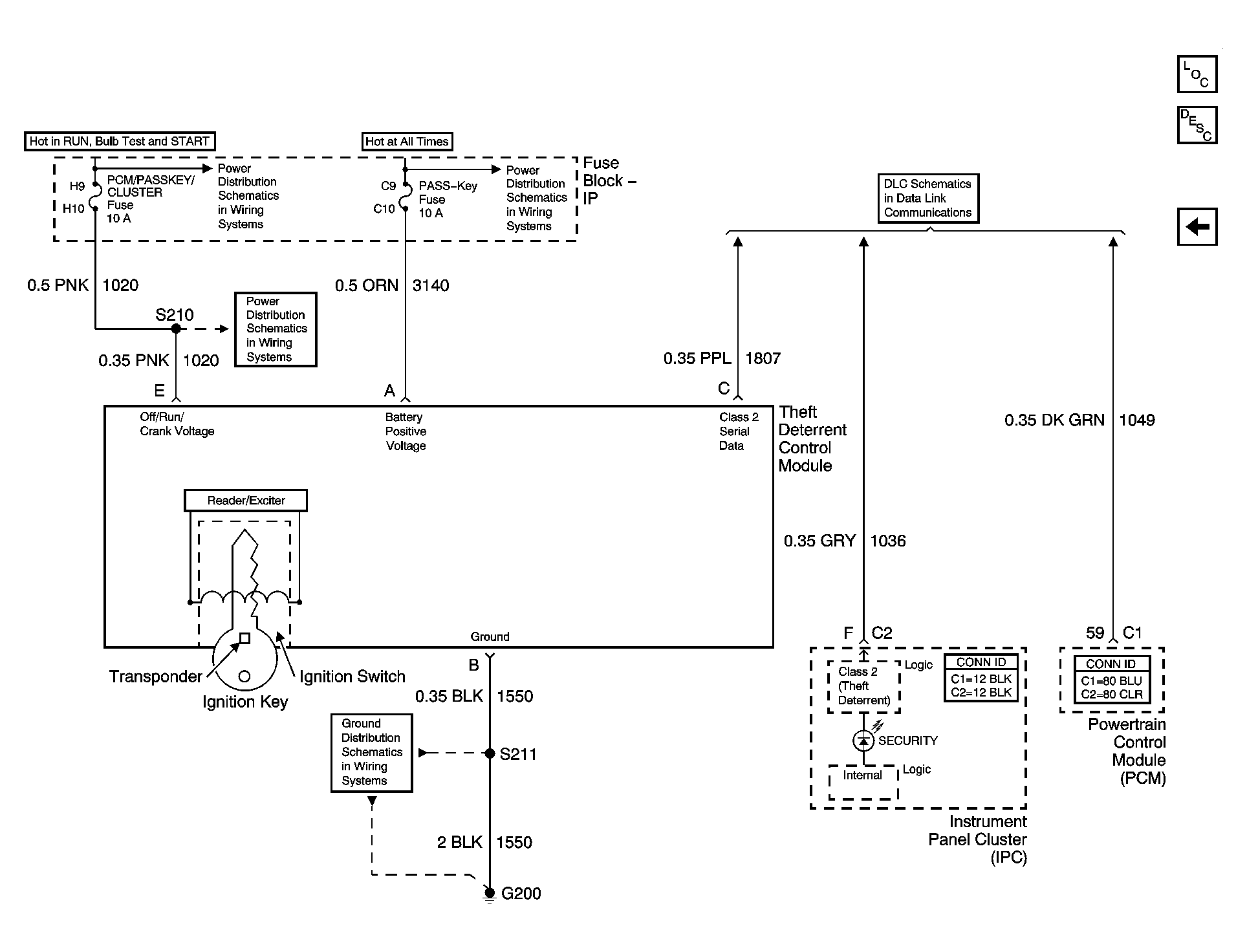

Fig 2: Vehicle Theft Deterrent (VTD) System
GM675238Courtesy of GENERAL MOTORS CORP.
