Headlights/Daytime Running Lights (DRL) Schematics (Export)

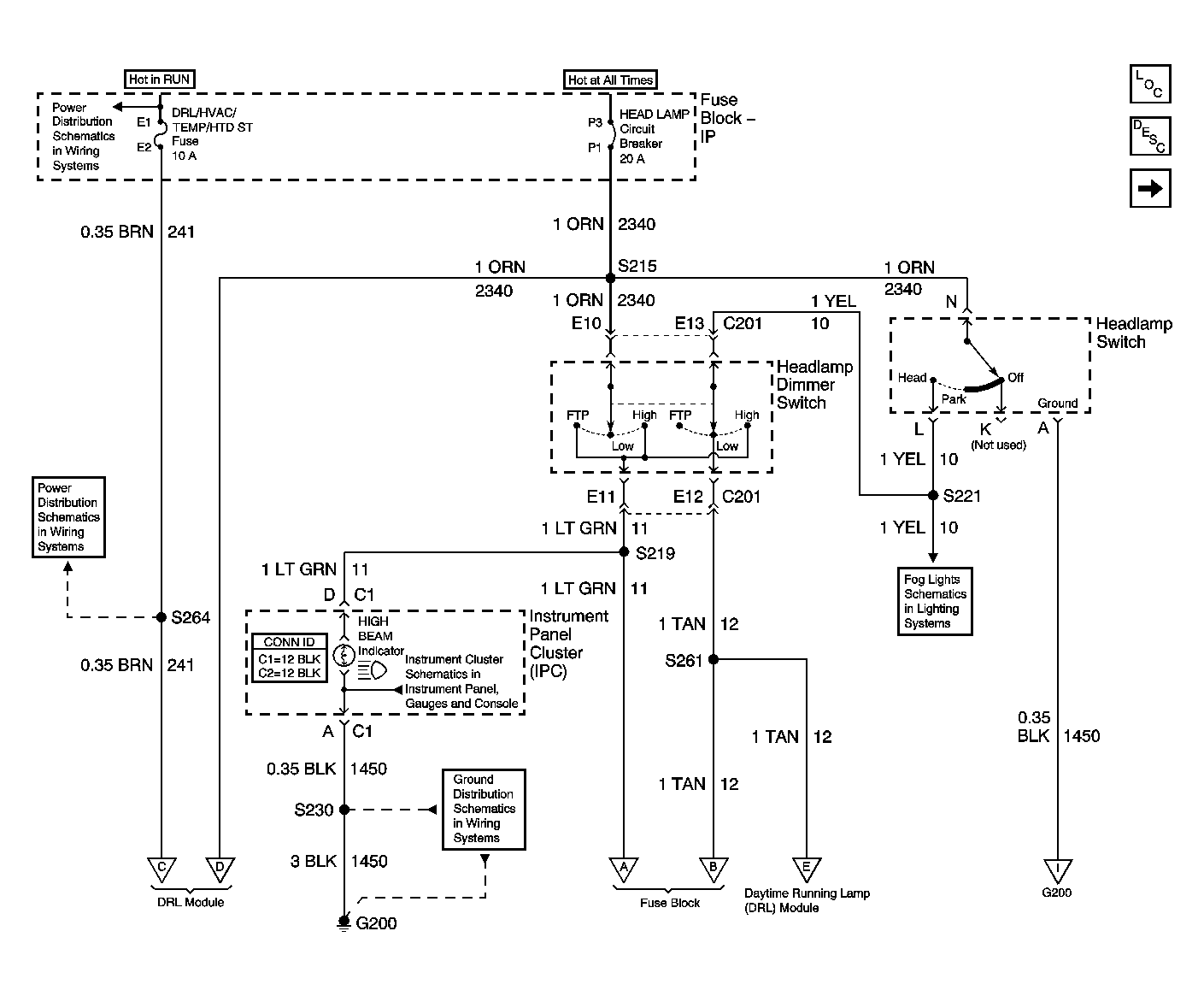

Fig 1: DRL/Headlamp and I/P Lamp Dimmer Switch Schematic - Export

Courtesy of GENERAL MOTORS CORP.

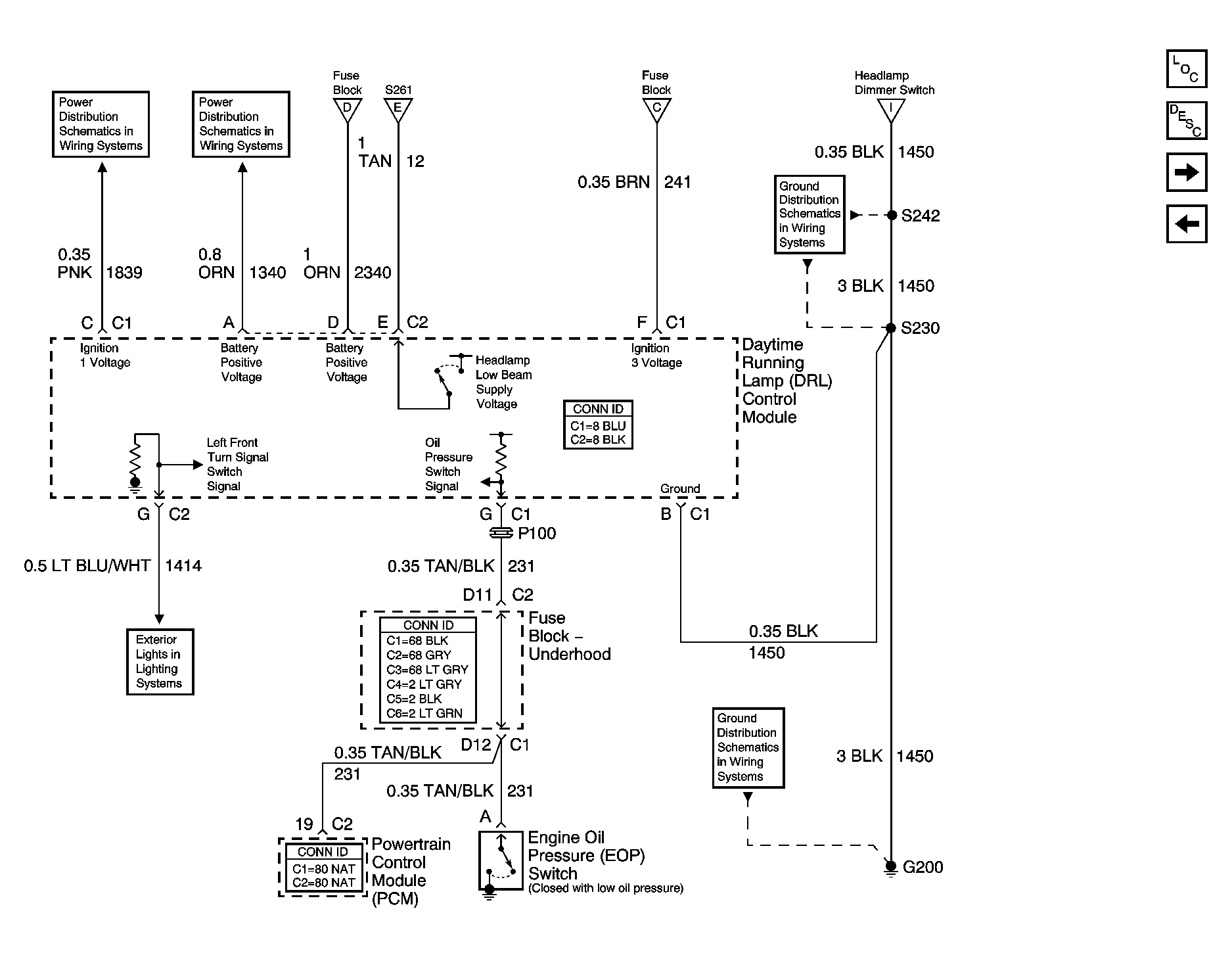

Fig 2: Daytime Running Lamps Control Module Schematic - Export

Courtesy of GENERAL MOTORS CORP.

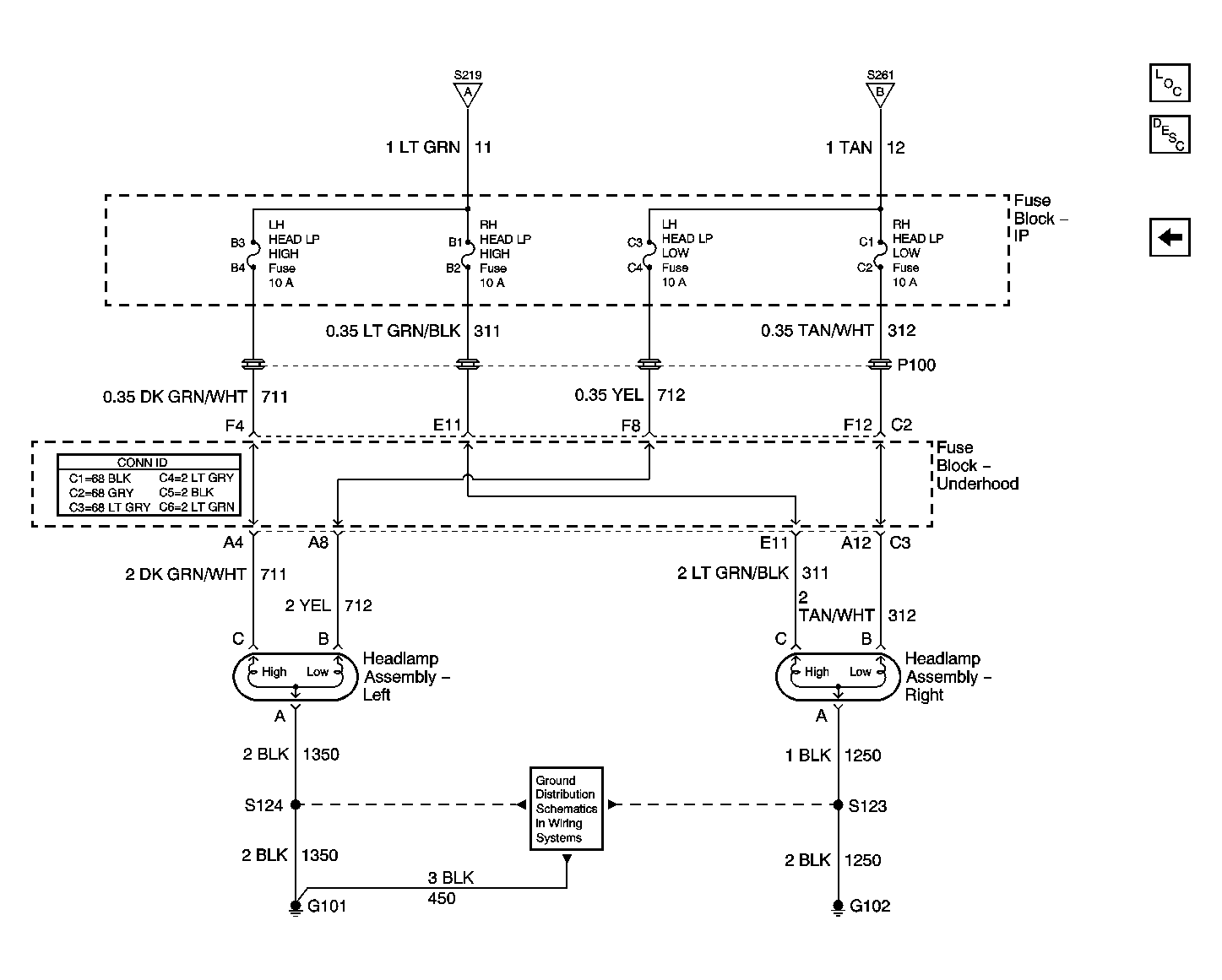

Fig 3: Headlights Schematic - Export

Courtesy of GENERAL MOTORS CORP.
