Fog Lights Schematics (Export)

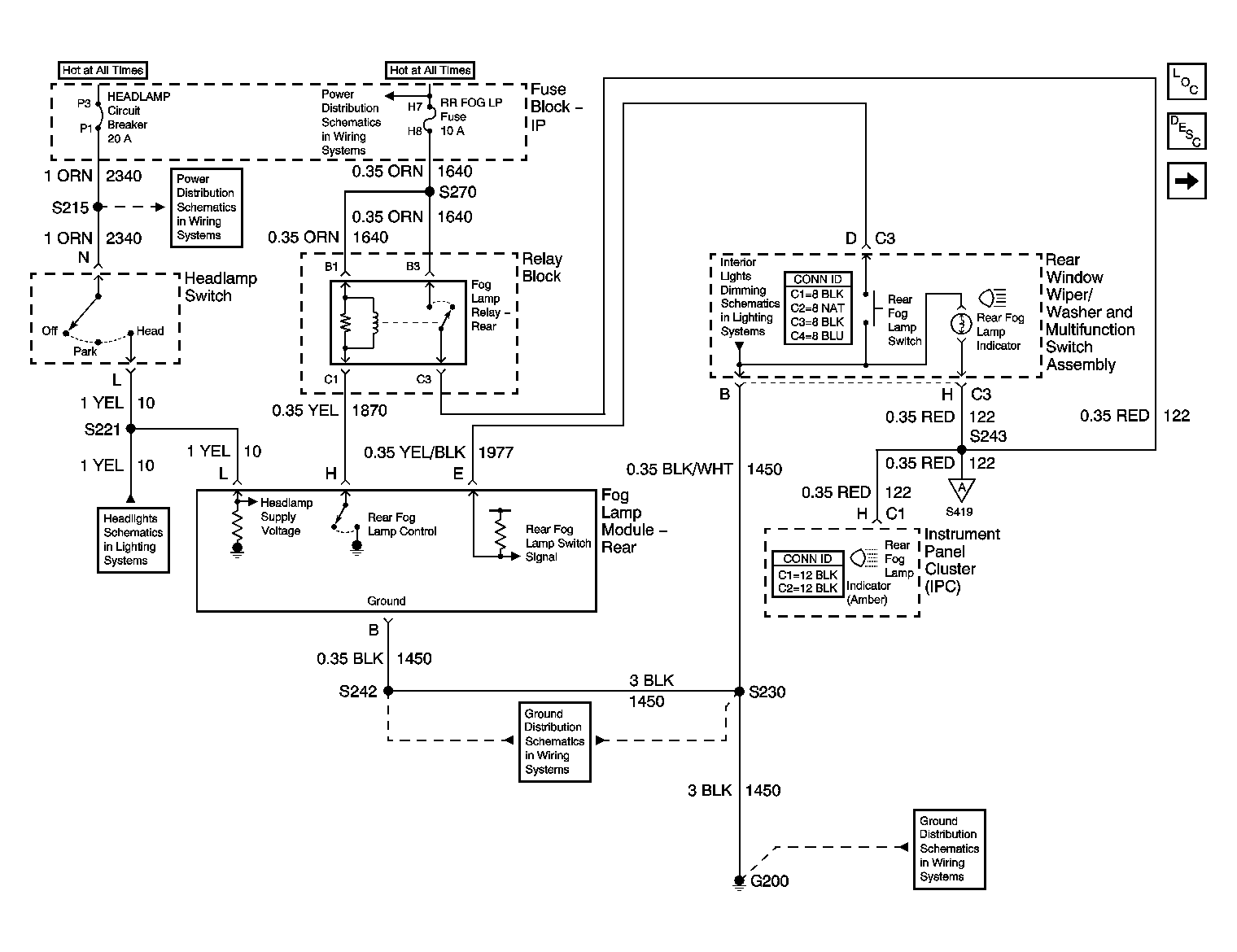

Fig 1: Rear Fog Lights Schematic (Export), 1 of 2

GM696693

Courtesy of GENERAL MOTORS CORP.

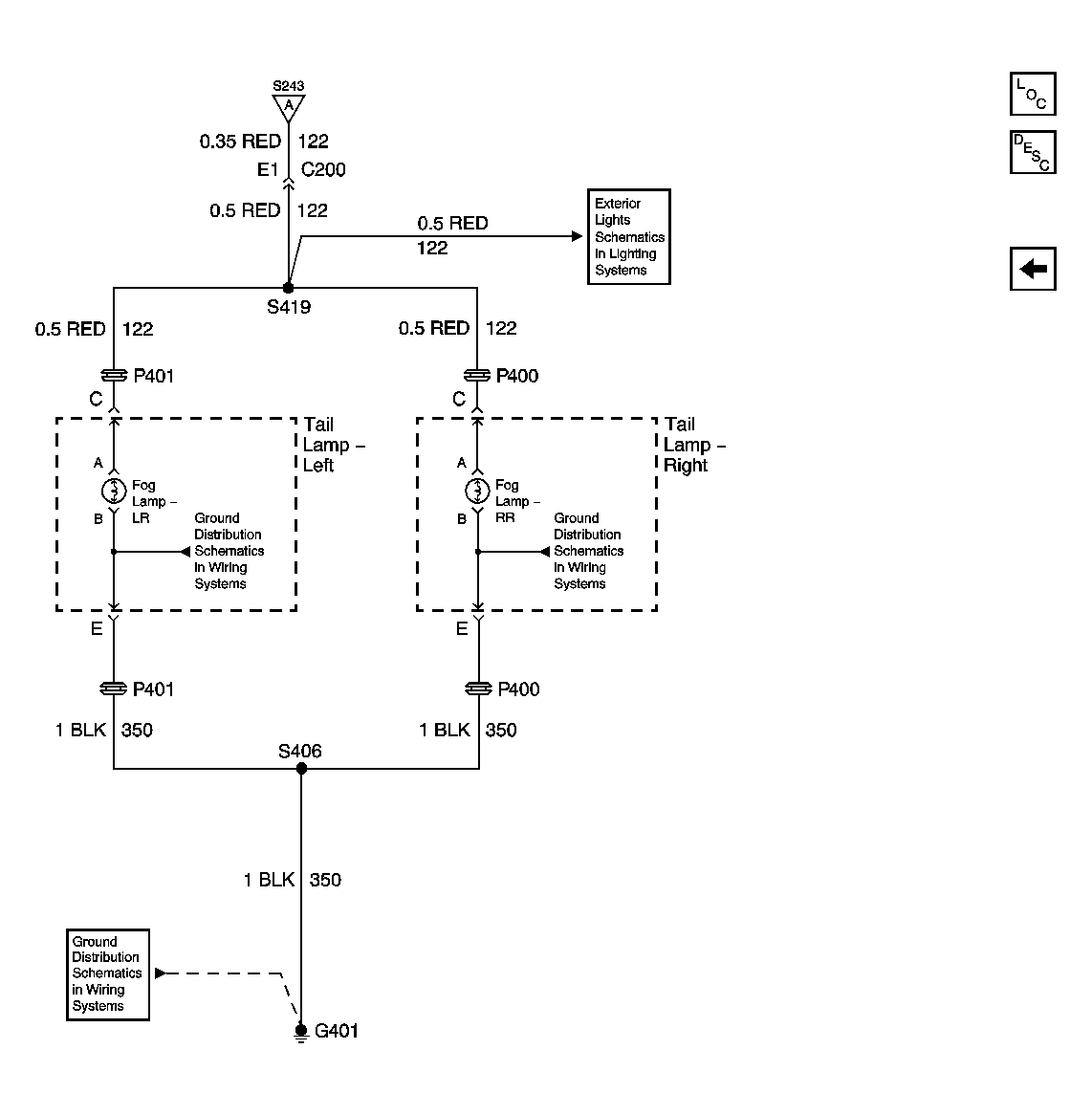

Fig 2: Rear Fog Lights Schematic (Export), 2 of 2

GM696695

Courtesy of GENERAL MOTORS CORP.
