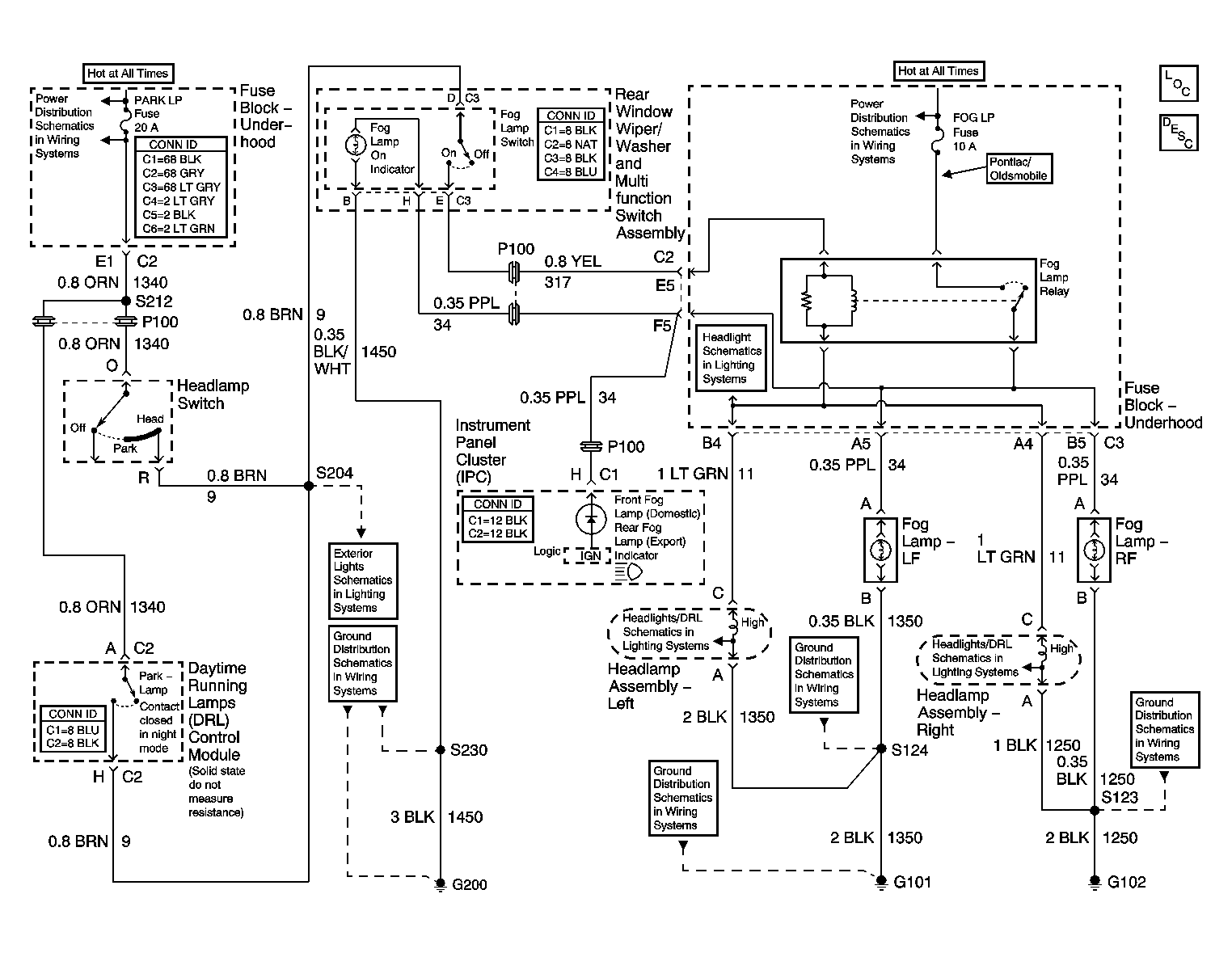

Home >> Chevrolet >> 2005 >> Venture LT >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic And Routing Diagrams >> Fog Lights Schematics (Domestic)
