Exterior Lights Schematics (Export)

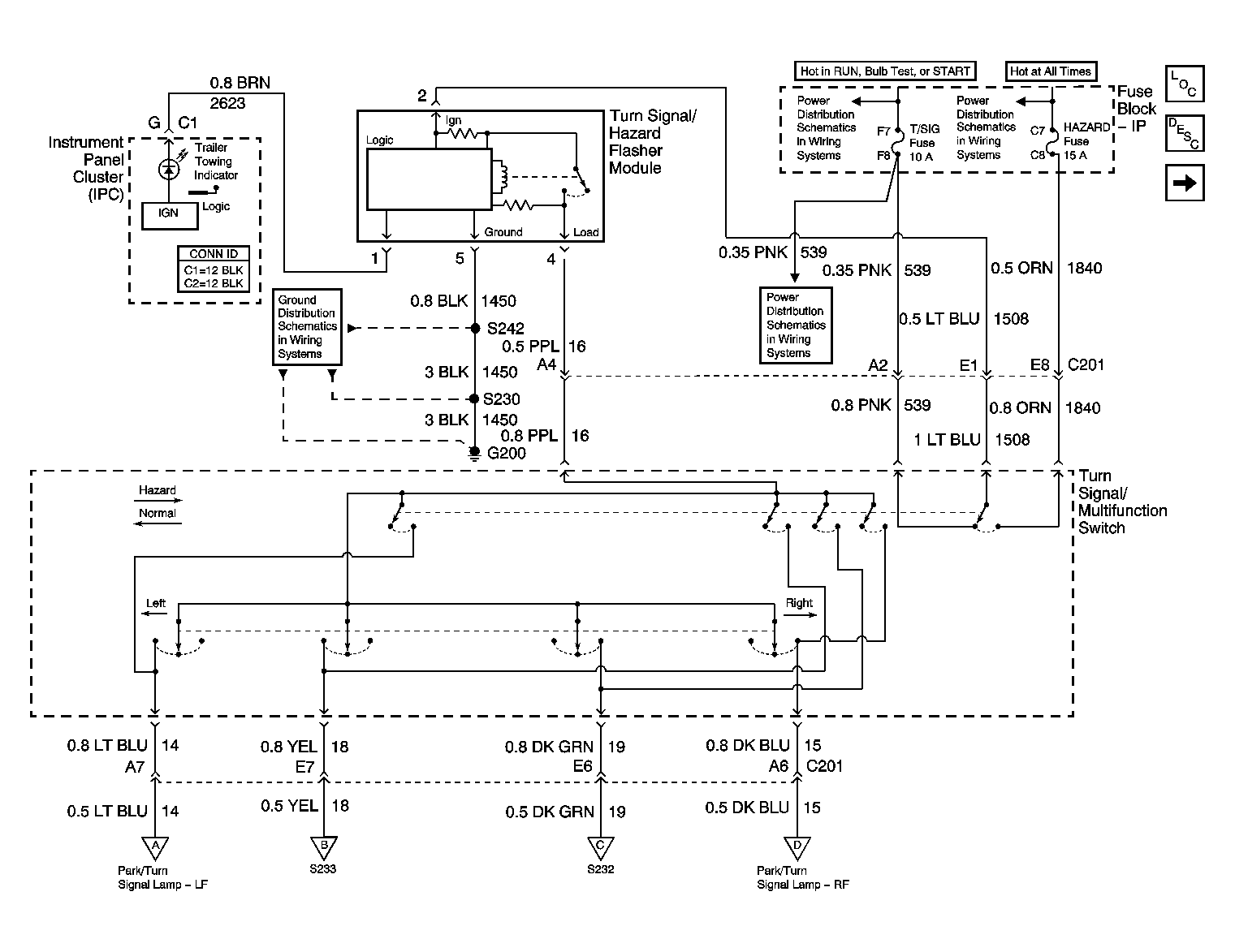

Fig 1: Hazard Lamp/Turn Signal Flasher and Turn Signal Switch Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

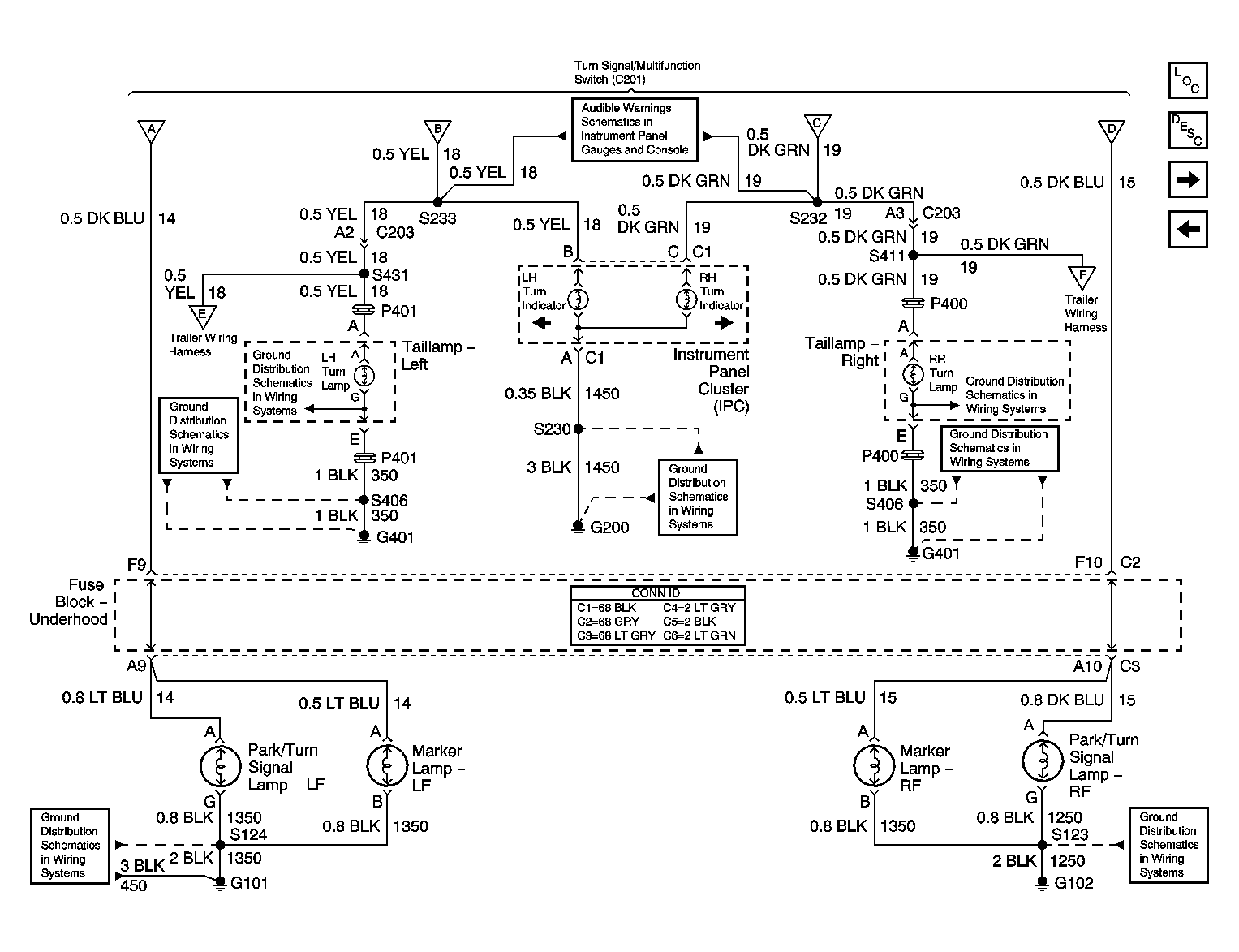

Fig 2: Turn and Side Marker Lamps Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

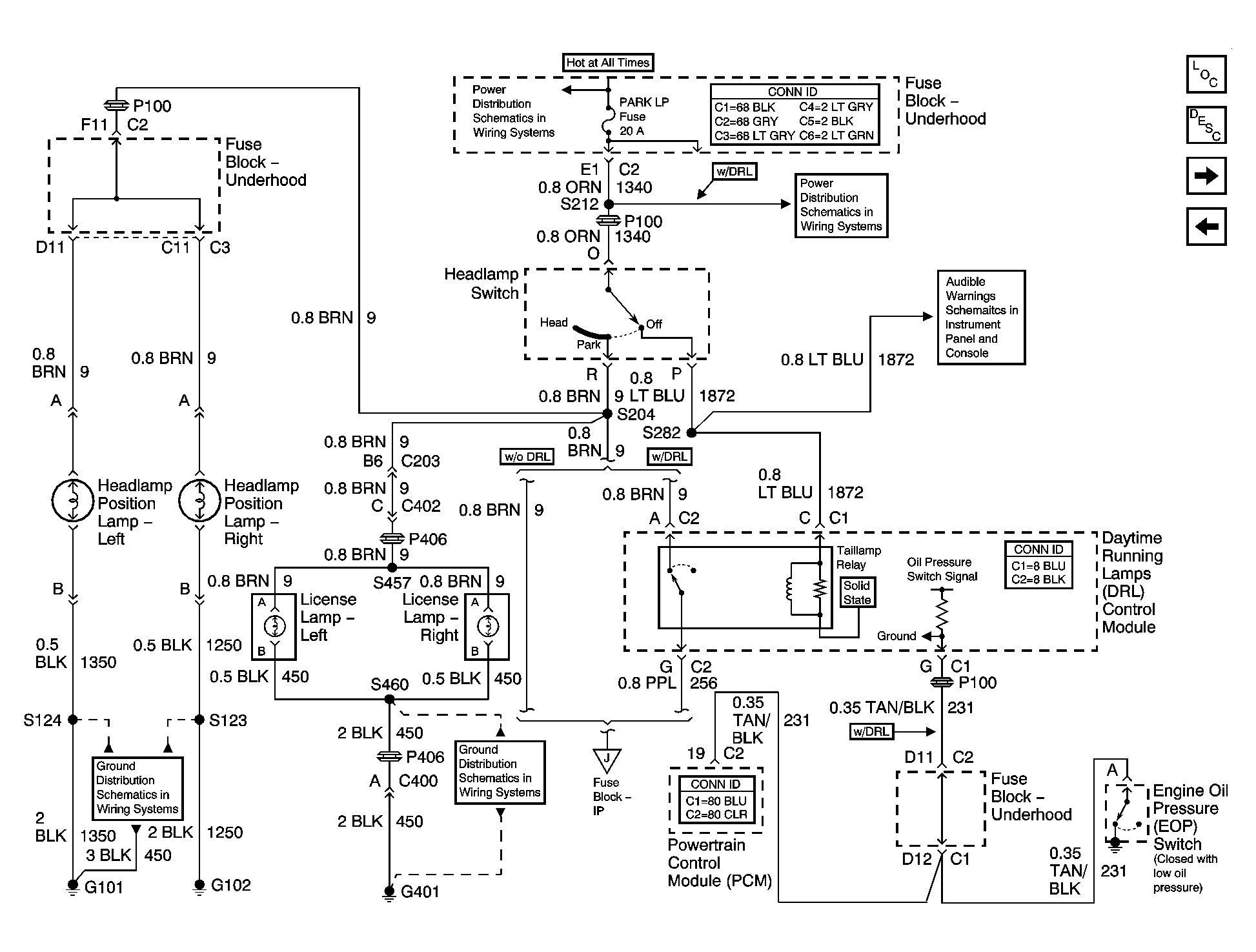

Fig 3: Headlamp Position Lamps/License Lamps Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Tail Lamps Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

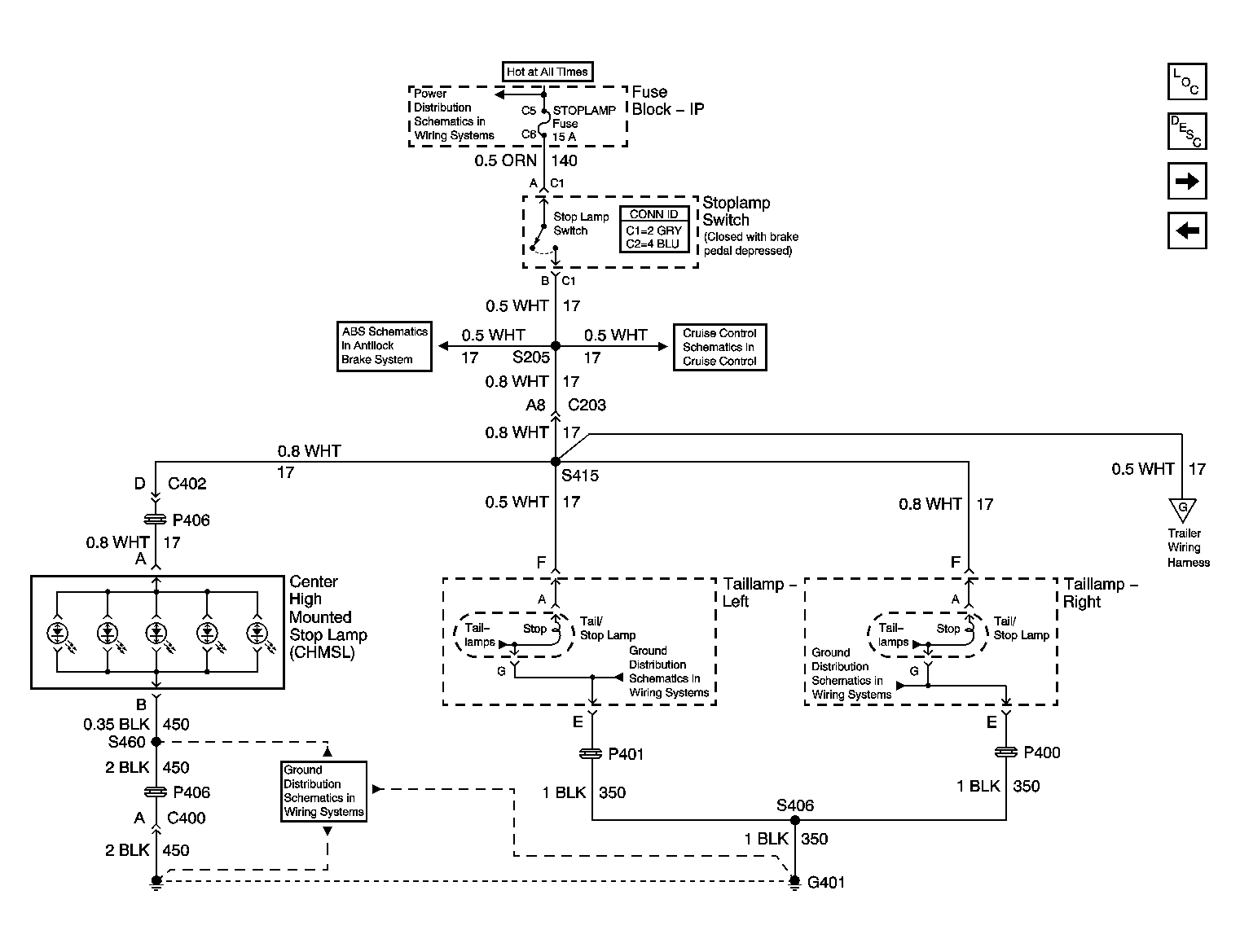

Fig 5: Stop Lamps and CHMSL Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

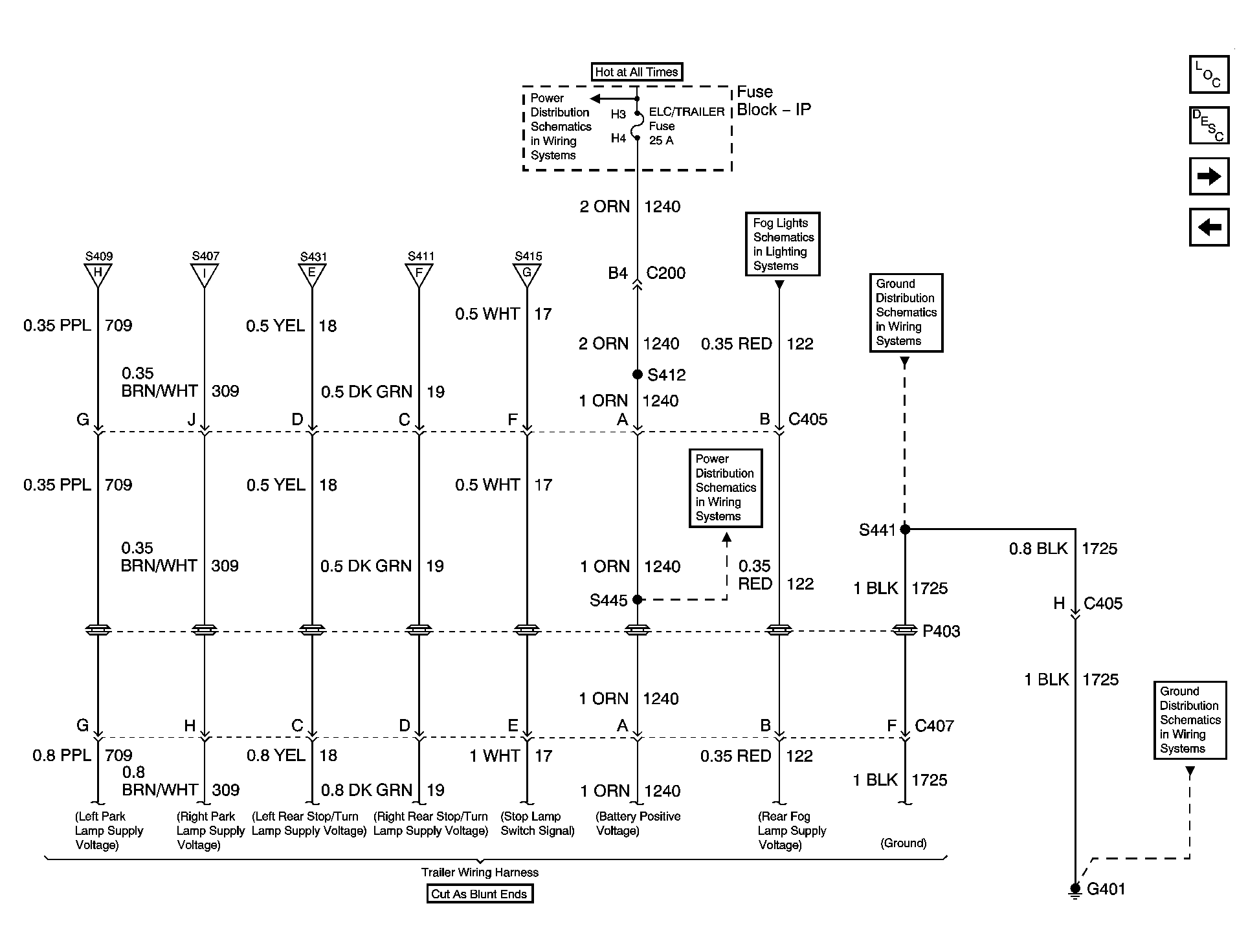

Fig 6: Trailer Wiring, Power and Ground Schematic (Export)

Courtesy of GENERAL MOTORS CORP.

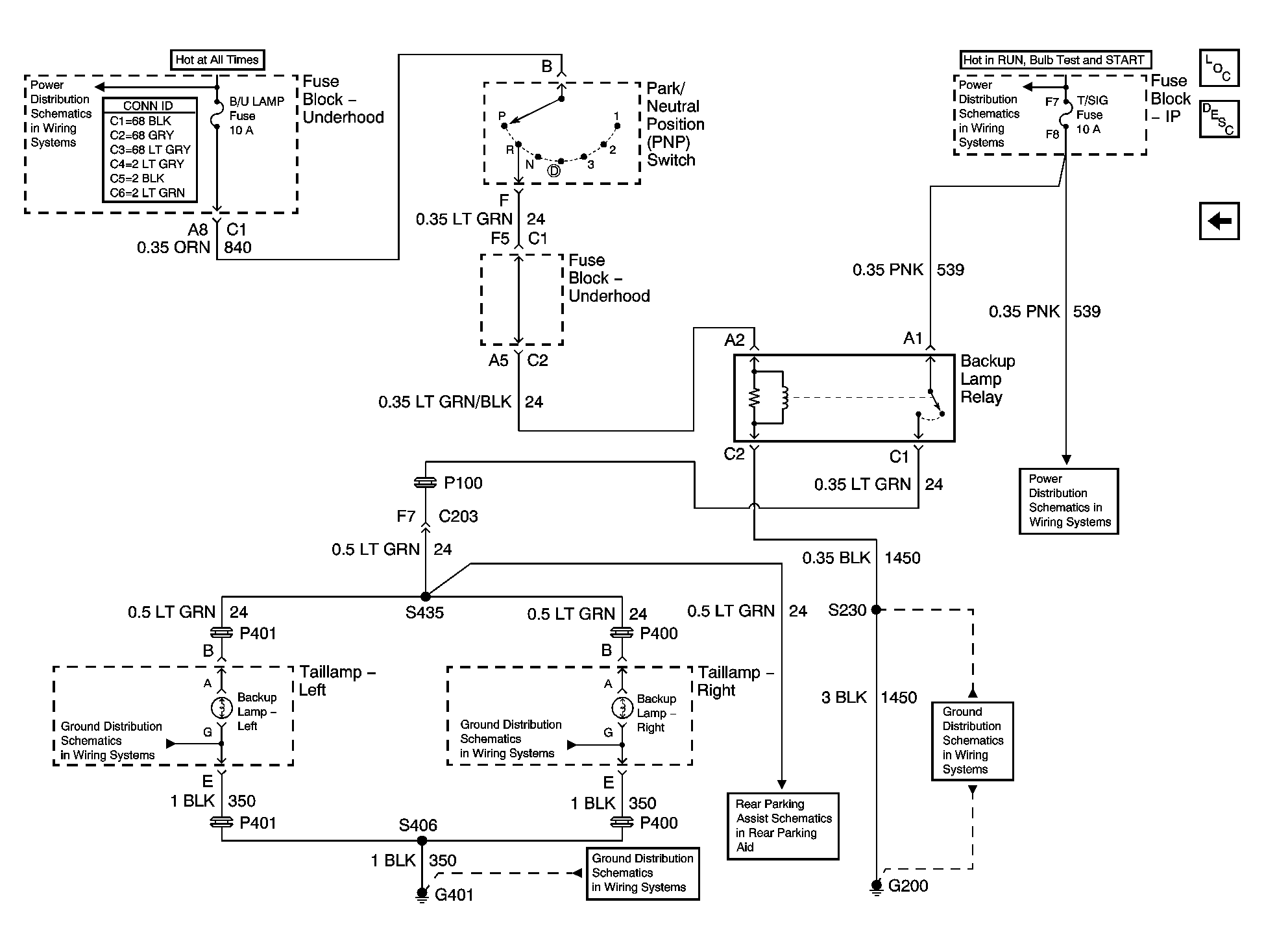

Fig 7: Backup Lights Schematic (Export)

Courtesy of GENERAL MOTORS CORP.
