Exterior Lights Schematics (Domestic)

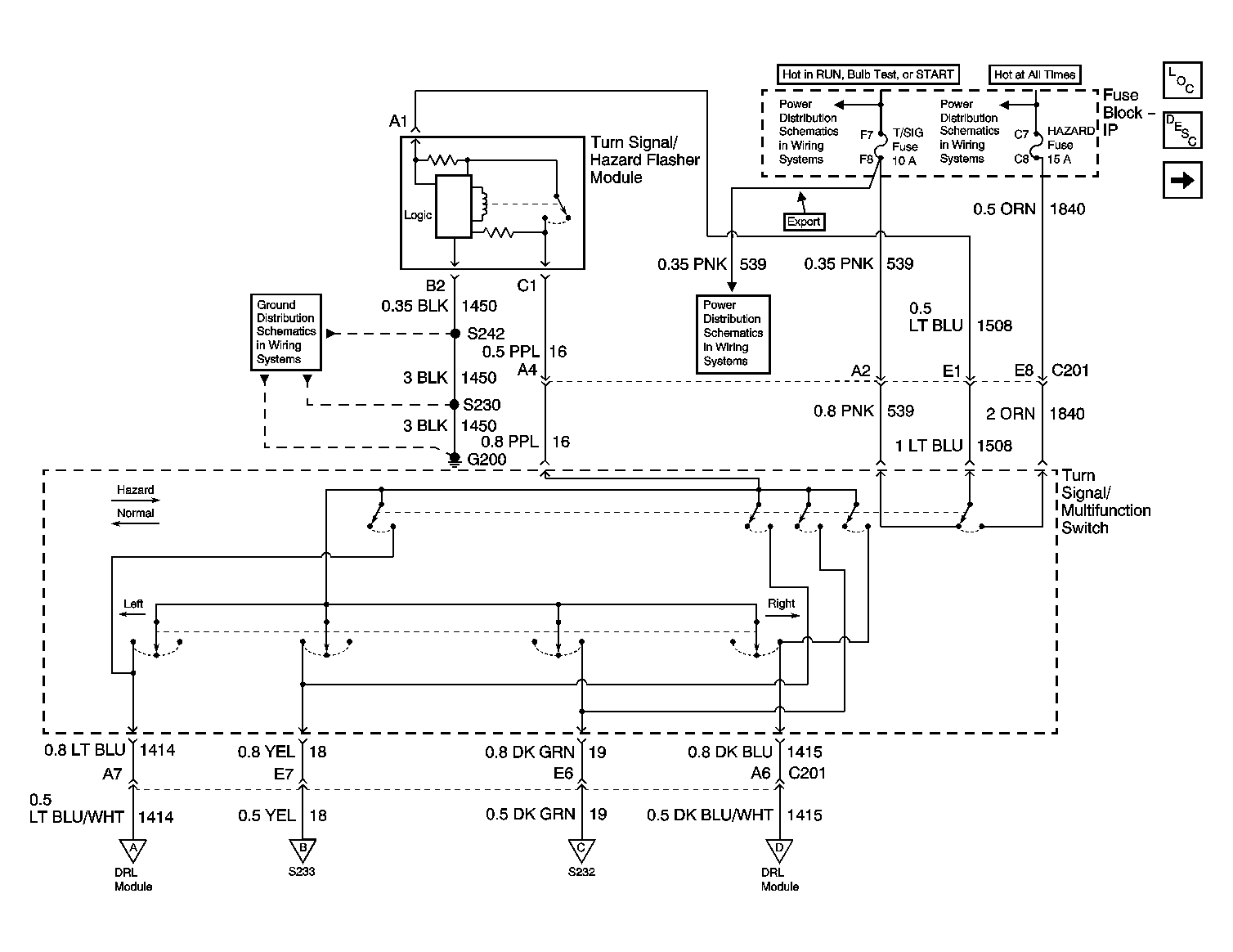

Fig 1: Hazard Lamp/Turn Signal Flasher and Turn Signal Switch Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.

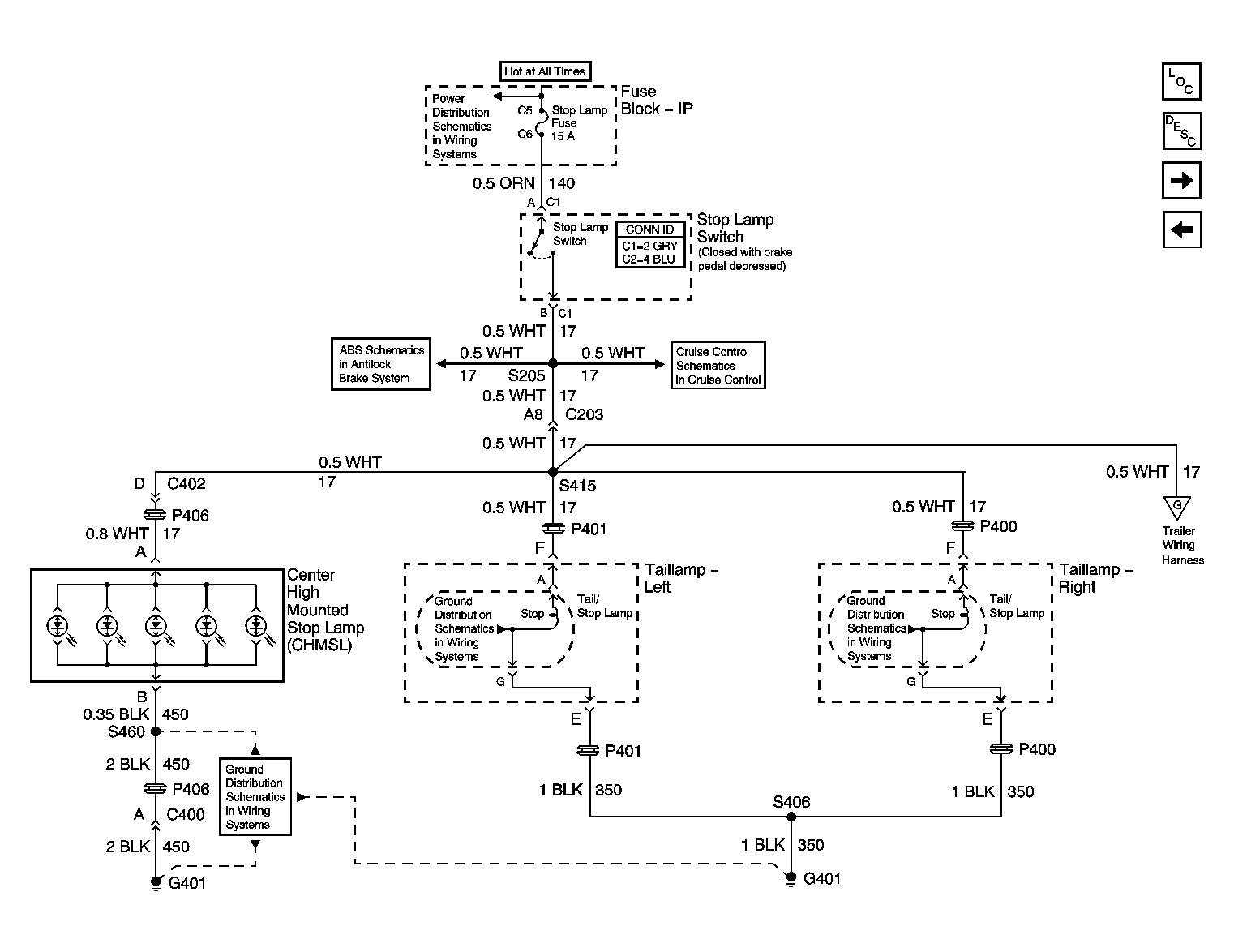

Fig 2: Stop Lamp Switch and Center High Mounted Stop Lamp Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.

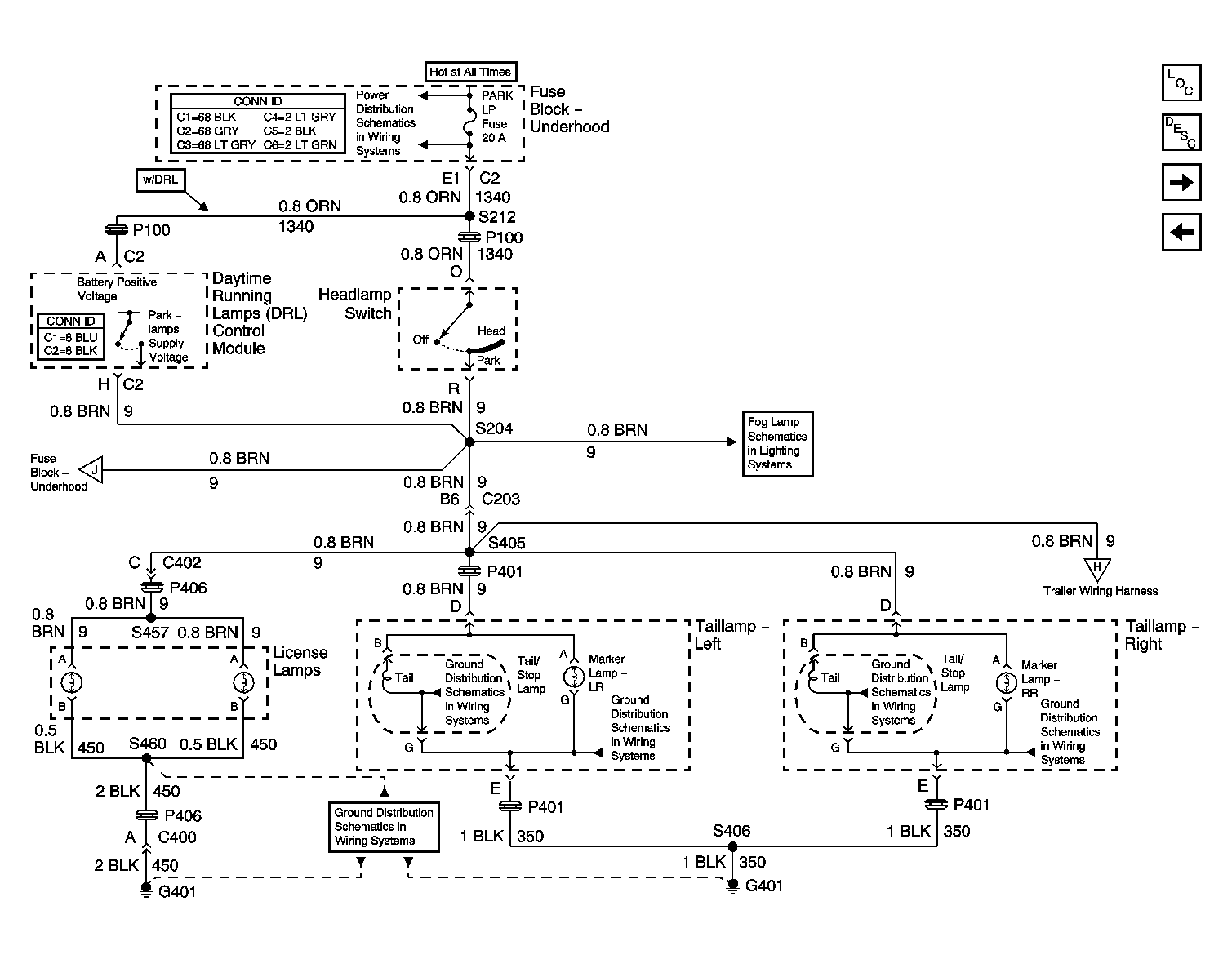

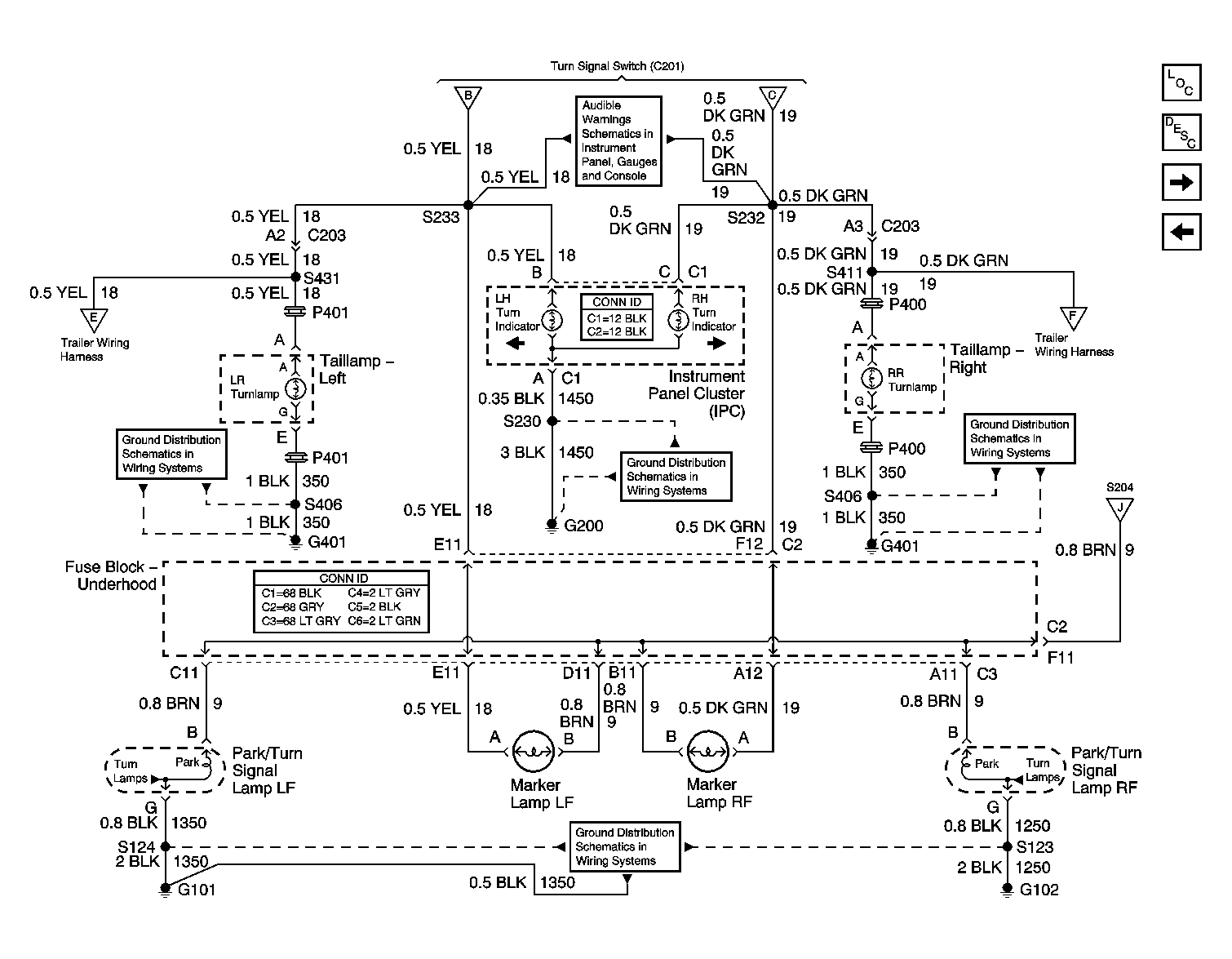

Fig 3: Tail Lamps, Side Markers and Park/Turn Lamps Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.

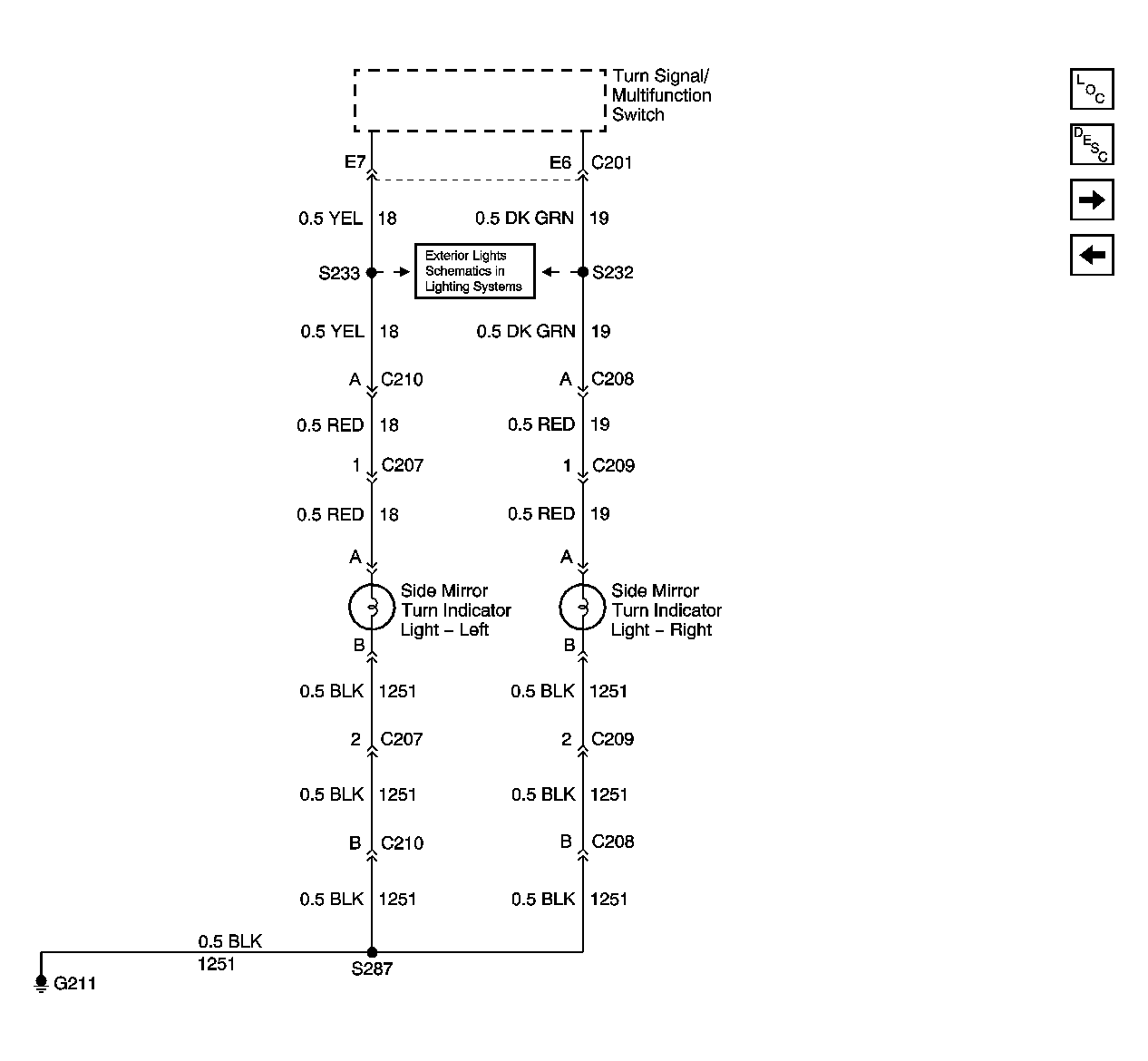

Fig 4: Side Mirror Turn Indicator Lights Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.

Fig 5: License Lamps Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.

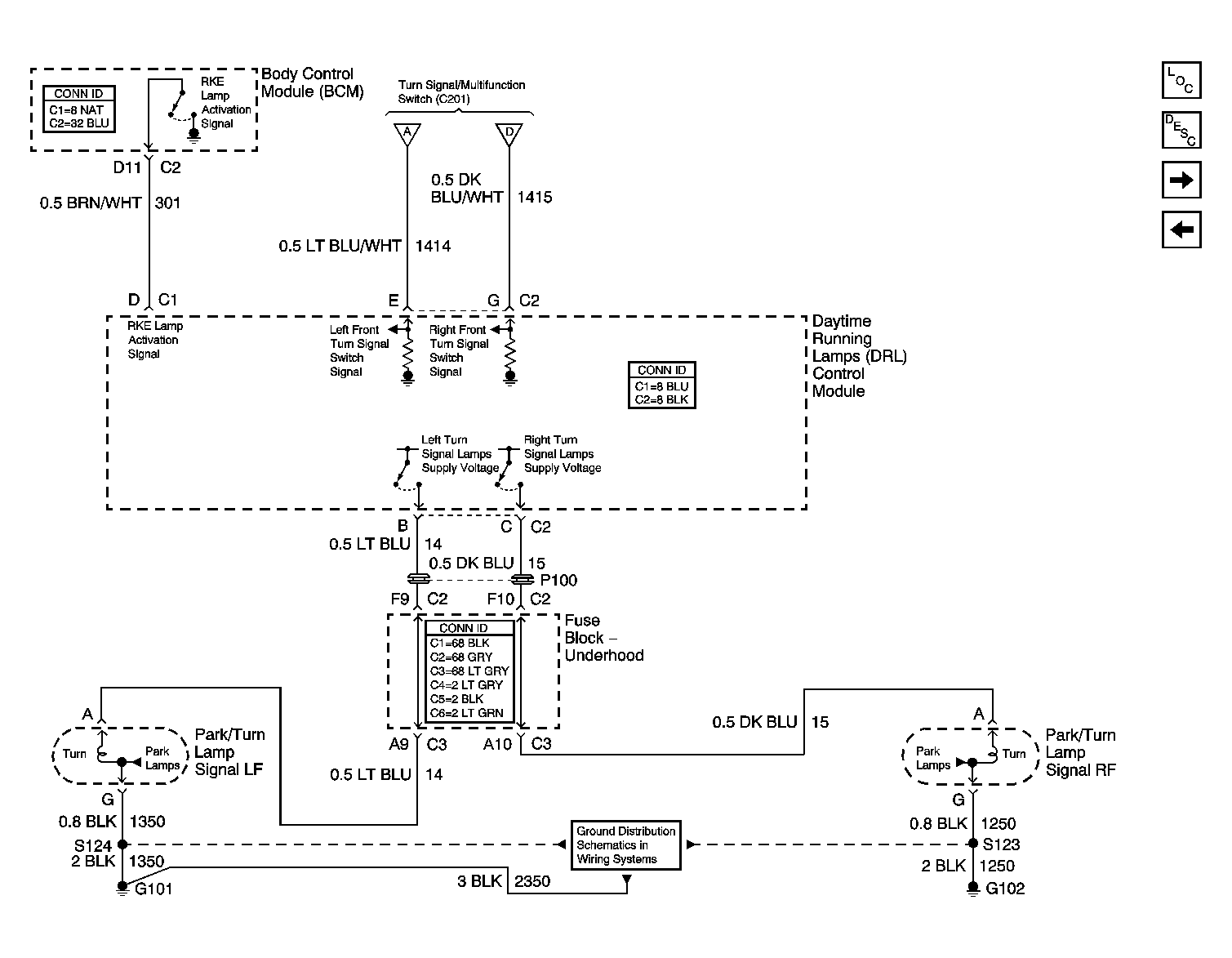

Fig 6: DRL Ambient Light Sensor and DRL Control Module Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.

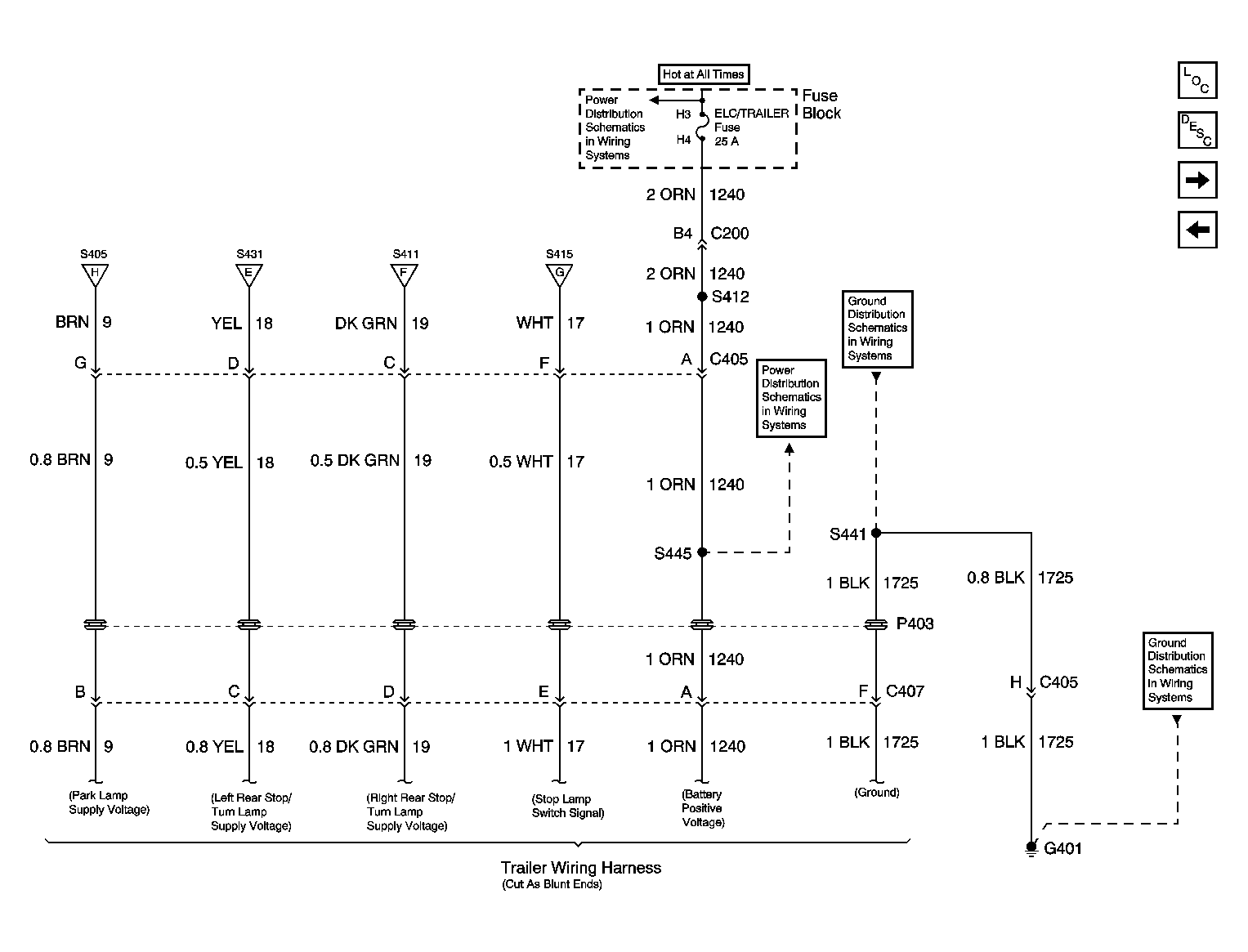

Fig 7: Trailer Wiring, Power and Ground Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.

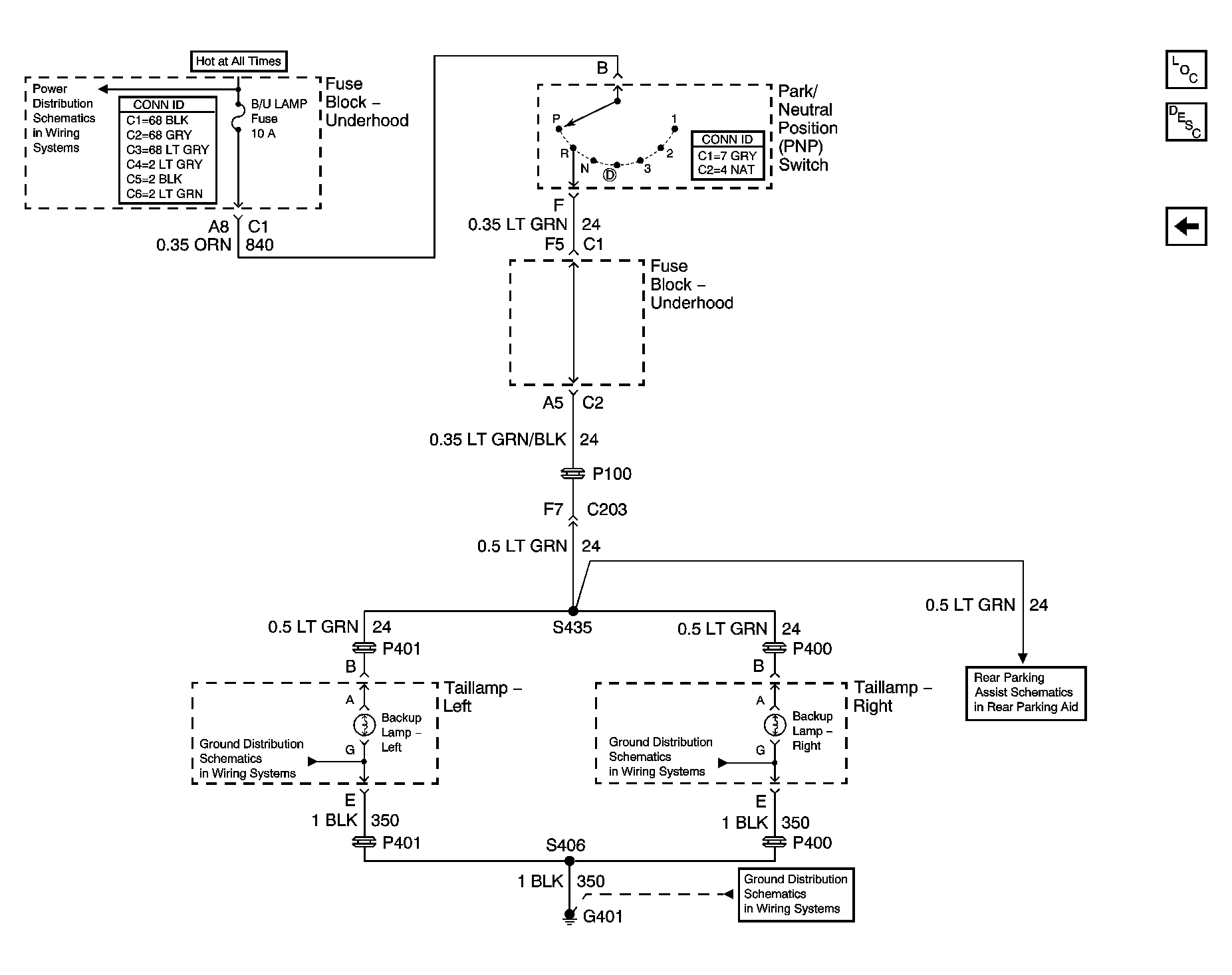

Fig 8: Backup Lights Schematic (Domestic)

Courtesy of GENERAL MOTORS CORP.
