Rear Parking Assist Component Views

Fig 1: Object Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Bumper Fascia
2	Object Sensor

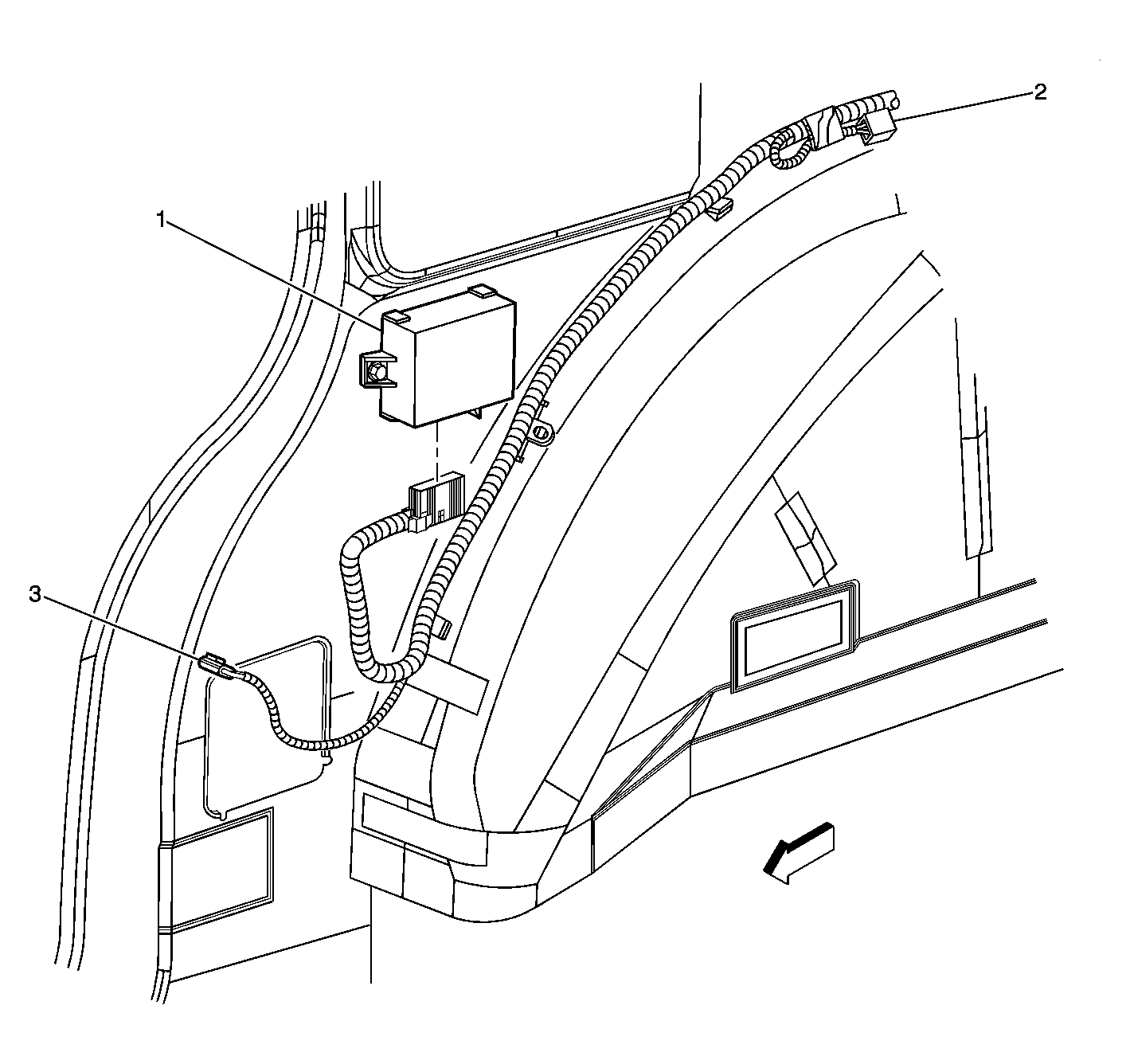

Fig 2: Right Rear of Vehicle, Front of Wheelhouse

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Object Sensor Control Module
2	Rear Parking Assist Diagnostic Connector
3	Sliding Door Jamb Switch - Right

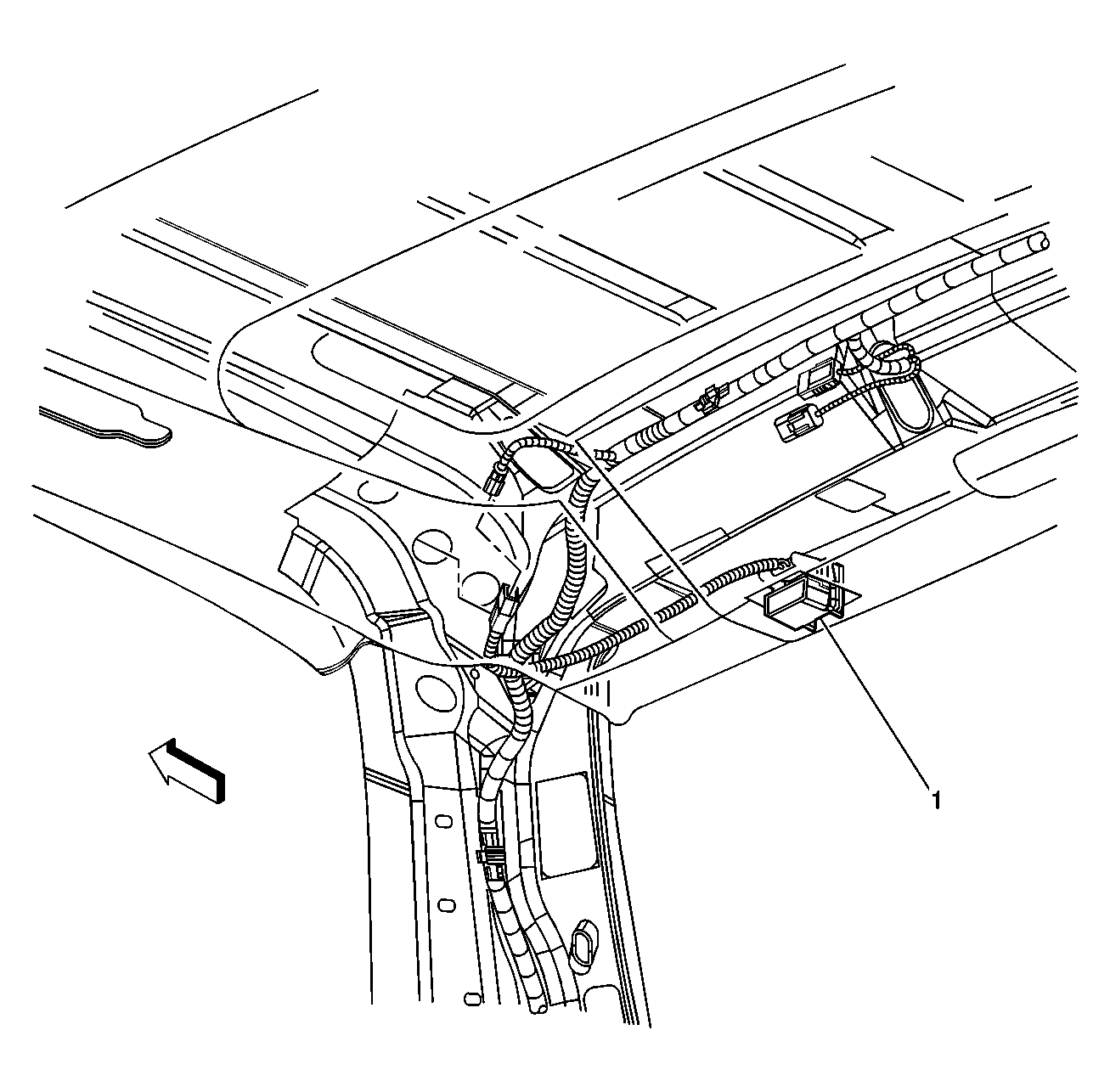

Fig 3: Rear of Vehicle, Center of Roof

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Parking Assist (RPA) Display
