Starting and Charging Schematics

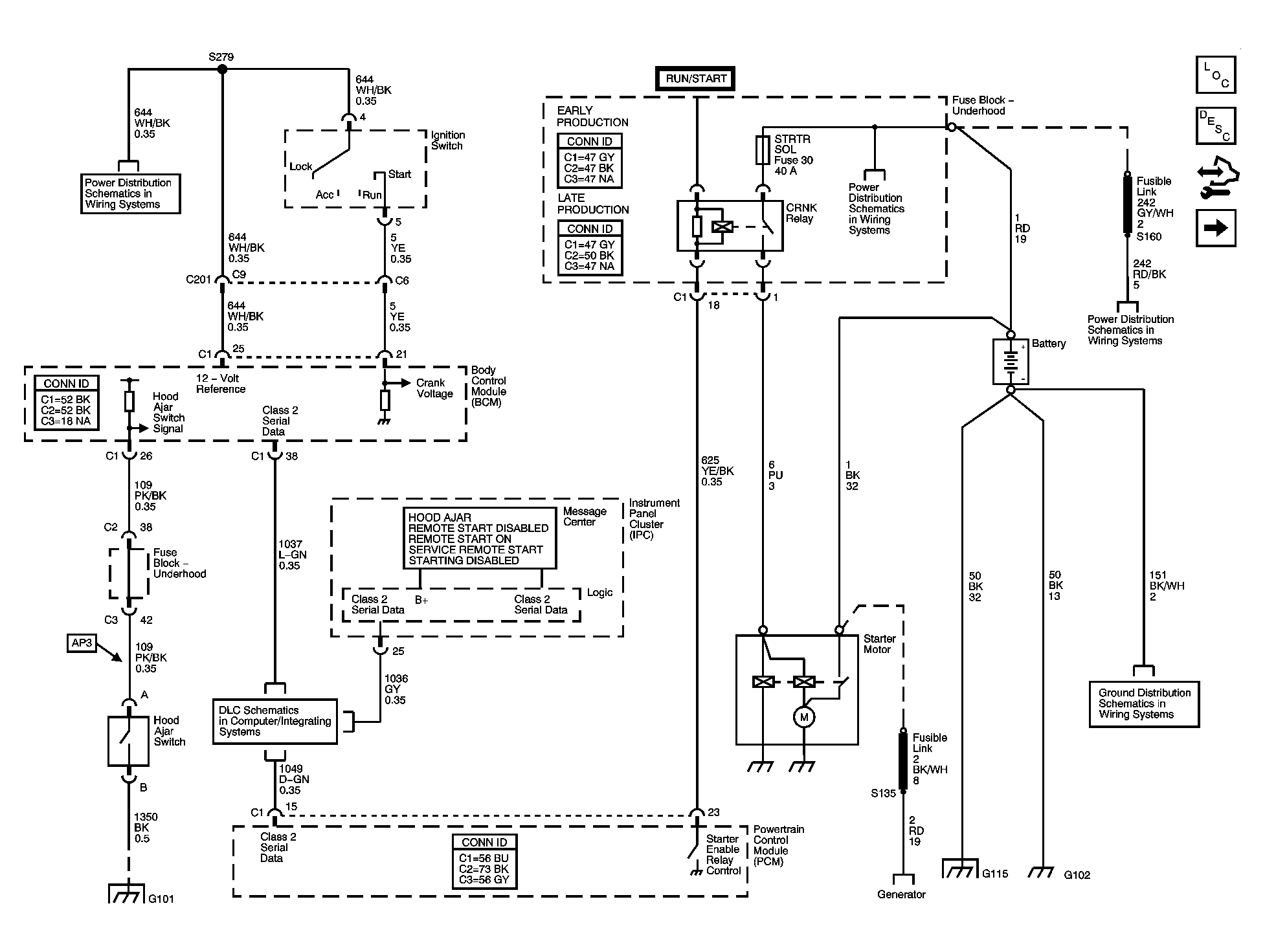

Fig 1: Starting Schematic

GM1486129

Courtesy of GENERAL MOTORS CORP.

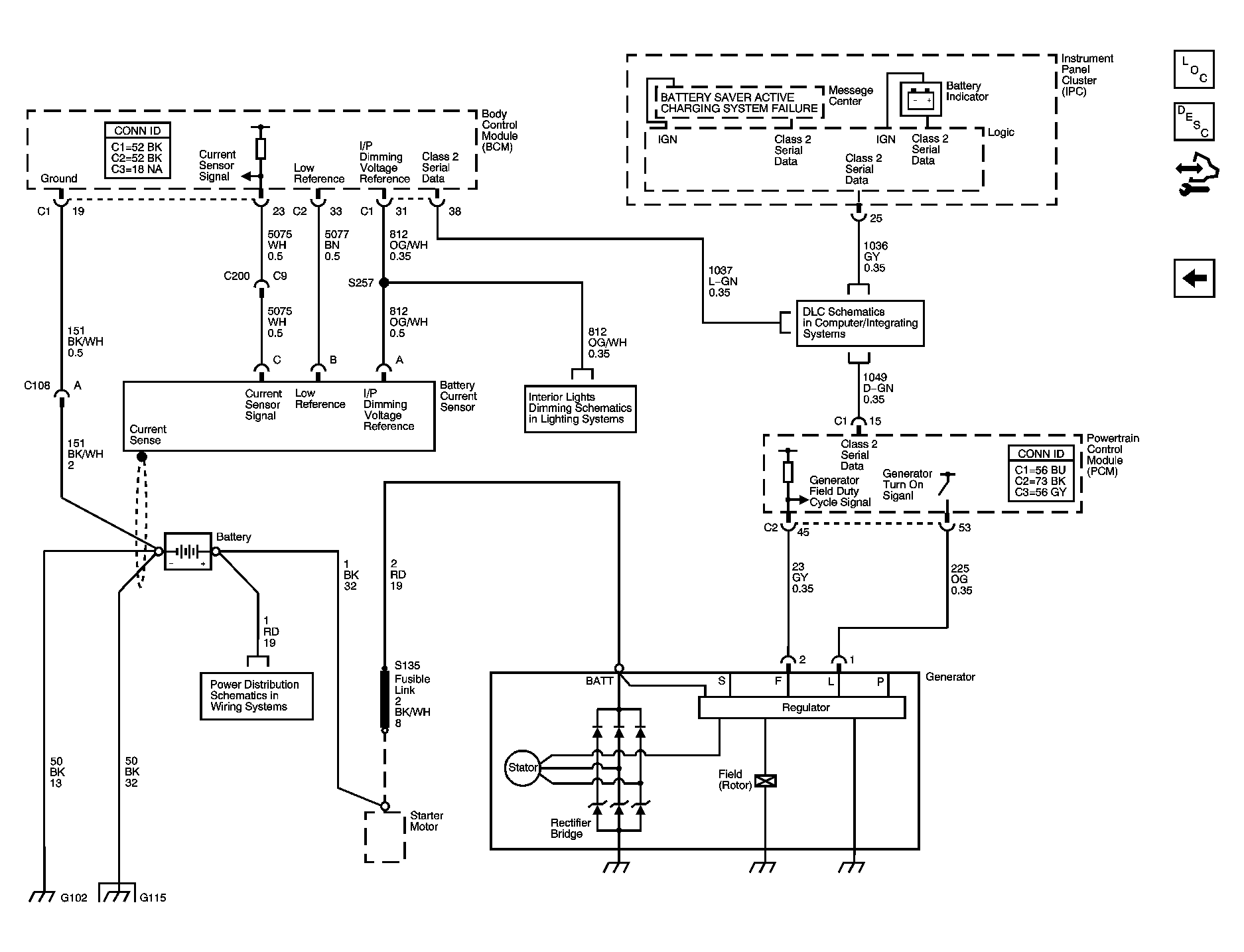

Fig 2: Charging Schematic

GM1486131

Courtesy of GENERAL MOTORS CORP.
