Wiper Switch: Locations

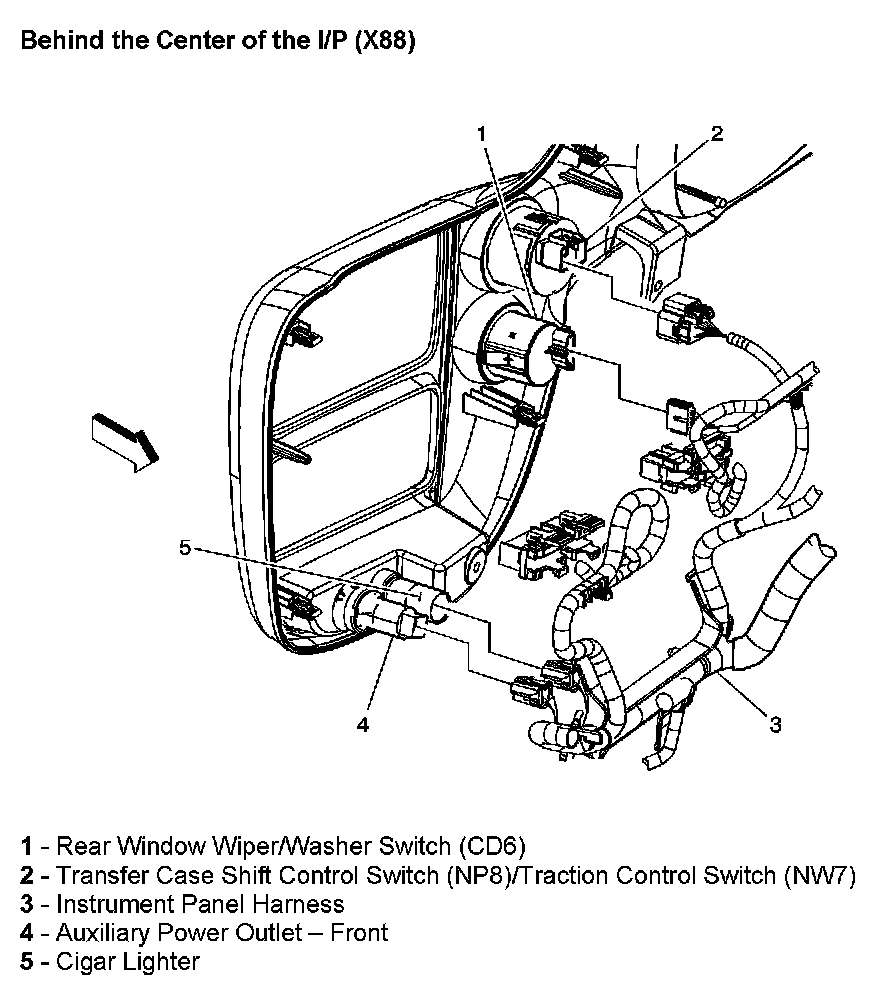

Behind The Center Of The I/P (X88):

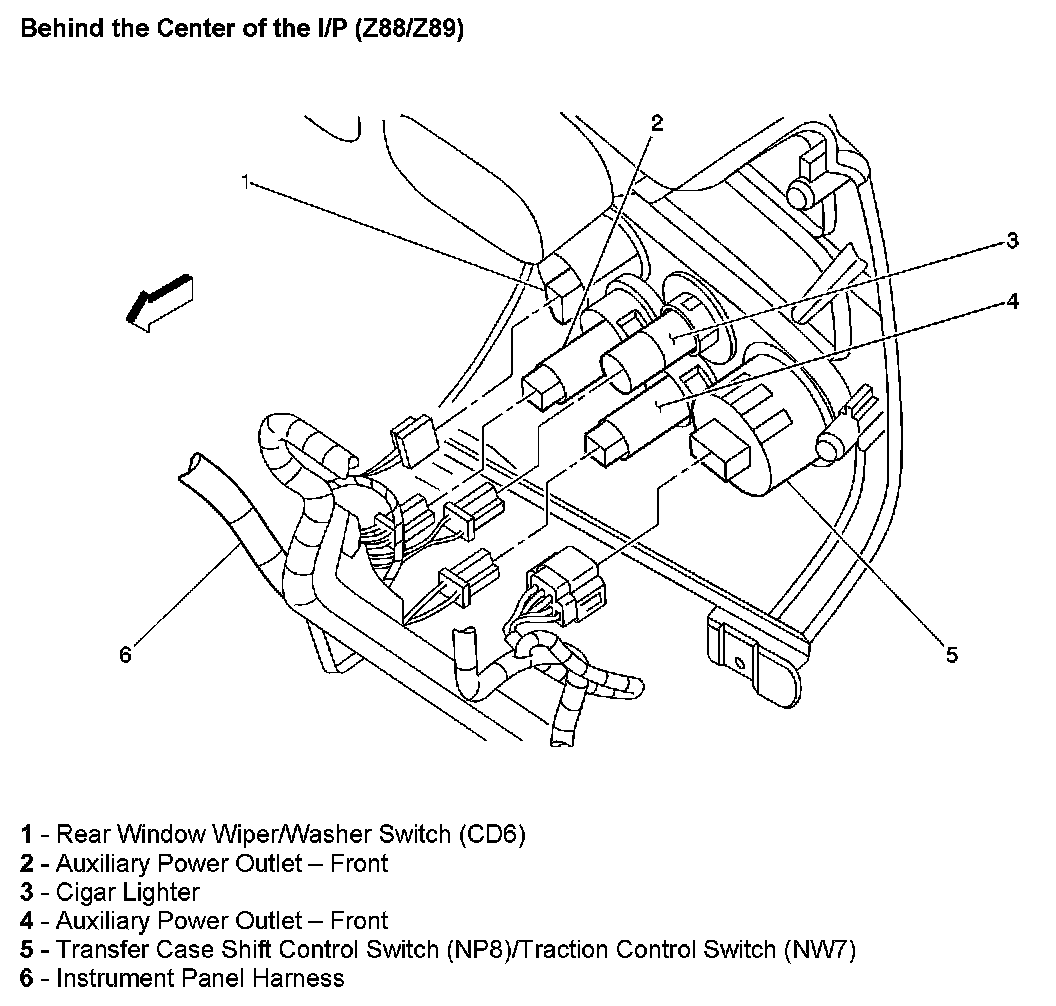

Behind The Center Of The I/P (Z88/Z89):

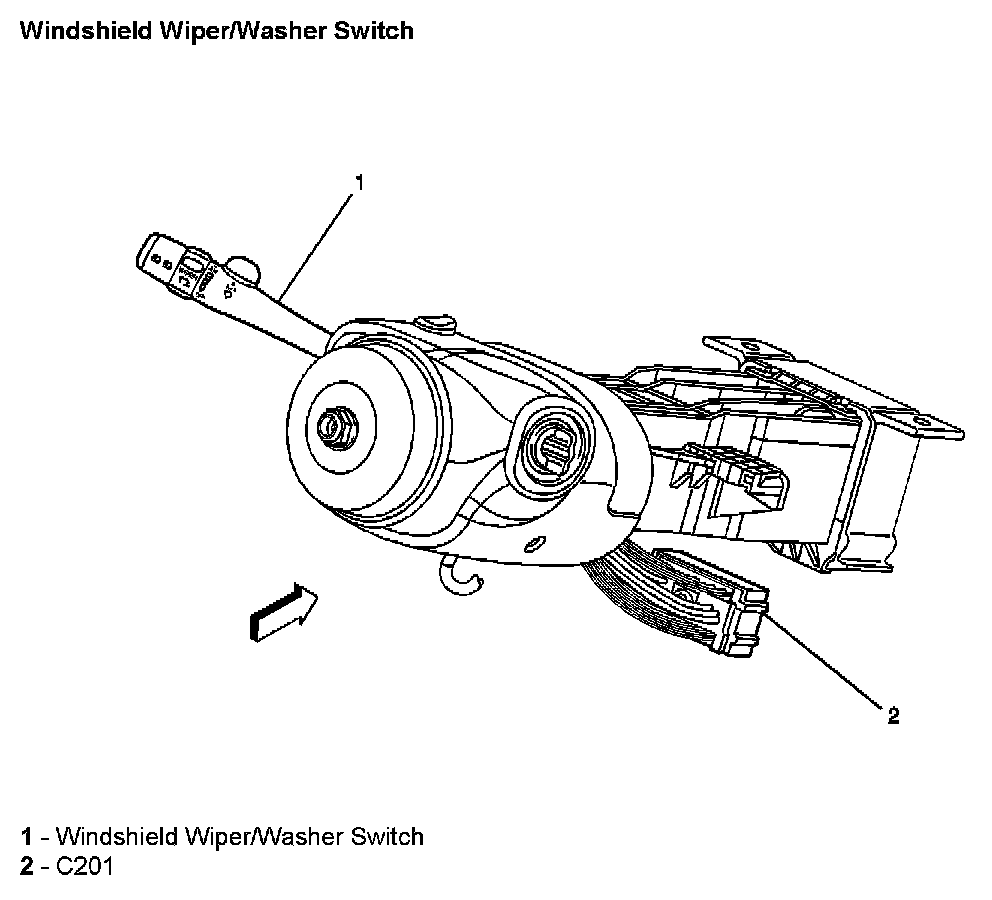

Windshield Wiper/Washer Switch:

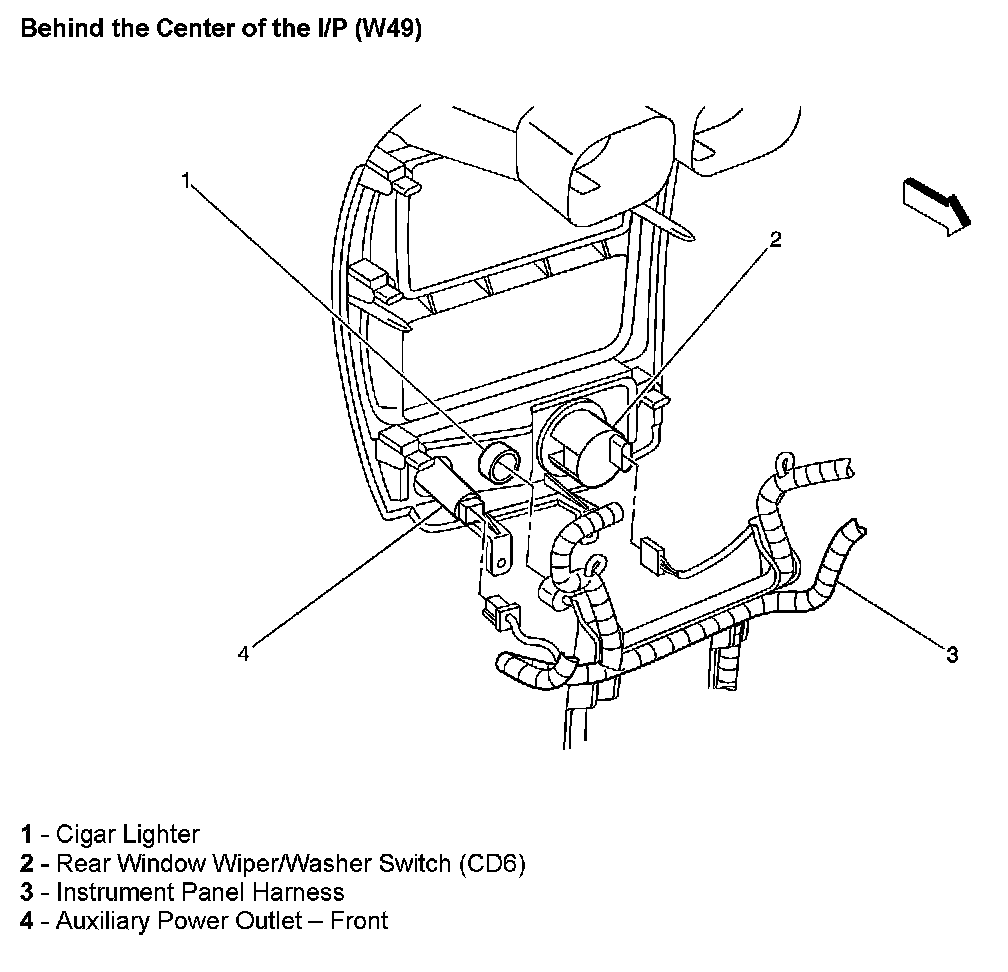

Behind The Center Of The I/P (W49):
