Transfer Case Control Schematics

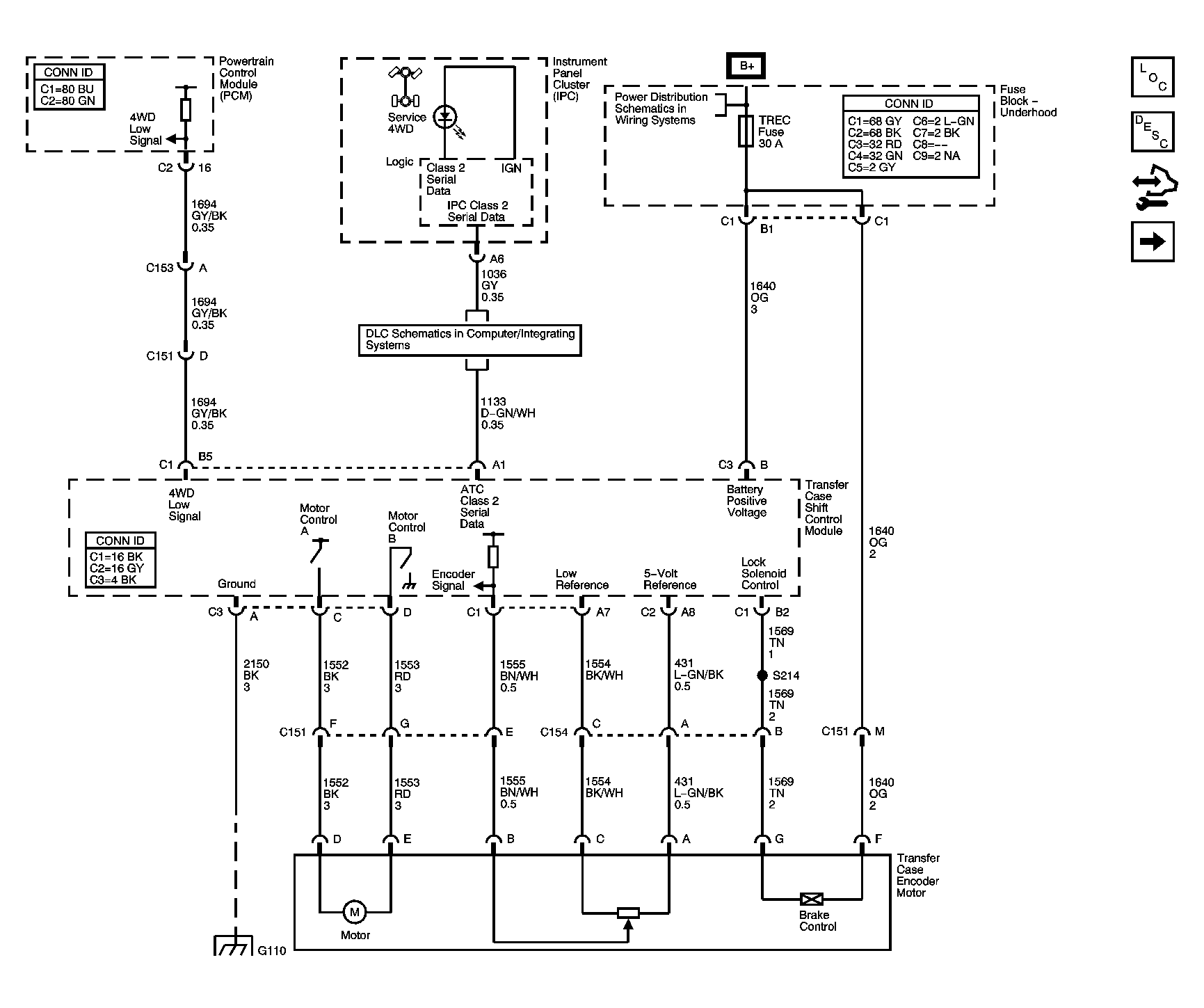

Fig 1: Power, Ground, Serial Data & Transfer Case Encoder Motor Schematic
GM1501713Courtesy of GENERAL MOTORS CORP.

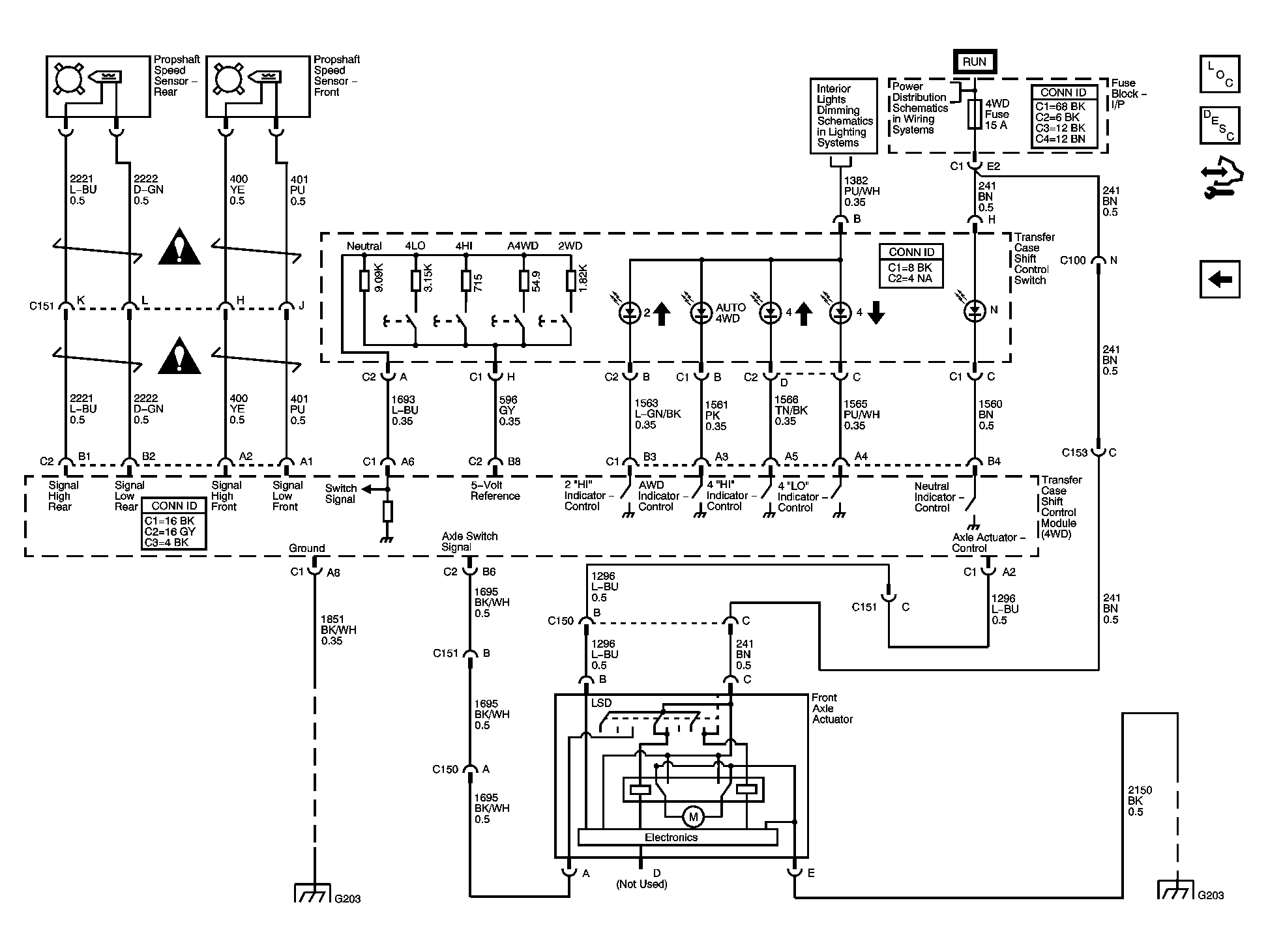

Fig 2: Propshaft Speed Sensors, Front Axle Actuator & Transfer Case Shift Control Switch Schematic
GM1501714Courtesy of GENERAL MOTORS CORP.
