Tow/Haul Switch/Indicator Always On or Inoperative: Notes

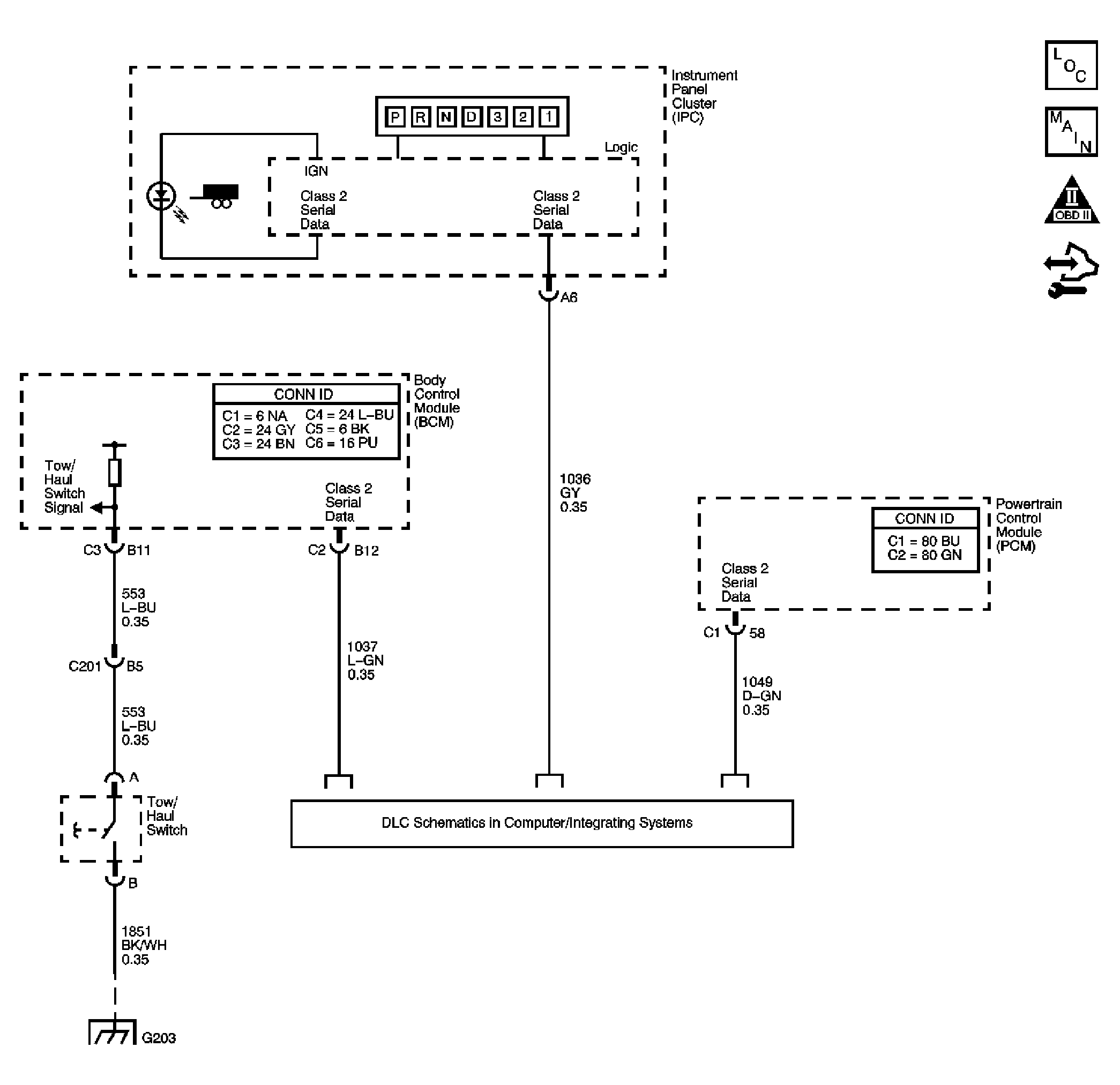

Fig 1: Tow/Haul Switch/Indicator Schematic

GM1558643

Courtesy of GENERAL MOTORS CORP.
