SIR Schematics

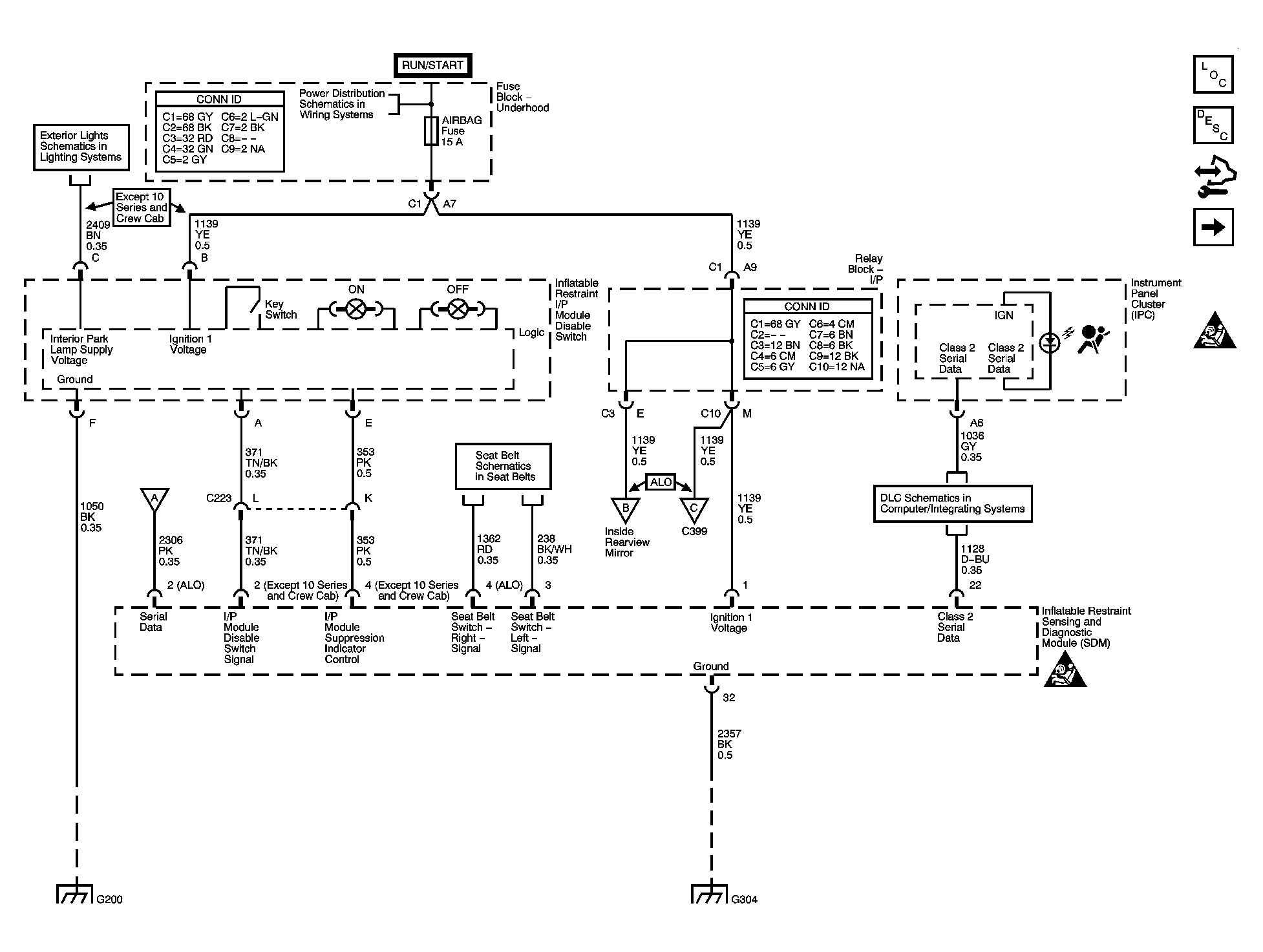

Fig 1: Power, Ground, Serial Data & Disable Switch Schematic
GM1538560Courtesy of GENERAL MOTORS CORP.

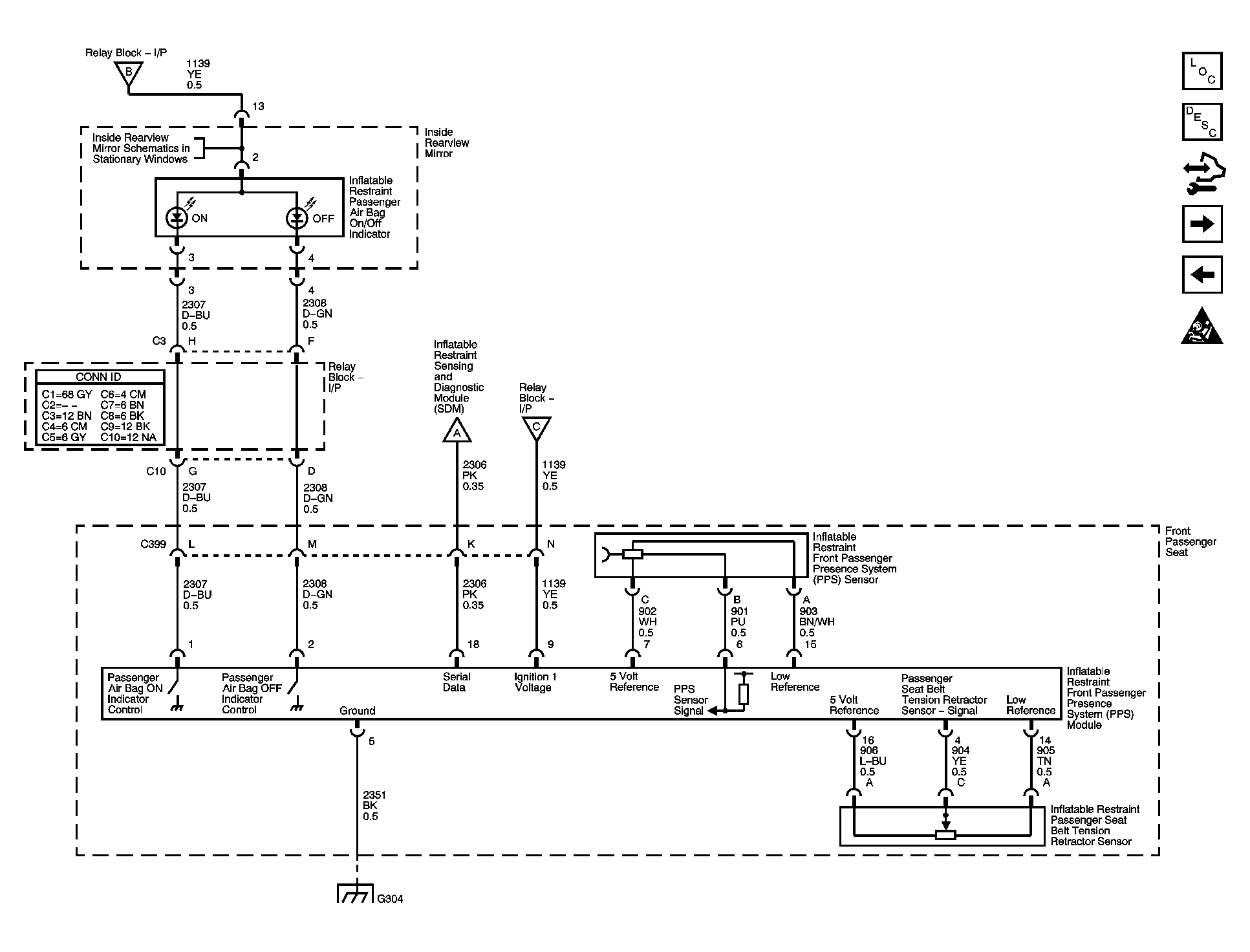

Fig 2: Passenger Presence Schematic
GM1538561Courtesy of GENERAL MOTORS CORP.

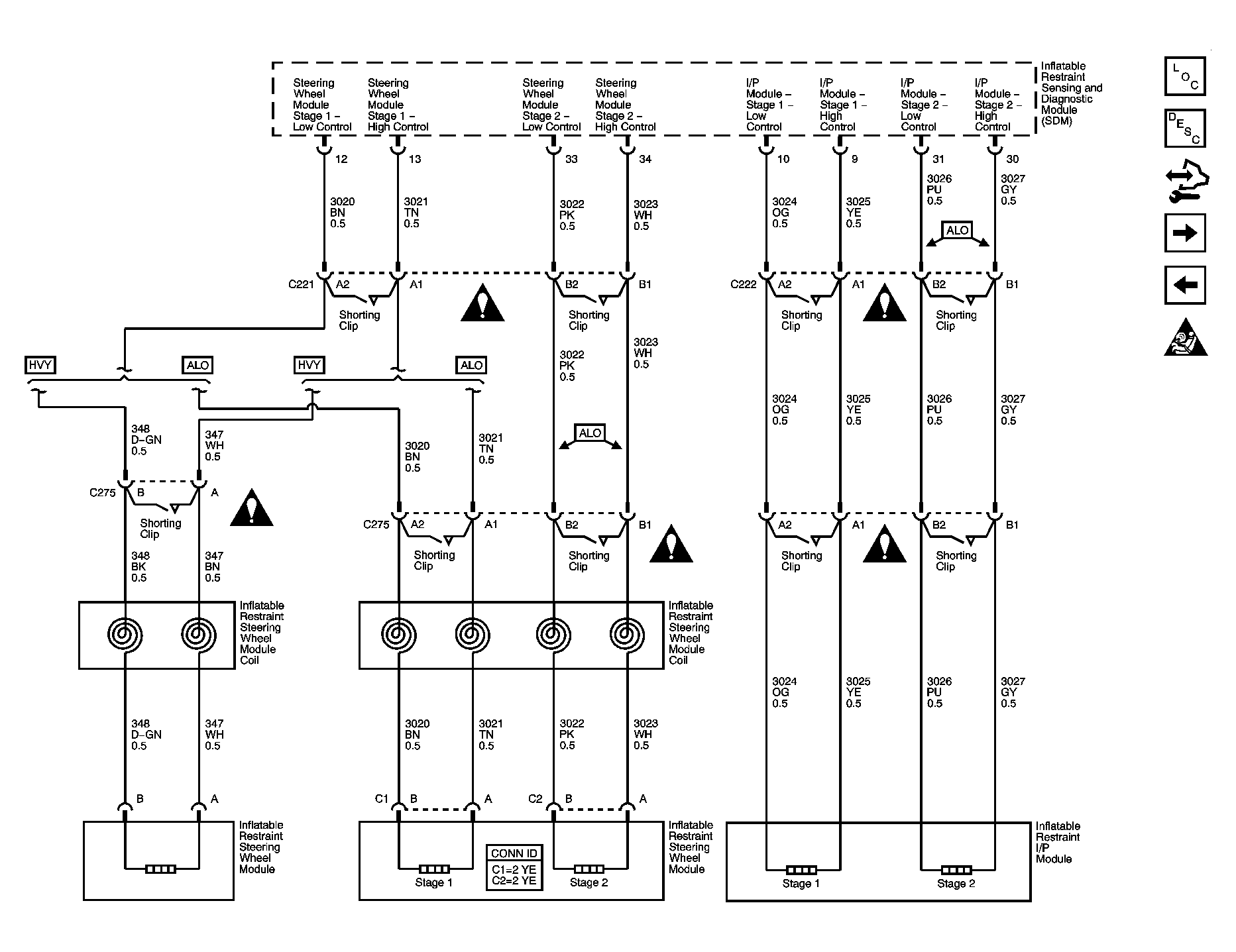

Fig 3: Driver & Passenger Air Bags Schematic
GM1538563Courtesy of GENERAL MOTORS CORP.

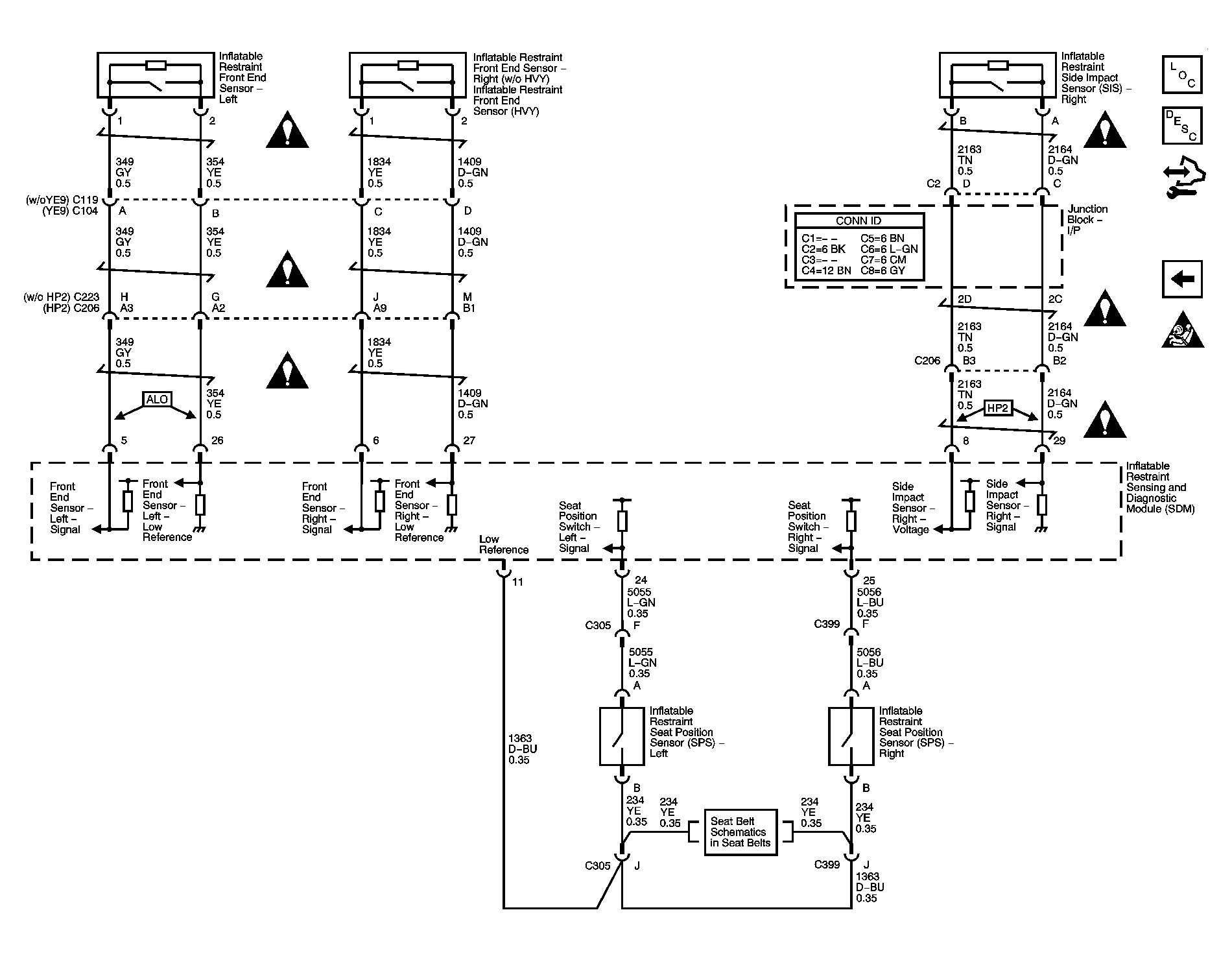

Fig 4: Front End, Side Impact Sensors & Seat Position Sensors Schematic
GM1538565Courtesy of GENERAL MOTORS CORP.
