HVAC Schematics

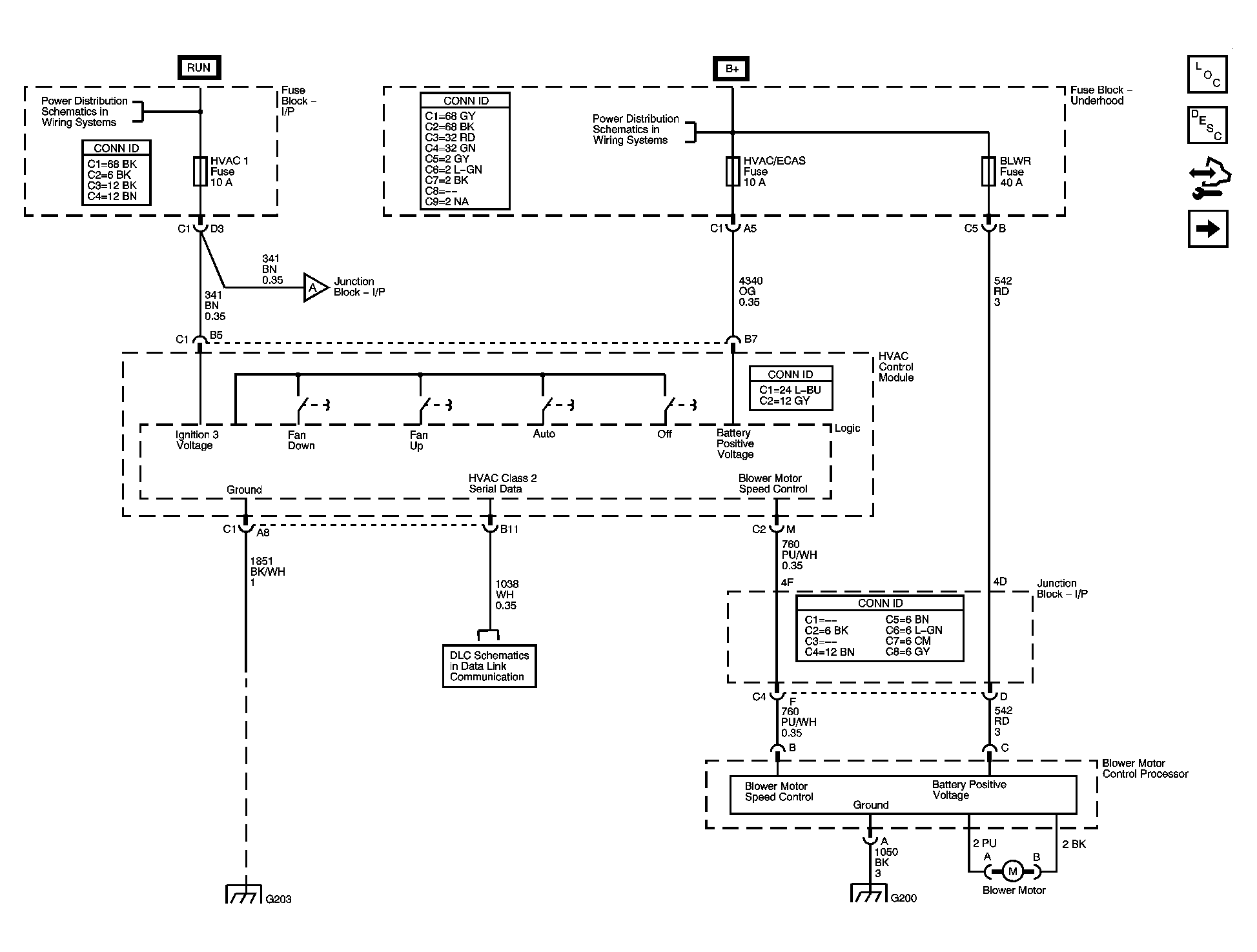

Fig 1: Power, Ground, Serial Data & Blower Motor Controls Schematic
GM1495067Courtesy of GENERAL MOTORS CORP.

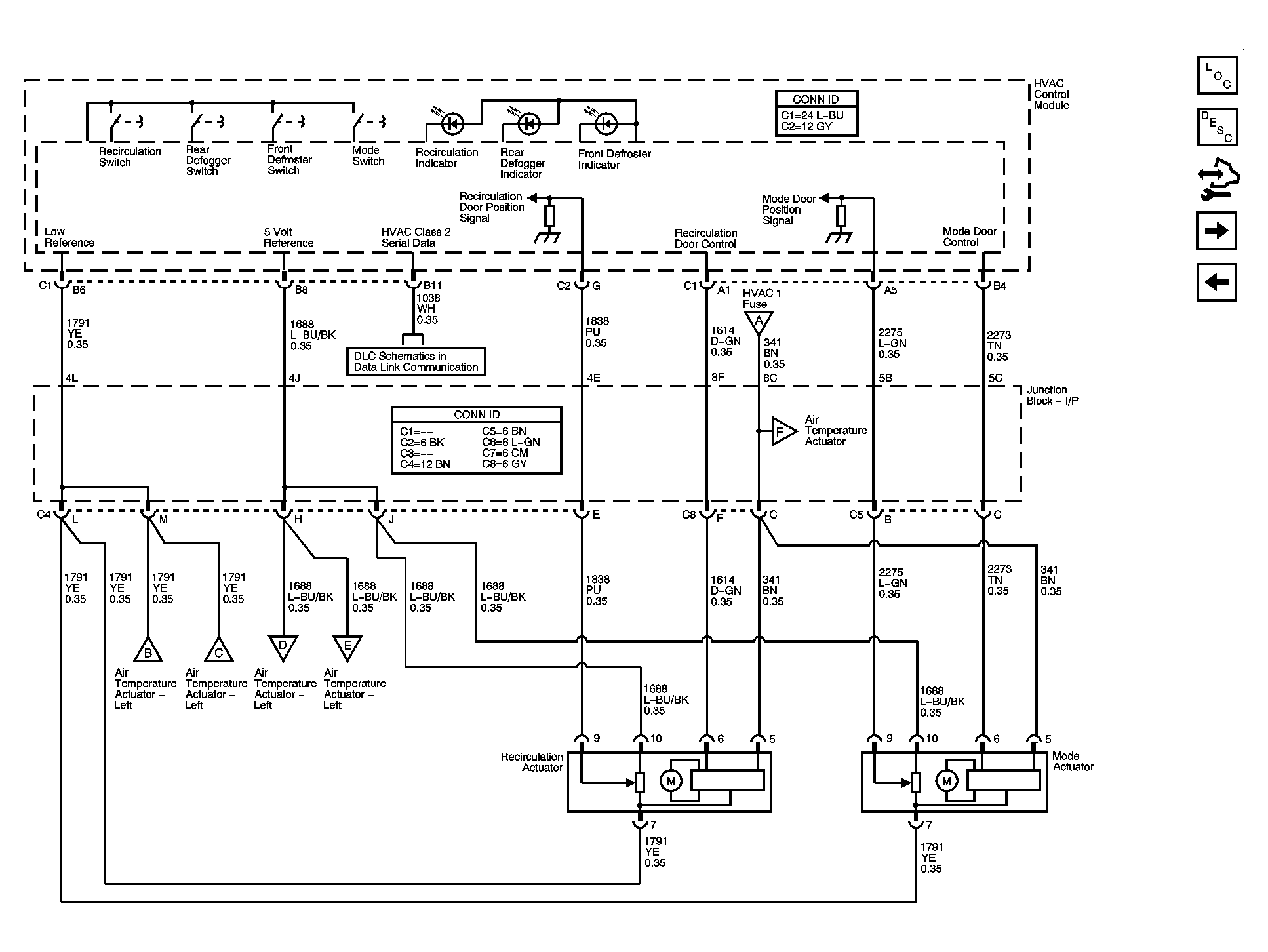

Fig 2: Mode and Recirculation Actuators Schematic
GM1495068Courtesy of GENERAL MOTORS CORP.

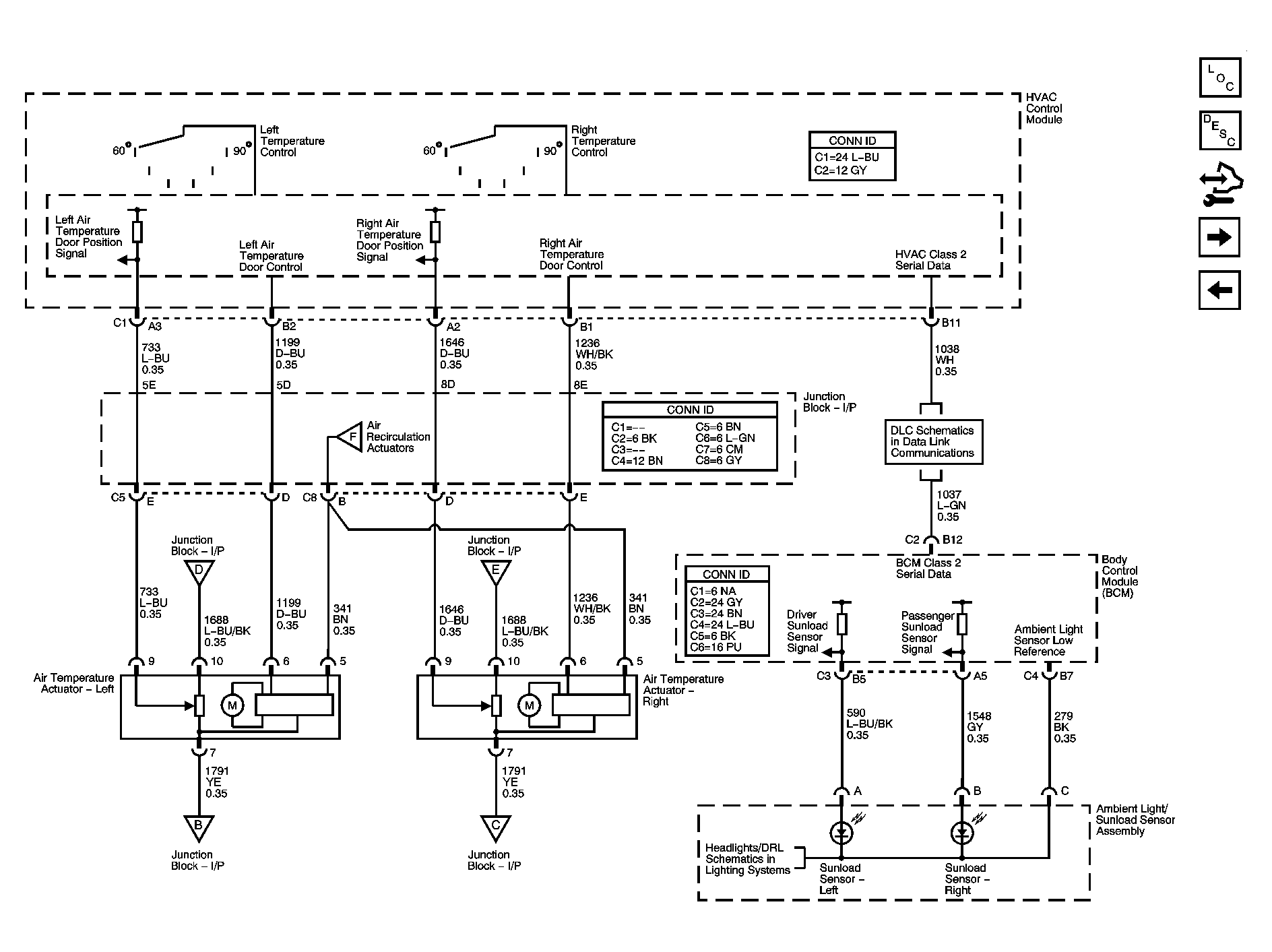

Fig 3: Air Temperature Actuators Left & Right Schematic
GM1495070Courtesy of GENERAL MOTORS CORP.
Fig 4: Air Temperature Sensors Schematic
GM1495071Courtesy of GENERAL MOTORS CORP.

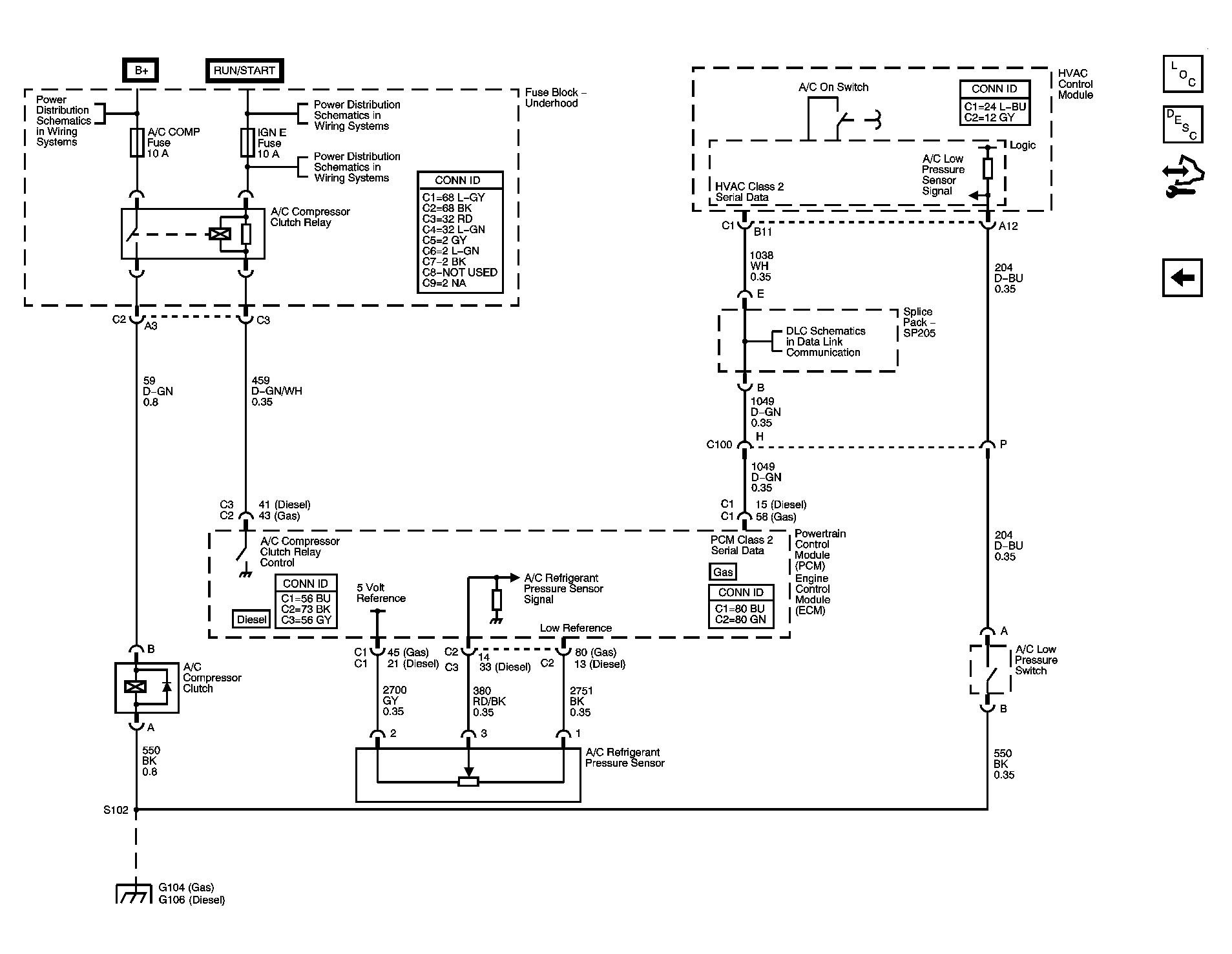

Fig 5: A/C Compressor Controls Schematic
GM1495072Courtesy of GENERAL MOTORS CORP.
