Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

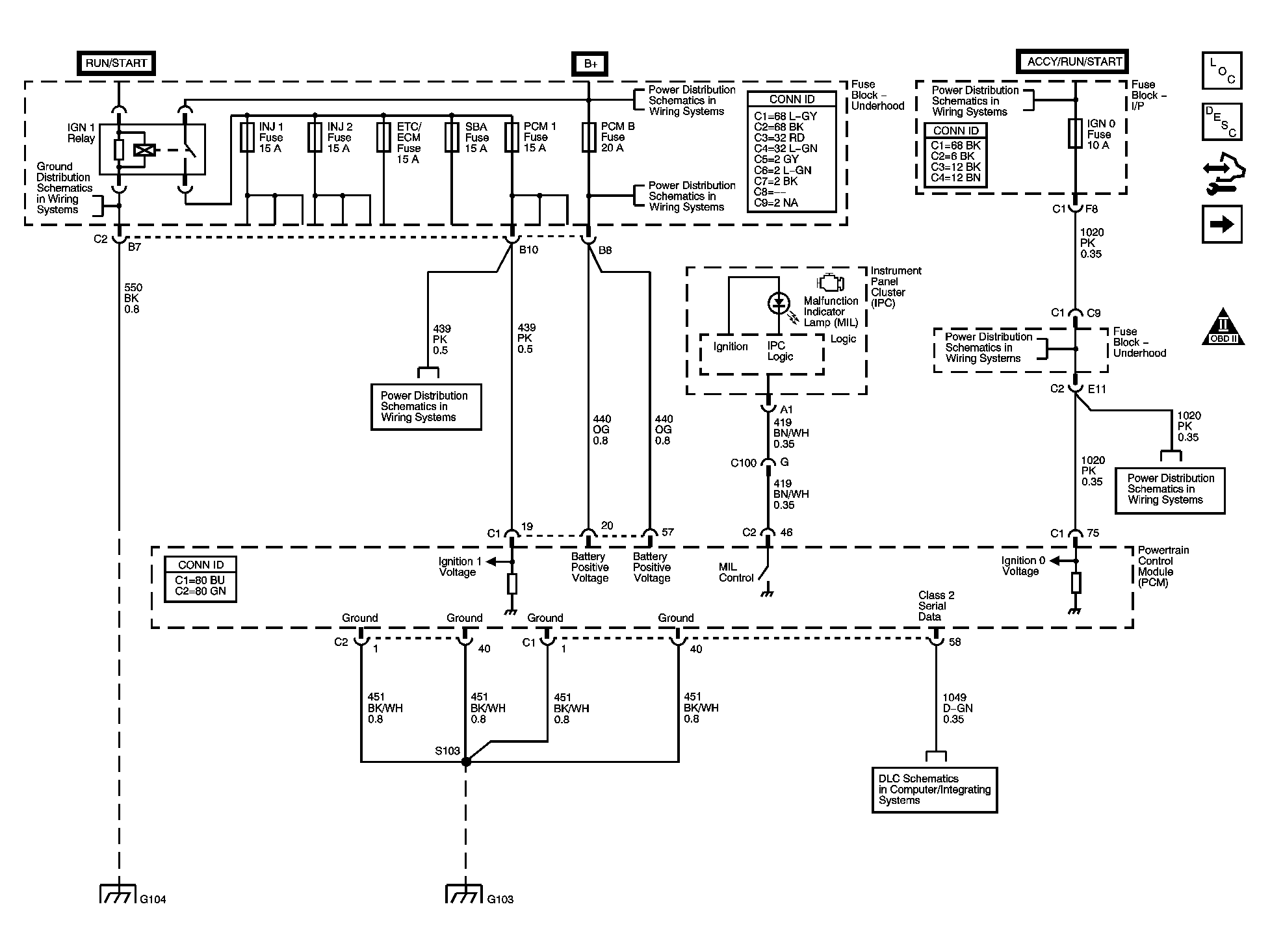

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors Schematic (5-Volt & Low References)

Courtesy of GENERAL MOTORS CORP.

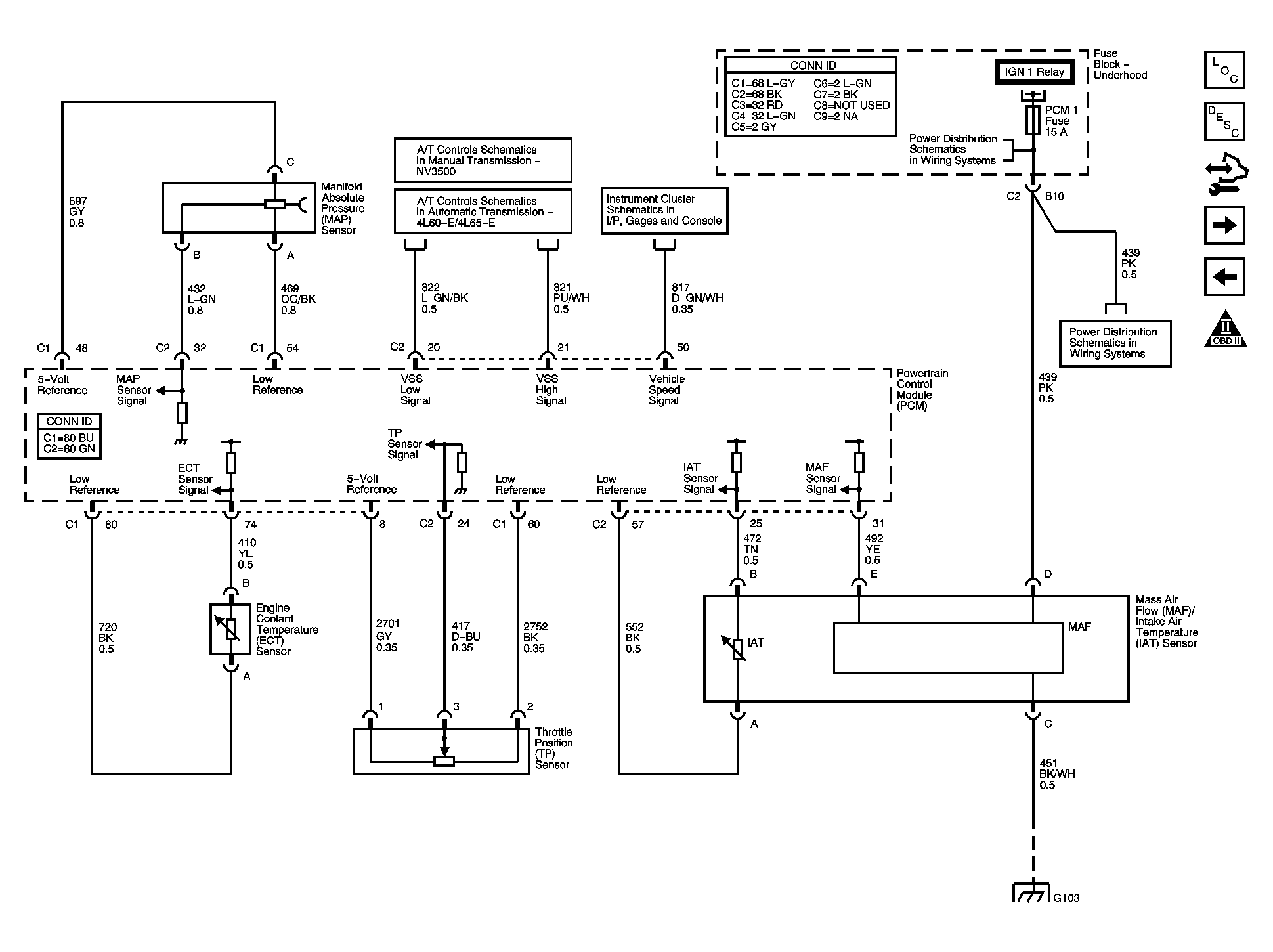

Fig 3: Engine Data Sensors Schematic (Pressure, Temperature, MAF & VSS)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Engine Data Sensors Schematic (Oxygen Sensors)

Courtesy of GENERAL MOTORS CORP.

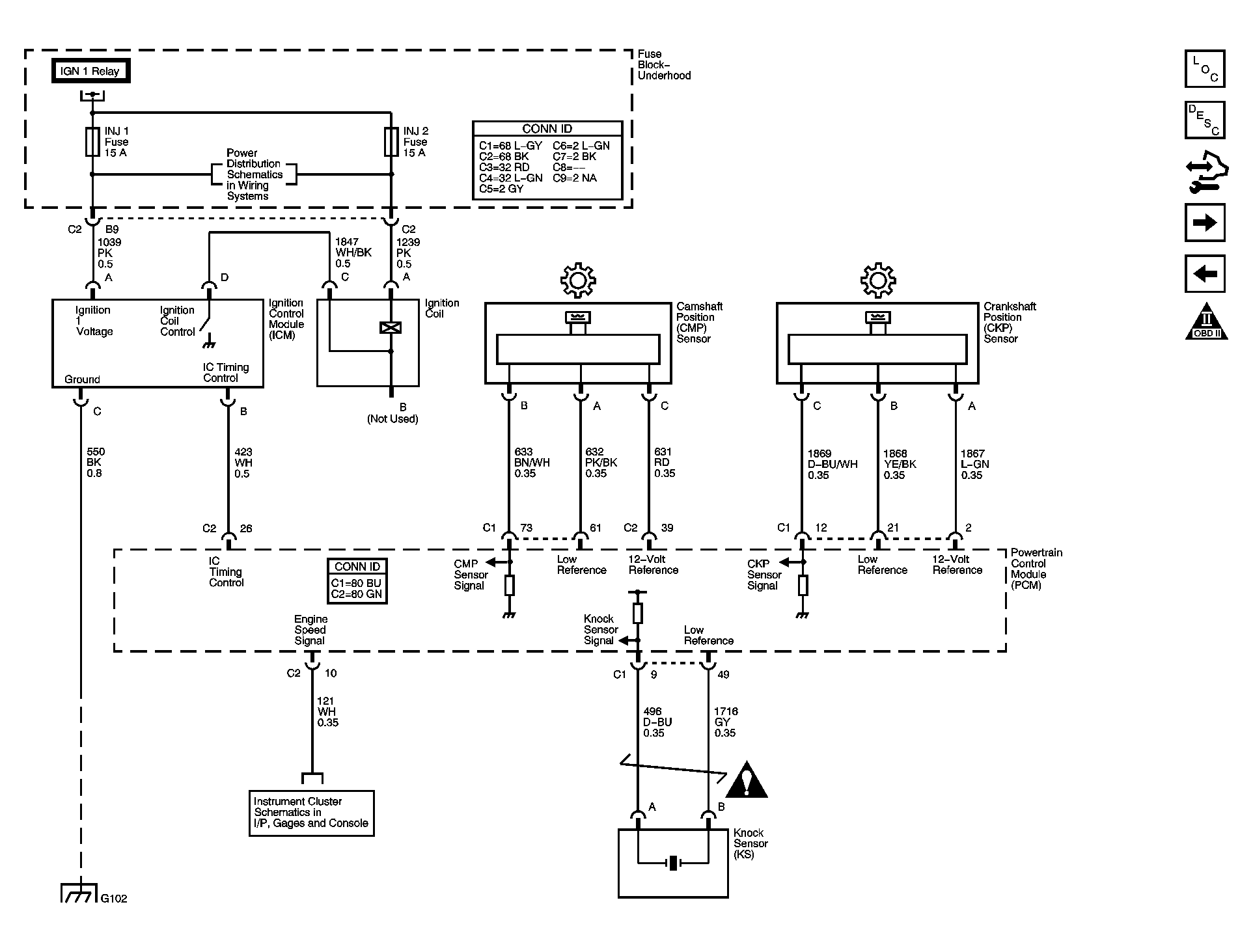

Fig 5: Ignition Controls Schematic

Courtesy of GENERAL MOTORS CORP.

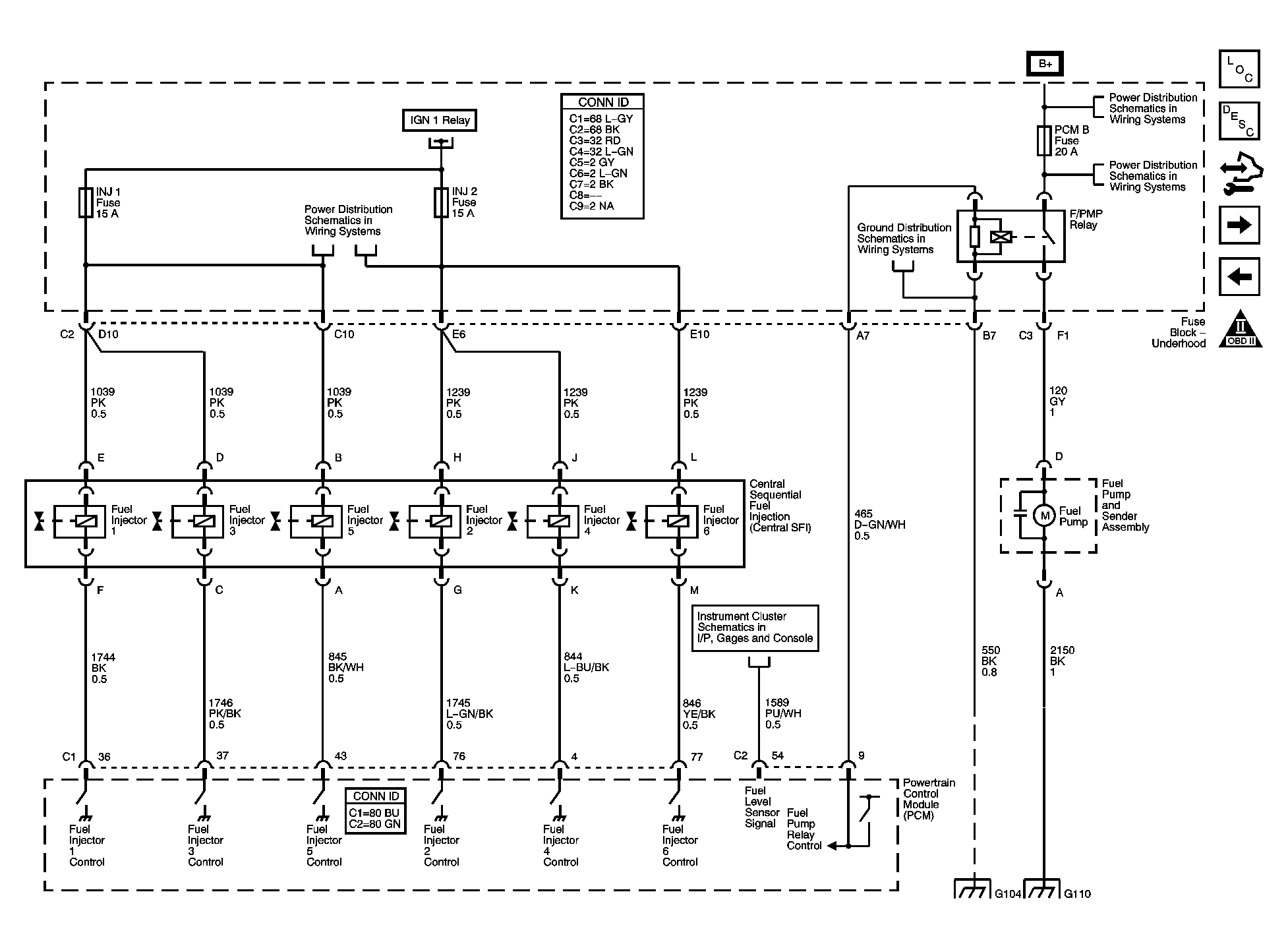

Fig 6: Fuel Controls Schematic (Fuel Pump Controls & Fuel Injectors)

Courtesy of GENERAL MOTORS CORP.

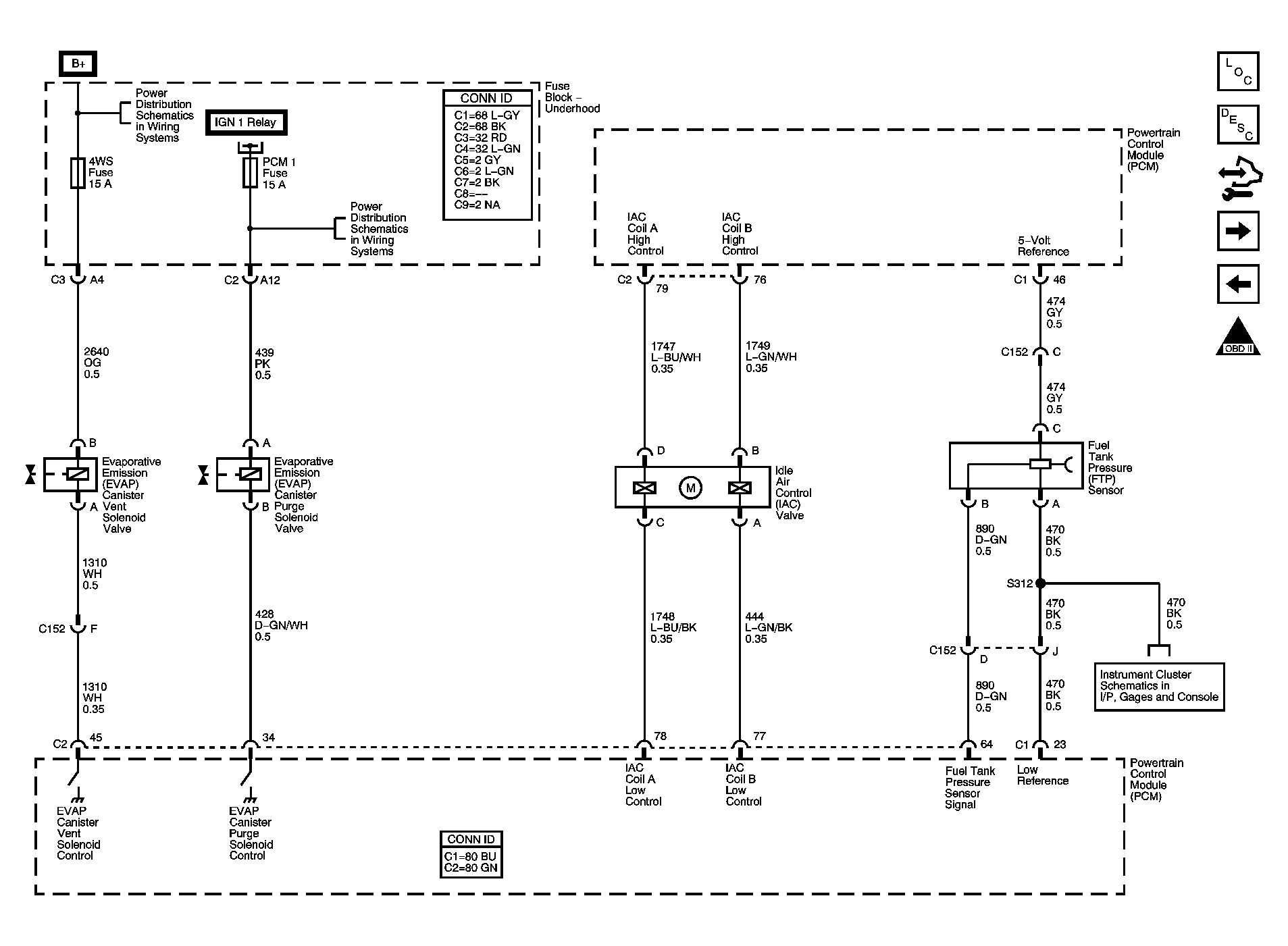

Fig 7: Fuel Controls Schematic (EVAP & Device Controls)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Transmission and Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
