Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

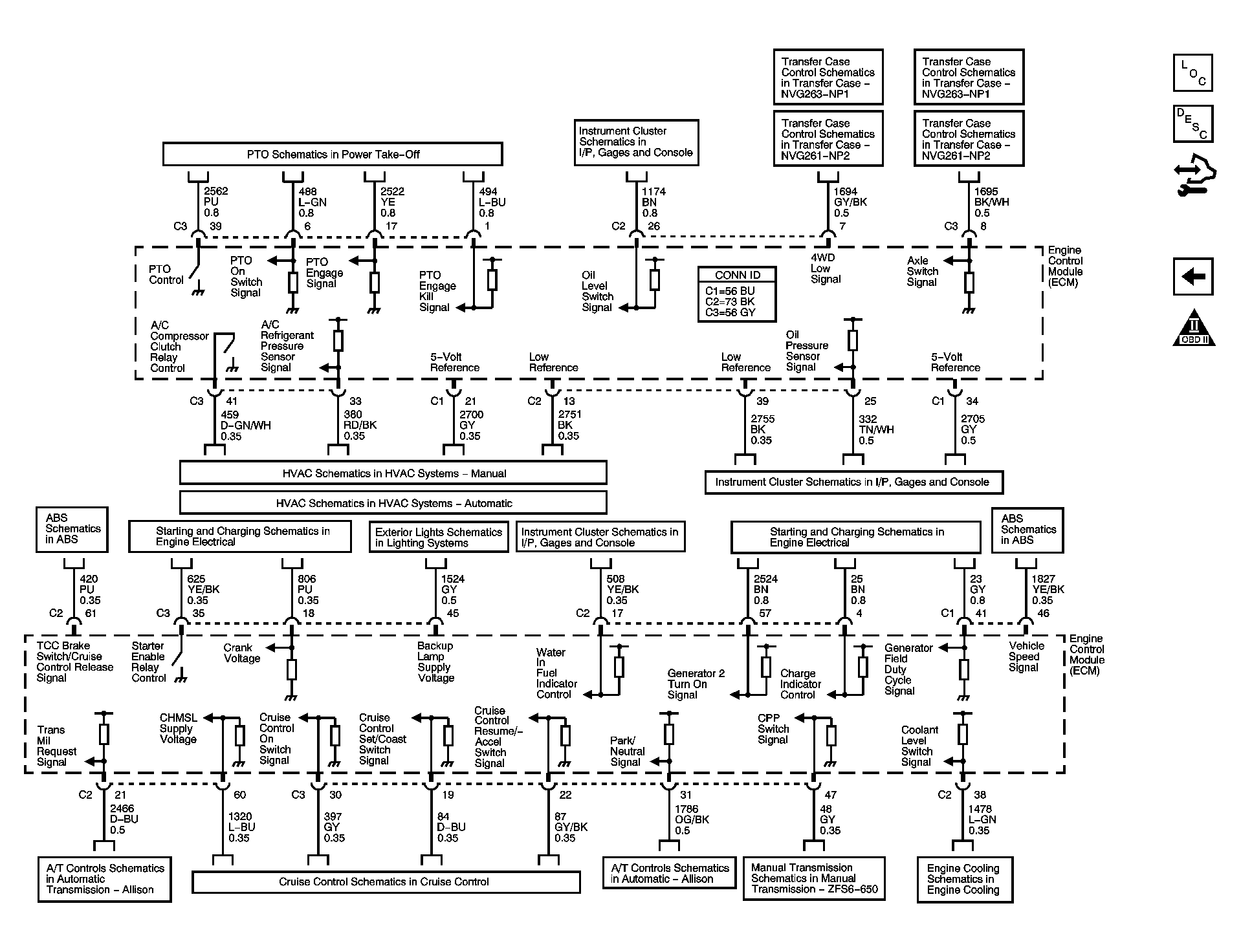

Fig 1: Module Power, Ground, Serial Data & MIL Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors Schematic (5-Volt & Low Reference)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Engine Data Sensors Schematic (Pressure, Temperature, MAF & VSS)

Courtesy of GENERAL MOTORS CORP.

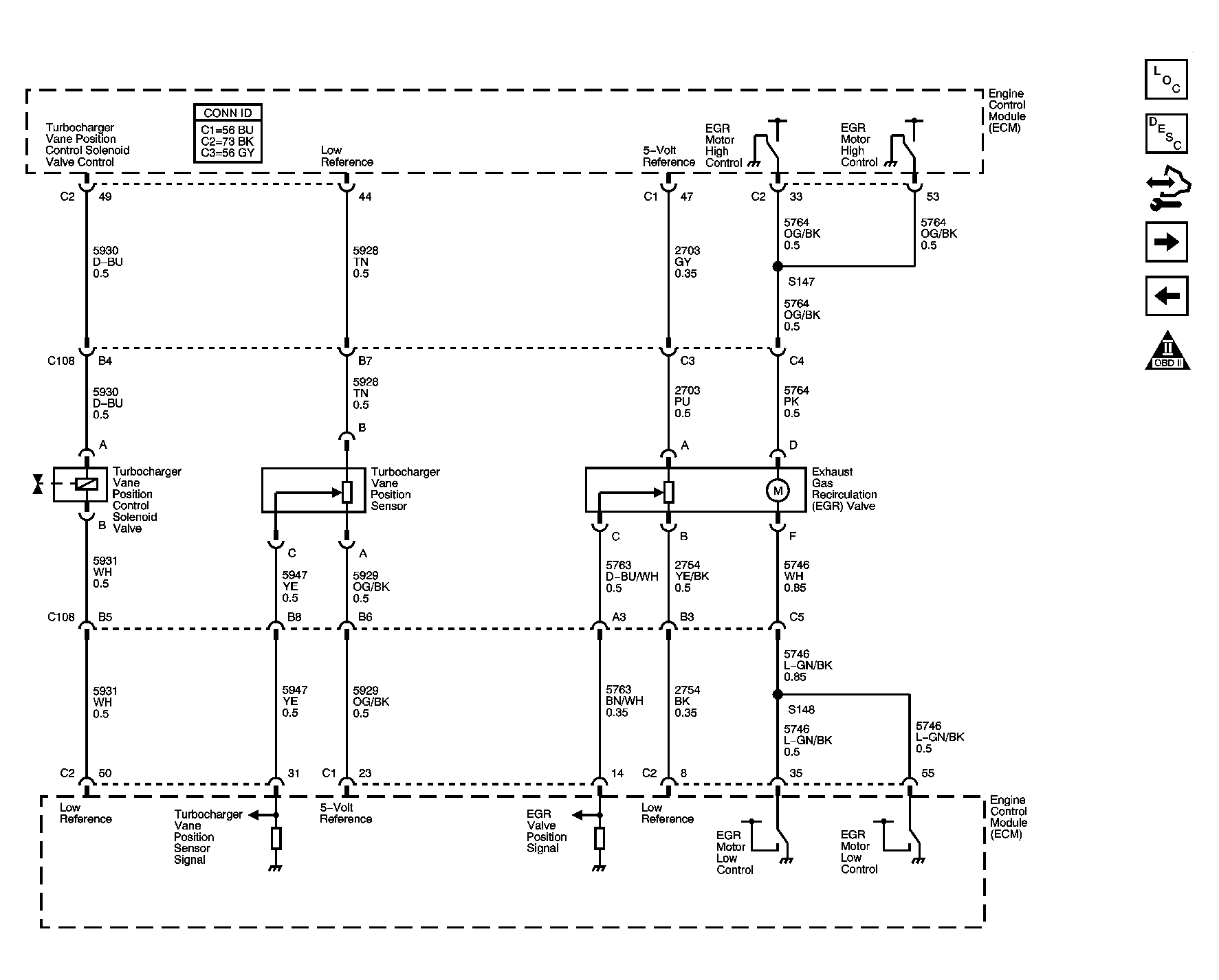

Fig 4: Engine Data Sensors Schematic (EGR & Turbocharger Controls)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Engine Data Sensors Schematic (Pedal Position & Injection Timing)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Engine Data Sensors Schematic (Glow Plug Controls)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Fuel Controls Schematic (Fuel Pump, Temperature & Pressure Controls)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Fuel Controls Schematic (Fuel Injectors)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
