Automatic Transmission Controls Schematics

WARNING: This page is about a different variant/trim than selected.

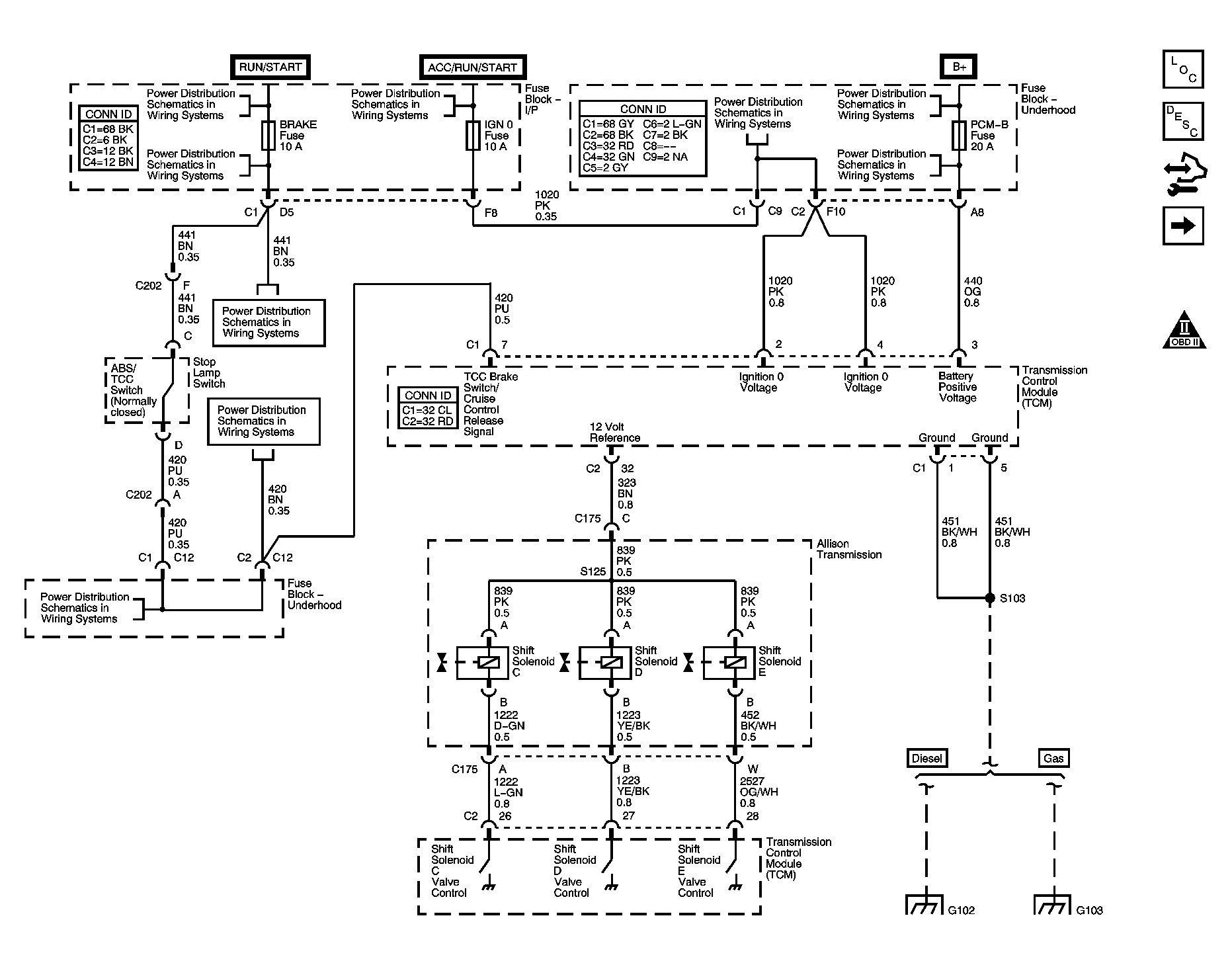

Fig 1: Power, Ground, Shift Solenoids & Brake Switch Schematic

Courtesy of GENERAL MOTORS CORP.

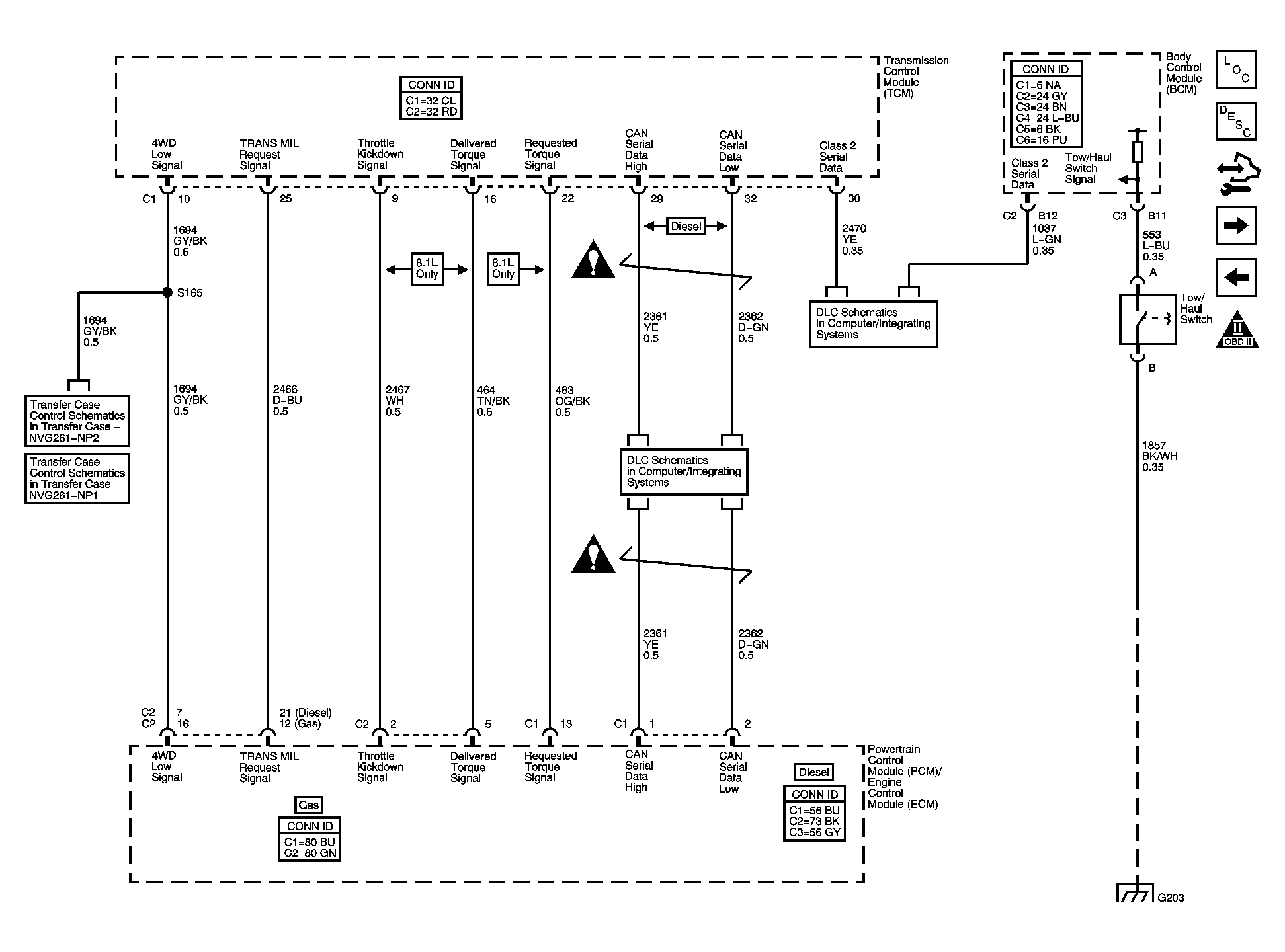

Fig 2: MIL Control, Serial Data, Torque Signals & Tow/Haul Switch Schematic

Courtesy of GENERAL MOTORS CORP.

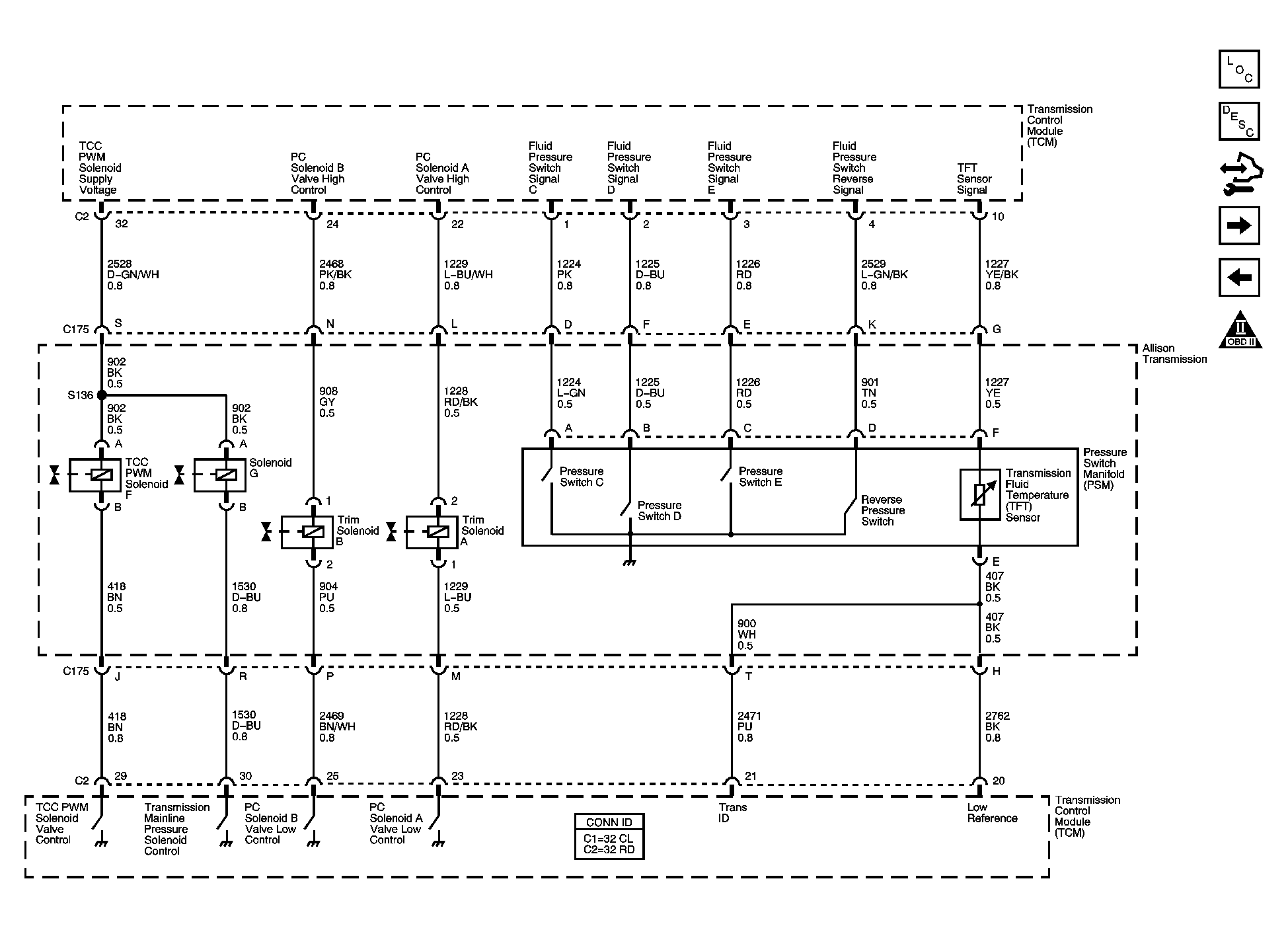

Fig 3: Fluid Pressure Switches, Trim Solenoids, TCC PWR Solenoid & TFT Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: PNP Switches & Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
