Starting and Charging Schematics (Except HP2)

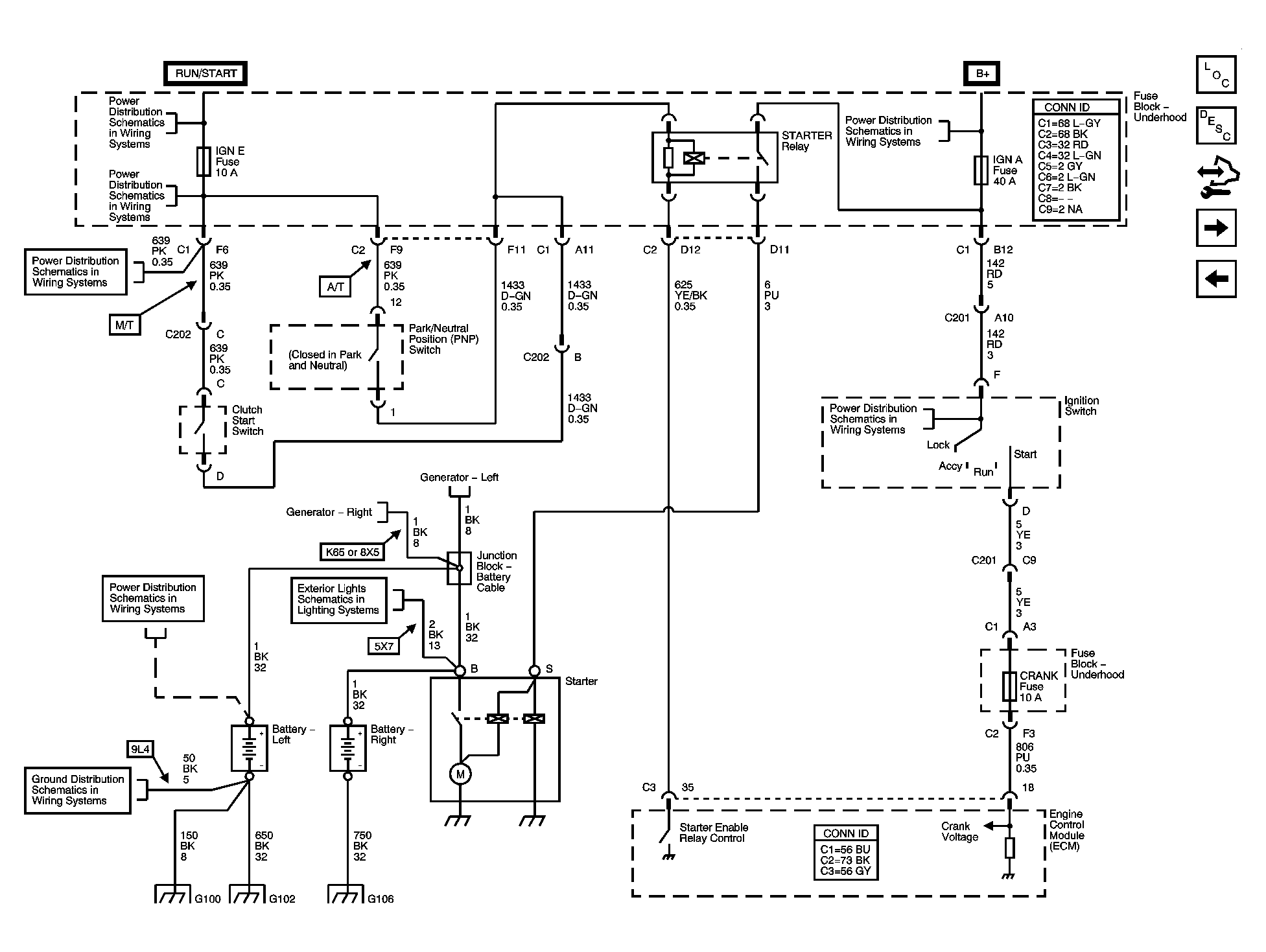

Fig 1: Starting Schematic - Gas

Courtesy of GENERAL MOTORS CORP.

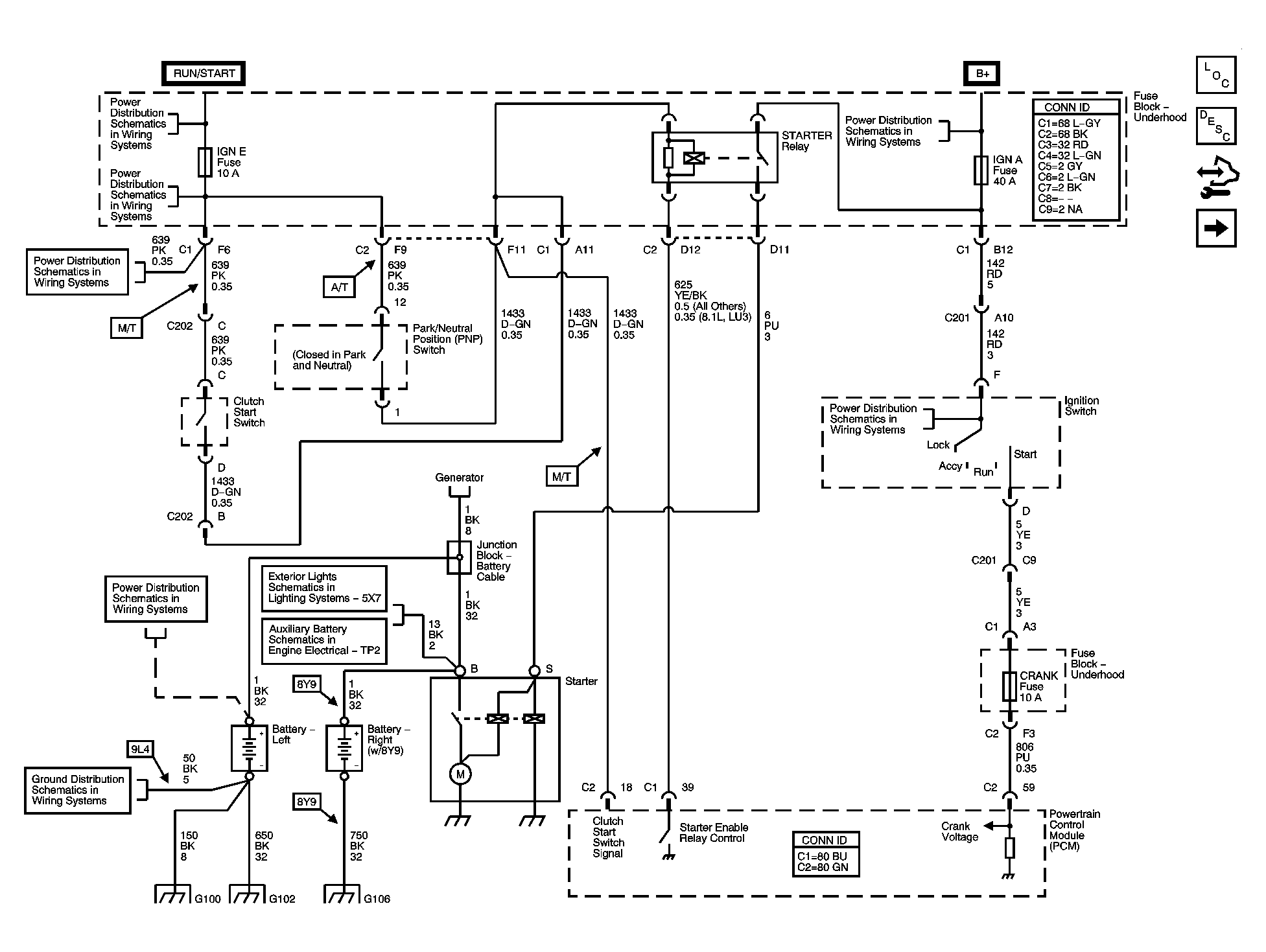

Fig 2: Starting Schematic - Diesel

Courtesy of GENERAL MOTORS CORP.

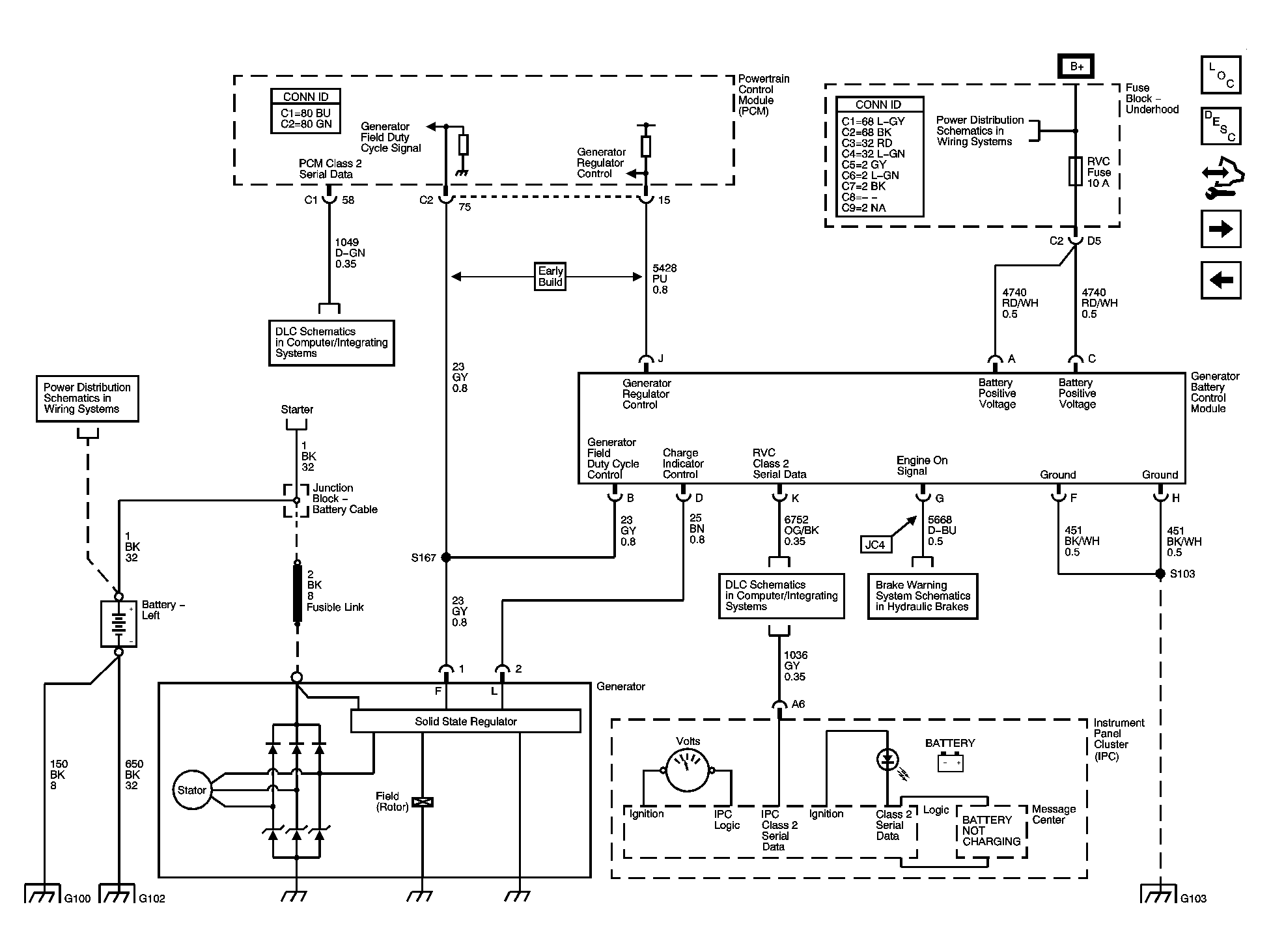

Fig 3: Charging Schematic - 20/30 Series & HP2

Courtesy of GENERAL MOTORS CORP.

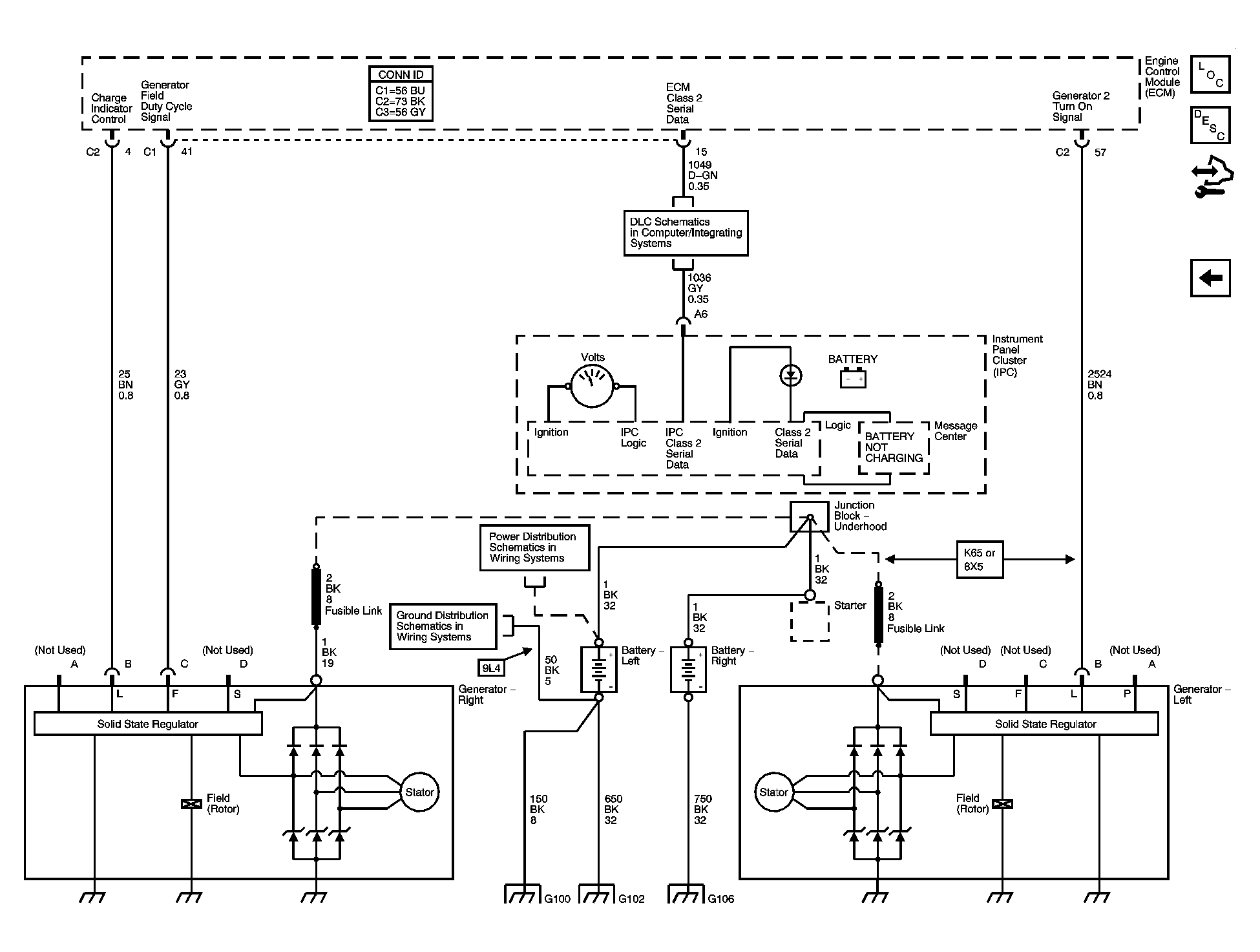

Fig 4: Charging Schematic - 10 Series (Except HP2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Charging Schematic - Diesel

Courtesy of GENERAL MOTORS CORP.
