Ground Distribution Schematics

Fig 1: G100, G101, and G102

Courtesy of GENERAL MOTORS CORP.

Fig 2: G103 - Gas

Courtesy of GENERAL MOTORS CORP.

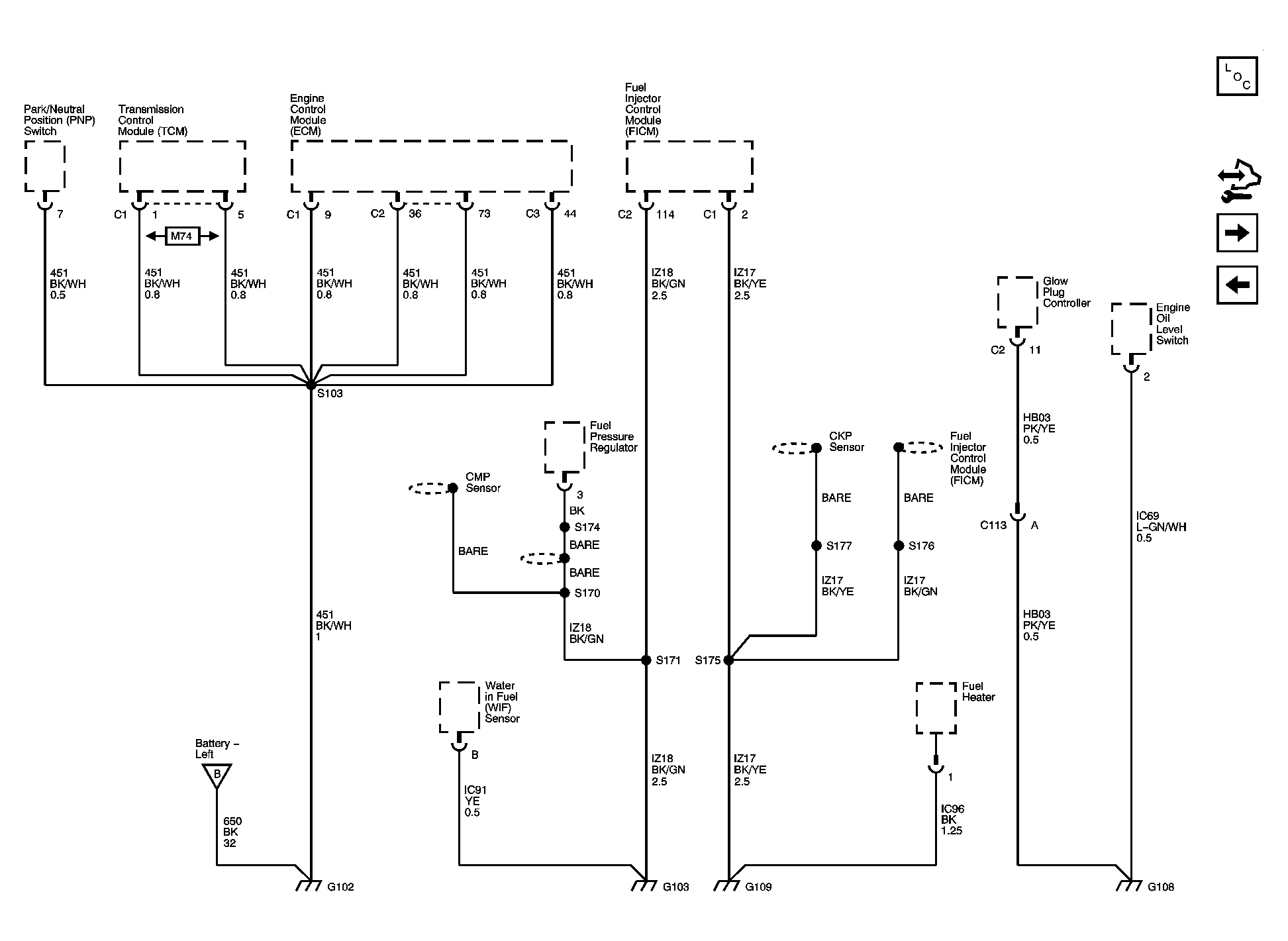

Fig 3: G102, G103, G108 and G109 - Diesel

Courtesy of GENERAL MOTORS CORP.

Fig 4: G104, G106, G107 and G110

Courtesy of GENERAL MOTORS CORP.

Fig 5: G115 and G200 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 6: G200 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 7: G203 - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 8: G203 - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 9: G302

Courtesy of GENERAL MOTORS CORP.

Fig 10: G304, G305, G306 and G390

Courtesy of GENERAL MOTORS CORP.

Fig 11: G401

Courtesy of GENERAL MOTORS CORP.

Fig 12: G403

Courtesy of GENERAL MOTORS CORP.

Fig 13: G120, G121, G122, G310, G311 and G405 (HP2)

Courtesy of GENERAL MOTORS CORP.
