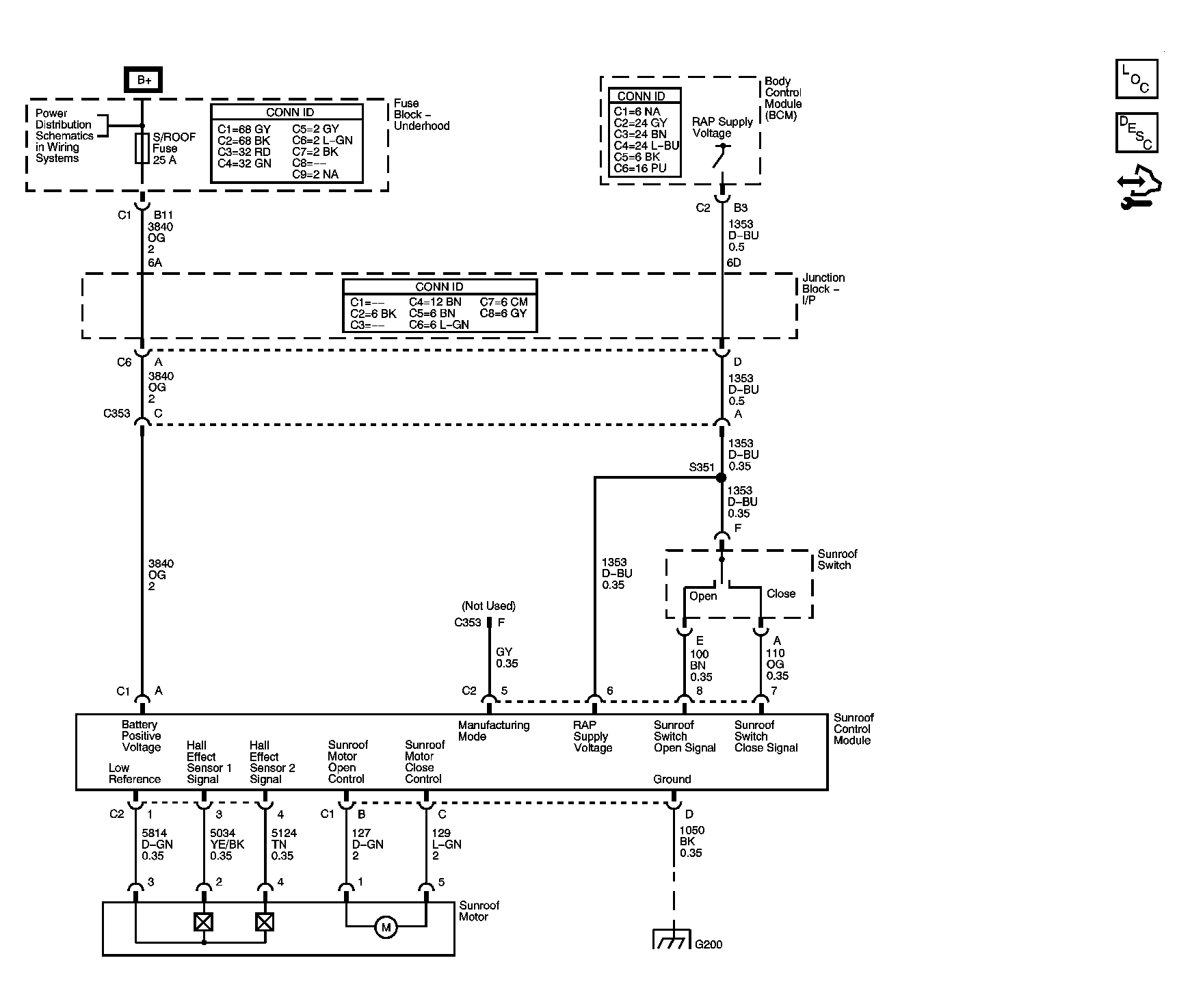

Home >> Chevrolet >> 2005 >> Silverado 1500 HD, 4WD >> Repair and Diagnosis >> Body & Frame >> Sun Roof/T-Top/Convertible Top >> Sunroof System & Luggage Carrier >> Schematic and Routing Diagrams >> Power Sunroof Schematics
